Whirlpool

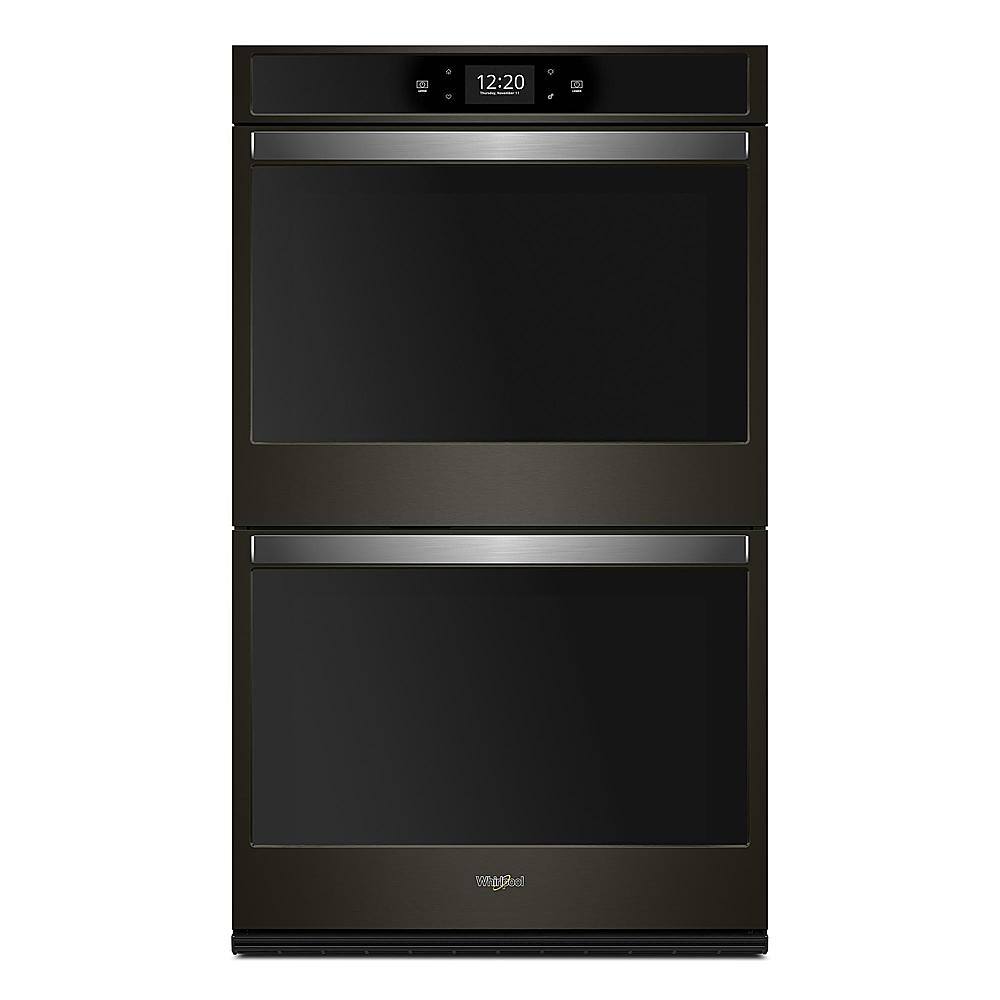

Whirlpool - 30" Built-In Electric Convection Double Wall Oven with Air Fry when Connected - Black Stainless Steel

Model: WOD77EC0HV
SKU: 6181299
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Black stainless steel
    • Product Height: 51 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 26 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
    • Depth With Handle: 26 7/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
    • Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
    • Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Works With: Google Home, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
  • General
    • Brand: Whirlpool
    • Model Number: WOD77EC0HV
    • Product Name: 30" Built-In Electric Convection Double Wall Oven with Air Fry when Connected
    • Color: Black Stainless Steel
    • Color Finish: Black stainless steel
  • Dimensions
    • Product Height: 51 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 26 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
    • Depth With Handle: 26 7/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
    • Depth With Door 90 Degrees Open: 42 3/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
    • Product Weight: 258 pounds (The out of box weight of the item.)
  • Cut-Out Dimensions
    • Cut-Out Height: 50 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Capacity
    • Oven 1 Capacity: 5 cubic feet
    • Oven 2 Capacity: 5 cubic feet
  • Features
    • Oven Type: Double wall oven
    • Oven Power Source: Electric
    • Fingerprint Resistant: true
    • Auto Shut-Off: true (Feature automatically turns off the product.)
    • Control Type: Touchscreen
    • Clock Display: true
    • Lock Type: Self-cleaning mode lock
    • Oven Light: true
    • Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
  • Design
    • Display Type: LCD
  • Functions
    • Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
    • Delay Clean Option: true
    • Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
    • Keep Warm Setting: true
    • Timer: true
    • Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
    • Rapid Preheat: true
    • Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
  • Oven 1 Specification
    • Oven 1 Location: Lower
    • Oven 1 Interior Height: 18 inches
    • Oven 1 Interior Depth: 19 inches
    • Oven 1 Cavity Material: Porcelain
    • Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
    • Oven 1 Window: true
    • Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
    • Number of Oven 1 Rack Positions: 3
    • Number of Oven 1 Racks: 2
    • Oven 1 Bake Element: 2800 watts
  • Oven 2 Specification
    • Oven 2 Location: Upper
    • Oven 2 Interior Height: 18 inches
    • Oven 2 Interior Depth: 19 inches
    • Oven 2 Cavity Material: Porcelain
    • Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
    • Oven 2 Window: true
    • Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
    • Number of Oven 2 Rack Positions: 3
    • Number of Oven 2 Racks: 2
    • Oven 2 Bake Element: 2800 watts
    • Oven 2 Broil Element: 3600 watts
  • Electrical Specification
    • Amperage: 40 amperes (Strength of electrical current.)
    • Voltage: 230 volts (Amount of power needed to support an electrical current.)
    • Wattage: 8000 watts (Measurement of electrical power.)
  • Included
    • Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
  • Certifications Listings & Approvals
    • ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
    • Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025.  Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.whirlpool.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.whirlpool.com/regulatory.html.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
  • Warranty
    • Warranty - Parts: 1 year
    • Warranty - Labor: 1 year
  • Compatibility
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Works With: Google Home, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
  • Other
    • UPC: 883049444703

Get the right settings every time with this smart self-cleaning double wall oven. Use Scan-to-Cook technology to start cooking frozen foods in the built-in wall oven using your smartphone or tablet. Because most days every second counts, the touchscreen provides instant access to the settings your family uses most.

  • Automatic Feature Updates: Select Whirlpool Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released.
  • Voice control with a compatible voice-enabled device (U.S. only.): Control your kitchen no matter what you’ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device. (Appliance must be set to remote enable. WiFi & App Required.
  • Scan-to-Cook Technology: Get the right settings every time. Scan a frozen food barcode with your smartphone or tablet and send recommended or customized cooking instructions straight to your oven for dinner done the way your family wants it.
  • Frozen Bake Technology: Skip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.
  • Multi-Step Cooking: Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once.

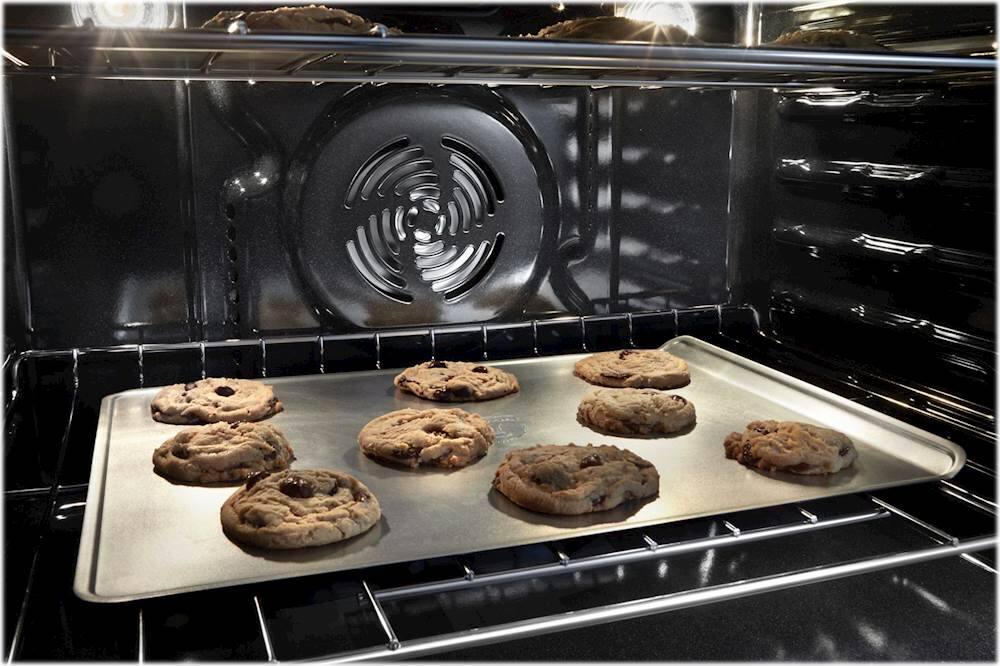

  • True Convection Cooking: Cook foods faster with the addition of a third element plus a fan that distributes hot air evenly over, under and around food so dinner is ready when they are.
  • Convection Conversion: Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.
  • Steam Clean option: Clean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.

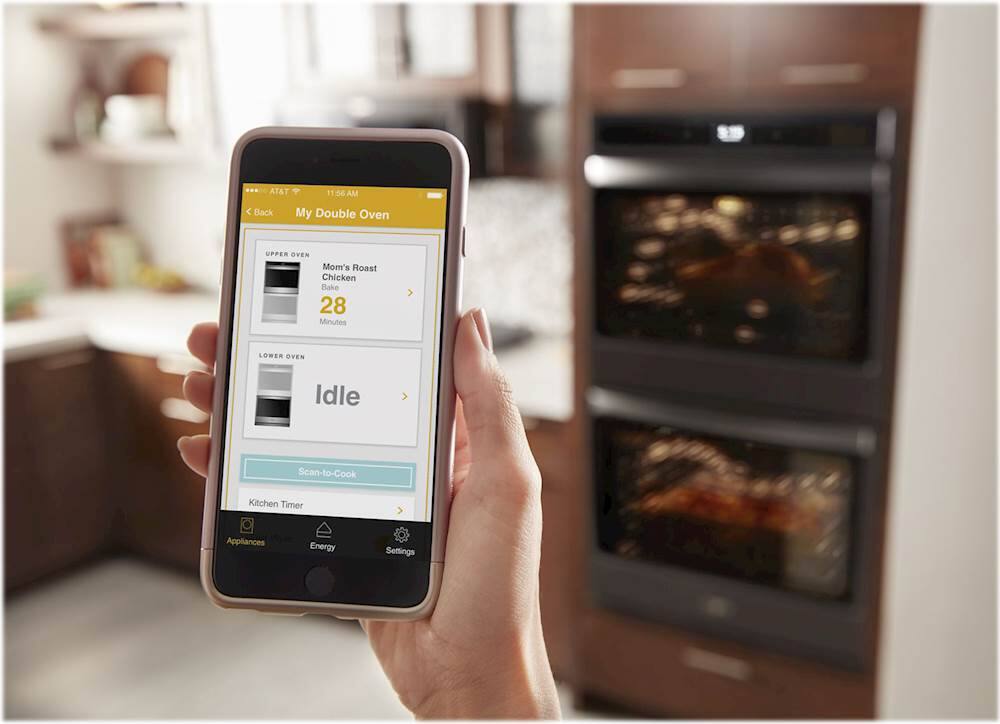

  • Remote start: When set to remote enable, use your smartphone or tablet to remotely turn your oven on so it's heated up and ready to cook meals when you are.
  • Keep Warm Setting: Keep dishes from getting cold with this setting that delivers low heat to the oven. Control it remotely through your Whirlpool app or manually on the oven so food stays warm and ready to serve whether you're home or away.
  • Party Mode: Start preparing for guests from your smartphone or tablet with Party mode that automatically turns on the Keep Warm setting so dishes stay ready to serve.
  • Self-Close Door: Keep doors from shutting too quickly with the smooth, quiet mechanism of self-close doors.
  • Rapid Preheat: A rear fan combined with the use of all of the elements helps to heat the oven quickly.
  • FIT system: If your new wall oven doesn't fit, Whirlpool brand will pay up to $300 toward cabinet modification.

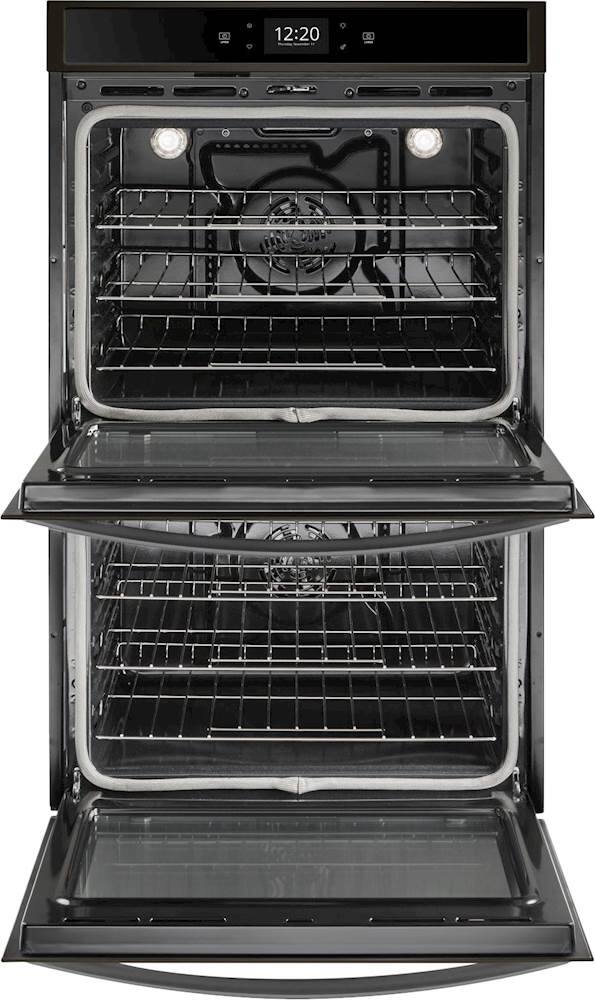

  • Extra-Large Window: Keep an eye on your meal through the extra-large oven window
  • Automatic Feature Updates: Select Whirlpool Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released.
  • Voice control with a compatible voice-enabled device (U.S. only.): Control your kitchen no matter what you’ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device. (Appliance must be set to remote enable. WiFi & App Required.
  • Scan-to-Cook Technology: Get the right settings every time. Scan a frozen food barcode with your smartphone or tablet and send recommended or customized cooking instructions straight to your oven for dinner done the way your family wants it.
  • Frozen Bake Technology: Skip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.
  • Multi-Step Cooking: Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once.
  • True Convection Cooking: Cook foods faster with the addition of a third element plus a fan that distributes hot air evenly over, under and around food so dinner is ready when they are.
  • Convection Conversion: Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.
  • Steam Clean option: Clean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.
  • Remote start: When set to remote enable, use your smartphone or tablet to remotely turn your oven on so it's heated up and ready to cook meals when you are.
  • Keep Warm Setting: Keep dishes from getting cold with this setting that delivers low heat to the oven. Control it remotely through your Whirlpool app or manually on the oven so food stays warm and ready to serve whether you're home or away.
  • Party Mode: Start preparing for guests from your smartphone or tablet with Party mode that automatically turns on the Keep Warm setting so dishes stay ready to serve.
  • Self-Close Door: Keep doors from shutting too quickly with the smooth, quiet mechanism of self-close doors.
  • Rapid Preheat: A rear fan combined with the use of all of the elements helps to heat the oven quickly.
  • FIT system: If your new wall oven doesn't fit, Whirlpool brand will pay up to $300 toward cabinet modification.
  • Extra-Large Window: Keep an eye on your meal through the extra-large oven window
Whats Included
  • Whirlpool 30" Built-In Electric Convection Double Wall Oven with Air Fry when Connected
  • Whirlpool 30" Built-In Electric Convection Double Wall Oven with Air Fry when Connected

Q: Does this oven also have a regular bake setting along with the convection setting?

A: Savethecork, this Whirlpool® Oven does have a normal baking cycle and a Easy Convect Bake Option.

Q: Is the oven fingerprint resistant stainless steel? If not, will it match a whirlpool fingerprint resistant refridgerator?

A: No it is not fingerprint resistant. The touch panel also shows fingerprints. It does clean up nicely with the stainless steel cleaner.

Q: What are the cut out dimensions of WOD77ECOHS DOUBLE WALL OVEN?

A: Hello Mike, the cutout dimensions for this unit are Depth (in) 24, Height (in) 50 1/4, Width (in) 28 1/2.

Q: Hi - what would you recommend to burn in this oven before first use? Thanks!!

A: Hello! Yes, we do recommend a "burn-in" of the oven. This will assist with any smells/smoke of the oils used in the manufacturing process. Thank you for your inquiry on our Whirlpool appliances.

Q: How can I turn it off?

A: Please visit this link to to view the control guide for your appliance. https://s3.amazonaws.com/sm-backend-production-attachments/control-guide-w11417286-revA.pdf

Q: WHAT DISHWASHER IS A COLOR MATCH WITH THIS OVEN

A: undefined

Q: How do i get an operating manual doe WOD51ECOHB02

A: Hello Bobby, please see the link for the Owner's Manual for your model bit.ly/3BaPXQZ. We hope this helps.

Q: does it work with 230 voltages? needs special electrical connection?

A: Hello PB, for model WOD77EC0HV, per the Installation Instructions bit.ly/43gRnFG, Models rated from 7.3 to 9.6 kW at 240 volts (5.4 to 7.4 kW at 208 volts) require a separate 40-amp circuit. Models rated at 4.8 kW and below at 240 volts (3.6 kW and below at 208 volts) require a separate 20-amp circuit.
