Whirlpool - 30" Gas Cooktop - Stainless Steel
Related Item
Specifications
- Color FinishStainless steelProduct Height4 1/8 inchesProduct Width30 inchesProduct Depth21 inchesCooktop Surface TypeGrateNumber of Burners5
- Key Specs
- Color Finish: Stainless steel
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 5
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Whirlpool
- Model Number: WCG77US0HS
- Product Name: 30" Gas Cooktop
- Color: Stainless Steel
- Color Finish: Stainless steel

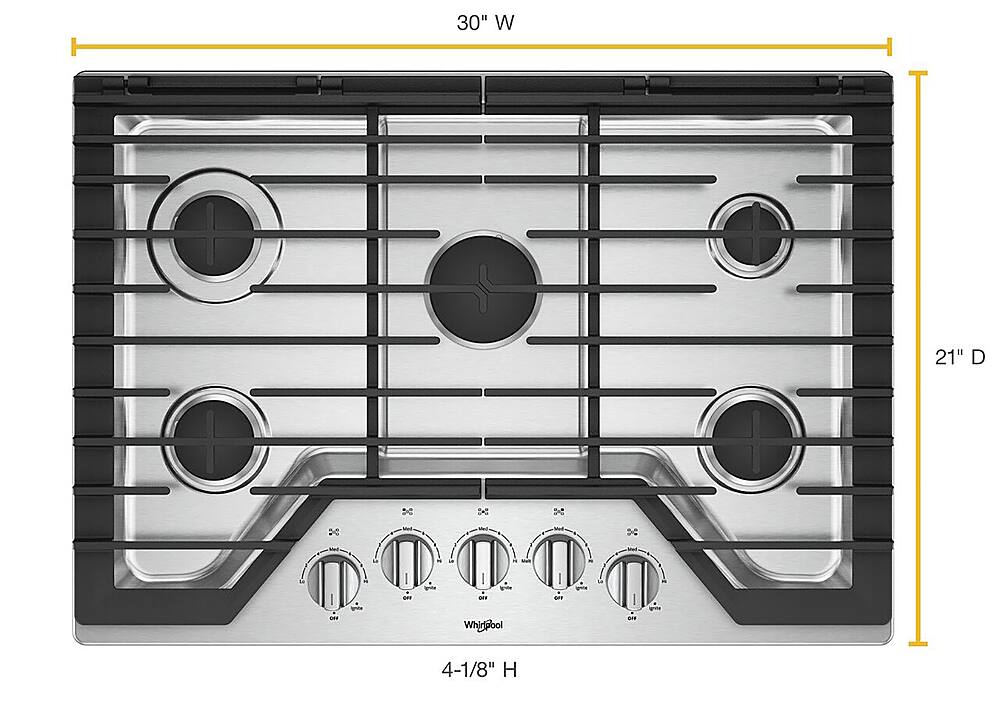

- Dimensions
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 47 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 29 3/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Fingerprint Resistant: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Cooking Zones: 5
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): SpeedHeat; Simmer; Sealed Burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 15000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 9100 british thermal units
- Burner 3 Rating: 9100 british thermal units
- Burner 4 Rating: 10000 british thermal units
- Burner 5 Rating: 5000 british thermal units
- Total Maximum BTU Rating: 17000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.whirlpool.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.whirlpool.com/regulatory.html.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 883049467023
Cleanup is quick and easy with a cooktop designed to cut down on messes. Dishwasher-safe, EZ-2-Lift cast iron grates are hinged so there's no need to remove them to wipe underneath and raised edges help contain spills. This 5-burner cooktop can be installed over a wall oven or on its own for added flexibility.

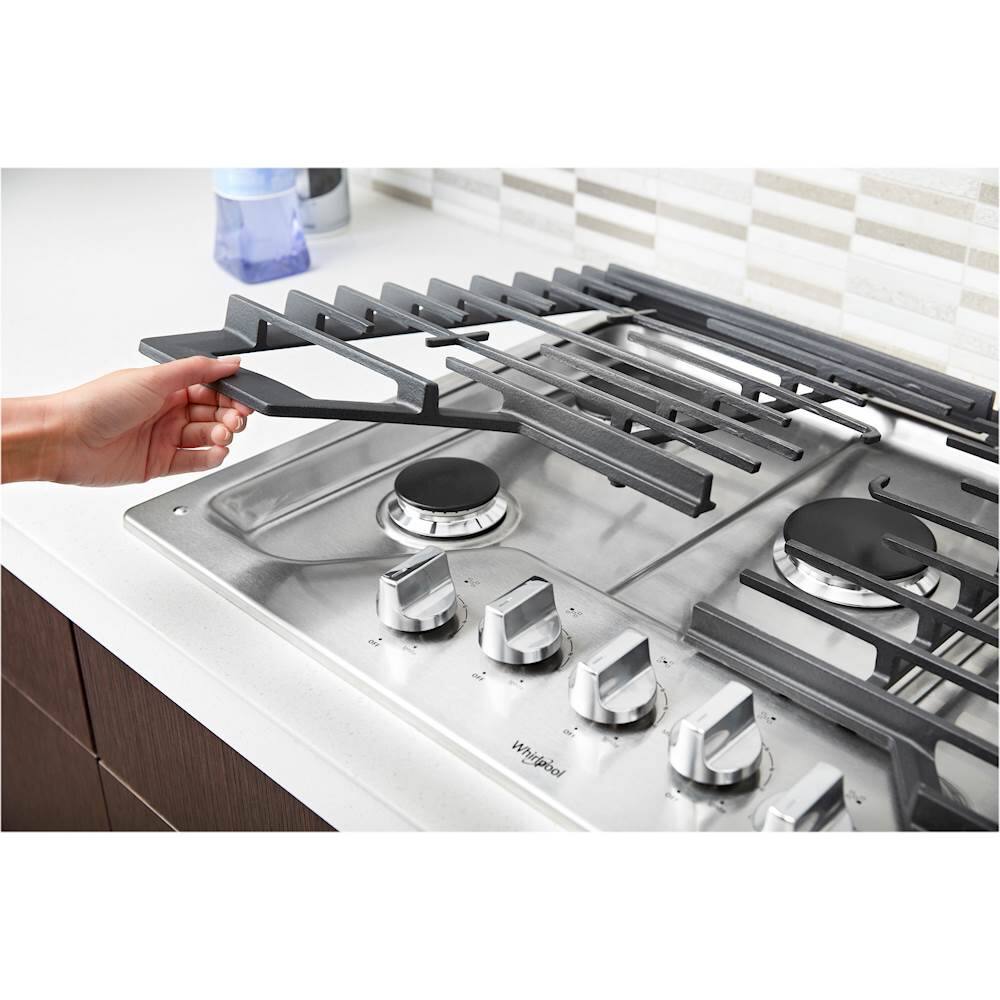

- EZ-2-Lift Hinged Cast-Iron Grates: Get quick access to spills on the cooktop with our industry-first EZ-2-Lift hinged cast-iron grates. The hinged design lets you wipe up underneath without removing them. For a more thorough clean, the grates are also dishwasher-safe.

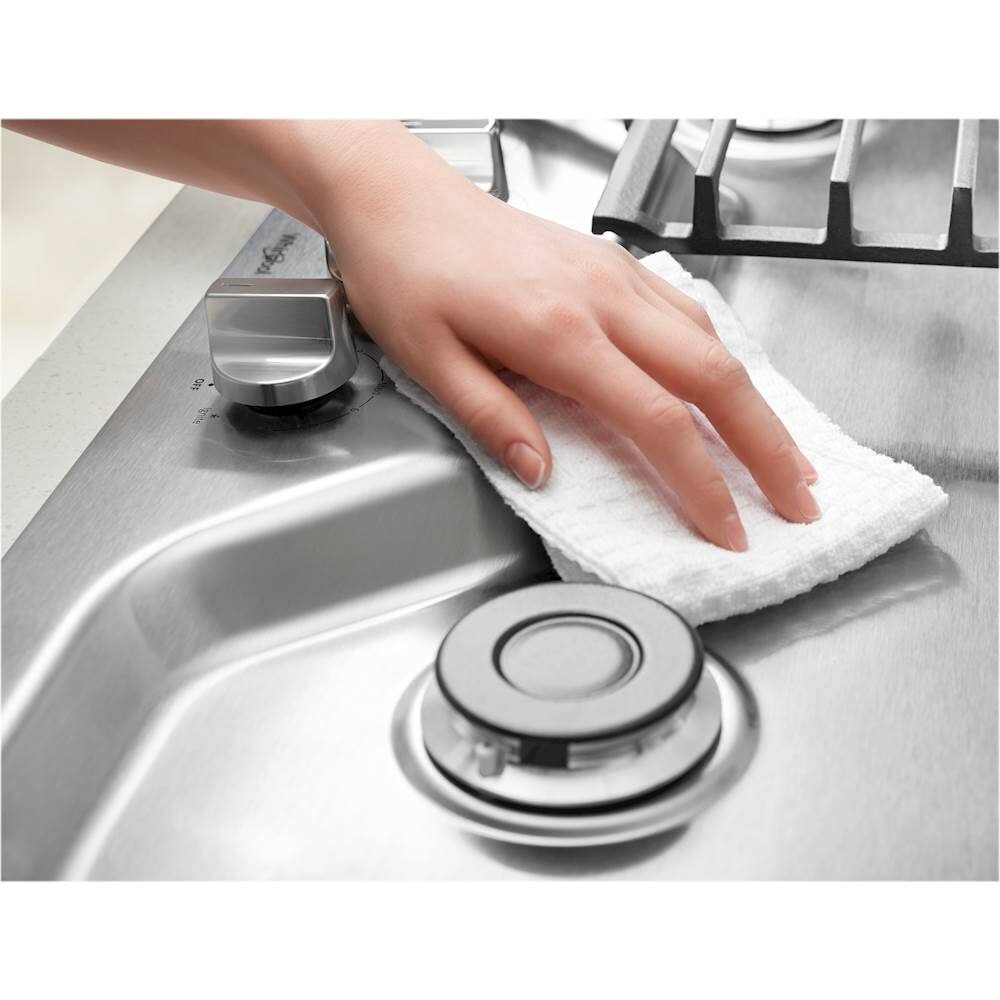

- Upswept SpillGuard Cooktop: Clean up faster with a cooktop that has raised edges to help contain spills.

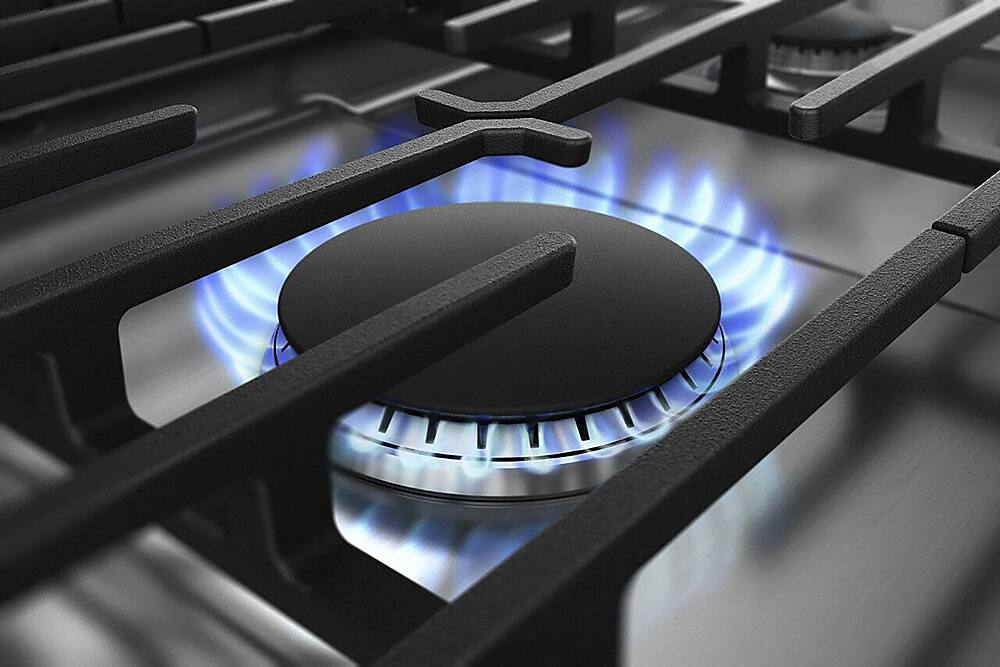

- SpeedHeat Burner: Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
- AccuSimmer Burner: Easily maintain low, even heat when cooking sauces and soups with the AccuSimmer burner, which reduces power for better control at lower temperatures.
- Fifth Burner: Make sure everyone gets their favorite with an extra, fifth burner that gives you more room to choose the right one for the dish.
- Sealed Burners: Cut down on cleanup with burners that are sealed to prevent food from falling into them.
- Full Width Grates: Maximize space with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.

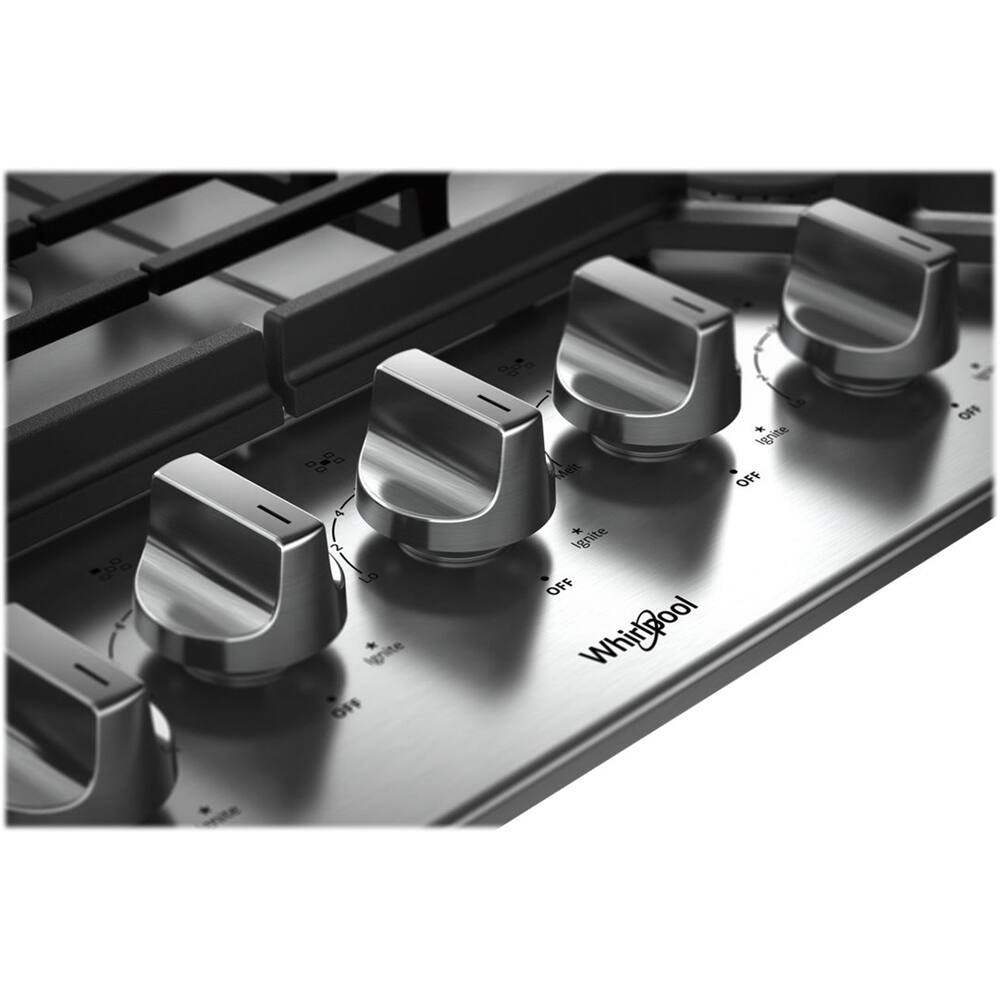

- Dishwasher-Safe Knobs: Make cleanup easy by washing knobs right in the dishwasher.

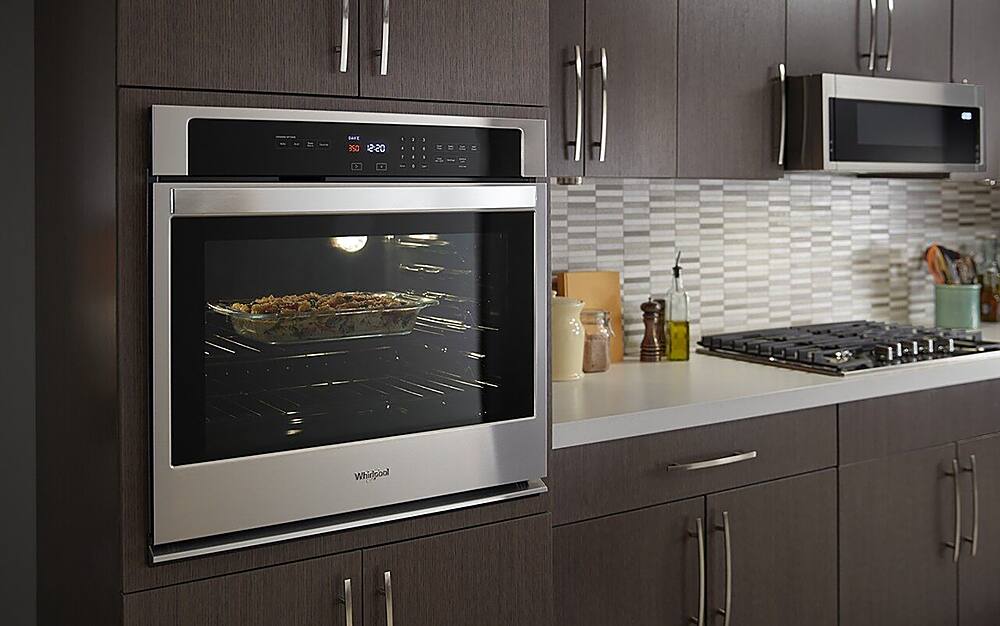

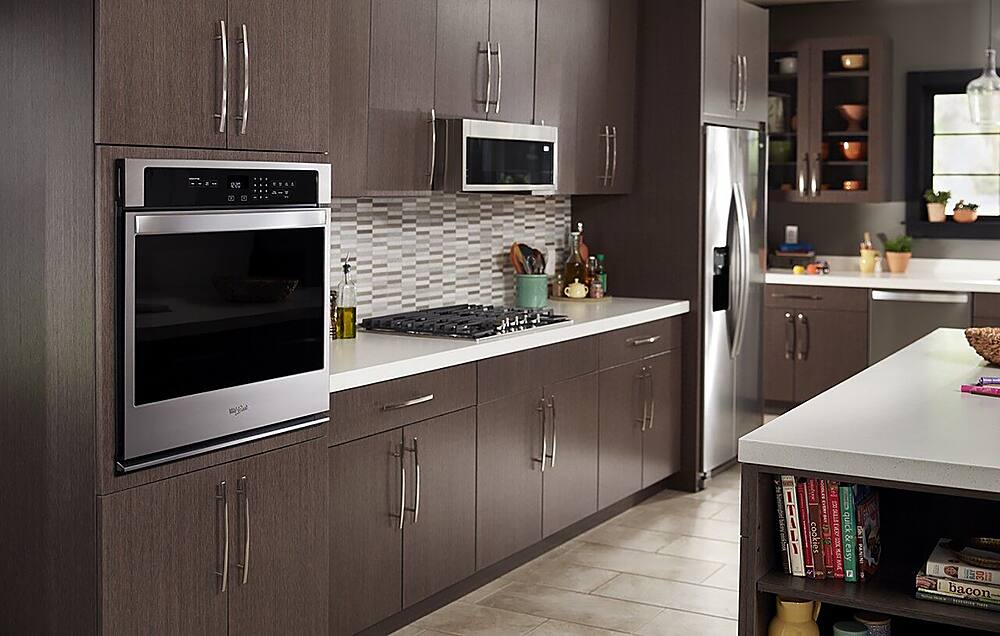

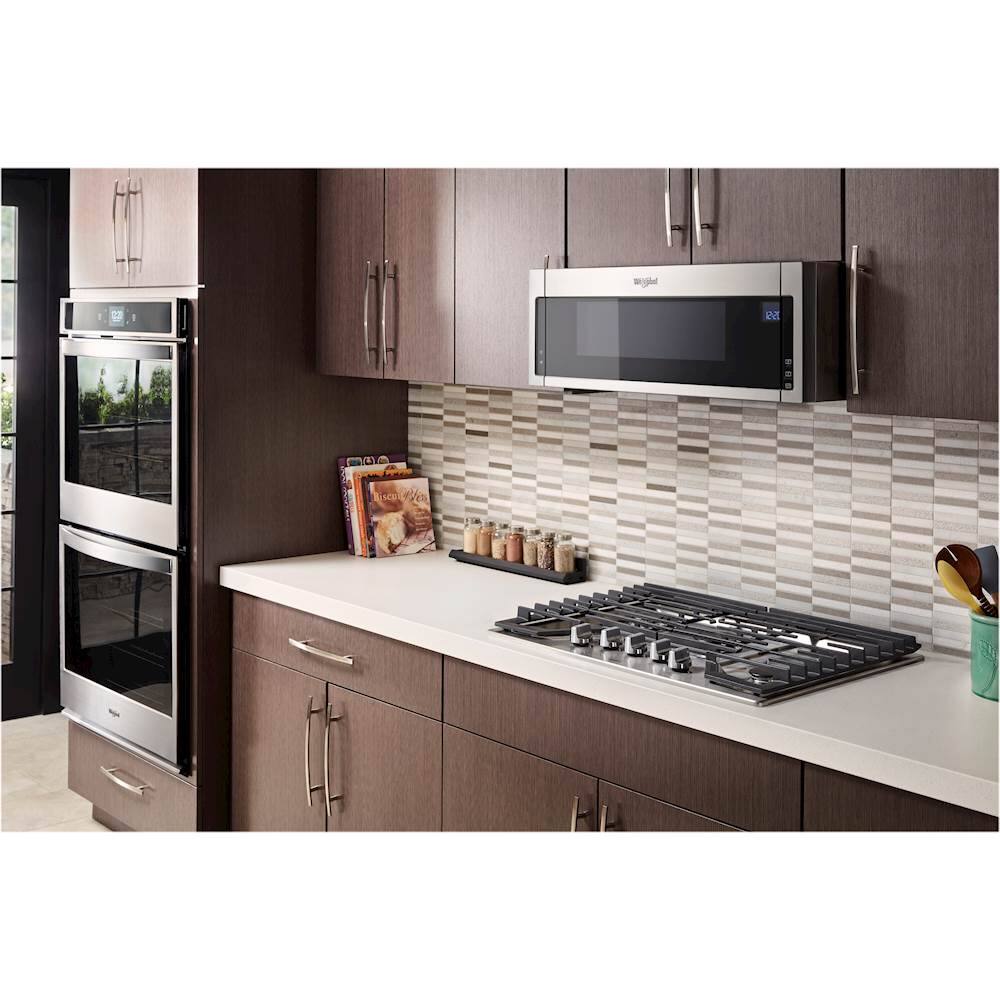

- Wall Oven Compatible: Install this cooktop to work with a wall oven or on its own for more flexibility.
- EZ-2-Lift Hinged Cast-Iron Grates: Get quick access to spills on the cooktop with our industry-first EZ-2-Lift hinged cast-iron grates. The hinged design lets you wipe up underneath without removing them. For a more thorough clean, the grates are also dishwasher-safe.
- Upswept SpillGuard Cooktop: Clean up faster with a cooktop that has raised edges to help contain spills.
- SpeedHeat Burner: Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
- AccuSimmer Burner: Easily maintain low, even heat when cooking sauces and soups with the AccuSimmer burner, which reduces power for better control at lower temperatures.
- Fifth Burner: Make sure everyone gets their favorite with an extra, fifth burner that gives you more room to choose the right one for the dish.
- Sealed Burners: Cut down on cleanup with burners that are sealed to prevent food from falling into them.
- Full Width Grates: Maximize space with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.
- Dishwasher-Safe Knobs: Make cleanup easy by washing knobs right in the dishwasher.
- Wall Oven Compatible: Install this cooktop to work with a wall oven or on its own for more flexibility.
Whats Included
- Whirlpool 30" Gas Cooktop
- Whirlpool 30" Gas Cooktop
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: What is the benefit of the EZ-2-Lift hinged cast-iron grates?
A: The EZ-2-Lift hinged cast-iron grates allow for quick access to spills on the cooktop without having to remove the grates entirely.
Q: What is the purpose of the AccuSimmer burner on this gas cooktop?
A: The AccuSimmer burner makes it easy to maintain low heat for cooking sauces and soups by reducing power for better control at lower temperatures.
Q: Can this cooktop be used with natural gas?
A: Yes, this cooktop can be used with natural gas.
Q: How many burners does this Whirlpool cooktop have?
A: This Whirlpool gas cooktop has five burners.
Q: Are the grates on this cooktop dishwasher safe?
A: Yes, the cast-iron grates on this cooktop are dishwasher-safe for easy cleaning.
Q: Does this gas cooktop come with a griddle?
A: No, this gas cooktop does not come with a griddle.
Q: does this come with adapter for propane
A: Hi jules. This Whirlpool® Cooktop does come with the conversion kit for Liquid Propane.
Q: What dimensions are required for the cutout for this cooktop?
A: Hello LAM1! The coutout dimensions for this model are: Cutout Depth (in) 19 1/2", Cutout Depth Max (in) 20, Cutout Width (in) 28 7/8", Cutout Width Max (in) 29 5/16". Thank you for your inquiry on our Whirlpool appliances.
Compare similar products
Cleanup is quick and easy with a cooktop designed to cut down on messes. Dishwasher-safe, EZ-2-Lift cast iron grates are hinged so there's no need to remove them to wipe underneath and raised edges help contain spills. This 5-burner cooktop can be installed over a wall oven or on its own for added flexibility.
Get dinner on the table fast thanks to a Fifth Burner for greater Cooking Flexibility. This 5-burner gas cooktop includes a SpeedHeat Burner for a quick boil and a 5K BTU Simmer Burner for low, even heat. Then cleanup is quick and easy with the EZ-2-Lift Hinged Cast-Iron Grates.
Get dinner on the table fast thanks to a Fifth Burner for greater Cooking Flexibility. This 5-burner gas cooktop includes a SpeedHeat Burner for a quick boil and a 5K BTU Simmer Burner for low, even heat. Then cleanup is quick and easy with the EZ-2-Lift Hinged Cast-Iron Grates.
The Frigidaire Gallery 30" Gas Cooktop allows you to get meals on the table faster with the Quick Boil 18,000 BTU burner. Enjoy ultimate cooking flexibility with powerful burners designed to meet all your cooking needs, from the 5,000 BTU simmer burner to the Quick Boil Burner. These cooktops feature new design elements like Backlit LED Knobs and Dishwasher Safe Burner Caps to make cooking and cleaning easier.
| Pros for Whirlpool - 30" Gas Cooktop - Stainless Steel | |||
|---|---|---|---|
| Burner Count, Appearance, Ease of use, Performance, Price | There were no pros for this product— | There were no pros for this product— | Appearance, Burner Count, Grate Quality, Design, Heating Performance |
| Cons for Whirlpool - 30" Gas Cooktop - Stainless Steel | |||
| Knobs | There were no cons for this product— | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers value the 30" Gas Cooktop for its ease of use, burner count, and overall performance. Many find its appearance appealing and appreciate its reasonable price. However, some customers have expressed concerns about the quality of the knobs.

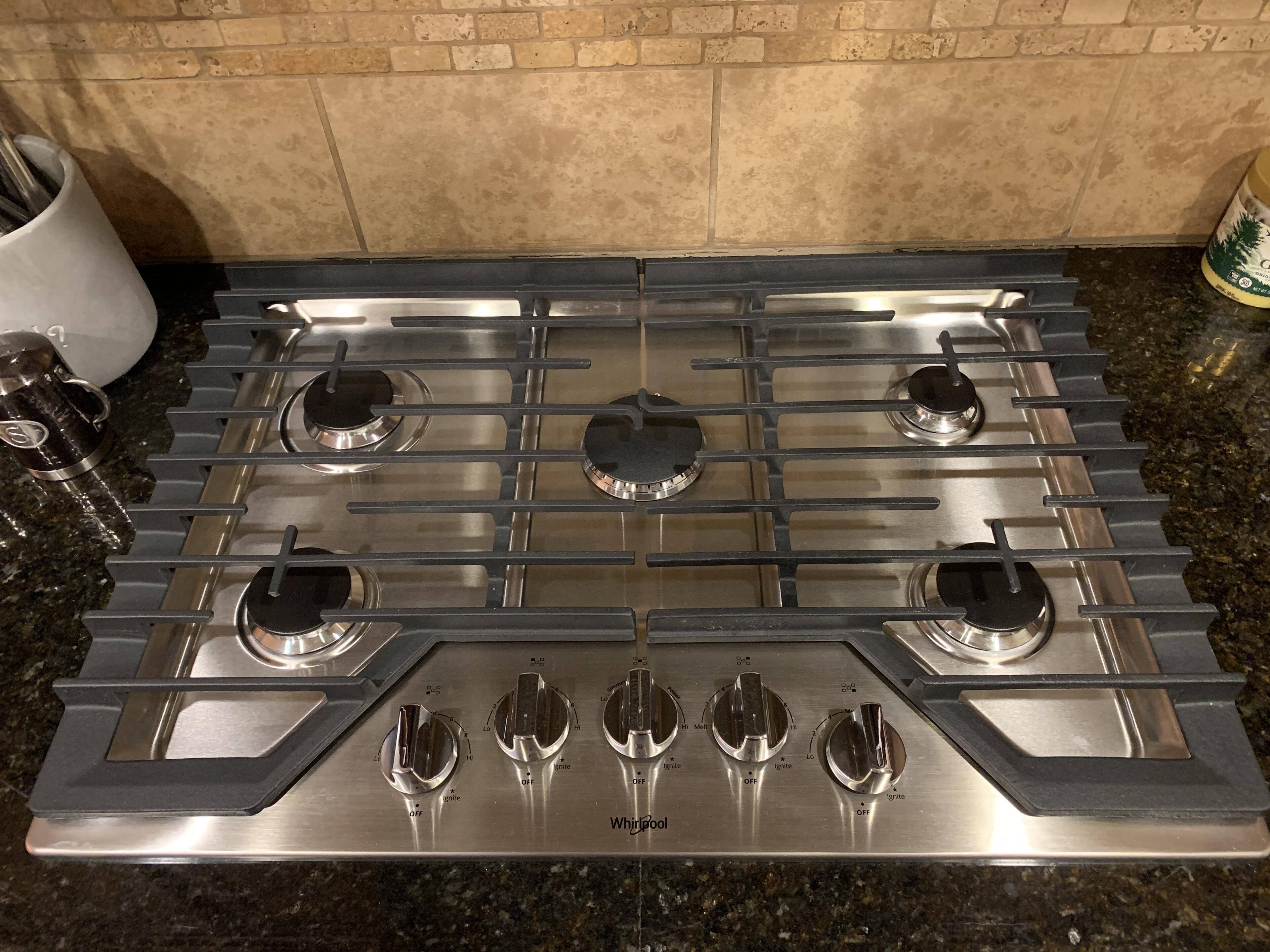

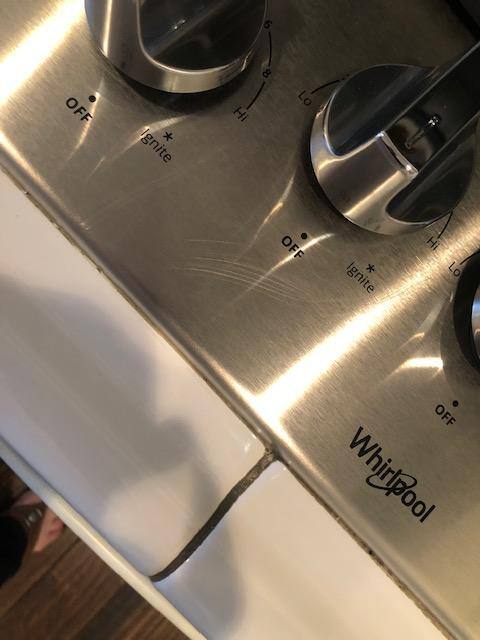

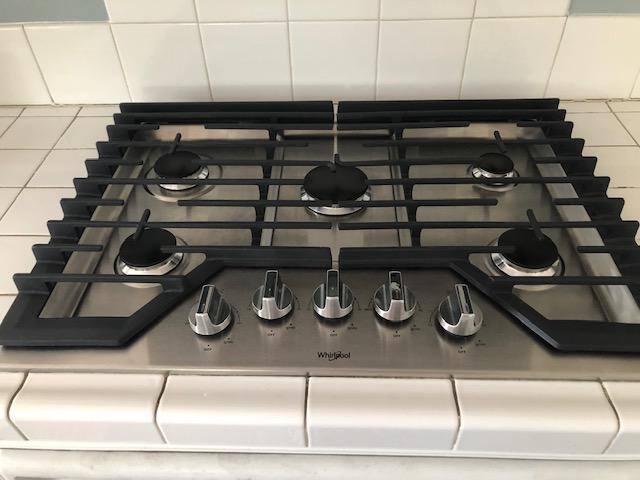

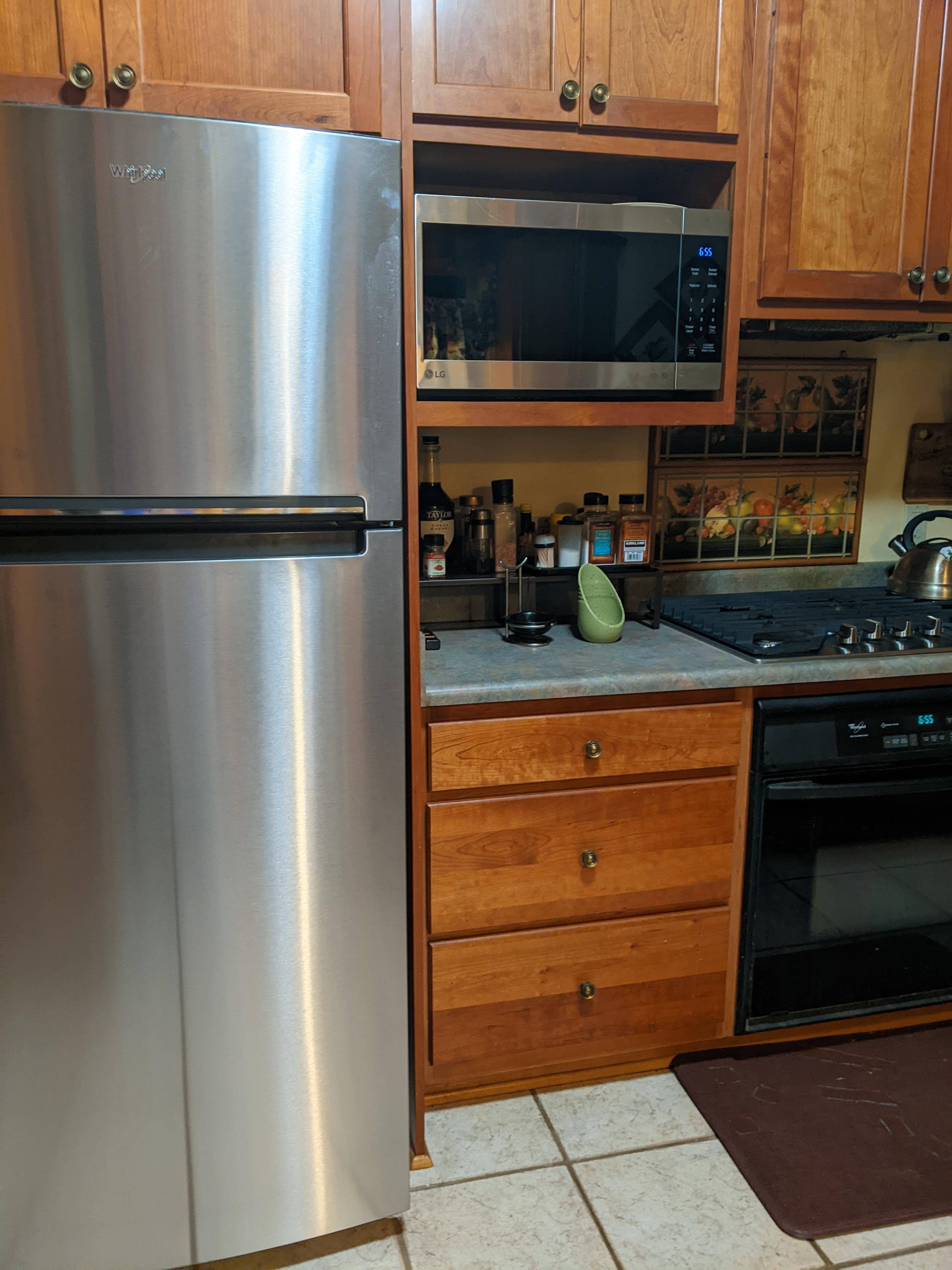

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars

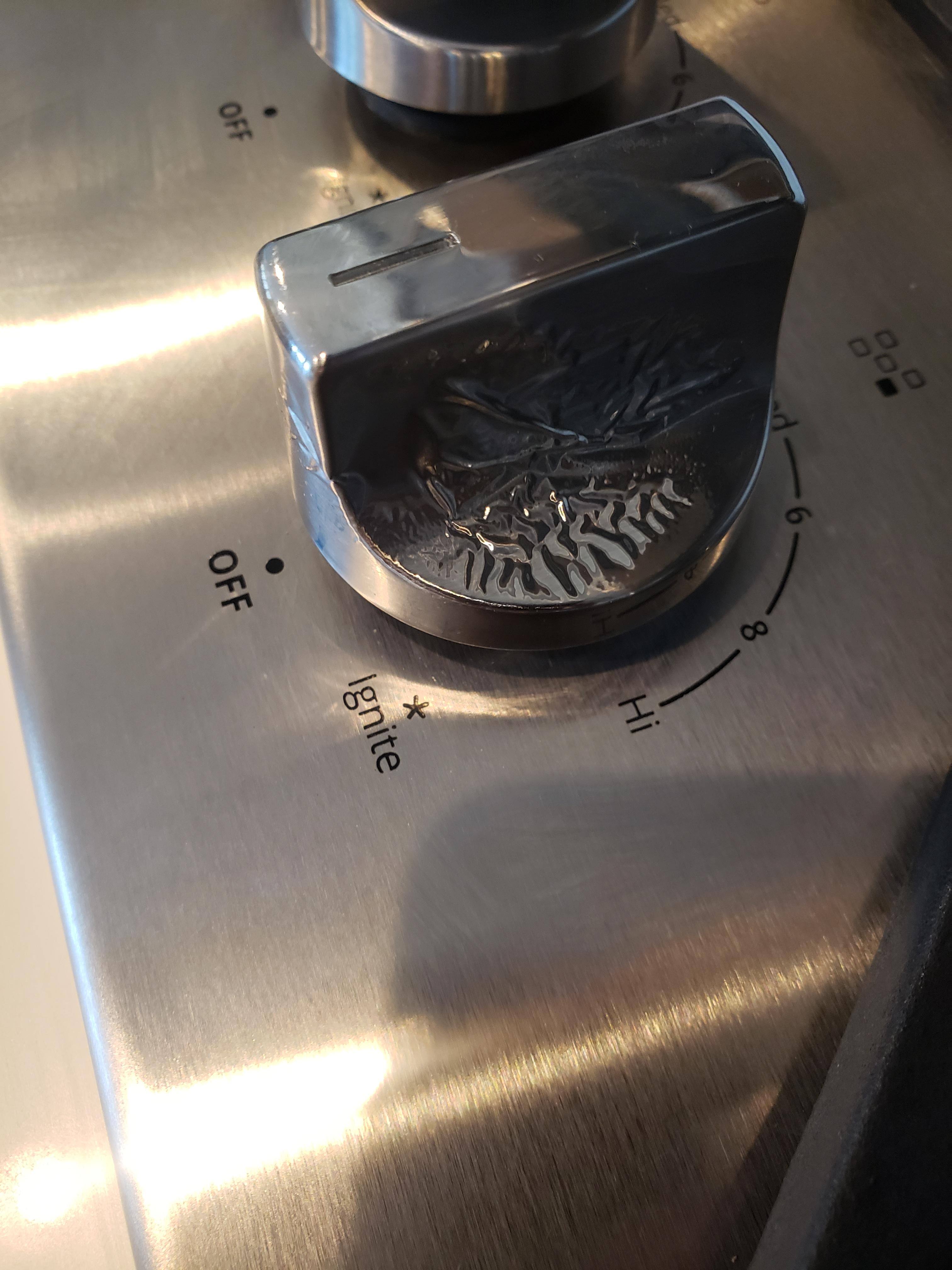

Burned Knob
Very nice cooktop. My biggest issue is that one of the knobs melted while I was cooking. Given the price for this cooktop, Whirlpool could have made better knobs.
Posted by Dave53
- Rated 5 out of 5 stars
Great gas cooktop!
We love the new cooktop and it looks great and performs well. The installers were very courteous and professional also and answered all our questions.
Posted by Installed
- Rated 5 out of 5 stars
Should have done sooner
Excellent Gas cooktop. Cleanup is fabulous to cook
Posted by Lynerc
