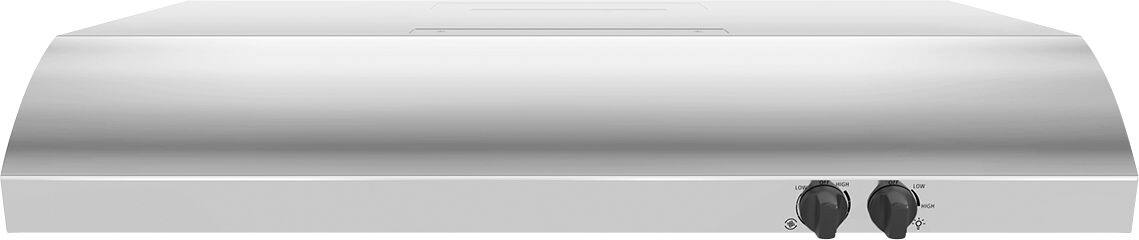

Whirlpool - 30 inches - Convertible - Under cabinet Range Hood - Stainless steel
Model: UXT4230ADS
SKU: 5170000
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 5 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Whirlpool
- Model Number: UXT4230ADS
- Product Name: 30" Convertible Range Hood
- Color: Stainless steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 5 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 17 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Duct Length: 420 inches
- Duct Width: 10 inches
- Features
- Exhaust Vent Location: Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 2
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 2
- Bulb Type Required: Incandescent
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 225 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 225 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): CSA Listed, UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049326504
With a 2-speed, 225 cfm exhaust fan, this Whirlpool UXT4230ADS convertible range hood rapidly removes smoke and odors to refresh your kitchen. The removable grease filter makes maintenance simple, and push button controls allow easy operation.
- Fit System: The FIT system eliminates measuring, cutting and trim for a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
- 58 dBA (3.0 sones) at Low Speed: Keep noise down in the kitchen with the quiet operation of 68 dBA (6.4 sones) at the hood's highest speed with a recirculation option. (Based on 3.25" x 10" rear outlet.)
- Powerful Variable-Speed, 225 CFM Motor Class: Variable speeds provide the right amount of ventilation for every meal you prepare. (Performance varies based on installation. Resources available at aham.org.)
- Incandescent Lighting: Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.
- Recirculation (Non-Vented/Duct-Free): By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
- ADA Compliant: This hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
- Fit System: The FIT system eliminates measuring, cutting and trim for a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
- 58 dBA (3.0 sones) at Low Speed: Keep noise down in the kitchen with the quiet operation of 68 dBA (6.4 sones) at the hood's highest speed with a recirculation option. (Based on 3.25" x 10" rear outlet.)
- Powerful Variable-Speed, 225 CFM Motor Class: Variable speeds provide the right amount of ventilation for every meal you prepare. (Performance varies based on installation. Resources available at aham.org.)
- Incandescent Lighting: Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.
- Recirculation (Non-Vented/Duct-Free): By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
- ADA Compliant: This hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Whats Included
- Grease filter
- Hardware
- Mounting hardware
- Owner's manual
- Whirlpool 30" Convertible Range Hood
- Grease filter
- Hardware
- Mounting hardware
- Owner's manual
- Whirlpool 30" Convertible Range Hood
Q: Does rangehood need external vent hookup
A: Hello! This model is made for Exterior or Recirculating venting. Thank you for your inquiry on our Whirlpool appliances.
A: Hi bettina, thank you for your inquiry. This model is a 30 inch.
Q: Is it a requirement that an electrician installs this if it is going to be used as recirculating?
A: This product does not have to be installed by an electrician.
A: Hi, thanks for the inquiry. Model UXT4230ADW can be vented exterior or recirculating. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
Q: Does this vent in the trip or the back?? I have seen answers that say both. Please clarify
A: It is convertible so it can go how you like. There are knockouts for how you want to vent it
Q: Can you use led lights in this unit.
A: YES I AM USING AN LED BULB IN MY UNIT.
Q: Does this model come in white? How much to install???
A: You don’t need to pay to install it’s pretty easy, if you have two people
Q: Can this be mounted under a microwave?
A: Hi mounting, here is the link to the Installation Guide for this unit which will show you the mounting requirements: https://bit.ly/3izEfqL
