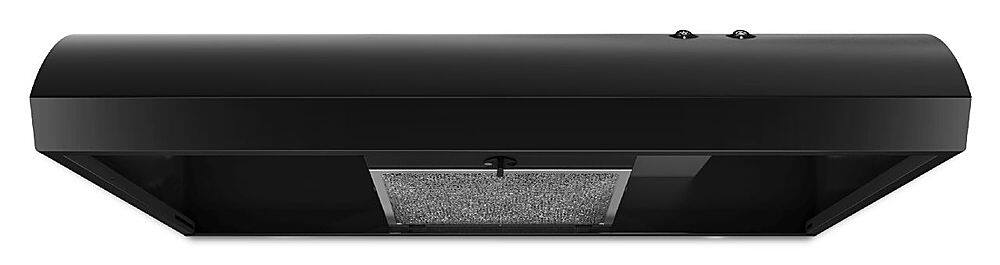

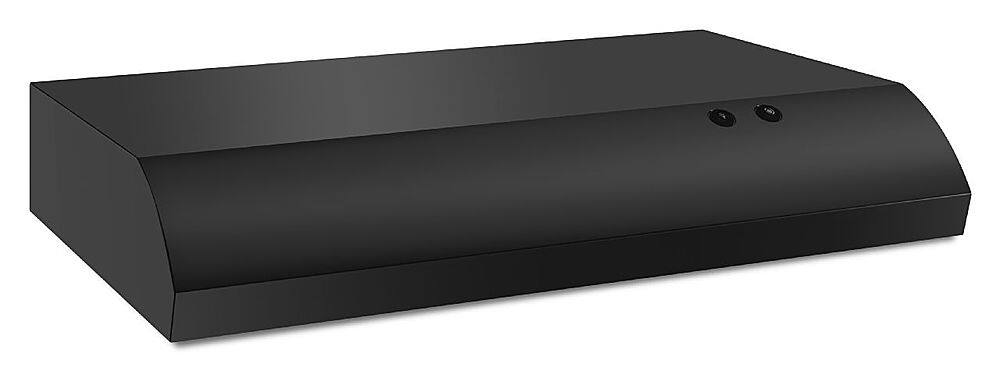

Whirlpool - 30 inches - Externally Vented - Under cabinet Range Hood - Black
Color
BlackDelivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishBlackProduct Height4 5/16 inchesProduct Width35 15/16 inchesProduct Depth18 5/8 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Black
- Product Height: 4 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Whirlpool
- Model Number: UXT2030ADB
- Product Name: 30" Externally Vented Range Hood
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 4 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 12 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Duct Length: 420 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 2
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 2
- Bulb Type Required: Incandescent
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 250 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Maximum Operating Sound Level: 5.3 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.7 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): CSA Listed, UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049326405
This Whirlpool UXT2030ADB externally vented range hood features a 2-speed, 250 cfm fan that effectively removes steam, smoke and odors from your kitchen. Incandescent lighting promotes clear visibility while cooking.
- Grease Filter: The grease filter helps trap unwanted grease and helps remove odors.
- Powerful 2-Speed Fan: Two fan speeds provide the right amount of ventilation for every meal you prepare. (Performance varies based on installation. Resources available at aham.org.)
- Incandescent Lighting: Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.
- FIT system: The FIT system helps reduce measuring, cutting and trim so that your hood is a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
- Grease Filter: The grease filter helps trap unwanted grease and helps remove odors.
- Powerful 2-Speed Fan: Two fan speeds provide the right amount of ventilation for every meal you prepare. (Performance varies based on installation. Resources available at aham.org.)
- Incandescent Lighting: Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.
- FIT system: The FIT system helps reduce measuring, cutting and trim so that your hood is a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
Whats Included
- Hardware
- Whirlpool 30" Externally Vented Range Hood
- Hardware
- Whirlpool 30" Externally Vented Range Hood
A: Great question Charles. This unit has a width of 29 15/16 inches. We hope this information helps in moving forward.
Q: Does hood come with an over the stove light?
A: Handyman, thanks for the inquiry. There is a cooktop light on this model. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
A: Hello bonehead! We are providing a link to the Installation Instructions for more information on this model. https://s3.amazonaws.com/sm-backend-production-attachments/installation-instructions-W10646400-RevE.pdf
Compare similar products
This Whirlpool UXT2030ADB externally vented range hood features a 2-speed, 250 cfm fan that effectively removes steam, smoke and odors from your kitchen. Incandescent lighting promotes clear visibility while cooking.
From the leader in residential indoor air quality, this under-cabinet range hood by Broan-NuTone is built to surpass industry standards with over 50 points of inspection, engineered as a reliable ventilation solution. The durable hood vent is up to 20% more effective at removing pollutants than the leading competitor with power ventilation at 350 Max Blower CFM to capture and remove smoke and odors from the kitchen. The Glacier range hood is also up to 44% quieter: 1.5 sones is equivalent to a refrigerator running, so it won't interfere with daily life. The EZ1 Install System allows for a quick and easy 1-person installation, and the ENERGY STAR Certification is both code compliant and provides cost savings. The 1-Level LED lighting and a 2-Speed hidden rocker controls make cooking a breeze. At Broan-NuTone we believe that better quality of air means better quality of life.
Illuminate your cooktop and filter out odors with this 30-inch GE under-the-cabinet hood. It has a two-speed fan to eliminate moisture, smoke and grease while you cook, and it provides options for recirculating and externally venting the air. Controls on the front of this GE under-the-cabinet hood are easily accessible as you cook.
Enjoy seamless installation with this Whirlpool range hood. The FIT system requires no cutting or measuring for simple attachment, and the incandescent bulbs illuminate the stovetop, so you can prepare food with ease. This Whirlpool range hood works quietly to get rid of smoke and odors, letting conversations take place.How to Measure for a New ApplianceA little measuring now can help you avoid delivery headaches later.
| Pros for Whirlpool - 30 inches - Externally Vented - Under cabinet Range Hood - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Appearance, Ease of use, Color, Performance, Fit | Appearance, Noise Level, Ease of Installation, Price, Light |
| Cons for Whirlpool - 30 inches - Externally Vented - Under cabinet Range Hood - Black | |||
| There were no cons for this product— | There were no cons for this product— | Fan Noise, Installation | Fan Power, Suction, Size |
Specs
Reviews
Customers are saying
Customers consistently note the easy installation of the 30" Externally Vented Range Hood.
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 3 out of 5 stars
Range hood
Really loved the look of hood to go with our new black and stainless steel stove. Was disappointed that it took 6 weeks to receive but was worth it
Posted by Seirra57
- Rated 3 out of 5 stars
Good looking vent hood, but it already broke
This vent hood matched the oven I purchased so I got it. I installed it which was a total pain to do, even with two people, and then, the fan worked for one day. It's nice to have a light above my stove but that's about all it's good for. I wouldn't purchase it again. It's just too hard to uninstall and get a new one again.
Posted by shaundawna
- Rated 4 out of 5 stars
Great hood for a average size kitchen
After 20 years of use of the old hood I've replaced it with a new one. I did the installation by myself and it took about an hour. It is quite and doing a great job.
Posted by Mark
