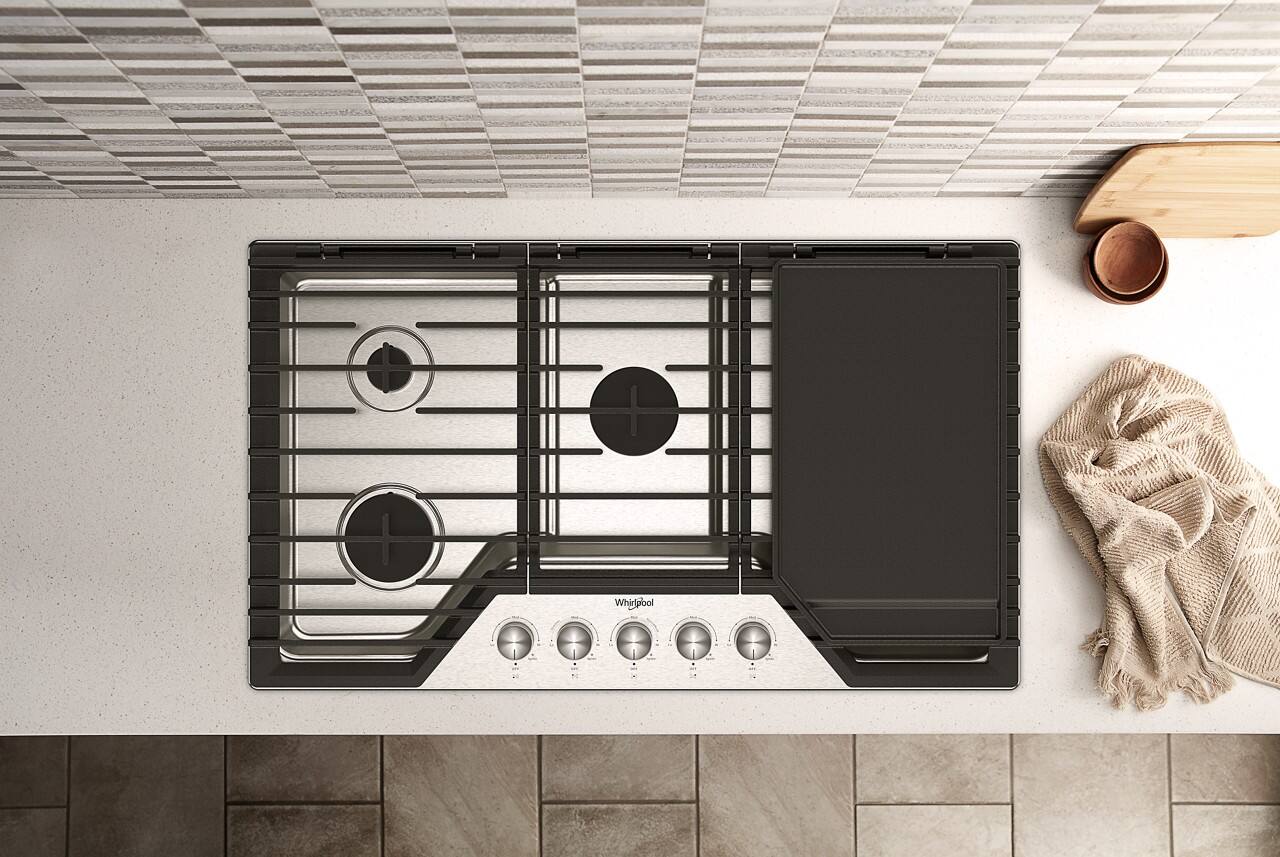

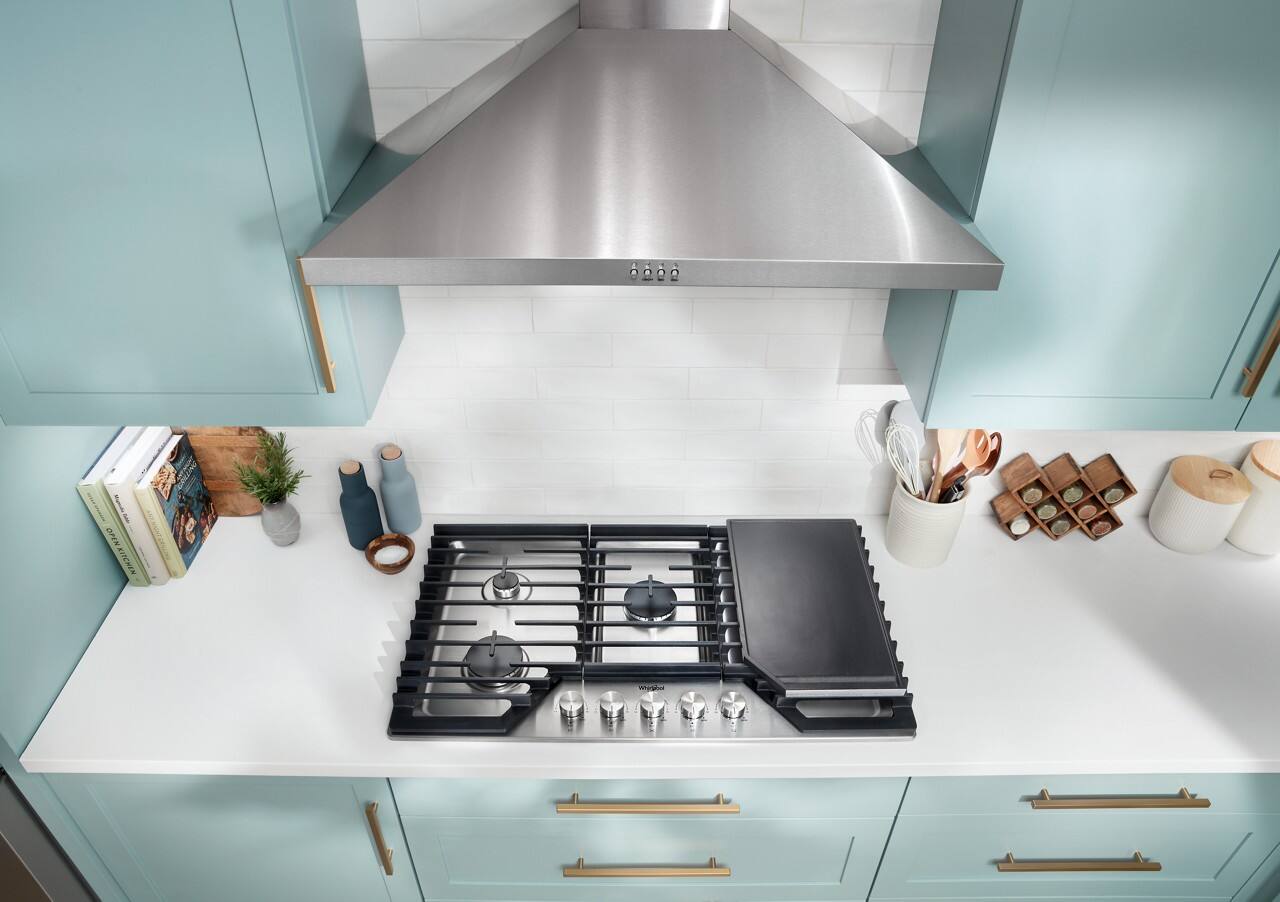

Whirlpool - 36" Built-In Gas Cooktop with 3 Burners and 2-in-1 Hinged Grate to Griddle - Stainless Steel

Model: WCGK7536PS
SKU: 6576743
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Stainless steel
    • Product Height: 5 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
    • Number of Burners: 5
    • App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
  • General
    • Brand: Whirlpool
    • Model Number: WCGK7536PS
    • Product Name: 36" Built-In Gas Cooktop with 3 Burners and 2-in-1 Hinged Grate to Griddle
    • Color: Stainless Steel
    • Color Finish: Stainless steel
  • Dimensions
    • Product Height: 5 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Product Weight: 63 pounds (The out of box weight of the item.)
  • Cut-Out Dimensions
    • Cut-Out Height: 5 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Width: 35.25 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Depth: 20 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Features
    • Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
    • Installs Over Built-In Oven: true
    • Control Type: Analog
    • Control Location: Top
    • Digital Display: false
    • Fingerprint Resistant: false
    • Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
    • Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
    • Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
    • Portable: false
    • Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
    • Gas Type: Natural gas
  • Cooktop Features
    • Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
    • Cooktop Surface Material: Stainless steel
    • Number of Burners: 5
    • Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
    • Specialty Burner(s): Griddle (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
    • Grate Type: Individual (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
    • Grate Material: Cast iron
    • Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
  • Included
    • Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
    • Griddle Included: true
  • Burner Rating
    • Burner 1 Rating: 12000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
    • Burner 2 Rating: 5000 british thermal units
    • Burner 3 Rating: 9100 british thermal units
    • Burner 4 Rating: 9100 british thermal units
    • Burner 5 Rating: 18000 british thermal units
    • Total Maximum BTU Rating: 57000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
  • Power
    • Cooktop Power Source: Gas
    • Ignition Type: Electric
    • Propane (LP) Convertible: true
    • Propane Conversion Kit Included: true
    • Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
  • Certifications Listings & Approvals
    • ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
    • Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
    • Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025.  Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.whirlpool.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.whirlpool.com/regulatory.html.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
  • Warranty
    • Warranty - Parts: 1 year limited
    • Warranty - Labor: 1 year limited
  • Compatibility
    • App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
  • Other
    • UPC: 883049678276

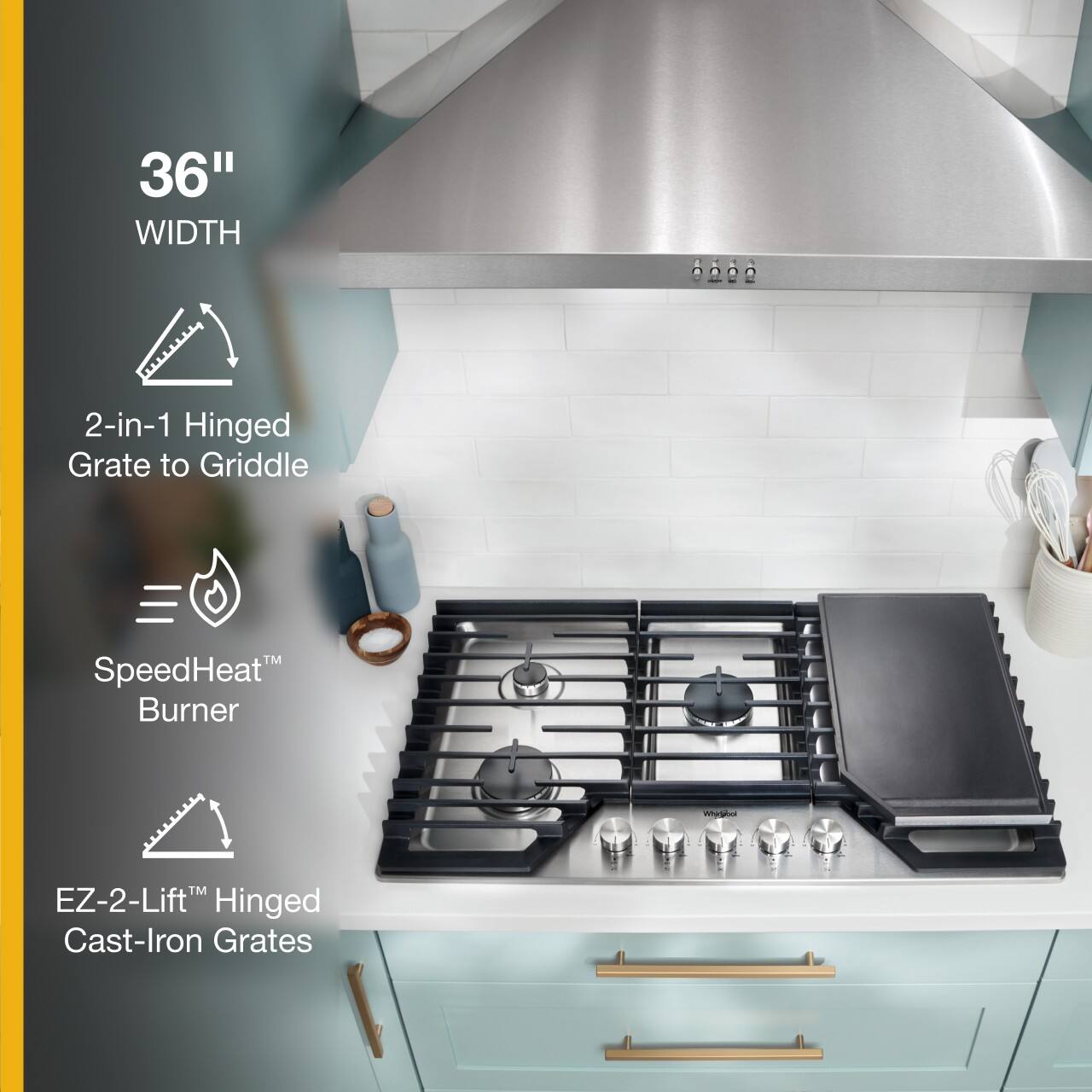

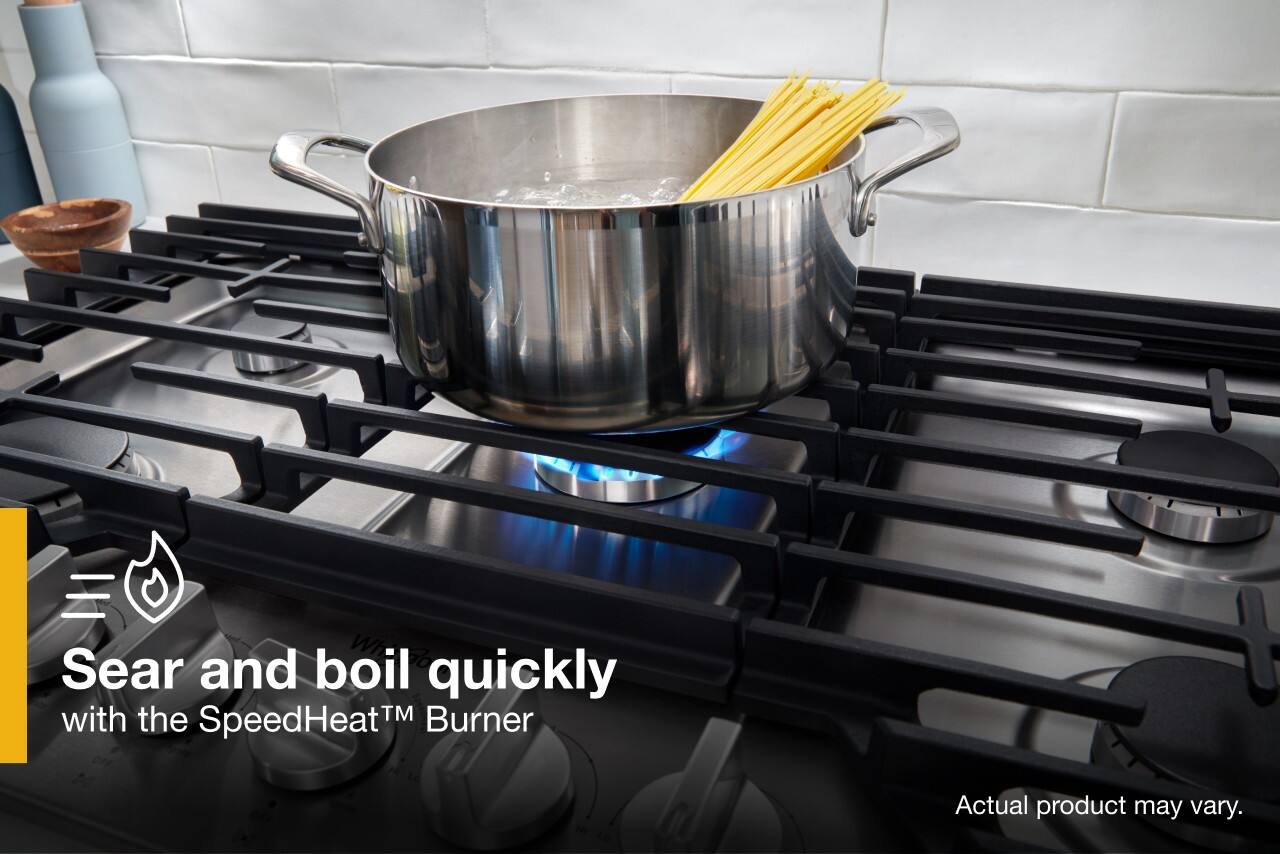

Cook everyone's favorite at once with this 5-burner gas cooktop that offers greater Cooking Flexibility. This cooktop griddle includes a SpeedHeat Burner for a quick boil and comes with a 2-in-1 Hinged Grate to Griddle so you can easily swap cooking surfaces. Then cleanup is quick and easy with the EZ-2-Lift Hinged Cast-Iron Grates.

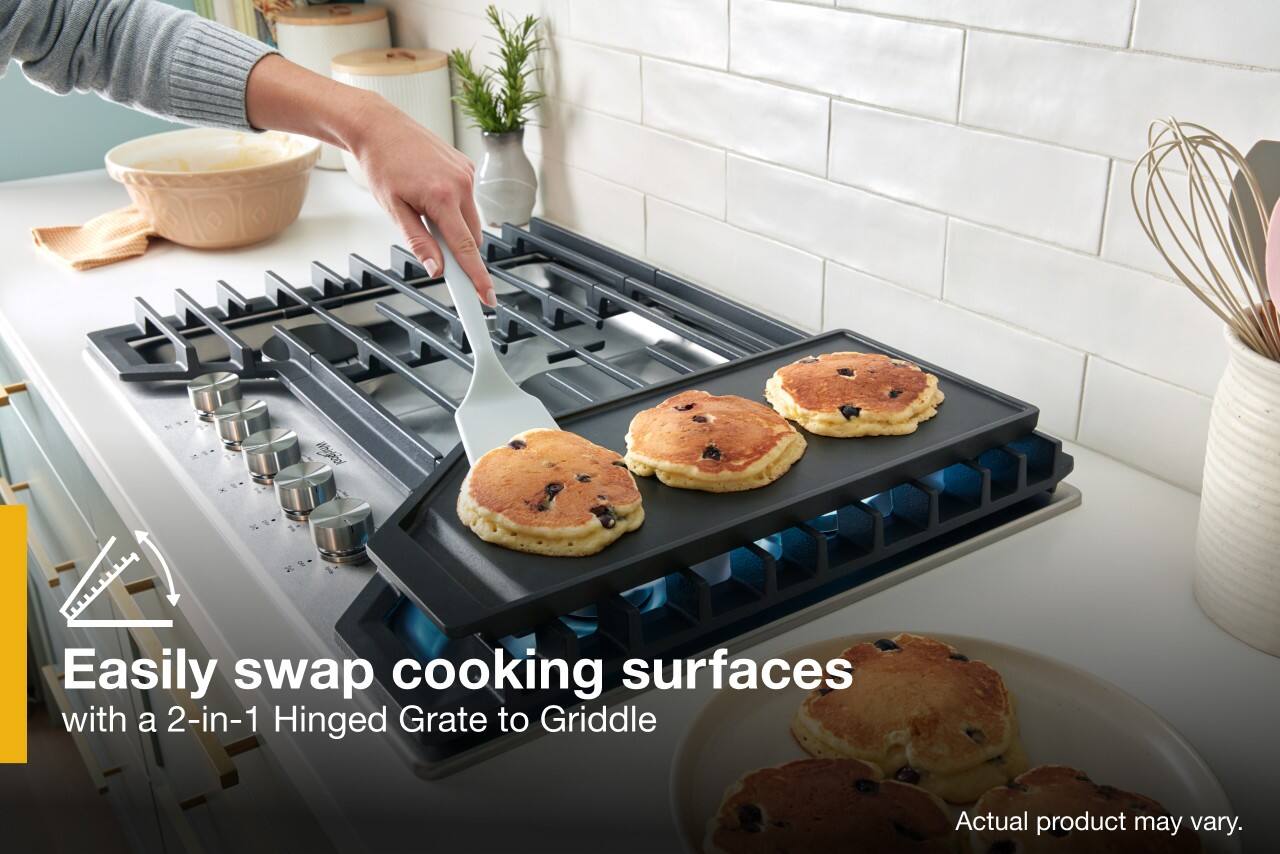

  • 2-in-1 Hinged Grate to Griddle: Enjoy more mealtime possibilities by easily swapping between cooking surfaces with our industry-first interlocking 2-in-1 Hinged Grate to Griddle. Use the griddle for breakfast, then move it out of the way to use the grate for dinner. The hinged design also allows for easy cleaning.
  • Cooking Flexibility: Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.
  • EZ-2-Lift Hinged Cast-Iron Grates: Get quick access to spills on the cooktop with our industry-first EZ-2-Lift Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
  • Fifth Burner: Save time and cook everyone’s favorite at once with the extra Fifth Burner. With room to fit different pan sizes, you can boil water, sauté veggies and sear burgers all at the same time.

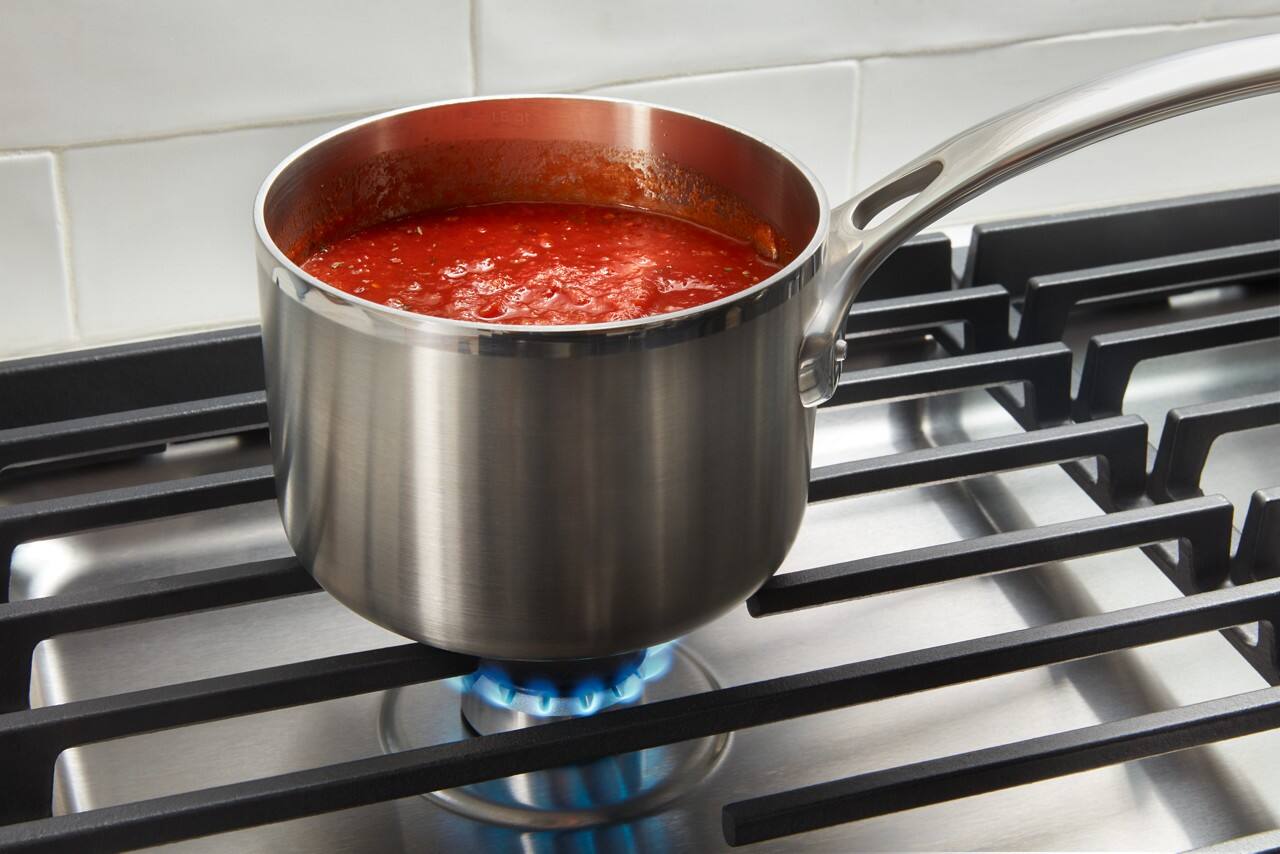

  • 5K BTU Simmer Burner: Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
  • Dishwasher-Safe Cast-Iron Grates: Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
  • Dishwasher-Safe Knobs: Make cleanup easy by washing knobs right in the dishwasher.
  • Upswept SpillGuard Cooktop: Cleanup is fast and easy with a cooktop that has raised edges to help contain spills.
  • Edge-to-Edge Cast-Iron Grates: Maximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
  • Sealed Burners: Cut down on cleanup with burners that are sealed to prevent food from falling into them.

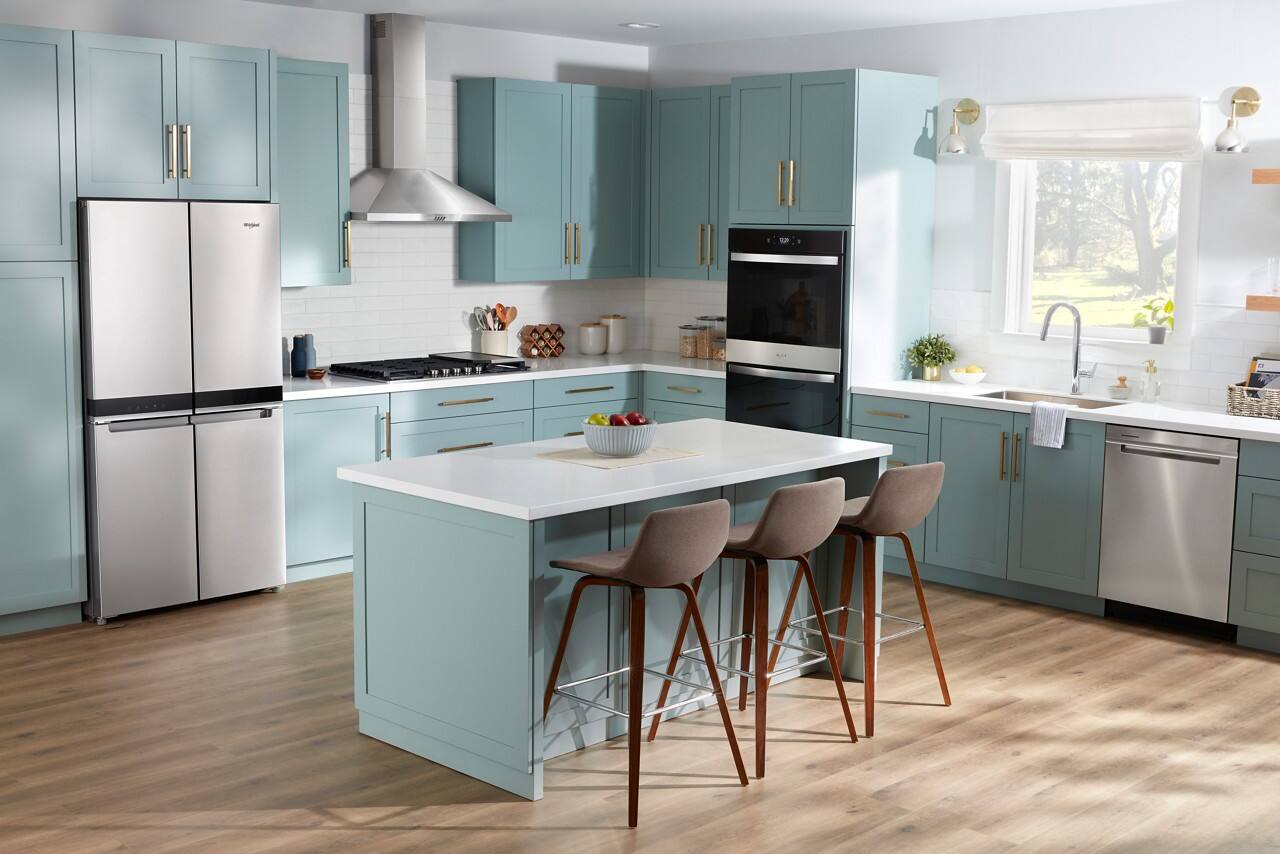

  • Wall Oven Compatible: Install this cooktop in a counter above select Whirlpool Single Wall Ovens or on its own for more flexibility.**See Oven/Cooktop Compatibility in specifications for more information.
Whats Included
  • Whirlpool 36" Built-In Gas Cooktop
  • Literature Packets
  • Gas Pressure Regulator
  • Burner Grates
  • Burner Caps
  • Burner Base
  • Clamping Brackets
  • Screws

Q: What is the total maximum BTU rating of the cooktop?

A: The total maximum BTU rating of the cooktop is 57000.

Q: Can the cooktop be converted to use propane?

A: This cooktop can be converted to use propane as it is propane (LP) convertible.

Q: How many burners does the cooktop have?

A: This cooktop has five burners.

Q: Does the cooktop have sealed burners?

A: This cooktop does have sealed burners.

Q: can you remove the griddle/

A: Hello! Yes, the griddle is removable. Thank you for your inquiry about our Whirlpool appliances.

Q: WHAT IS CUT OUTS

A: Hello, please see page 6 of the Owner's Manual for the cutouts for this model. https://shorturl.at/wzsfG Thank you for your inquiry on our Whirlpool appliances.
