Whirlpool

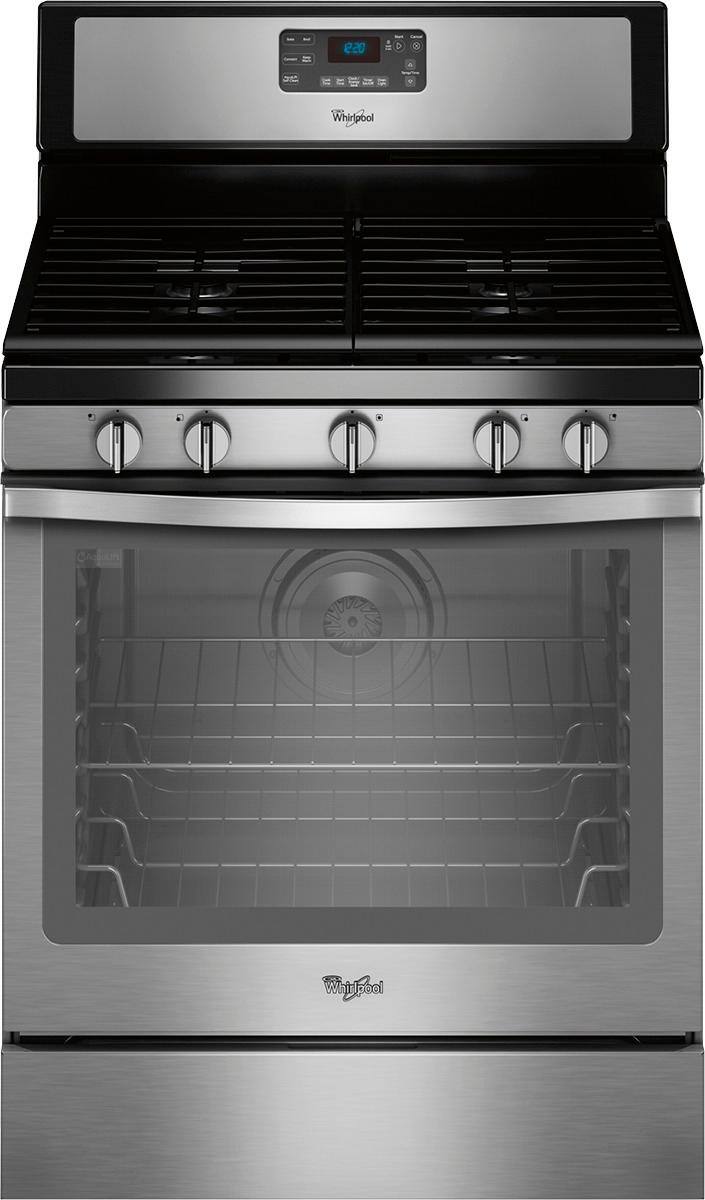

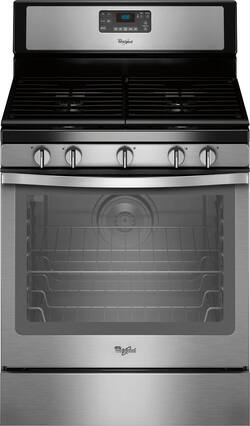

Whirlpool - 5.8 Cu. Ft. Self-Cleaning Freestanding Gas Convection Range - Stainless Steel

Model: WFG540H0ES
SKU: 3493065
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Stainless steel
    • Product Height: 47.875 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 29.875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 27.875 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
    • Oven Cleaning Method: Self-cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
    • Single/Double Oven: Single Oven
    • Number of Burners: 5
  • General
    • Brand: Whirlpool
    • Model Number: WFG540H0ES
    • Product Name: 5.8 Cu. Ft. Self-Cleaning Freestanding Gas Convection Range
    • Color: Stainless Steel
    • Color Finish: Stainless steel
  • Dimensions
    • Product Height: 47.875 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 29.875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 27.875 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Product Weight: 172.5 pounds (The out of box weight of the item.)
  • Capacity
    • Oven Capacity: 5.8 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
  • Features
    • Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
    • Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
    • Range Power Source: Gas
    • Control Type: Analog
    • Oven Control Location: Front panel
    • Clock Display: true
    • Oven Light: true
    • Propane (LP) Convertible: true
  • Functions
    • Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
    • Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
  • Oven Features
    • Oven Cleaning Method: Self-cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
    • Single/Double Oven: Single Oven
    • Broiler Location: Oven
    • Oven Window: true
  • Cooktop Features
    • Number of Burners: 5
    • Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
    • Specialty Burner(s): SpeedHeat, AccuSimmer (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
    • Grate Material: Porcelain
  • Burner Rating
    • Burner 1 Rating: 17000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
    • Burner 2 Rating: 15000 british thermal units
    • Burner 3 Rating: 9500 british thermal units
    • Burner 4 Rating: 8000 british thermal units
    • Burner 5 Rating: 5000 british thermal units
    • Broiler Burner Rating: 11000 british thermal units
  • Included
    • Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
    • Propane Conversion Kit Included: false
  • Other
    • UPC: 883049356471

This Whirlpool WFG540H0ES freestanding gas convection range features 5 burners that deliver between 5,000 and 17,000 BTUs of heat, so you can easily prepare a variety of recipes. The AccuBake temperature management system promotes even results.

Range, Cooktop and Wall Oven Buying Guide

  • 5.8 cu. ft. oven capacity: Along with 2 racks and 7 rack positions makes it easy to prepare large meals for your friends and family members. An adjustable Max Capacity rack secures items and makes room for large items.
  • Edge-to-edge cooking grates: Allow you to easily slide cookware from burner to burner. The locking, full-width porcelain-coated grates are dishwasher-safe to simplify cleanup.
  • 5 burners: Include a 5,000 BTU right-rear AccuSimmer burner, an 8,000 BTU center-rear multipurpose burner, a 9,500 BTU left-rear multipurpose burner, a 15,000 BTU right-front high-output burner and a 17,000 BTU left-front SpeedHeat burner.
  • SpeedHeat burner: Enables rapid searing and boiling. An AccuSimmer burner provides controlled heat for melting chocolate and simmering sauces.
  • AccuBake temperature management system: Uses a built-in sensor to monitor the oven temperature and control the cooking elements for consistent results.
  • Fan convection cooking: Fills the entire oven with heat, so you can prepare food using any rack.
  • Storage drawer: Provides a convenient place to stow baking racks and cookie sheets.
  • AquaLift self-clean technology: Uses water and low levels of heat to remove baked-on foods from the bottom of the oven in as little as 50 minutes.
  • Analog controls: Make operation simple. A control lock helps prevent unsupervised use.
  • EasyView oven window: Allows you to monitor food while it's cooking.
Whats Included
  • 30" Self-Cleaning Freestanding Gas Range
  • Gas connector is not included
  • Owner's manual
Product Manuals

Q: Do you need a waterline connection for the self-clean process? I noticed it said it used small amount of water for the cleaning.

A: No, you just put a little water in the bottom of the oven.

Q: Does this have an oven light that can be turned on without opening the oven door?

A: Yes

Q: Has anyone had a problem with the edge to edge grate doing damage to a quartz counter ? Other things I have heard is pans rock because the grates get warped after use. And lastly, has anyone had a problem with the knobs getting turned on accidentally?

A: We have had this stove for less than two years and the grates are badly warped where it big burners are. The grate is also the front surface of the stove so you can easily bump it and get burned. The grates are expensive to replace ($250+) so we’ll buy a new stove rather than replacing :(

Q: Does the oven have a bake shut off timer and can I get a 3rd rack.

A: It comes with 3 racks and it has the bake shut off timer.

Q: Is the convection always on or can it be shut off for different types of baking?

A: Can be turned on or off.

Q: What is Sabbath mode?

A: Sabbath Mode is used for those whose religious observances require turning off the lights. When you use this feature, the temperature set points remain unchanged, but the control panel lights, interior lights, and control audio turn off.

Q: gas line connection

A: Bottom right corner

Q: Is a griddle available for this model?

A: Griddle, there is a griddle available for this Range. The part number is 4396096RB.
