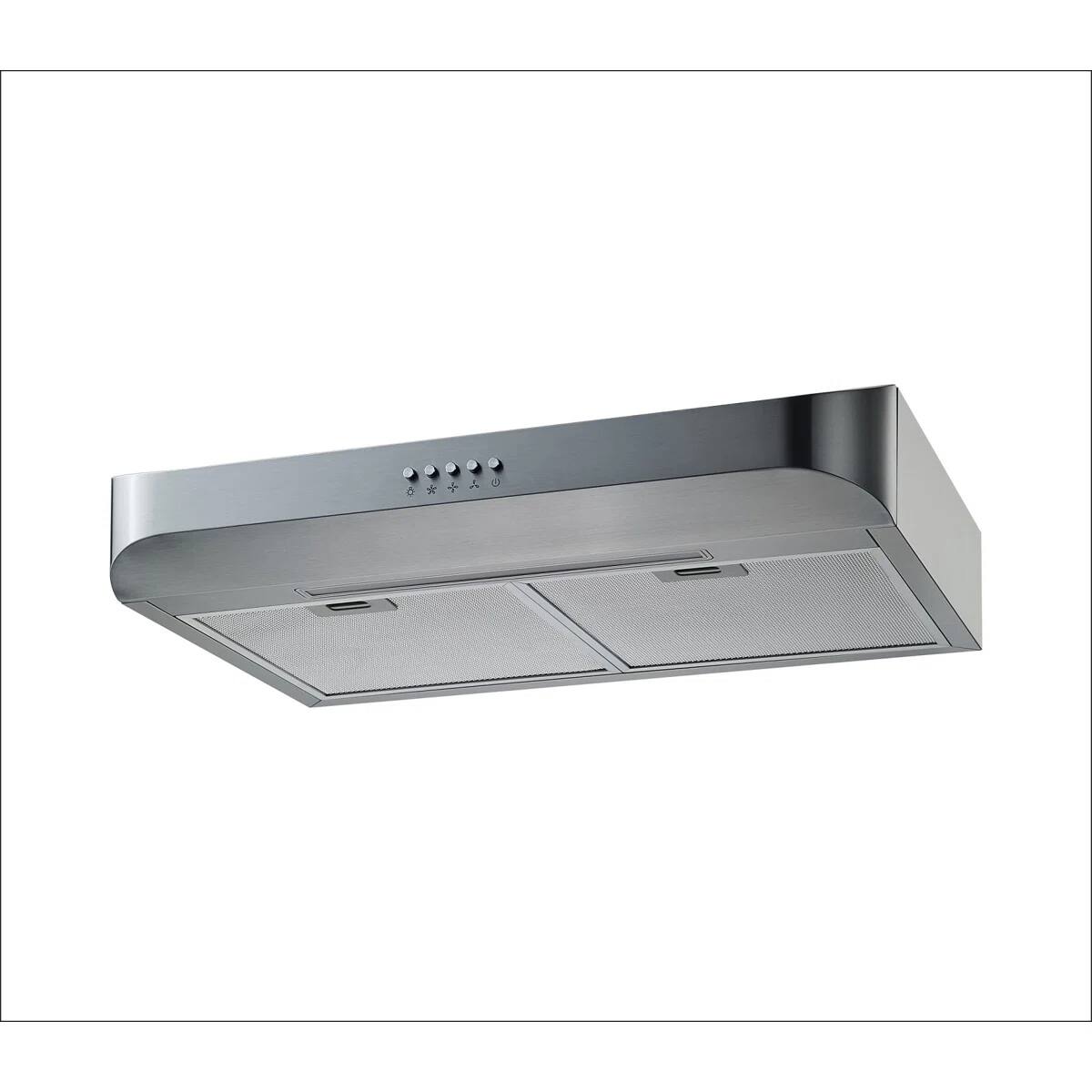

Winflo - 30 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Related Item
Specifications
- Color FinishStainless steelProduct Height5.12 inchesProduct Width29.3 inchesProduct Depth20.2 inchesExhaust Vent LocationTop/RearVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 5.12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Winflo
- Model Number: W110A1C30
- Product Name: Winflo 30 inch Convertible 330-CFM Stainless steel Under Cabinet Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel

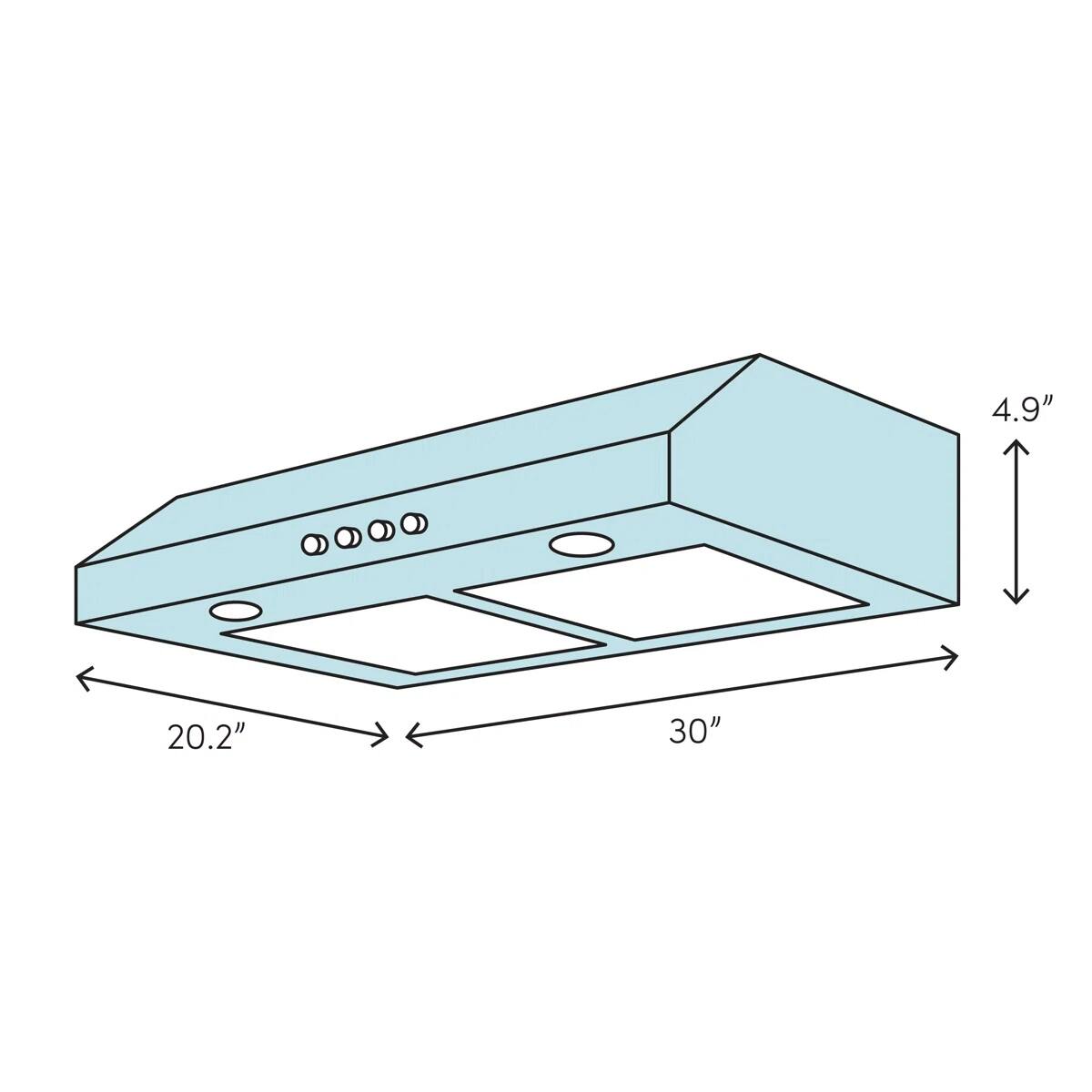

- Dimensions
- Product Height: 5.12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 17.63 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 7 inches
- Duct Length: 10 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 1
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 2 watts
- Performance
- Maximum Air Flow Capacity: 330 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 100 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 2.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 157 amperes (Strength of electrical current.)
- Voltage: 110 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 years limited on parts
- Warranty - Labor: Not available
- Other
- UPC: 853509007076
This 30 In. under cabinet range hood features a contemporary European slim design with curved edges, constructed of premium 430 stainless steel. The range hood features a patented design ventilation system to provide powerful suction with 330 CFM air flow and effortlessly remove smoke, odors and grease. Winflo patented QUICKINSTALL hardware is included to make installation by one person a breeze. 2 bright energy saver LED lights illuminate your cooking area and a push button panel controls 3 fan speeds and light. Easy to remove dishwasher-safe aluminum mesh grease filters keep maintenance to a minimum. This range hood provides the maximum performance at minimum cost. The unit is convertible with a simple switch and can be vented out of your dwelling through back or top, or converted to recirculating (ductless) with charcoal filters (part # WRHF004S2, sold separately).
- Unique patented design ventilation system: Powerful suction with 330 CFM to remove smoke, grease, odors and moisture.

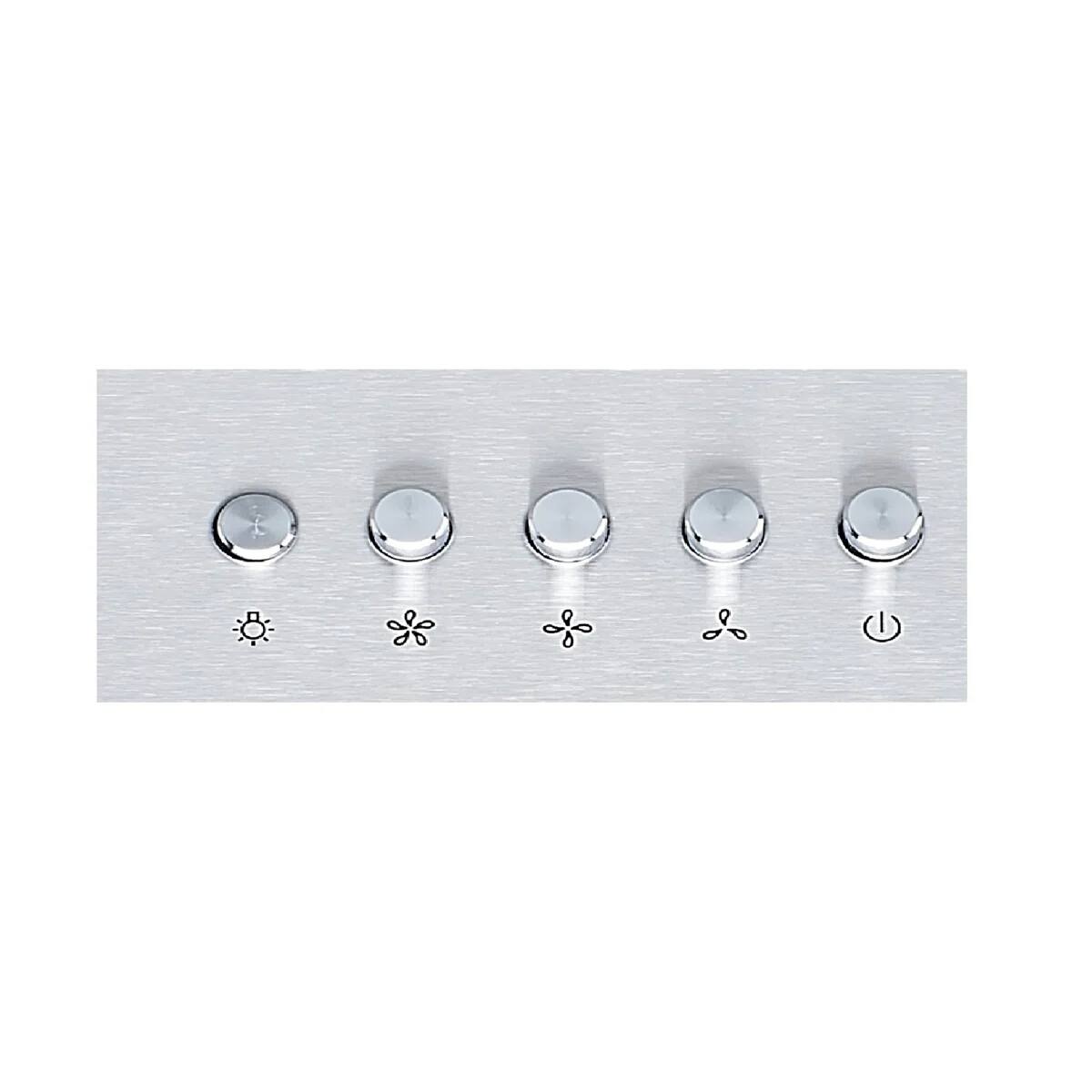

- Push buttons for 3-Speed fan levels: Easy to operate for power, fan speed and light
- Patented one person easy installation: Installation hardware is included, hardwired for electrical; round and rectangular top/rear vent
- Aluminum mesh filter and 2 LED lights: Dishwasher safe, easy to remove mesh filters; energy saving LED lights to illuminate your cooking area
- Ducted and Ductless application: For ductless application, charcoal filters are available for purchase (model: WRHF004S2)
- Unique patented design ventilation system: Powerful suction with 330 CFM to remove smoke, grease, odors and moisture.
- Push buttons for 3-Speed fan levels: Easy to operate for power, fan speed and light
- Patented one person easy installation: Installation hardware is included, hardwired for electrical; round and rectangular top/rear vent
- Aluminum mesh filter and 2 LED lights: Dishwasher safe, easy to remove mesh filters; energy saving LED lights to illuminate your cooking area
- Ducted and Ductless application: For ductless application, charcoal filters are available for purchase (model: WRHF004S2)
