Winflo - 36 inches - Convertible - Wall Range Hood - Stainless Steel
Reviews coming soon
Related Item
Specifications
- Color FinishStainless steelProduct Height38.6 inchesProduct Width35.2 inchesProduct Depth18.7 inchesExhaust Vent LocationTop/RearVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 38.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Winflo
- Model Number: W103B36

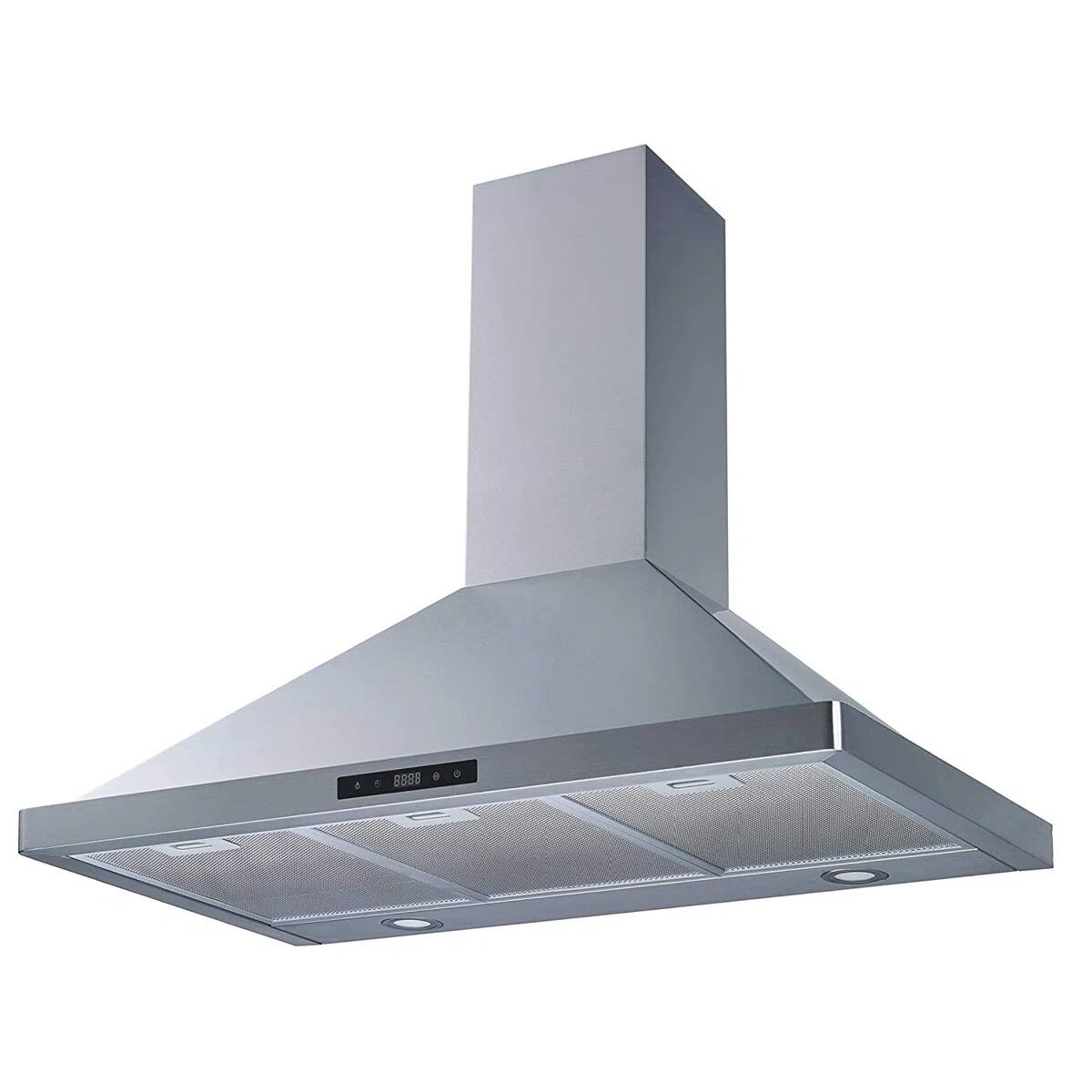

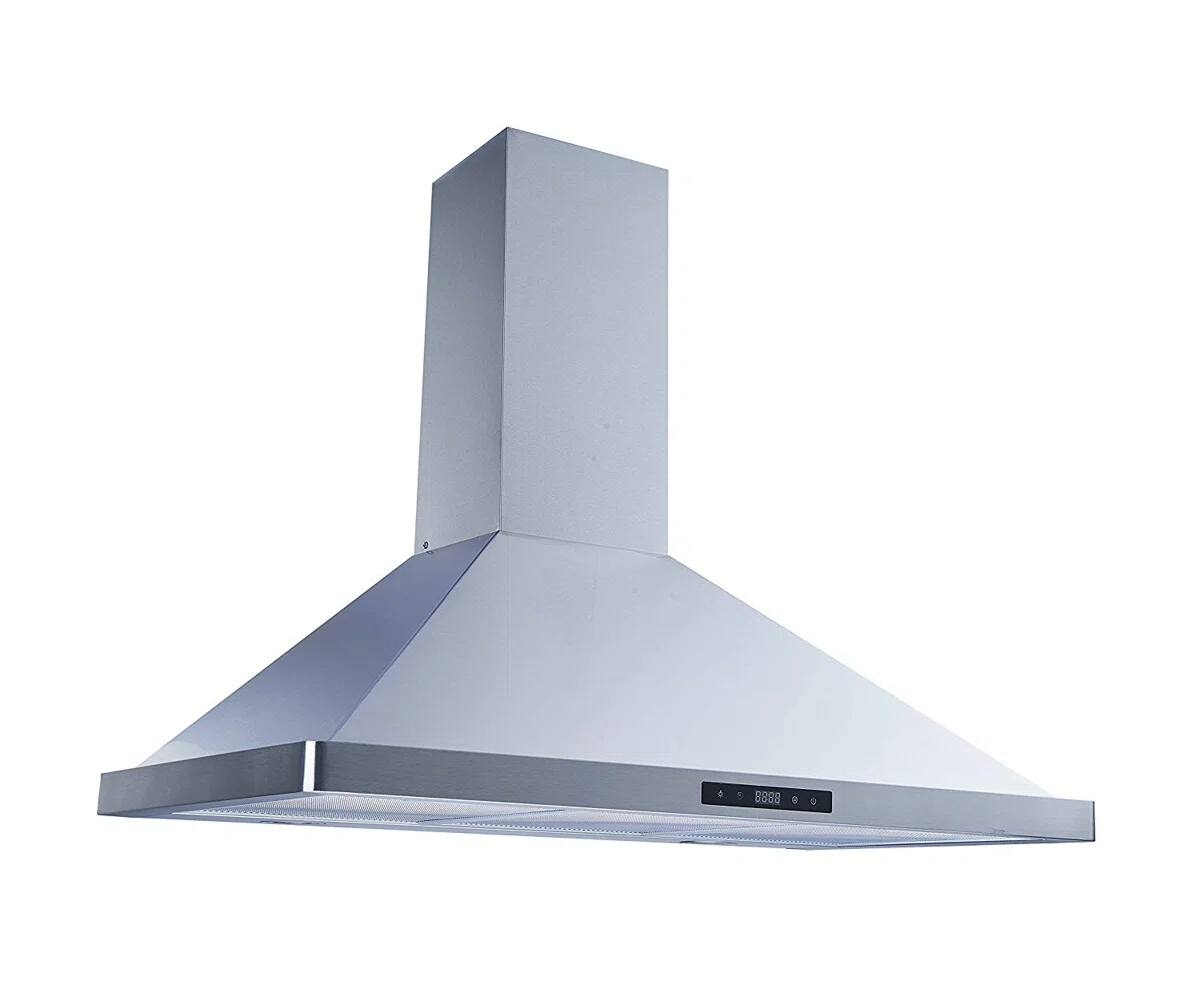

- Product Name: Winflo 36 inch Convertible 500 CFM Stainless Steel Wall Mount Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel

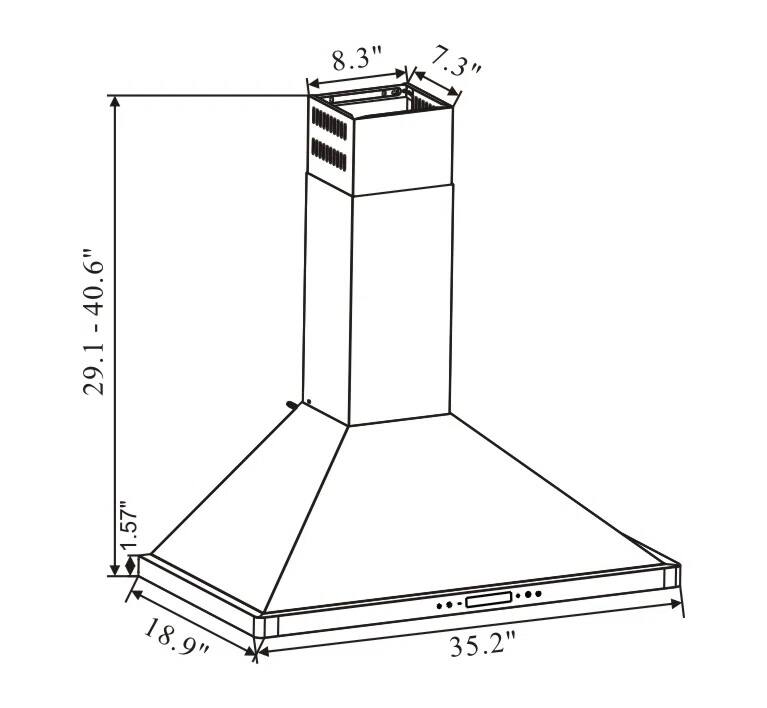

- Dimensions
- Product Height: 38.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 23.6 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 7 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touchscreen
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 1
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 2 watts
- Performance
- Maximum Air Flow Capacity: 500 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 150 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 2.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 3
- Electrical
- Amperage: 209 amperes (Strength of electrical current.)
- Voltage: 110 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 years limited on parts
- Warranty - Labor: Not available
- Other
- UPC: 853509007052

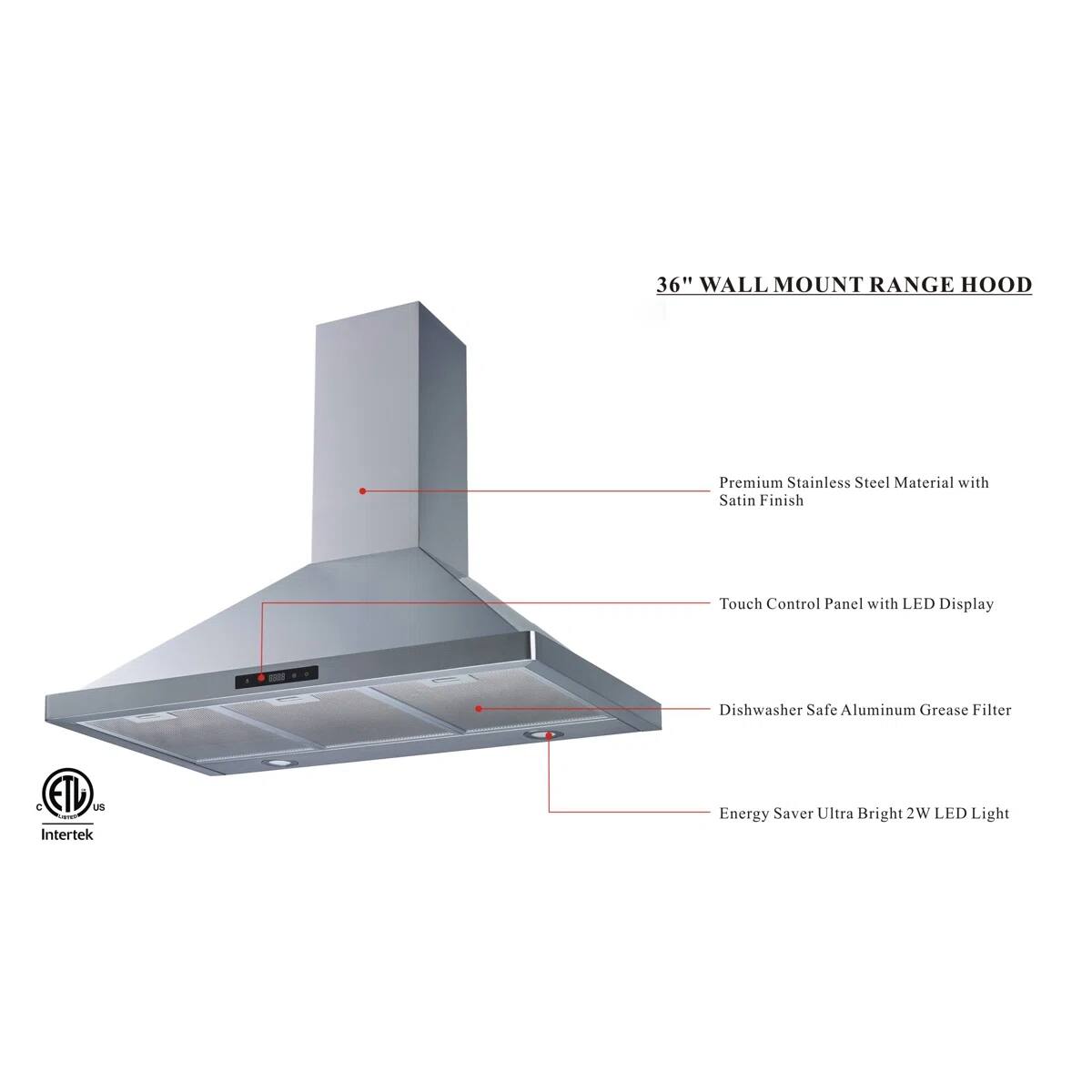

This beautiful wall mounted range hood will create splendor in your kitchen. Constructed of premium 430 stainless steel to deliver elegance and easy cleaning. Complete with easy removable aluminum mesh filters that removes smoke and grease from your cooking area and are dishwasher safe. Powerful suction with 500 CFM air flow rate is perfect for household use and an ideal balance between power, energy efficiency and noise control. This model also comes with 2 bright LED energy saver lights, low noise level operation, touch sensor control panel and 3-level fan speed. Adjustable chimney can fit 7.5 to 8.5 Ft. ceiling. This unit is convertible, can be vented out of your dwelling or recirculating (ductless) with charcoal filters (sold separately, part #WRHF004S2).
- Premium motor with 500 CFM air flow: Powerful suction to remove smoke, grease, odors and moisture.
- Touch sensor control for 3-Speed fan levels: Beautiful look, easy to operate and clean with time display
- Easy Installation: Installation hardware, adjustable chimney, flexible duct work and plug are all included; chimney Extension is available for purchase (WRHCE03)
- Aluminum mesh filters and 2 LED lights: Dishwasher safe, easy to remove mesh filters; energy saving LED lights (Model # WRHLBY2S2) to illuminate your cooking area
- Ducted and Ductless application: For ductless application, charcoal filters are available for purchase (model: WRHF004S2)
