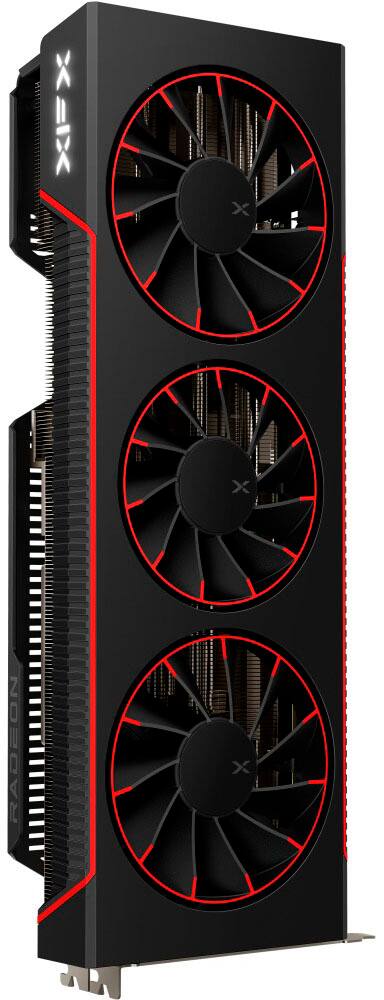

XFX - Qicksilver AMD Radeon RX 7800 XT MagAir 16GB GDDR6 PCI Express 4.0 Gaming Graphics Card - Black/Red
Model: RX-78TMAIRF9
SKU: 6588233
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 1.295 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.43 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 25 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 3.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 337.82 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 132.08 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 58.93 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): AMD Radeon RX 7800 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: XFX
- Model Number: RX-78TMAIRF9
- Product Name: XFX Qicksilver AMD Radeon RX 7800 XT MagAir 16GB GDDR6 PCI Express 4.0 Gaming Graphics Card
- Color: Black/Red
- GPU Chipset Manufacturer: AMD
- Graphics Processing Unit (GPU): AMD Radeon RX 7800 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2024
- Performance
- GPU Base Clock Frequency: 1.295 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.43 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: 1x 8pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 25 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 19.5 gigahertz
- Compatibility
- Slot Size: 3.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: Windows 10, Windows 11, Linux, PCI-E x16 capable motherboard. (The software that a product must have for it to be able to integrate with another product.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows, Linux
- Features
- Multi-GPU Support: None
- Technology Support: Direct X 12, Vulkan, Open GL, Open CL
- Included Software: AMD Adrenalin 2024 Software Download
- Power
- Total Graphics Power: 212 watts
- Recommended Power Supply: 700 watts
- Dimensions
- Product Height: 337.82 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 132.08 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 58.93 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.5 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 840191501395
AMD Radeon RX 7900 Series graphics cards, featuring the groundbreaking AMD RDNA 3 architecture, deliver ultra-high frame rates for your favorite games at 4K max settings. The XFX Magnetic Air Fans allows for extremely quick swapping of the magnetic fans, making servicing your graphics card easy and simple.
- GDDR6 Memory for advanced gaming: Equipped with 16GB of advanced GDDR6 memory to provide high bandwidth performance, enabling 1080p performance for today's most demanding games.
- XFX Magnetic Air Fans: Our magnets are composed of Neodymium Iron Boron(NdFeb). With a magnetic strength of 4000GS, the Magnetic Air magnets are capable of holding up to 1kg of weight! These magnets will not lose their power over time.
- 11 Bladed Fans: Highly efficient, our 11 blade fans can run up to 3200 RPM, have a max airflow of 70.08 CFM, and max air pressure of 4.88 mmAq.
- Vapor Chamber and Thermal Pads: The nickel plated copper vapor chamber is utilized for both GPU and DDR modules. XFX utilizes a thorough placement of thermal pads across all GDDR, VRM, and other key components including backside of the PCB. With the use Honeywell PTM7950 the amount of time between servicing requirements of the TIM is greatly reduced.
- AMD Infinity Cache: High-performance bandwidth. AMD Infinity Cache enables high bandwidth performance at low power, and low latency when gaming.
- PCI Express 4.0 interface: The AMD Radeon RX 7800 Series graphics cards feature PCIe 4.0, with a throughput of 16GT/s which enables two times the bandwidth when compared to PCIe 3.0.
- Windows and Linux Compatible: Enables next-generation gaming.
- AMD RDNA 3 architecture: With up to 60 enhanced compute units delivery powerhouse performance, 1080p gaming is easily possible at smooth framerates and maximum visual settings.
- Virtual reality ready: Provides a powerful next-generation platform for the ultimate immersive virtual reality experience.
- Direct X 12, Vulkan, Open GL, Open CL: Enhances gameplay by delivering ultrarealistic images, detail and texture and improved lighting effects that create lifelike interactivity.
- AMD Smart Access memory: Get more performance through new levels of communication between AMD Ryzen desktop processors and AMD Radeon graphics cards over PCI Express.
- HDMI and DisplayPort outputs: Enable flexible connectivity.
- GDDR6 Memory for advanced gaming: Equipped with 16GB of advanced GDDR6 memory to provide high bandwidth performance, enabling 1080p performance for today's most demanding games.
- XFX Magnetic Air Fans: Our magnets are composed of Neodymium Iron Boron(NdFeb). With a magnetic strength of 4000GS, the Magnetic Air magnets are capable of holding up to 1kg of weight! These magnets will not lose their power over time.
- 11 Bladed Fans: Highly efficient, our 11 blade fans can run up to 3200 RPM, have a max airflow of 70.08 CFM, and max air pressure of 4.88 mmAq.
- Vapor Chamber and Thermal Pads: The nickel plated copper vapor chamber is utilized for both GPU and DDR modules. XFX utilizes a thorough placement of thermal pads across all GDDR, VRM, and other key components including backside of the PCB. With the use Honeywell PTM7950 the amount of time between servicing requirements of the TIM is greatly reduced.
- AMD Infinity Cache: High-performance bandwidth. AMD Infinity Cache enables high bandwidth performance at low power, and low latency when gaming.
- PCI Express 4.0 interface: The AMD Radeon RX 7800 Series graphics cards feature PCIe 4.0, with a throughput of 16GT/s which enables two times the bandwidth when compared to PCIe 3.0.
- Windows and Linux Compatible: Enables next-generation gaming.
- AMD RDNA 3 architecture: With up to 60 enhanced compute units delivery powerhouse performance, 1080p gaming is easily possible at smooth framerates and maximum visual settings.
- Virtual reality ready: Provides a powerful next-generation platform for the ultimate immersive virtual reality experience.
- Direct X 12, Vulkan, Open GL, Open CL: Enhances gameplay by delivering ultrarealistic images, detail and texture and improved lighting effects that create lifelike interactivity.
- AMD Smart Access memory: Get more performance through new levels of communication between AMD Ryzen desktop processors and AMD Radeon graphics cards over PCI Express.
- HDMI and DisplayPort outputs: Enable flexible connectivity.
Q: What are the dimensions of the graphics card?
A: The graphics card has a length of 58.93 millimeters, a height of 337.82 millimeters, and a width of 132.08 millimeters.
Q: Does the graphics card support multi-GPU configurations?
A: This graphics card does not offer support for multi-GPU configurations.
Q: What is the maximum number of displays the graphics card can support?
A: This graphics card supports a maximum of four displays.
Q: What type of video memory does the graphics card use?
A: The graphics card uses GDDR6 video memory.
Q: What is the base clock frequency of the GPU?
A: The GPU base clock frequency is 1.295 gigahertz.
Q: What is the recommended power supply for this graphics card?
A: The recommended power supply for this graphics card is 700 watts.
Q: In the name of the item says has 16GB RAM and in specs says 25GB RAM, which is the correct spec?
A: No. Only the 7900XTX has 25gb of VRAM. The 7800XT has 16gb
