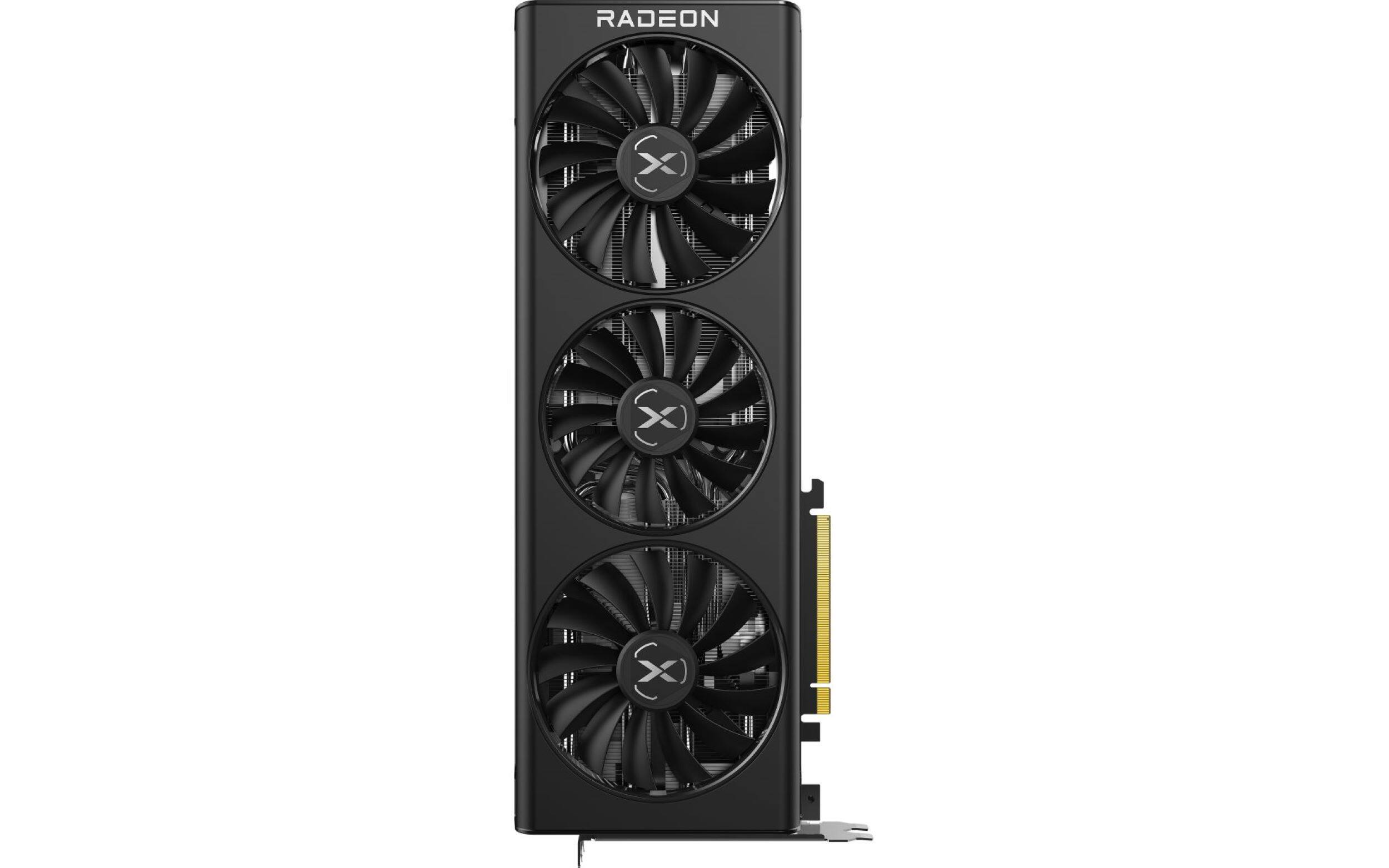

XFX - Speedster SWFT319 AMD Radeon RX 6800 16GB GDDR6 PCI Express 4.0 Gaming Graphics Card - Black
Model: RX-68XLAQBDR
SKU: 6559272
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 1.85 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.19 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.7-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 339.85 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 130.05 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 52.07 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): AMD Radeon RX 6800 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: XFX
- Model Number: RX-68XLAQBDR
- Product Name: Speedster SWFT319 AMD Radeon RX 6800 16GB GDDR6 PCI Express 4.0 Gaming Graphics Card
- Color: Black
- GPU Chipset Manufacturer: AMD
- Graphics Processing Unit (GPU): AMD Radeon RX 6800 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2023
- Performance
- GPU Base Clock Frequency: 1.85 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.19 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Thunderbolt Ports: 0 (The number and type of Thunderbolt ports the product has.)
- Power Connector: 2x 8pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 16 gigahertz
- Compatibility
- Slot Size: 2.7-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: Windows 10, Windows 11, Linux, PCI-E x16 capable motherboard. (The software that a product must have for it to be able to integrate with another product.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows, Linux
- Features
- Multi-GPU Support: None
- Technology Support: Direct X 12, Vulkan, Open GL, Open CL
- Included Software: AMD Adrenalin 2023 Software Download
- Power
- Total Graphics Power: 300 watts
- Recommended Power Supply: 750 watts
- Dimensions
- Product Height: 339.85 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 130.05 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 52.07 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 3.62 pounds (The out of box weight of the item.)
- Other
- UPC: 840191502491
The AMD Radeon RX 6000 Series graphics cards power a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame.
- Powered by the AMD Radeon RX 6800 graphics processing unit (GPU): With a 2190MHz boost clock speed, you are able to elevate and unify visuals and gameplay across multi-gaming platforms.
- 16GB GDDR6 on-board memory: Provides the memory needed to create striking visual realism.
- PCI Express 4.0 interface: Offers compatibility with a range of systems.
- Windows and Linux Compatable: Enables next-generation gaming.
- Virtual Reality Ready: Provides a powerful next-generation platform for the ultimate immersive virtual reality experience.
- AMD RDNA 2 architecture: Engineered to deliver powerhouse performance for all gamers.
- Direct X 12, Vulkan, Open GL, Open CL: Enhances gameplay by delivering ultrarealistic images, detail and texture and improved lighting effects that create lifelike interactivity.
- HDMI and DisplayPort outputs: Enable flexible connectivity.
- Powered by the AMD Radeon RX 6800 graphics processing unit (GPU): With a 2190MHz boost clock speed, you are able to elevate and unify visuals and gameplay across multi-gaming platforms.
- 16GB GDDR6 on-board memory: Provides the memory needed to create striking visual realism.
- PCI Express 4.0 interface: Offers compatibility with a range of systems.
- Windows and Linux Compatable: Enables next-generation gaming.
- Virtual Reality Ready: Provides a powerful next-generation platform for the ultimate immersive virtual reality experience.
- AMD RDNA 2 architecture: Engineered to deliver powerhouse performance for all gamers.
- Direct X 12, Vulkan, Open GL, Open CL: Enhances gameplay by delivering ultrarealistic images, detail and texture and improved lighting effects that create lifelike interactivity.
- HDMI and DisplayPort outputs: Enable flexible connectivity.
Whats Included
- XFX SWFT319 Radeon RX 6800
- XFX SWFT319 Radeon RX 6800
Q: Does this graphics card support ray tracing?
A: Yes, this graphics card supports ray tracing technology.
Q: How many displays does this graphics card support?
A: This graphics card supports a maximum of 4 displays.
Q: What type of memory does this graphics card use?
A: This graphics card uses GDDR6 type of memory.
Q: What is the total power draw of this graphics card?
A: The total graphics power of this card is 300 watts.
Q: What is the boost clock speed of this graphics card?
A: The boost clock speed of this graphics card is 2.19 GHz.
Q: What kind of outputs does this graphics card have?
A: This graphics card has HDMI and DisplayPort outputs for flexible connectivity.
Q: Hello I was wondering was the dimensions of this card
A: Hello, You can find information on the dimensions and more by clicking the "full specs" tab below the product. Attached below is a screenshot of the GPU dimensions and weight.
A: You will need a mid tower ATX for this. The Corsair 4000d series size case works well.
