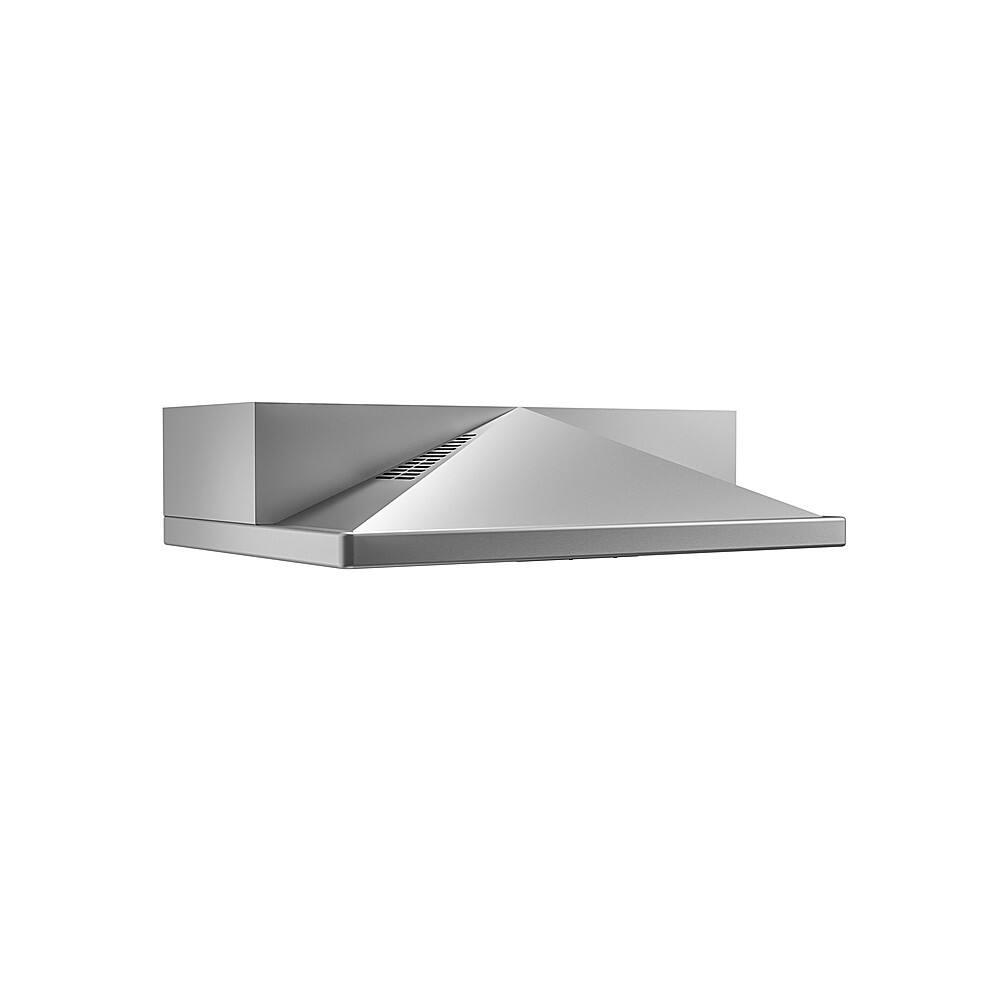

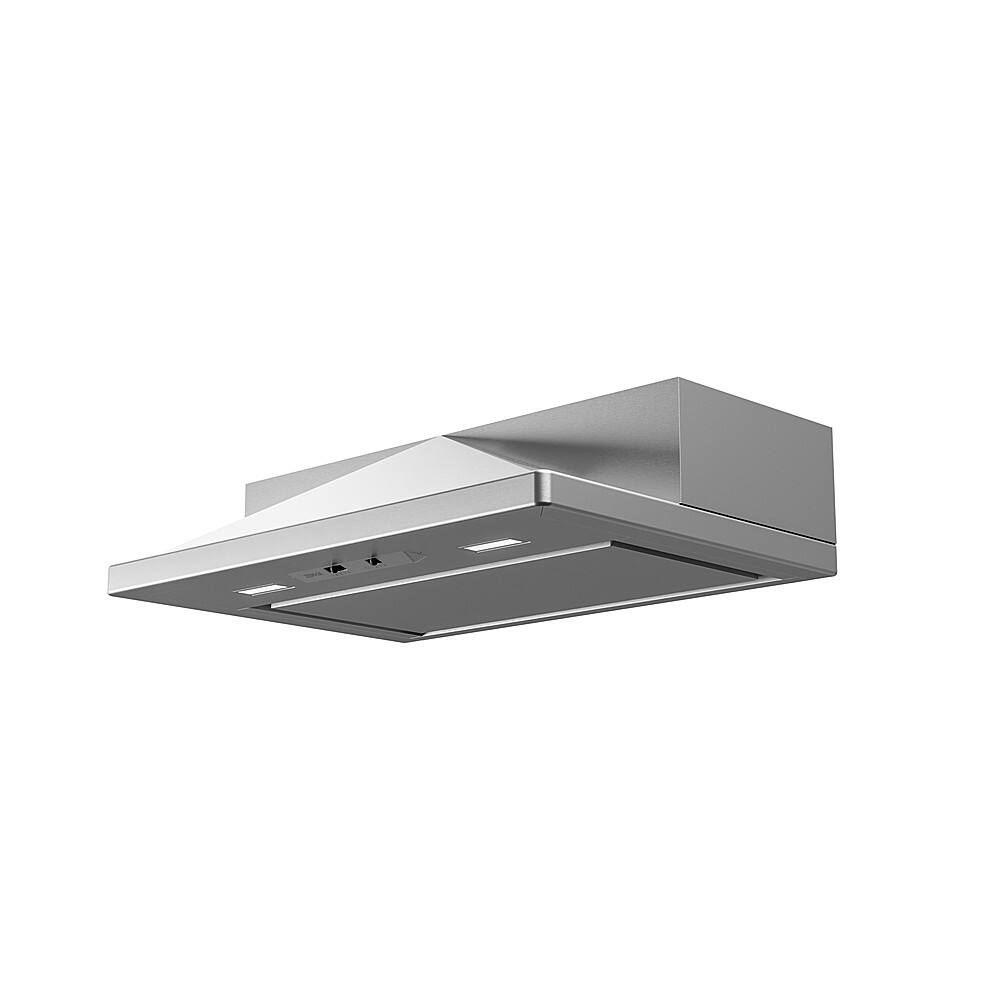

Zephyr - 30 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Zephyr - 30 inches - Convertible - Under cabinet Range Hood - Stainless Steel
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
- Zephyr - Recirculating Kit for ZPY Range Hoods - Black$59.99
Related Item
Specifications
- Color FinishStainless steelProduct Height7 3/8 inchesProduct Width29 15/16 inchesProduct Depth21 inchesExhaust Vent LocationTop/RearVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 7 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: ZPY-E30BS290
- Product Name: Pyramid 30 in. 290 CFM Under Cabinet Range Hood with LED Lights
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 7 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 32 inches
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 31.2 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Slide
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 290 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 190 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 3.2 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.1 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Aluminum Mesh
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328009952

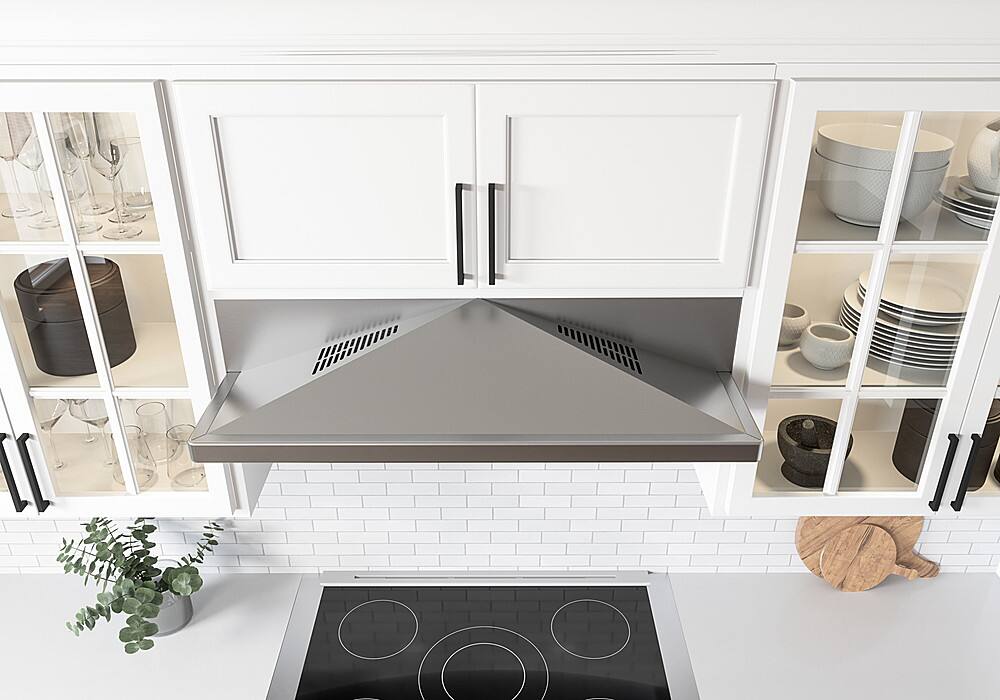

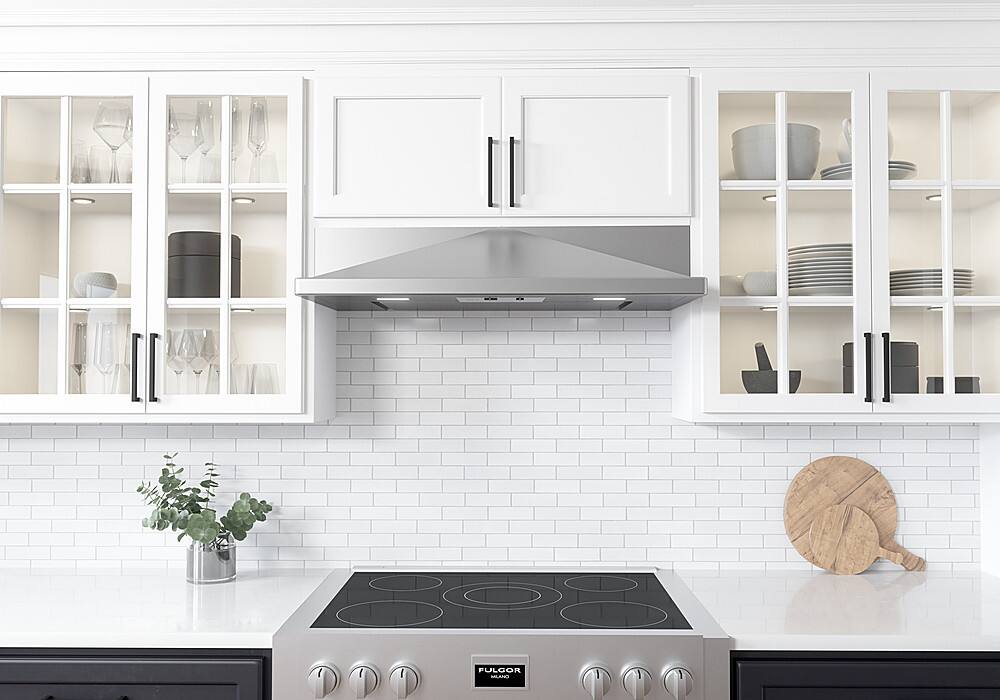

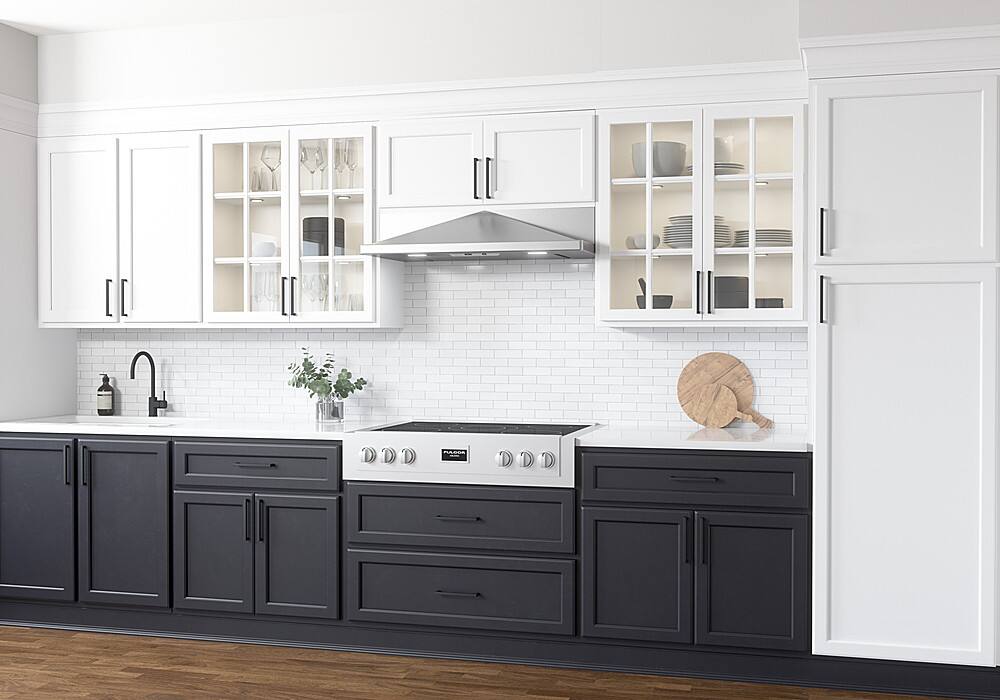

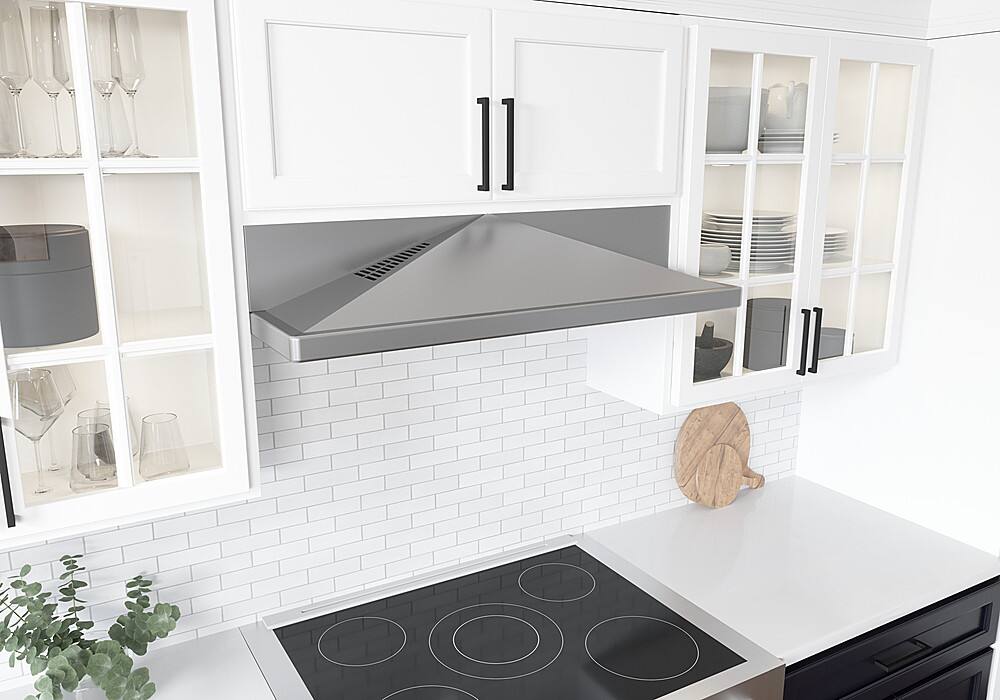

Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive-yet-utilitarian design is upgraded with our Perimeter Aspiration System for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12″ depth ensures a true fit with popular cabinet styles.

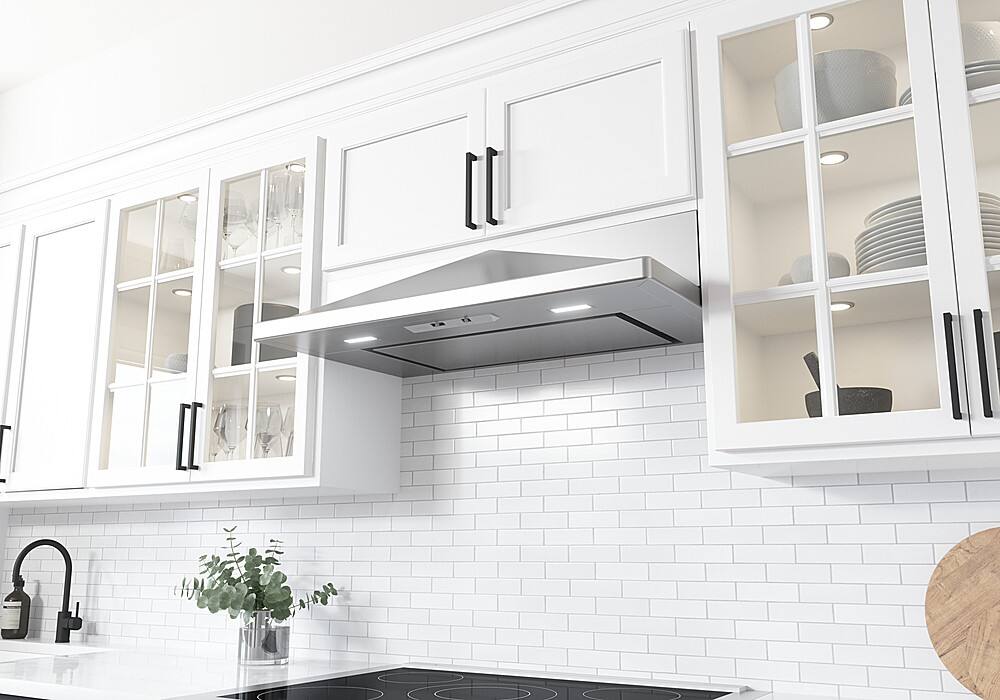

- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.

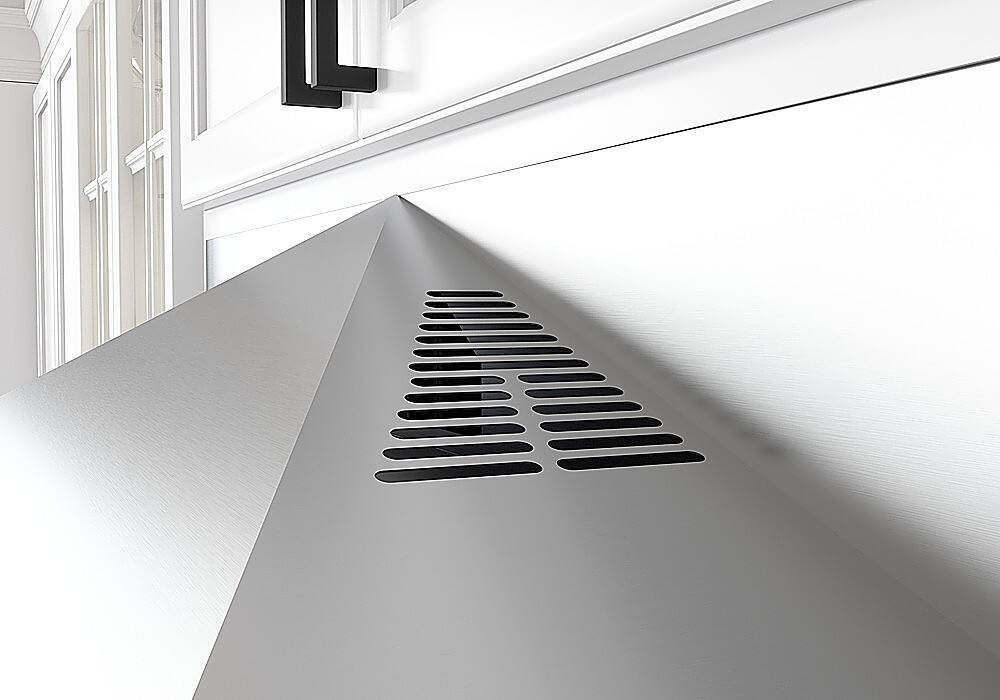

- Perimeter Aspiration System: This form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00PY)
Product Manuals
Q: What type of filters does this Zephyr range hood use?
A: This range hood uses aluminum mesh filters.
Q: How many fan speeds does this range hood have?
A: This Zephyr range hood has 3 fan speeds.
Q: Can this range hood be vented horizontally?
A: Yes, this range hood can be vented both vertically or horizontally.
Q: Does this range hood come with a ductless recirculating kit?
A: No, the ductless recirculating kit is sold separately. You can find it under part # ZRC-00PY.
Q: What is the air flow capacity of this Zephyr range hood?
A: This Zephyr range hood has a maximum airflow capacity of 290 cubic feet per minute.
Q: What is the depth of the upper 'square box' portion of the hood that would attach to upper cabinet ?
A: Hello, Depth is 21in. Thank you for your inquiry! - Zephyr
