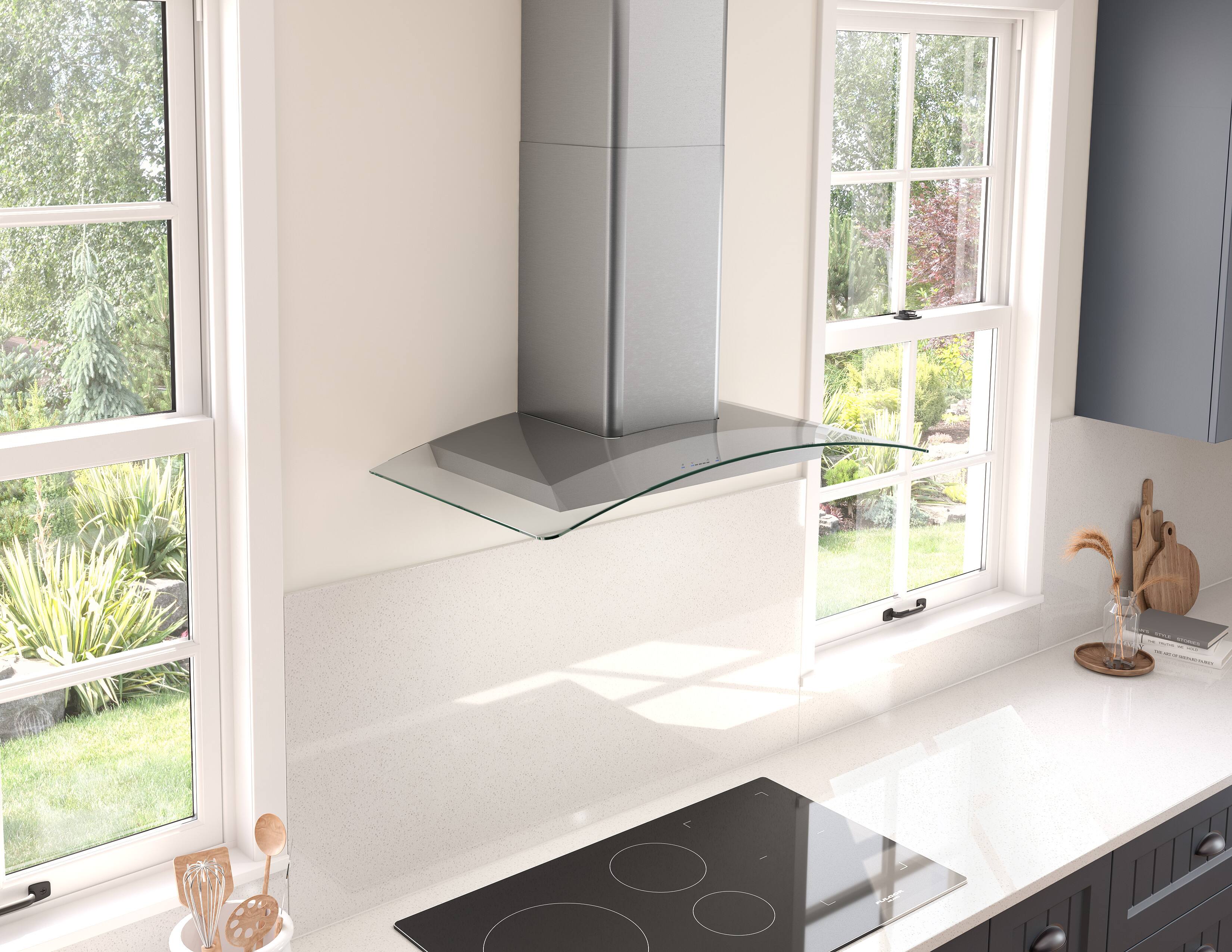

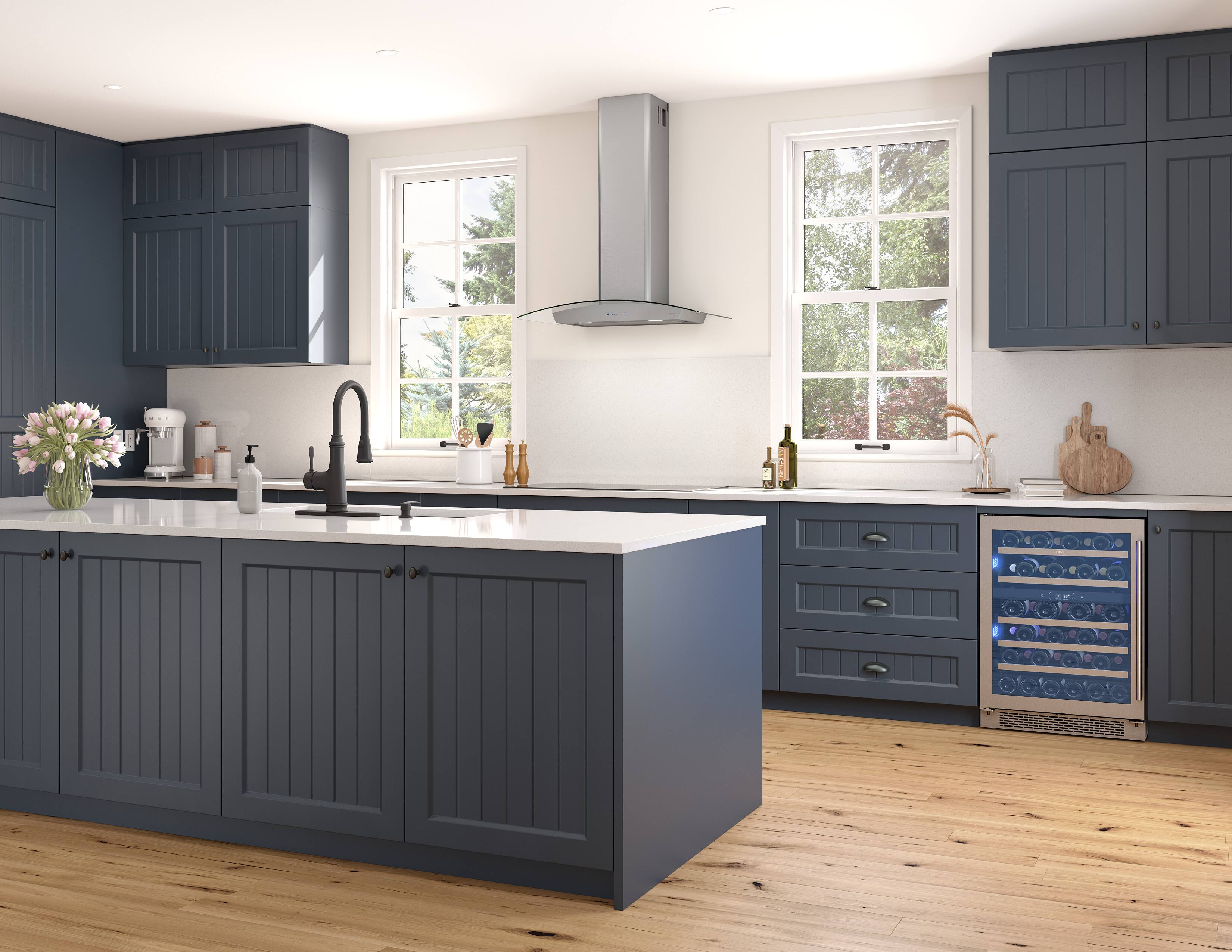

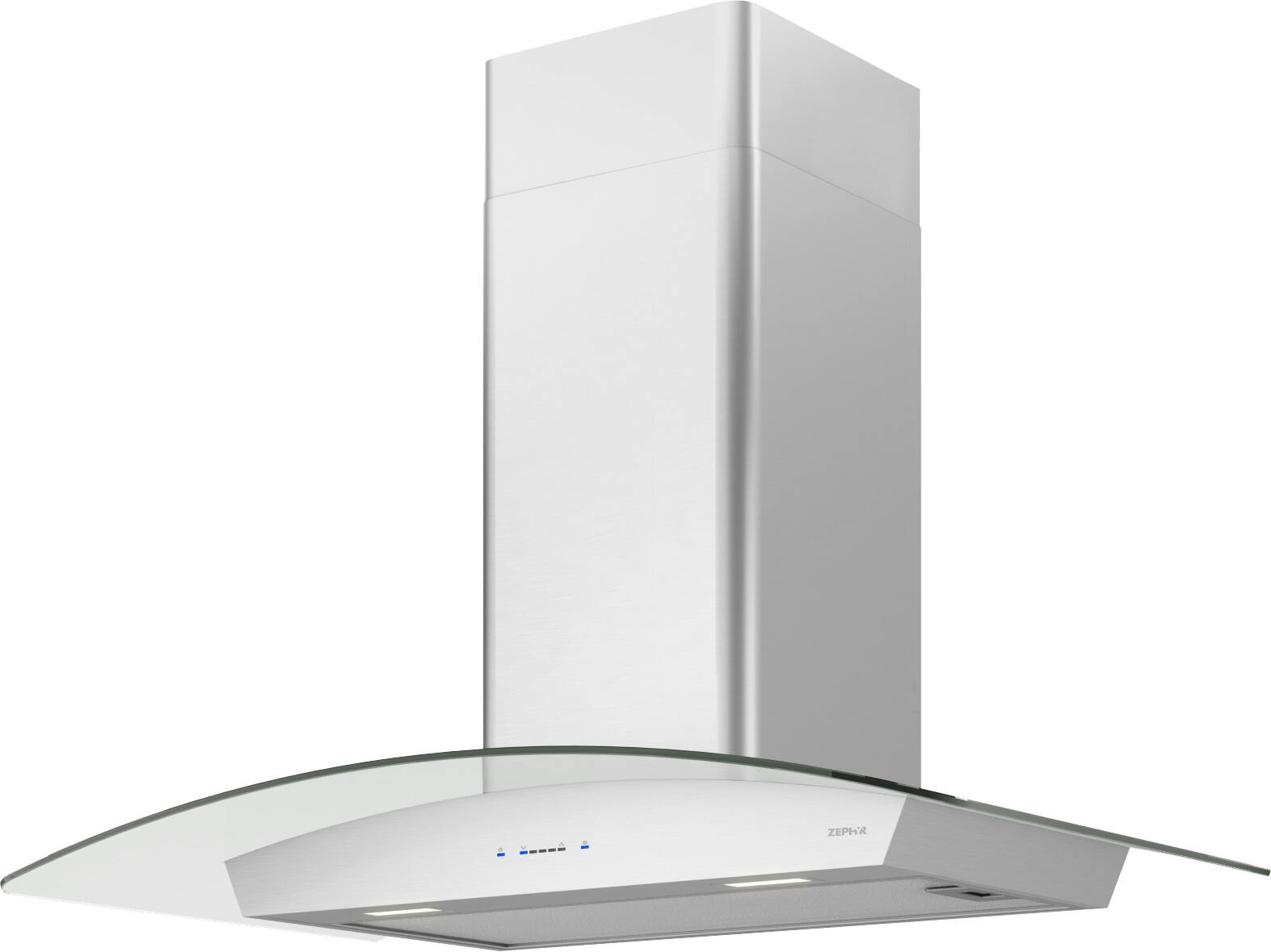

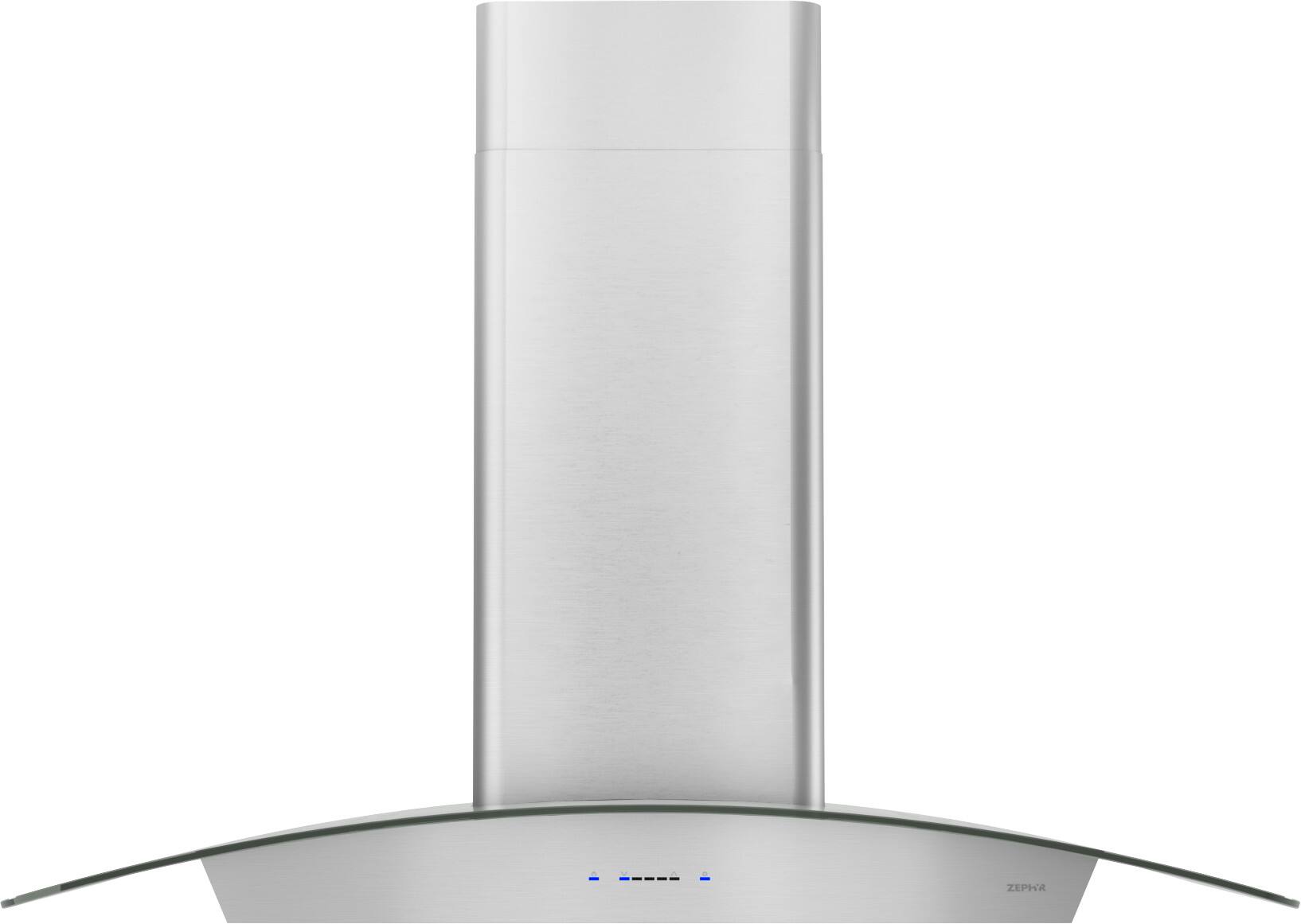

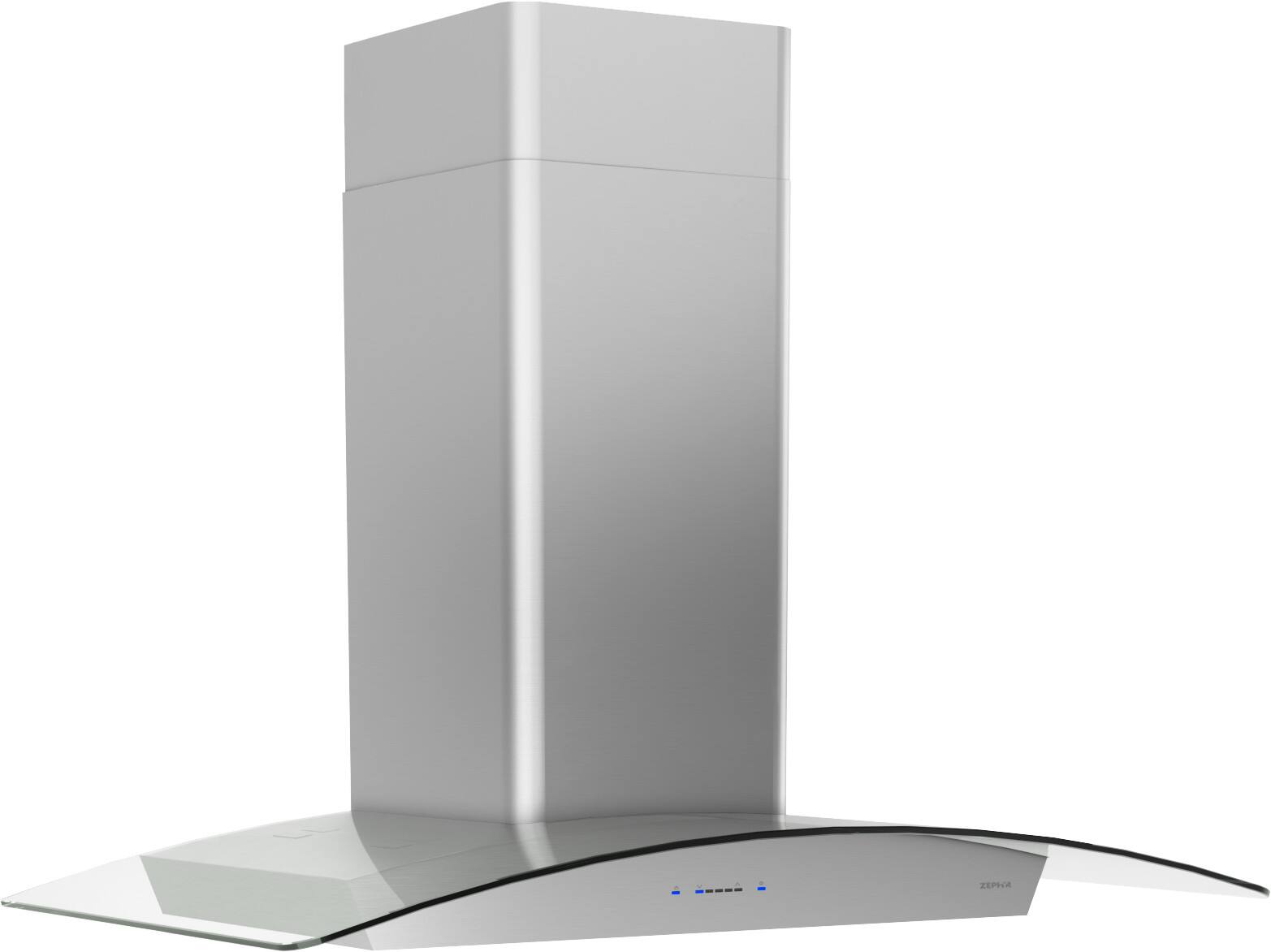

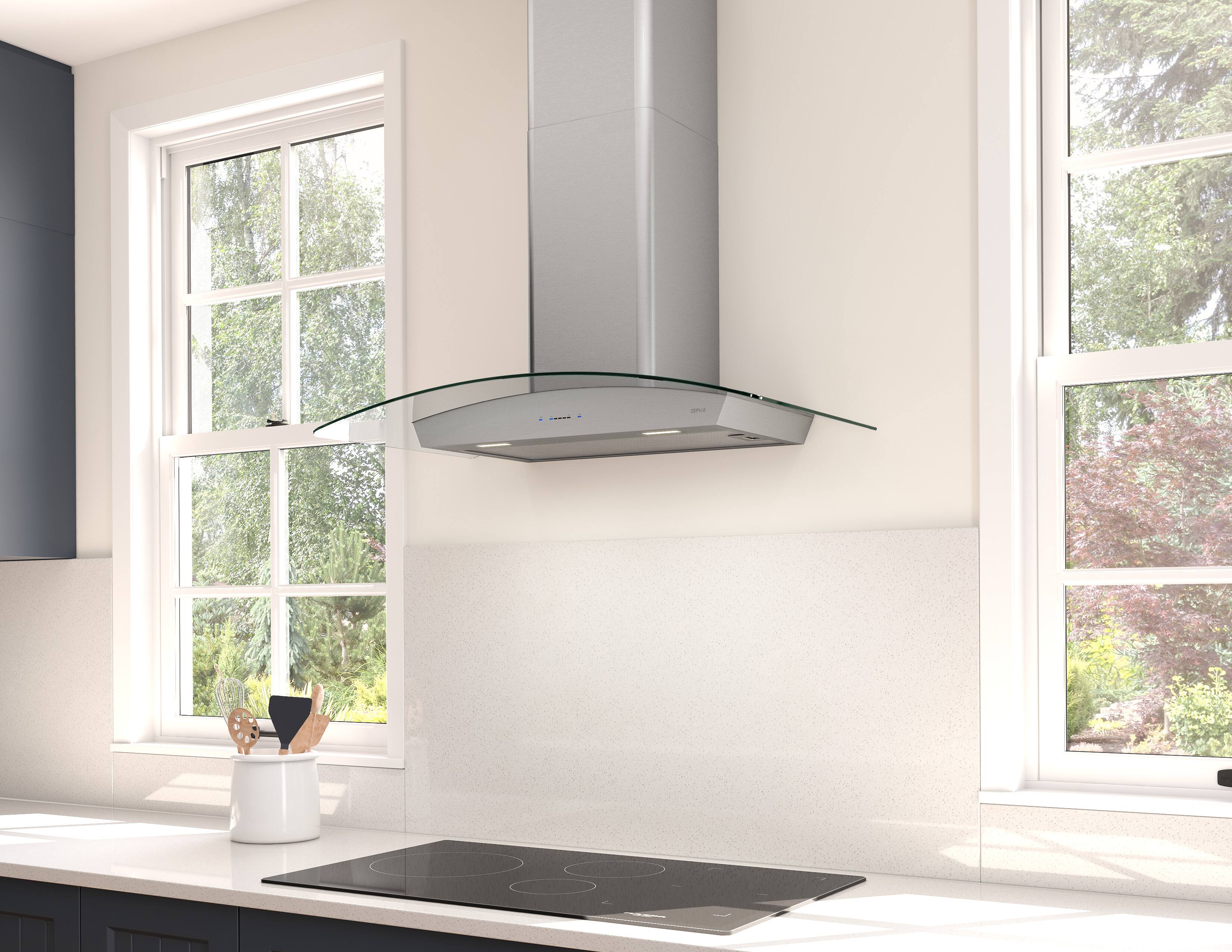

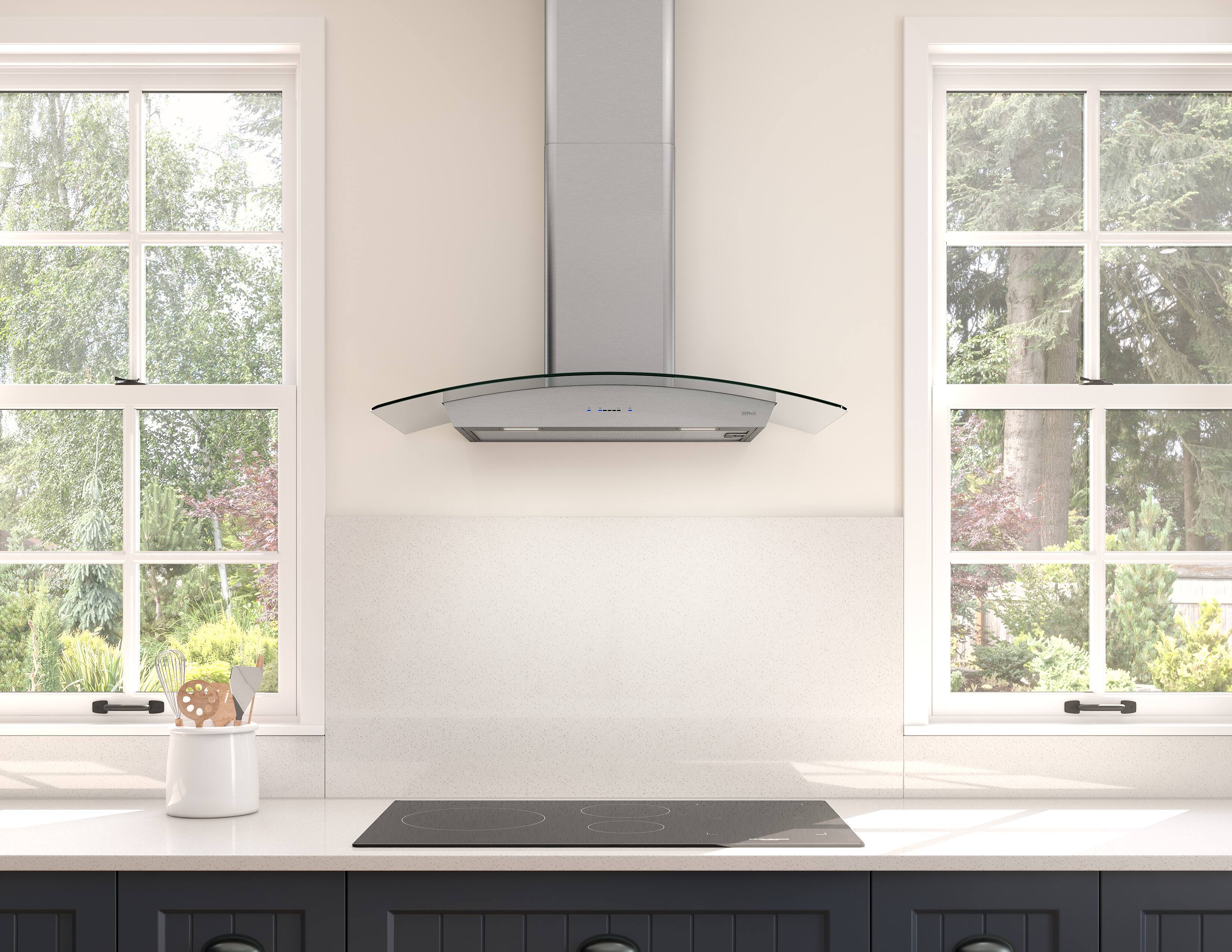

Zephyr - 30 inches - Convertible - Wall Range Hood - Stainless Steel/Glass
Color
Stainless Steel/GlassDelivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Product Height23 inchesProduct Width29 15/16 inchesProduct Depth19 3/4 inchesExhaust Vent LocationTopVent TypeConvertibleVent StyleConvertible
- Key Specs
- Product Height: 23 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: ZRV-E30CGC
- Product Name: Ravenna 30 in. 600 CFM Wall Mount Range Hood with LED Light
- Color: Stainless Steel/Glass
- Dimensions
- Product Height: 23 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 49 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Control Type: Button
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 646328010880
The delicate curve of a glass canopy arching over your cooktop will add an elegance to your everyday cooking experience. Featuring Zephyrs trend-setting black stainless steel, the Ravenna combines 21st century know-how with timeless beauty. Featuring clear and smoke-gray glass canopy options, Airflow Control Technology (ACT), ICON Touch controls, LumiLight LED lighting, and a powerful yet quiet 600-CFM blower. Now available with an optional ADA-compliant remote control.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch Controls: ICON Touch™ Controls seamlessly integrate into the hood’s stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00RV)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-00RV)
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch Controls: ICON Touch™ Controls seamlessly integrate into the hood’s stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00RV)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-00RV)
Q: What is the vent type of the range hood?
A: The vent type of the Zephyr Ravenna 30 in. 600 CFM Wall Mount Range Hood with LED Light is convertible, meaning it can be used with either a ducted or ductless ventilation system.
Q: What is the maximum CFM of the range hood?
A: The maximum CFM of the Zephyr Ravenna 30 in. Wall Mount Range Hood is 600 CFM. This information is provided in the product name and description.
Q: What is the product weight of the range hood?
A: The product weight of the Ravenna 30 in. 600 CFM Wall Mount Range Hood with LED Light is 49 pounds. This information can be found in the "product specifications" section, under the "Product Weight" row.
Q: What type of control panel does the range hood have?
A: The Zephyr Ravenna 30 in. 600 CFM Wall Mount Range Hood features ICON Touch Controls. These controls seamlessly integrate into the hood's stainless steel canopy, allowing users to easily control various functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders.
Q: What is the voltage of the range hood?
A: The voltage of the Zephyr Ravenna 30 in. 600 CFM Wall Mount Range Hood with LED Light is 120 volts. This information is found in the product specifications section of the provided context.
Q: What brand is the range hood?
A: The brand of the range hood is Zephyr. This information can be found in the product specifications section, under the "product brand" category.
Q: Does this range hood come with an optional remote control?
A: Yes, the Zephyr Ravenna 30 in. 600 CFM Wall Mount Range Hood with LED Light comes with an optional ADA-compliant remote control. The remote control is sold separately and can be purchased as an accessory.
Q: What is the standardized width of the range hood?
A: The standardized width of the Ravenna 30 in. 600 CFM Wall Mount Range Hood with LED Light by Zephyr is 30 inches. This information can be found in the "Parts" section of the provided context.
Compare similar products
The delicate curve of a glass canopy arching over your cooktop will add an elegance to your everyday cooking experience. Featuring Zephyrs trend-setting black stainless steel, the Ravenna combines 21st century know-how with timeless beauty. Featuring clear and smoke-gray glass canopy options, Airflow Control Technology (ACT), ICON Touch controls, LumiLight LED lighting, and a powerful yet quiet 600-CFM blower. Now available with an optional ADA-compliant remote control.
Modeled after the classic European design range hoods, Brisas BMI also performs like one. Its 600-CFM motor is at home over induction or gas ranges, and its supersized 5-ply aluminum mesh filter can handle even the greasiest dish. Crowned with a clear, curved-glass canopy, Brisas BMI is always in style. Upgraded with LumiLight LED lighting and electronic touch controls.
The Brisas BVE wall-mounted range hood makes quite an impression. From its pro-style pyramid design to its 600-CFM internally installed motor, BVE is head and shoulders above the competition. Relying on the highest quality manufacturing standards, BVE exudes strength that lasts and quality that is easy to relate to: easy-to-install out-of-the-box design, high-grade stainless steel, tight seams, and precision metal folding for seamless corners and edges. Upgraded with LumiLight LED lighting and electronic touch controls.
Anzio, a low-profile, chimney-style range hood that will add style and value to any kitchen. Available in stainless steel and Titanium-coated, black stainless steel finishes for improved durability and easy cleaning. Complete with a 600-CFM blower, ICON Touch controls, LumiLight LED lighting and our exclusive Airflow Control Technology (ACT). Now available with an optional ADA-compliant remote control.
