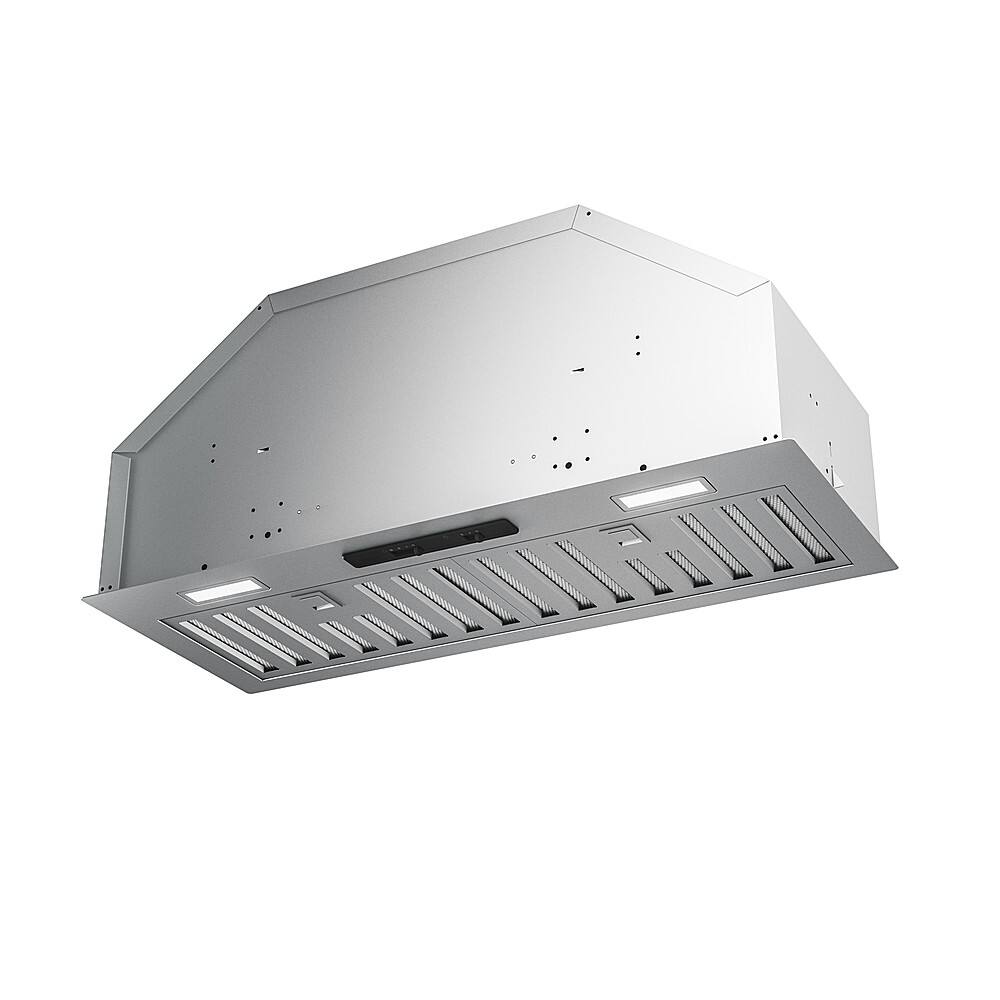

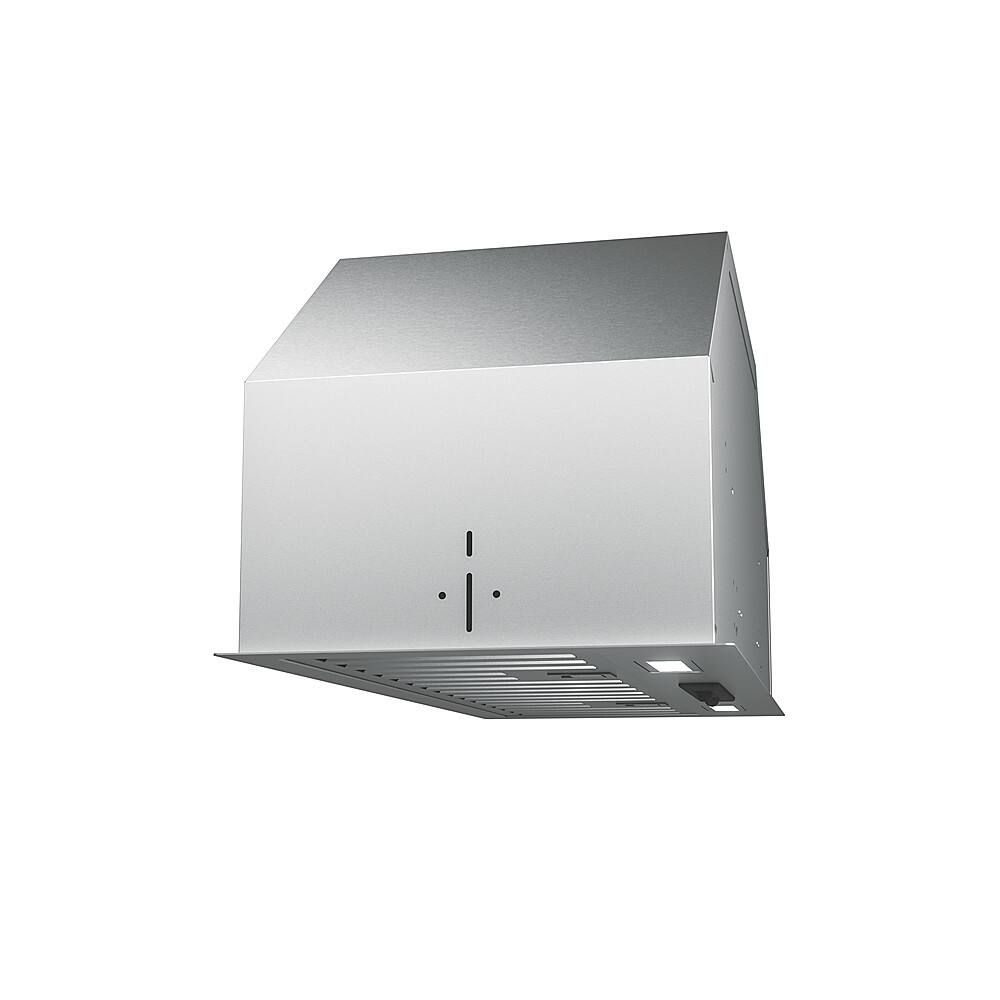

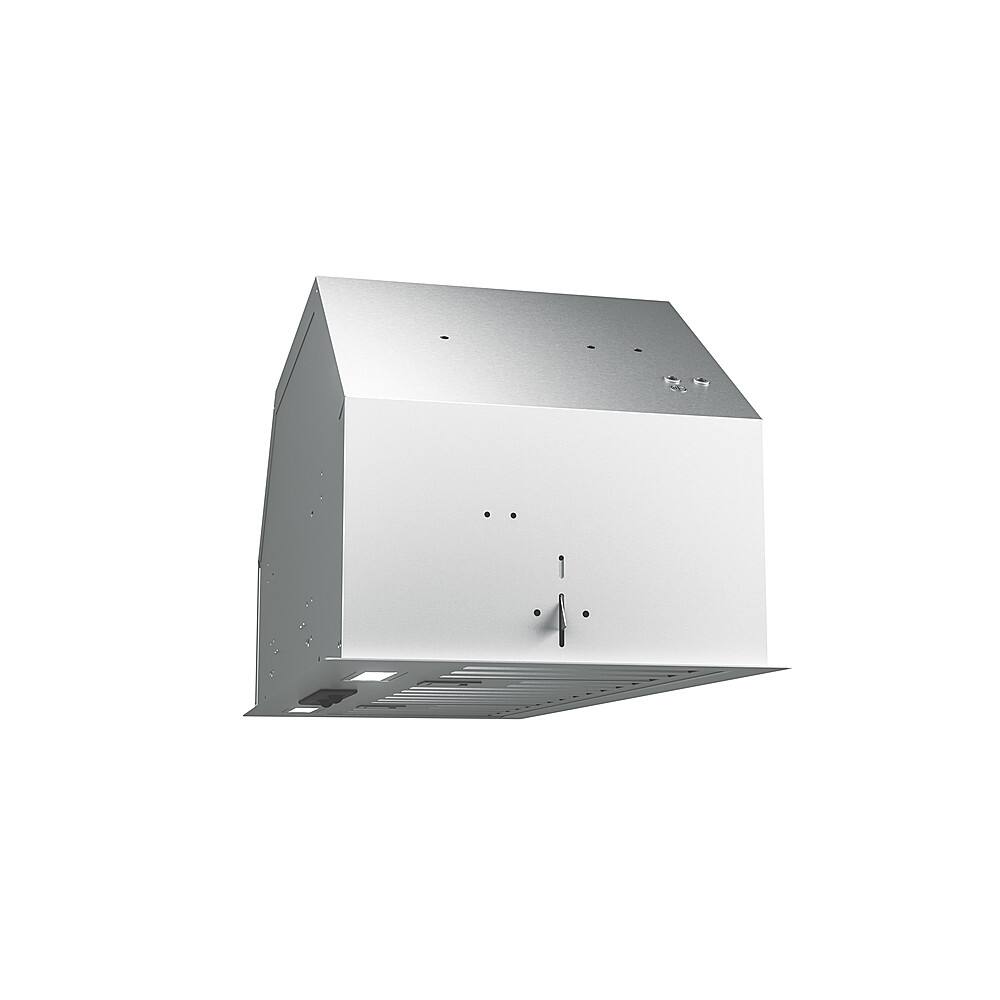

Zephyr - 34 inches - Convertible - Range Hood Insert - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Zephyr - Recirculating Kit for AK8000CS and AK8100BS Range Hoods - Black$29.99
Related Item
Specifications
- Color FinishStainless steelProduct Height10 1/2 inchesProduct Width33 4/7 inchesProduct Depth11 1/5 inchesExhaust Vent LocationTop/RearVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 10 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 33 4/7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 1/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK8134BS
- Product Name: Tornado I 34 in. 600 CFM Convertible Insert Mount Range Hood with LED Light
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 10 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 20 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 33 4/7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 1/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 34 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 22.5 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 26 7/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 10 5/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Slide
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328011269
The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Powerful 600 CFM Blower: The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
- Hybrid Baffle Filters: Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration.
- 3 Speed Mechanical Slide Controls: 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Liner Accessories Available: An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance. Part # AK0836AS
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (part # ZRC-0080)
Q: What type of light bulbs does this range hood use?
A: This range hood uses LED light bulbs. The LumiLight LED lights have a lifespan of over 25,000 hours and are energy- efficient, requiring less energy than traditional halogen lights. The maximum bulb wattage for this range hood is 6 watts.
Q: What is the standard width of this range hood?
A: The standard width of the Zephyr Tornado I 34 in. 600 CFM Convertible Insert Mount Range Hood with LED Light is 34 inches. This information can be found in the product specifications section under "Standardized Width".
Q: How deep is this range hood?
A: The product depth of the Zephyr Tornado I 34 in. 600 CFM Convertible Insert Mount Range Hood with LED Light is 11 3/16 inches.
Q: How deep does the cut-out need to be for this range hood?
A: The cut-out depth required for the installation of this range hood is 10 5/8 inches. This information can be found in the product specifications section, under the "Cut-Out Depth" attribute.
Q: What is the wattage of the light bulbs used in this range hood?
A: The maximum wattage of the light bulbs used in this range hood is 6 watts. The range hood uses LED bulbs.
Q: What is the minimum height above the cooktop that this range hood can be installed?
A: The minimum height above the cooktop that the Zephyr Tornado I 34 in. 600 CFM Convertible Insert Mount Range Hood with LED Light can be installed is 20 inches. The maximum installation height is 36 inches.
Q: Does this range hood come with a remote control?
A: The context mentions "Remote Control: false". Therefore, the answer is: No, this range hood does not come with a remote control.
Q: What is the maximum height above the cooktop that this range hood can be installed?
A: The maximum installation height above the cooktop for the Tornado I 34 in. 600 CFM Convertible Insert Mount Range Hood with LED Light is 36 inches. This information can be found in the product specifications under "Maximum Installation Height Above Cooktop".
Compare similar products
The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
Choose a high-tech approach to kitchen ventilation with this GE Wi-Fi-enabled designer insert. Four fan speeds cycle out odors and smoke, while convenient touch controls allow easy operation. A ChecConnect feature automatically syncs the built-in lights with your range to illuminate your cooktop as you prepare meals. This GE Wi-Fi-enabled designer insert connects with smart devices for voice-activated control.
A quiet storm of air-clearing power in a designer package, the Monsoon Mini II gets the job done. Featuring a 600-CFM blower, hybrid baffle filters, Airflow Control Technology (ACT), and dual-level LumiLight LED lighting. Also includes recirculating and make-up air options.
If you like professional-grade punch with all the amenities, Tornado II is your best-kept secret and will complement any kitchen’s style. Designed to fit 15-inch-deep cabinets, this powerful insert features pro baffle filters and a 600-CFM internal blower. Dual-level LumiLight LED lighting with TruHue™ technology allows you to match your hood lights to your primary lighting. An optional 1,000-CFM dual internal blower and an optional wireless remote control are also available.
