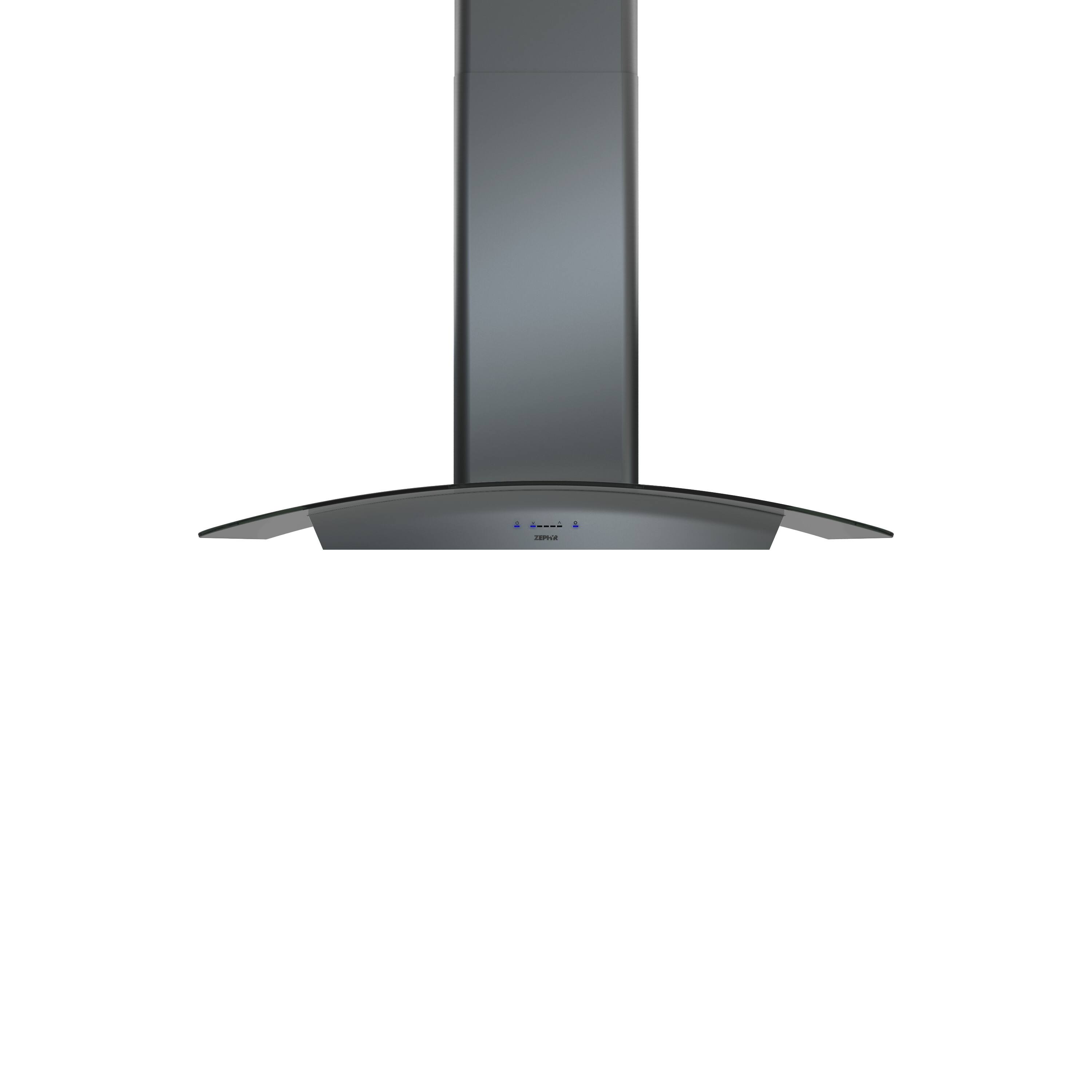

product image

Zephyr - 35 inches - Convertible - Island Range Hood - Stainless Steel/Glass

Model: ZRE-M90ABSGG
SKU: 6191554
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Stainless steel
    • Product Height: 28 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 35 3/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 25 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Exhaust Vent Location: Top
    • Vent Type: Convertible
    • Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
  • General
    • Brand: Zephyr
    • Model Number: ZRE-M90ABSGG
    • Product Name: Ravenna 36 in. 600 CFM Island Mount Range Hood with LED Lighting in Black Stainless Steel
    • Color: Stainless Steel/Glass
    • Color Finish: Stainless steel
  • Dimensions
    • Product Height: 28 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Minimum Installation Height Above Cooktop: 26 inches
    • Maximum Installation Height Above Cooktop: 34 inches
    • Product Width: 35 3/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 25 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 35 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Product Weight: 81 pounds (The out of box weight of the item.)
    • Duct Shape: Round
  • Features
    • Exhaust Vent Location: Top
    • Vent Type: Convertible
    • Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
    • Range Hood Type: Island
    • Number of Fan Speeds: 5
    • Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
    • Control Type: Button
    • Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
    • Auto Fan Shut-Off: true
    • Remote Control: false
    • Integrated Light(s): true
    • Number of Lights: 2
    • Number of Light Levels: 2
    • Bulb Type Required: LED
    • Bulb(s) Included: true
    • Maximum Bulb Wattage: 9 watts
  • Filter Info
    • Filter Material: Other
    • Removable Grease Filter: true
  • Electrical Specification
    • Amperage: 4 amperes (Strength of electrical current.)
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
  • Certifications Listings & Approvals
    • Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
  • Other
    • UPC: 646328006616

The delicate curve of a smoke-gray glass canopy arching over your island cooktop will add an elegance to your everyday cooking experience. The Ravenna features our sleek black stainless steel finish with an anti-smudge Titanium coating for extra durability and easy cleaning. Complete with our exclusive Airflow Control Technology™ (ACT™), ICON Touch® Controls, BriteStrip™ LED lighting and a powerful, yet quiet, 600-CFM blower.

  • Airflow Control Technology™ (ACT™): Airflow Control Technology or ACT™ is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
  • Quick-Lock Installation System: Zephyrs Quick-Lock Installation System is an innovative, hassle-free method for installing island range hoods. A quick-lock motion lets the user assemble the frame, lift the hood and lock it into place on the frame and then assemble the 4-piece duct covers.
  • BriteStrip™ LED Lighting: The future just got brighter. BriteStrip™ LED lighting includes key features such as being dimmable, lasts 25,000 hours, has a 3,000K warm white color and evenly distributes light over your cooking surface.
  • Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
  • Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details).
  • Airflow Control Technology™ (ACT™): Airflow Control Technology or ACT™ is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
  • Quick-Lock Installation System: Zephyrs Quick-Lock Installation System is an innovative, hassle-free method for installing island range hoods. A quick-lock motion lets the user assemble the frame, lift the hood and lock it into place on the frame and then assemble the 4-piece duct covers.
  • BriteStrip™ LED Lighting: The future just got brighter. BriteStrip™ LED lighting includes key features such as being dimmable, lasts 25,000 hours, has a 3,000K warm white color and evenly distributes light over your cooking surface.
  • Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
  • Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details).

Q: Does this color match with Samsung black stainless steel appliances?

A: Hello, We cannot speak on the color of a Samsung appliance. You can find more detailed information for our hood model on our website https://zephyronline.com/product/ravenna-island-range-hood/. Thank you for your inquiry! - Zephyr

Q: Can it vent through wall

A: Hello, The Ravenna Wall hood may be ducted up and out the side wall. Please refer to the Product User Manual on page 7 for ducting options here: http://docs.zephyronline.com/docs/manuals/ravennab_manual.pdf You may also contact Zephyr Product Support for information: [email protected]. Thank you for your inquiry!
