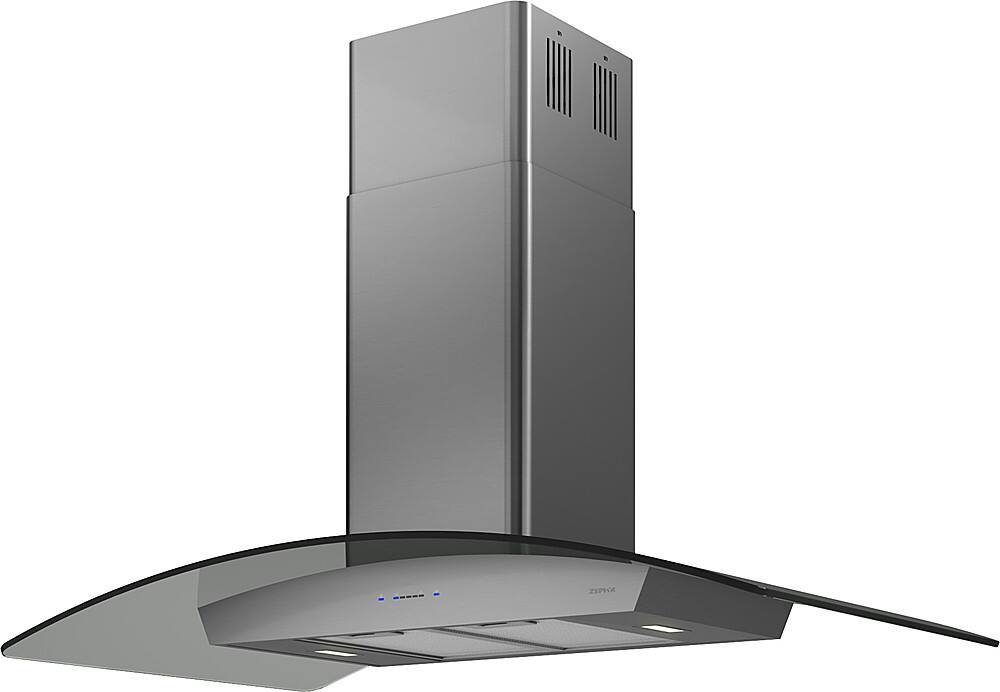

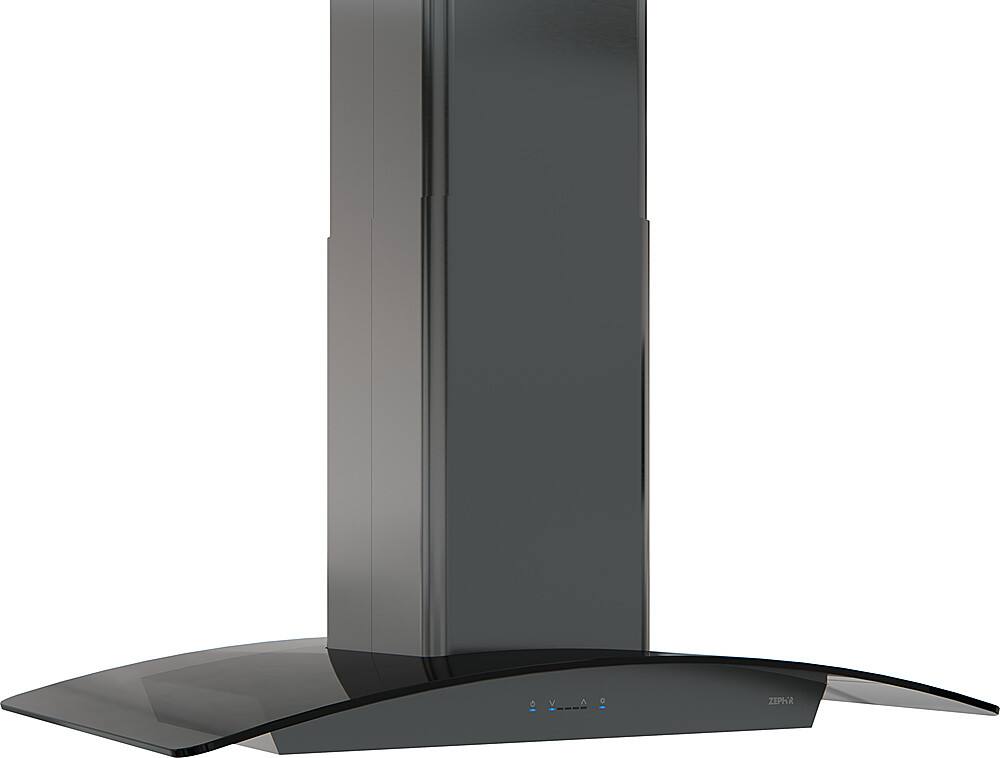

Zephyr - 36 inches - Convertible - Island Range Hood - Black Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishBlack stainless steelProduct Height28 1/2 inchesProduct Width35 3/16 inchesProduct Depth25 9/16 inchesExhaust Vent LocationTopVent TypeDucted, Ductless
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 28 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: ZRE-M90BBSGG
- Product Name: Ravenna 36 in. 600 CFM Island Mount Range Hood with LED Lighting
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 28 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 35 3/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 86 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Island
- Control Type: Button
- Filter Info
- Dishwasher-Safe Filter: true
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328010781
The delicate curve of a smoke-gray glass canopy arching over your island cooktop will add an elegance to your everyday cooking experience. The Ravenna features our sleek black stainless steel finish with an anti-smudge Titanium coating for extra durability and easy cleaning. Complete with our exclusive Airflow Control Technology (ACT), ICON Touch controls, LumiLight LED lighting, and a powerful yet quiet 600-CFM blower. Now available with an optional ADA-compliant remote control.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch Controls: ICON Touch Controls seamlessly integrate into the hood’s stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Curved Glass Canopy: The delicate curve of a glass canopy arching over your cooktop will add an elegance to your everyday cooking experience.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00RE)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-00REBS)
Q: What color finish does this range hood have?
A: The Ravenna 36 in. 600 CFM Island Mount Range Hood with LED Lighting by Zephyr features a sleek black stainless steel finish with an anti-smudge Titanium coating for extra durability and easy cleaning.
Q: What is the product weight?
A: The product weight of the Ravenna 36 in. 600 CFM Island Mount Range Hood with LED Lighting by Zephyr is 86 pounds. This information can be found in the product specifications section, under the "Product Weight" attribute.
A: The duct shape of the Zephyr Ravenna 36 in. 600 CFM Island Mount Range Hood with LED Lighting is round. This information can be found in the product specifications section of the provided context.
Q: Can I purchase an optional ductless recirculating kit for this range hood?
A: Yes, an optional ductless recirculating kit can be purchased for this range hood. The part number for the kit is ZRC-00RE.
Q: Can I purchase an optional extension duct cover kit for this range hood?
A: Yes, an optional extension duct cover kit is available for purchase. The part number for the kit is ZRC-00RE. Refer to the product specifications for more details.
Q: What is the minimum installation height above the cooktop?
A: The minimum installation height above the cooktop for the Zephyr Ravenna 36 in. 600 CFM Island Mount Range Hood with LED Lighting is 24 inches. The maximum installation height is 34 inches.
Q: What is the maximum CFM of this range hood?
A: The maximum CFM of the Zephyr Ravenna 36 in. Island Mount Range Hood is 600 CFM. This information is provided in the product name itself, as well as in the product specifications.
Q: What is the product height?
A: The product height of the Zephyr Ravenna 36 in. 600 CFM Island Mount Range Hood with LED Lighting is 28 1/2 inches. This information can be found in the "product specifications" section of the provided context.
Compare similar products
The delicate curve of a smoke-gray glass canopy arching over your island cooktop will add an elegance to your everyday cooking experience. The Ravenna features our sleek black stainless steel finish with an anti-smudge Titanium coating for extra durability and easy cleaning. Complete with our exclusive Airflow Control Technology (ACT), ICON Touch controls, LumiLight LED lighting, and a powerful yet quiet 600-CFM blower. Now available with an optional ADA-compliant remote control.
Enjoy unobstructed views of your kitchen with the modern, minimalist lines of the Lux Connect Island. This sleek hood features Zephyr Connect, giving you the ability to control it from anywhere — including your smart speaker — and it discreetly mounts into the ceiling above your cooking surface. Your kitchen will stay clean and smoke free with the Perimeter Aspiration System and multiple blower options, and the tri-level BriteStrip LED lighting ensures a good-looking glow. Available in white and stainless steel. SHELL ONLY
Brisas BML can be installed in as little as 20 minutes. Designed with our unique 3-step installation system, Brisas BML breaks the arduous task of installing the entire range hood into a few easy steps. Weve even added an installation template to help you align your ceiling marks without the guesswork and upgraded the unit with LumiLight LED lighting and electronic touch controls. One look at the classic European design and gentle clear-glass curved canopy will have you sold. Love at first site? Yes. Its possible.
A bold technological breakthrough, the Milano Island now boasts a 700-CFM PowerWave blower and Zephyr Connect technology making it a more powerful and energy efficient range hood without losing its uniquely quiet quality. Milano features Airflow Control Technology (ACT) and the exclusive Quick-Lock Installation System with magnetic duct covers. Available with glass and stainless steel canopy options and an optional wireless remote control.
