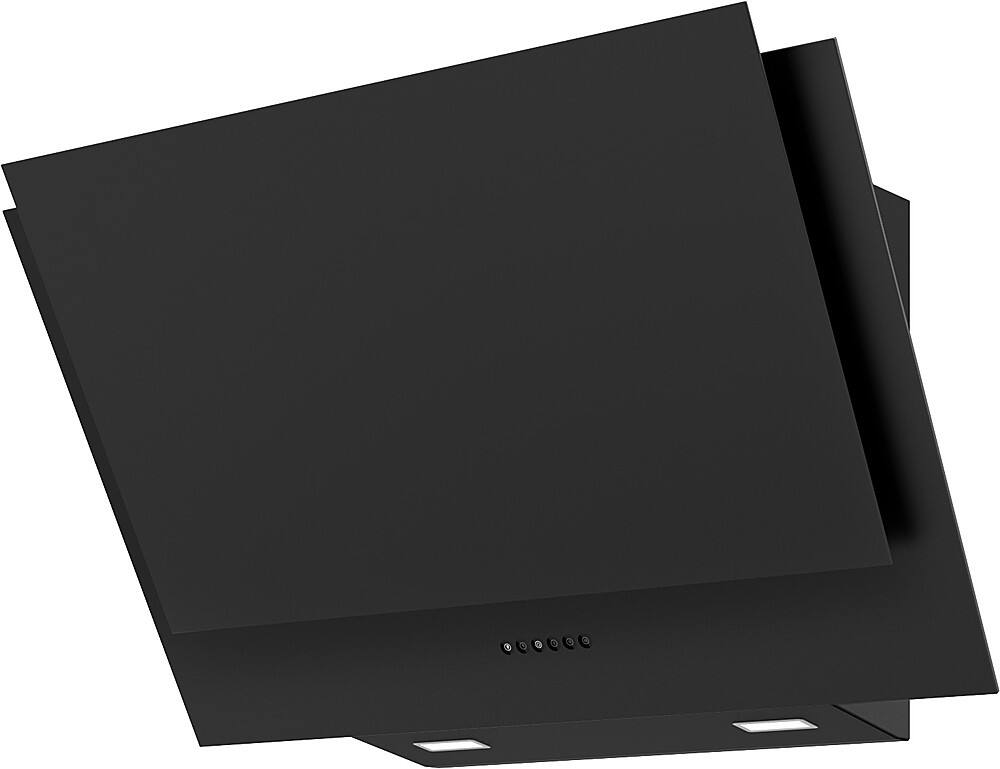

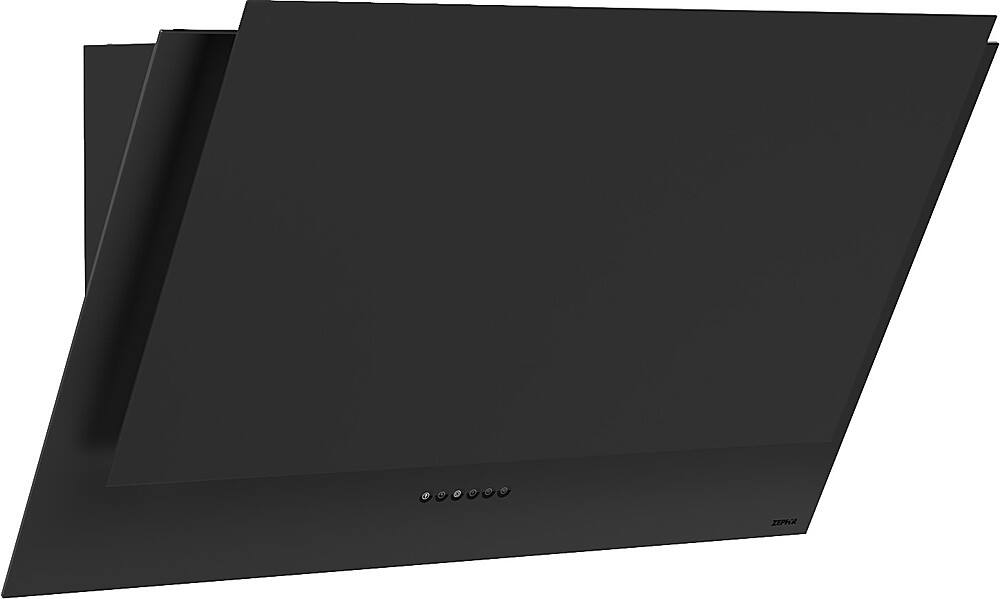

Zephyr - 36 inches - Convertible - Shell Range Hood - Matte Black
Need-haul away?
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Key Accessories:
- Zephyr - Duct Cover - Matte Black$229.99
Related Item
Specifications
- Color FinishBlackProduct Height19 3/4 inchesProduct Width35 3/8 inchesProduct Depth19 13/16 inchesExhaust Vent LocationTop/RearVent TypeDucted, Ductless
- Key Specs
- Color Finish: Black
- Product Height: 19 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 13/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: DAP-M90AMBX
- Product Name: Apex 90 cm. Shell Only Wall Mount Range Hood with LED Lights
- Color: Matte Black
- Color Finish: Black
- Dimensions
- Product Height: 19 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 35 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 13/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 55 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Shell, Wall
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 5 watts
- Performance
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Amperage: 6.42 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328008900
Exceptional style, plus the power and performance youd expect from Zephyr. Featuring white or black glass with matte finish, our Perimeter Aspiration System, easy Capacitive Touch Controls and a recirculating option, the Apex Wall is a hood for today, tomorrow, and beyond. Also includes optional duct cover and remote control. SHELL ONLY
- Multiple Blower Options: Multiple blower options are available to fit your application: CBI-290C, CBI-390A, CBI-600A, PBN-1000A, CBE-1000
- Capacitive Touch Controls: Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Tri-Level Lighting: The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Perimeter Aspiration System: This form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen. (Part # 14000010)
- Optional Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12' (see spec sheets for more details). (Part # Z1C-00MEMB)
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00AP)
Product Manuals
Q: What is the product height of the Apex 90 cm. Shell Only Wall Mount Range Hood?
A: The product height of the Apex 90 cm. Shell Only Wall Mount Range Hood is 19 3/4 inches. This information can be found in the section "Product specifications" under the key "Product Height".
Q: What are the compatible blowers for the Apex 90 cm. Shell Only Wall Mount Range Hood?
A: The compatible blowers for the Apex 90 cm. Shell Only Wall Mount Range Hood are: CBE-1000, CBI-290A, CBI-600A, PBN-1000A, CBI-290C, CBI-390A.
Q: What is the amperage draw of the Apex 90 cm. Shell Only Wall Mount Range Hood?
A: The amperage draw of the Apex 90 cm. Shell Only Wall Mount Range Hood is 6.42 amperes. This information can be found in the product specifications section, under the "Amperage" row.
Q: What is the width of the Apex 90 cm. Shell Only Wall Mount Range Hood?
A: The width of the Apex 90 cm. Shell Only Wall Mount Range Hood is 35 3/8 inches or approximately 90 centimeters. The standardized width of the range hood is 36 inches.
Q: How many light levels does the Apex 90 cm. Shell Only Wall Mount Range Hood have?
A: The Apex 90 cm. Shell Only Wall Mount Range Hood has 3 light levels. The light type required is LED. The maximum bulb wattage is 5 watts.
Q: What is the maximum operating sound level of the Apex 90 cm. Shell Only Wall Mount Range Hood?
A: The maximum operating sound level of the Apex 90 cm. Shell Only Wall Mount Range Hood is 6 sones.
Q: Does the Apex 90 cm. Shell Only Wall Mount Range Hood have a delay shut-off feature?
A: Yes, the Apex 90 cm. Shell Only Wall Mount Range Hood has a delay shut-off feature. The product specifications indicate that the "Delay Shut-Off" feature is "true".
A: The maximum height at which the Apex 90 cm. Shell Only Wall Mount Range Hood can be installed above the cooktop is 34 inches. This information is found in the context under the "Maximum Installation Height Above Cooktop" section.
