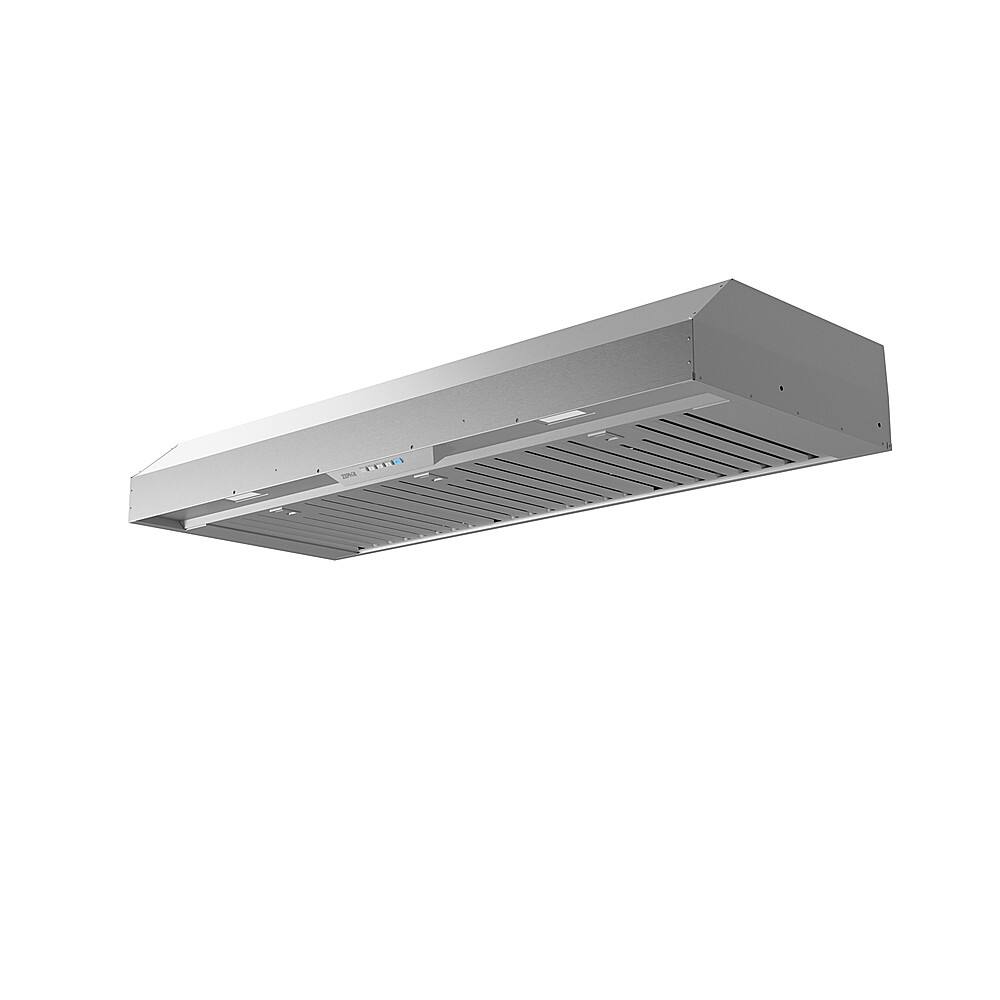

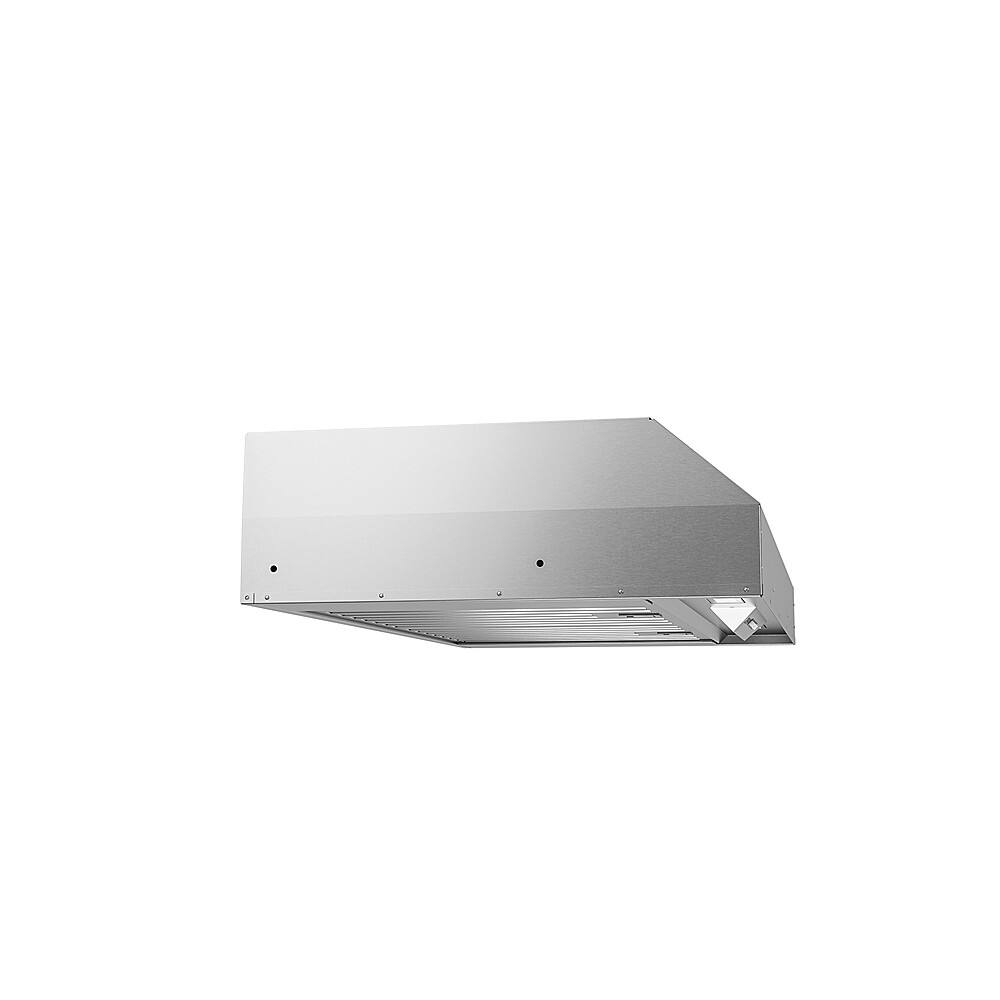

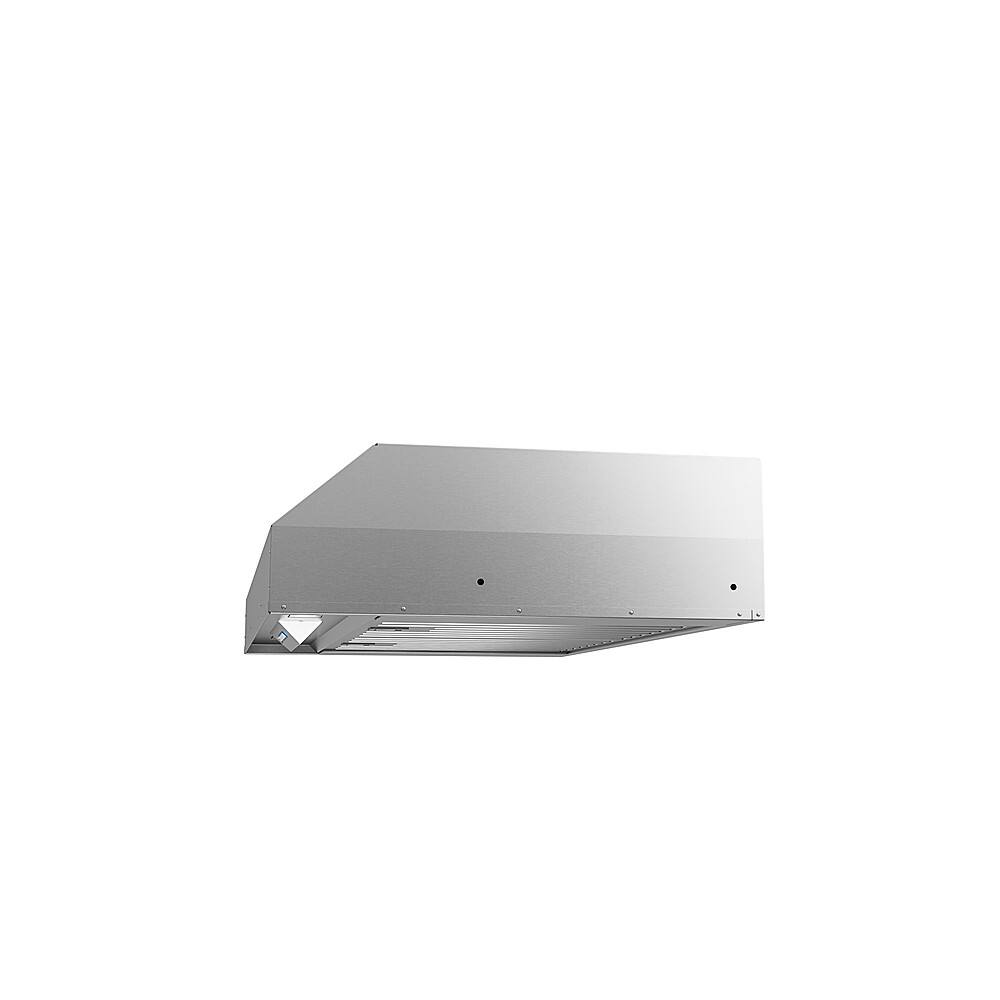

Zephyr - 48 inches - Convertible - Range Hood Insert - Stainless Steel
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Zephyr - Recirculating Kit for AK91 Range Hood - Black$49.99
Specifications
- Color FinishStainless steelProduct Height6 1/8 inchesProduct Width46 3/8 inchesProduct Depth17 7/8 inchesExhaust Vent LocationTop/RearVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 6 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 46 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK9546AS
- Product Name: Monsoon Mini II 48 in. 600 CFM Insert Range Hood with LED Lights
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 6 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 46 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 39.5 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Duct Length: 7 inches
- Duct Width: 10 inches
- Cut-Out Dimensions
- Cut-Out Width: 46 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 18 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Hybrid Baffle
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 2 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328009938
A quiet storm of air-clearing power in a designer package, the Monsoon Mini II gets the job done. Featuring a 600-CFM blower, hybrid baffle filters, Airflow Control Technology (ACT), and dual-level LumiLight LED lighting. Also includes recirculating and make-up air options.
- Electronic Push Button Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- 3 Speed Levels: Quiet and efficient, three speed levels allow you to control proper airflow depending on your cooking needs.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Hybrid Baffle Filters: Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration. (Part # 50210041)
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-9100A)
- Electronic Push Button Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- 3 Speed Levels: Quiet and efficient, three speed levels allow you to control proper airflow depending on your cooking needs.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Hybrid Baffle Filters: Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration. (Part # 50210041)
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-9100A)
Q: How many fan speeds does the range hood have?
A: The Zephyr Monsoon Mini II range hood has three fan speeds to choose from.
Q: Does the range hood have a delay shut-off feature?
A: Yes, the Zephyr Monsoon Mini II range hood has a delay shut-off feature.
Q: Can this range hood be used without an outside vent?
A: Yes, you can purchase a ductless recirculating kit separately if you can't vent the air outside.
Q: How much noise does the range hood make?
A: The maximum operating sound level is 6 sones, and the minimum is 1.4 sones.
Q: Does this range hood come with a light?
A: Yes, it has dual-level LumiLight LED lighting.
Q: What type of filters does this Zephyr range hood use?
A: This Zephyr range hood uses hybrid baffle filters that are made with stainless steel baffles and aluminum mesh.
Q: Is it possible to vent this range hood horizontally?
A: Yes, this range hood offers both vertical and horizontal ducting options.
Q: Hi what accessories are needed with this...blower unit??
A: Hello, This model has a built in 600 CFM blower, no additional accessories are needed. If you are not going to duct the hood, you will need the recirculating kit, part # ZRC-9100A. You may view more detailed information on the Zephyr web site here: www.zephyronline.com. http://docs.zephyronline.com/docs/specs/monsoon2a_mini_spec.pdf Thank you for your inquiry!
