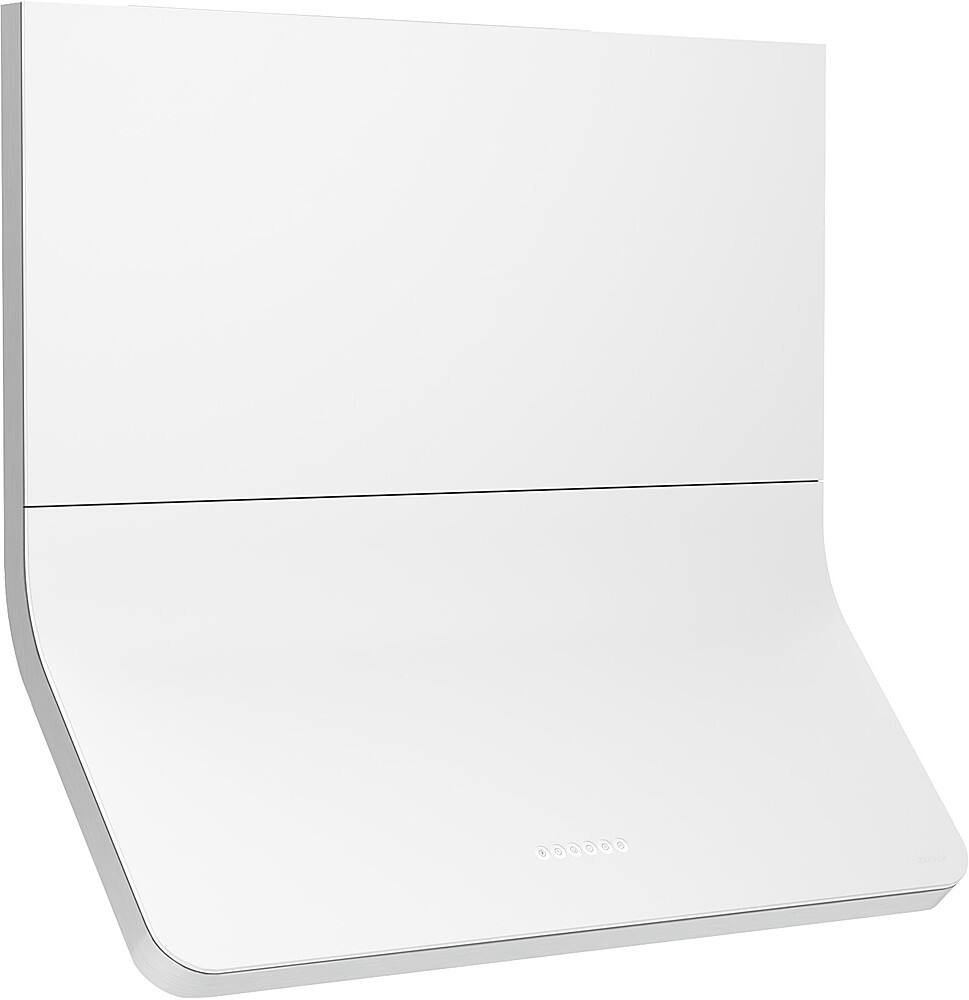

Zephyr - 36 inches - Convertible - Shell Range Hood - Matte White
Zephyr - 36 inches - Convertible - Shell Range Hood - Matte White
Color
Matte WhiteNeed-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishWhiteProduct Height32 7/8 inchesProduct Width35 3/8 inchesProduct Depth20 1/8 inchesExhaust Vent LocationTop/RearVent TypeDucted, Ductless
- Key Specs
- Color Finish: White
- Product Height: 32 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: DHZ-M90AMWX
- Product Name: Horizon 36 in. Shell Only Wall Mount Range Hood with LED Lights
- Color: Matte White
- Color Finish: White
- Dimensions
- Product Height: 32 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 35 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 90 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Shell, Wall
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 6
- Number of Light Levels: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 5 watts
- Performance
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Amperage: 6.85 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328008832

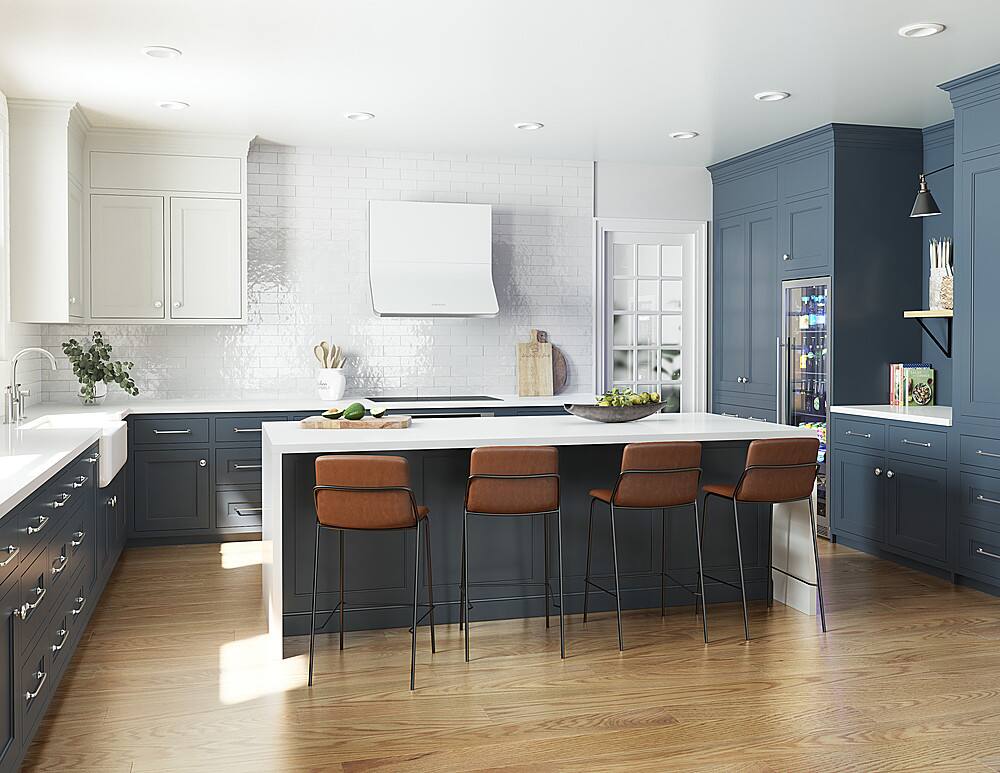

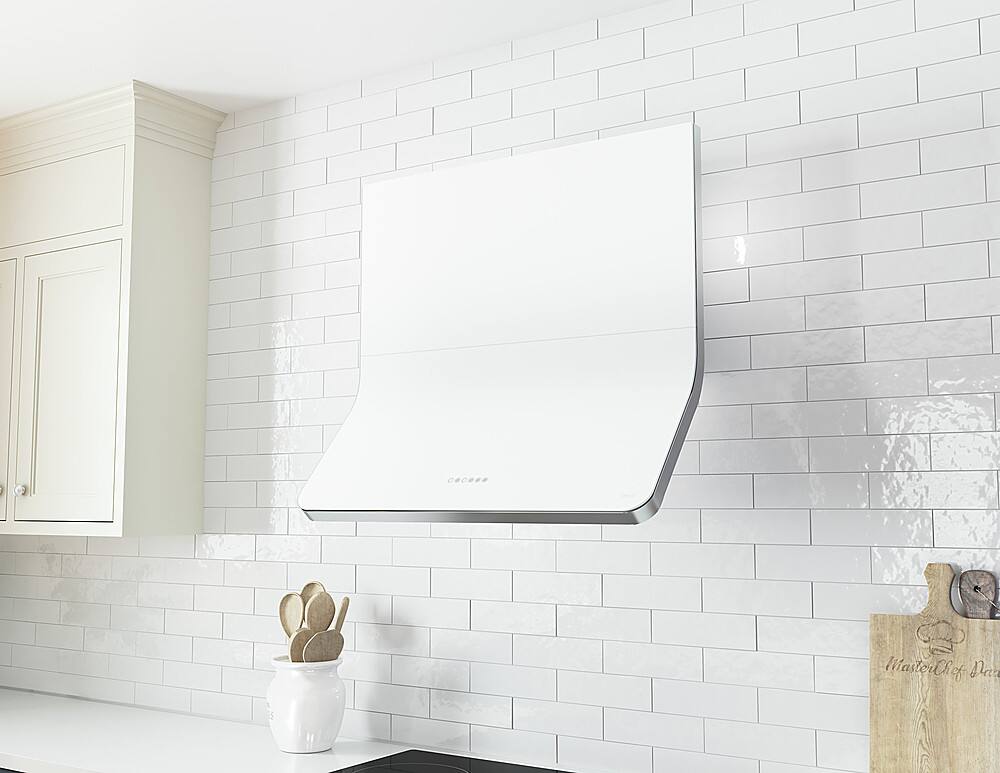

Appearing to float above your cooktop, the iconic Horizon is back. Our original showstopper, Horizon will make every cooking session look and feel cooler. Featuring dual capture zones, capacitive touch controls, multiple blower options, hybrid baffle filters, and better-than-ever soft ambient lighting. Available in white or black glass with matte finish, and compatible with an optional remote control accessory. SHELL ONLY
- Multiple Blower Options: Multiple blower options are available to fit your application: CBI-290C, CBI-390A, CBI-600A, PBN-1000A, CBE-1000
- Capacitive Touch Controls: Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.

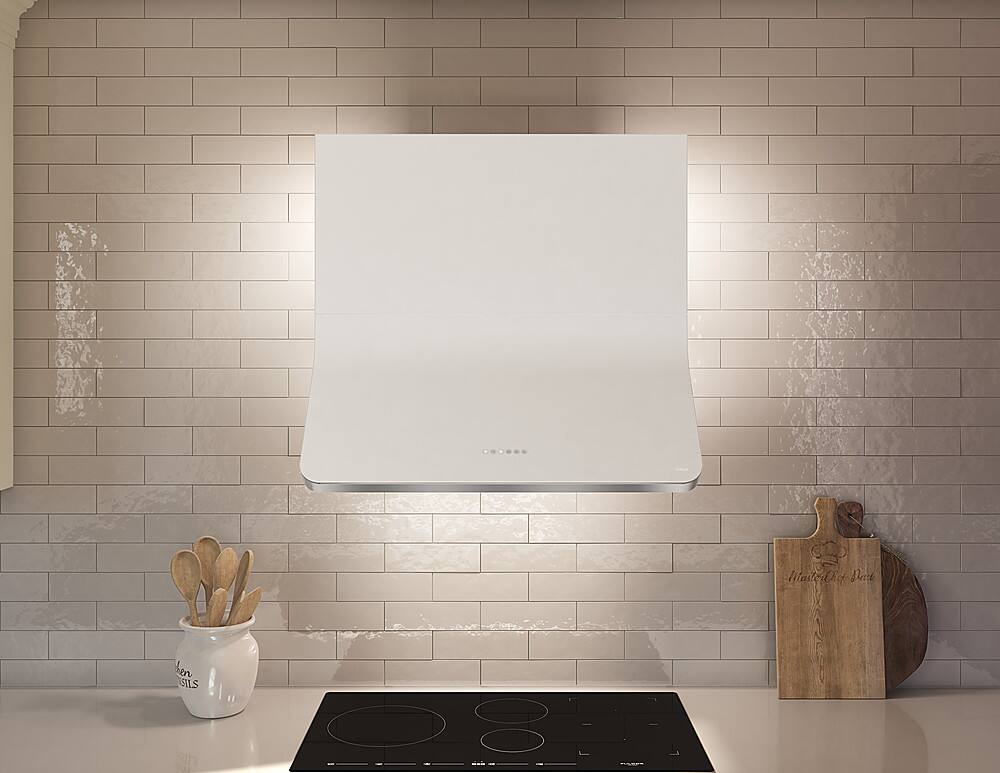

- Tri-Level Lighting: The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.

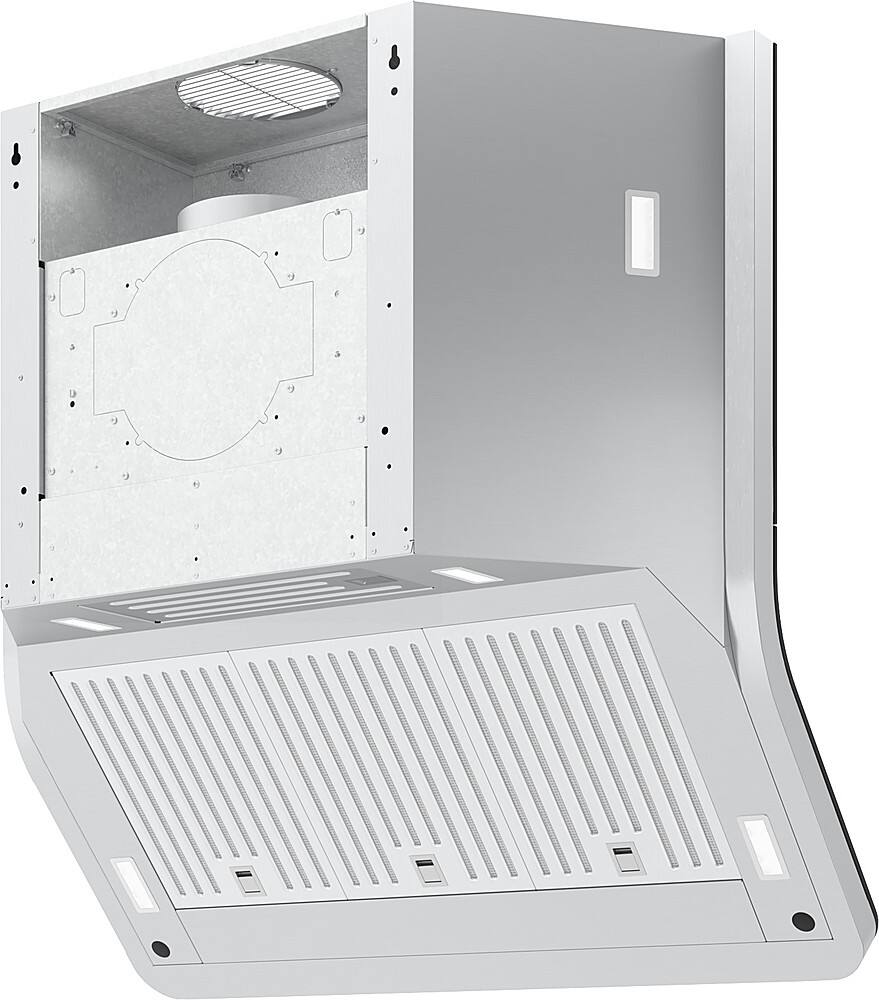

- Perimeter Aspiration System: This form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen. (Part # 4000010)
- Optional Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12' (see spec sheets for more details). (Part # Z1C-01HZ)
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # Z0F-C010)
Product Manuals
Q: What is the optional duct cover kit used for?
A: The optional duct cover kit is used to extend the duct cover of the range hood to accommodate ceiling heights up to 12 feet. It is an optional accessory that can be purchased separately.
Q: Is the grease filter dishwasher safe?
A: Yes, the grease filter of the Zephyr Horizon 36 in. Shell Only Wall Mount Range Hood with LED Lights is dishwasher safe. The product specifications clearly state that the "Dishwasher-Safe Filter" feature is "true".
Q: What is the amperage of this range hood?
A: The amperage of the Zephyr Horizon 36 in. Shell Only Wall Mount Range Hood with LED Lights is 6 amperes. This information can be found in the product specifications section of the product description.
Q: What is the optional wireless remote control used for?
A: The optional wireless remote control for the Horizon 36 in. Shell Only Wall Mount Range Hood with LED Lights by Zephyr allows users to conveniently operate the hood's functions from anywhere in the kitchen, providing easy control over the hood's operations.
Q: What is the width of this range hood?
A: The width of the Zephyr Horizon 36 in. Shell Only Wall Mount Range Hood with LED Lights is 35 3/8 inches. This information can be found in the product specifications section under "Product Width".
Q: What is the minimum height required for installation above the cooktop?
A: The minimum installation height required above the cooktop for the Zephyr Horizon 36 in. Shell Only Wall Mount Range Hood with LED Lights is 24 inches. The maximum installation height above the cooktop should not exceed 34 inches.
Q: What is the minimum operating sound level of this range hood?
A: The minimum operating sound level of the Zephyr Horizon 36 in. Shell Only Wall Mount Range Hood with LED Lights is 1 sone.
Q: What is the optional extension duct cover kit used for?
A: The optional extension duct cover kit is used to accommodate ceiling heights up to 12 feet. It is an accessory that can be purchased separately. By extending the duct cover, it ensures proper ventilation and airflow even in kitchens with higher ceilings.
