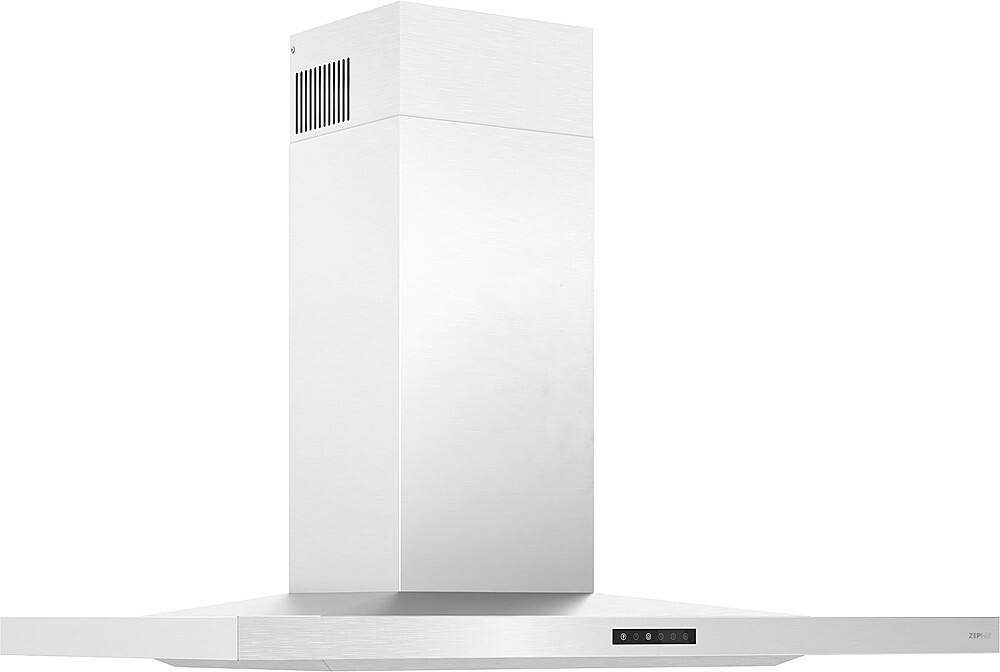

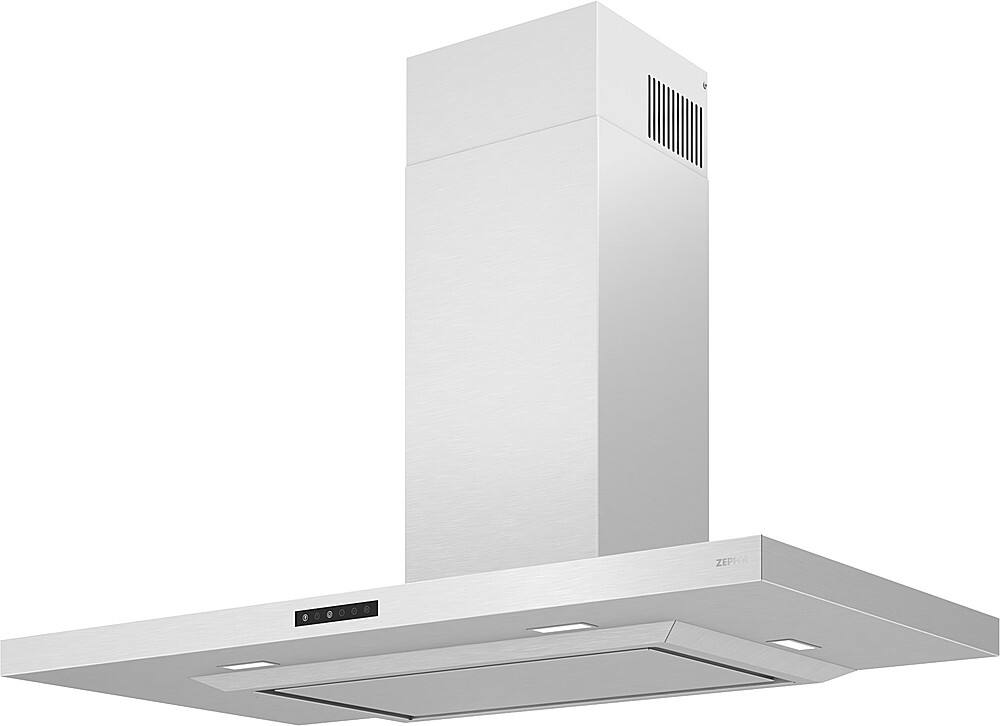

Zephyr - 36 inches - Convertible - Shell Range Hood - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Zephyr - Duct Cover Extension for Vista Wall and Layers Wall - Stainless Steel$249.99
Related Item
Specifications
- Color FinishStainless steelProduct Height27 inchesProduct Width35 3/8 inchesProduct Depth22 inchesExhaust Vent LocationTopVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 27 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: DLA-M90ASSX
- Product Name: Layers 36 in. Shell Only Wall Mount Range Hood with LED Lights
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 27 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 35 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 90 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Shell, Wall
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 5 watts
- Performance
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 6.63 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328008870
Streamlined pyramid-shaped styling and a menu of blower options make this updated and improved Layers Wall the timeless classic hood your kitchen needs. Featuring our state-of-the-art Perimeter Aspiration System, which increases air velocity and improves the capture of cooking contaminants. Packed with a bevy of additional features like Invisible Touch Controls and tri-level LED lighting. SHELL ONLY
- Multiple Blower Options: Multiple blower options are available to fit your application: CBI-290C, CBI-390A, CBI-600A, PBN-1000A, CBE-1000
- Capacitive Touch Controls: Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Tri-Level Lighting: The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen. (Part # 14000010)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-00VS)
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00VS)
- Multiple Blower Options: Multiple blower options are available to fit your application: CBI-290C, CBI-390A, CBI-600A, PBN-1000A, CBE-1000
- Capacitive Touch Controls: Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Tri-Level Lighting: The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen. (Part # 14000010)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-00VS)
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00VS)
Q: Does this range hood have a sensor to detect temperature?
A: The Zephyr Layers 36 in. Shell Only Wall Mount Range Hood with LED Lights does not have a temperature sensor. The product specifications clearly state "Temperature Sensor: false".
Q: Where is the exhaust vent located on this range hood?
A: The exhaust vent for this range hood is located at the top of the unit. This information is found in the product specifications section under "Exhaust Vent Location: Top".
Q: What material are the filters in this range hood made of?
A: The filters in the Zephyr Layers 36 in. Shell Only Wall Mount Range Hood with LED Lights are made of aluminum. This information is found in the product specifications under the "Filter Material" section.
Q: Can this range hood be used without venting outside, using a recirculating kit?
A: Yes, this range hood can be used without venting outside. An optional ductless recirculating kit is available for purchase separately (Part # Z1C-00VS). This kit allows smoke and odors to pass through charcoal filters, purifying the air and reintroducing it into the kitchen.
Q: What is the maximum noise level this range hood produces when operating?
A: The maximum noise level of this range hood is 6 sones.
Q: How much does this range hood weigh?
A: The Layers 36 in. Shell Only Wall Mount Range Hood with LED Lights by Zephyr weighs 90 pounds.
Q: What is the product name of this range hood?
A: The product name of this range hood is "Layers 36 in. Shell Only Wall Mount Range Hood with LED Lights". It is manufactured by Zephyr, a well-known brand in kitchen ventilation products.
Q: What type of display does this range hood have?
A: The Zephyr Layers 36 in. Shell Only Wall Mount Range Hood with LED Lights does not have a display. Instead, it features capacitive touch controls that utilize the same touch technology as a smartphone for a more integrated user interface.
