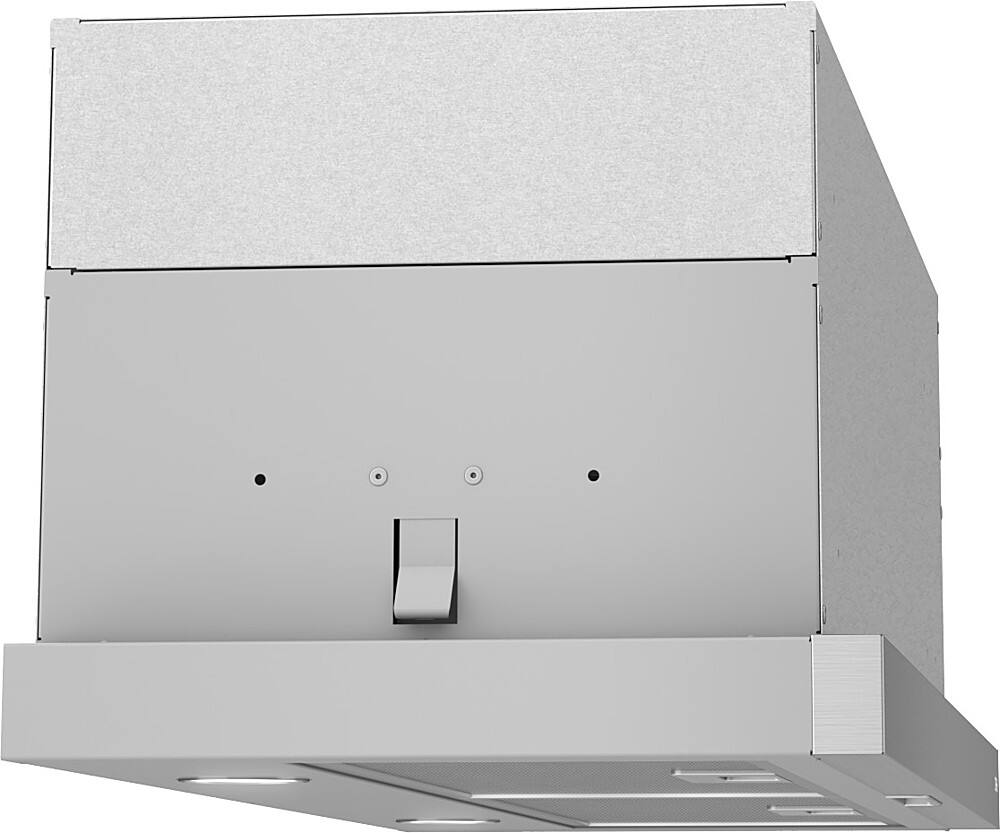

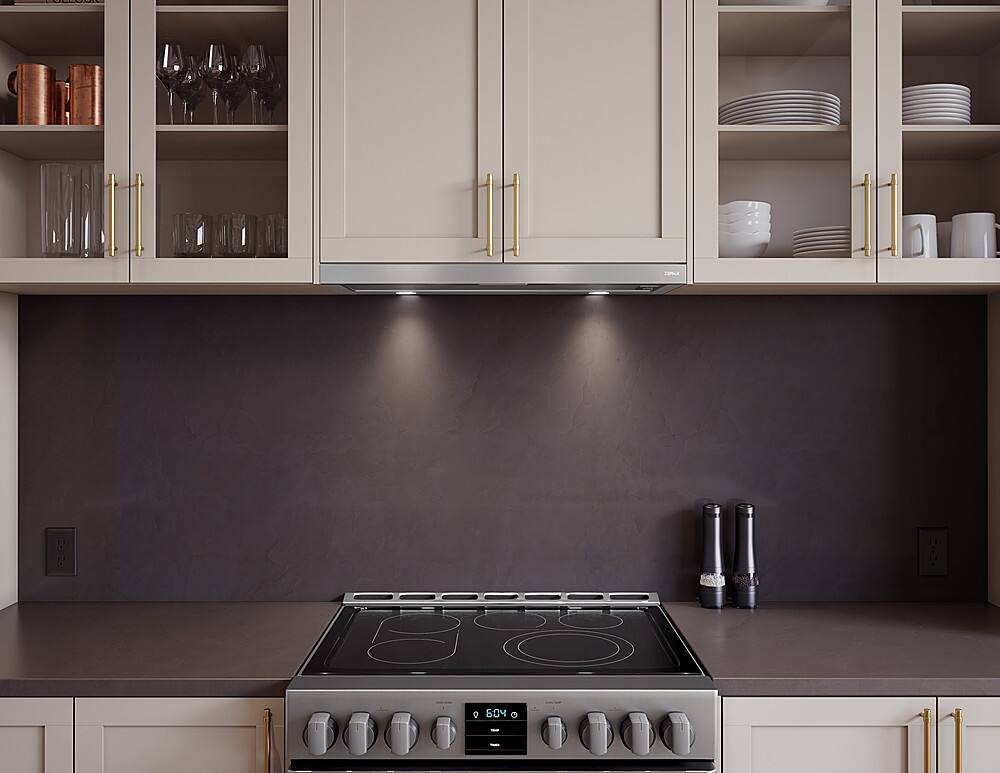

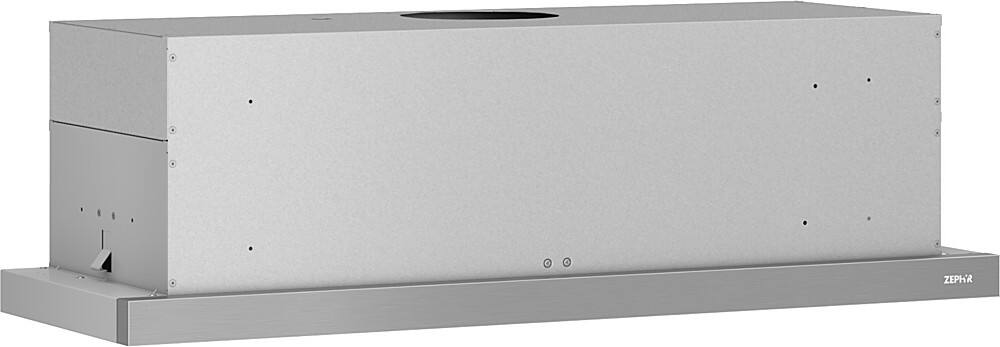

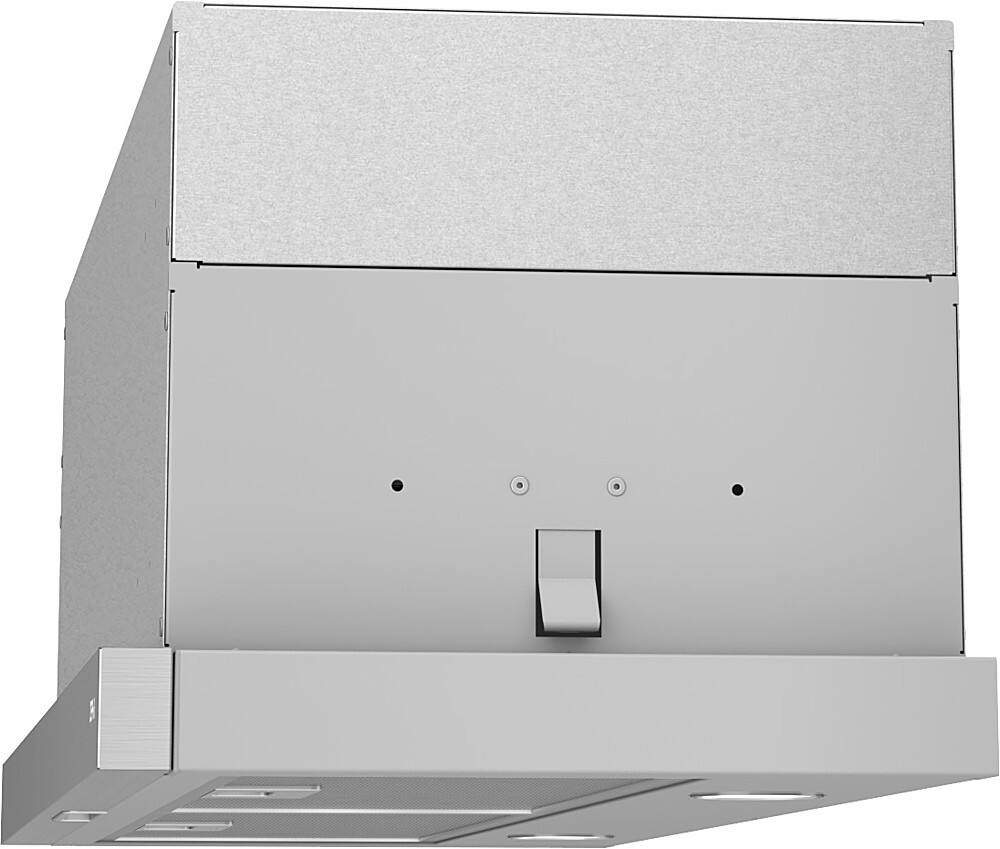

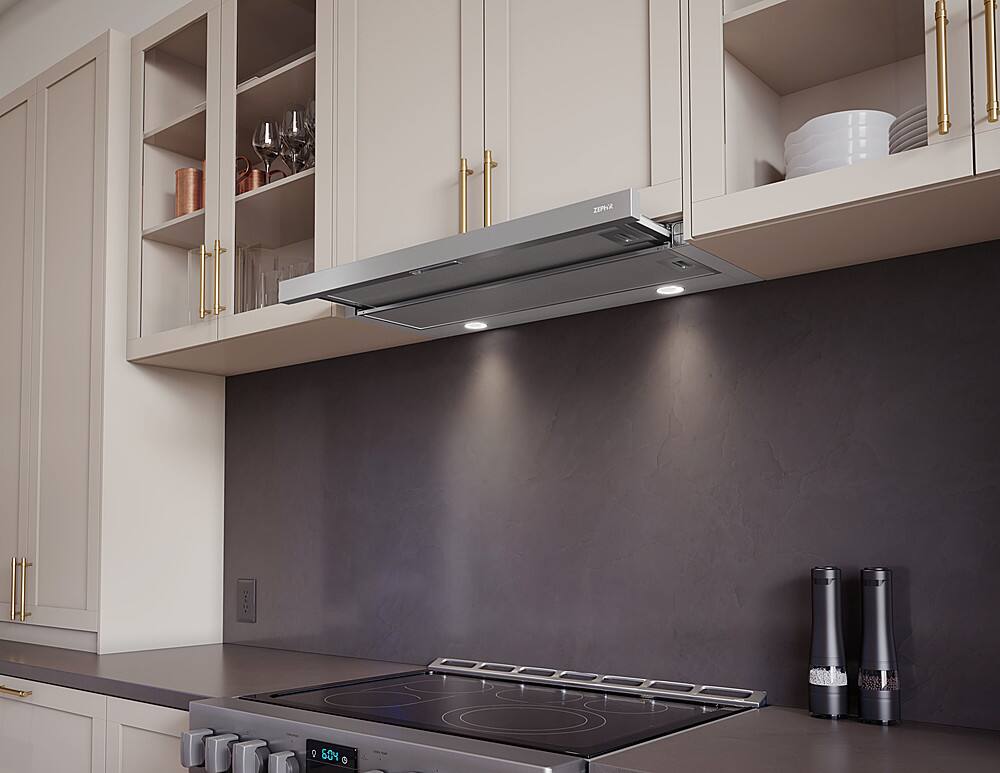

Zephyr - 36 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height12 inchesProduct Width35 2/5 inchesProduct Depth12 inchesExhaust Vent LocationTopVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 2/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: ZVA-M90AS290
- Product Name: Valina 36 in. 290 CFM Under Cabinet Range Hood with LED Lights
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 35 2/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 23 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 2
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: false
- Performance
- Maximum Air Flow Capacity: 290 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 180 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 4 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Mesh
- Dishwasher-Safe Filter: true
- Electrical Specification
- Amperage: 1.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328011993
Quiet, discreet, and efficient, the Valina Under-Cabinet is your kitchens most clever secret weapon. This hardworking hood features a retractable stainless-steel visor that only appears when needed, and ambient LED lighting to let you focus on the tasks at hand. All in all, this hood is everything you need in one dynamic package.
- Low-profile body: Low-profile body for a minimalist appearance.
- Mechanical Push Button Controls: Mechanical push button controls allow for ease of use and accessibility providing everything you need in this dynamic hood.
- 2 Speed Levels: Quiet and efficient, dual speed levels allow you to control proper airflow depending on your cooking needs.
- LED Lighting: LED lighting requires less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.

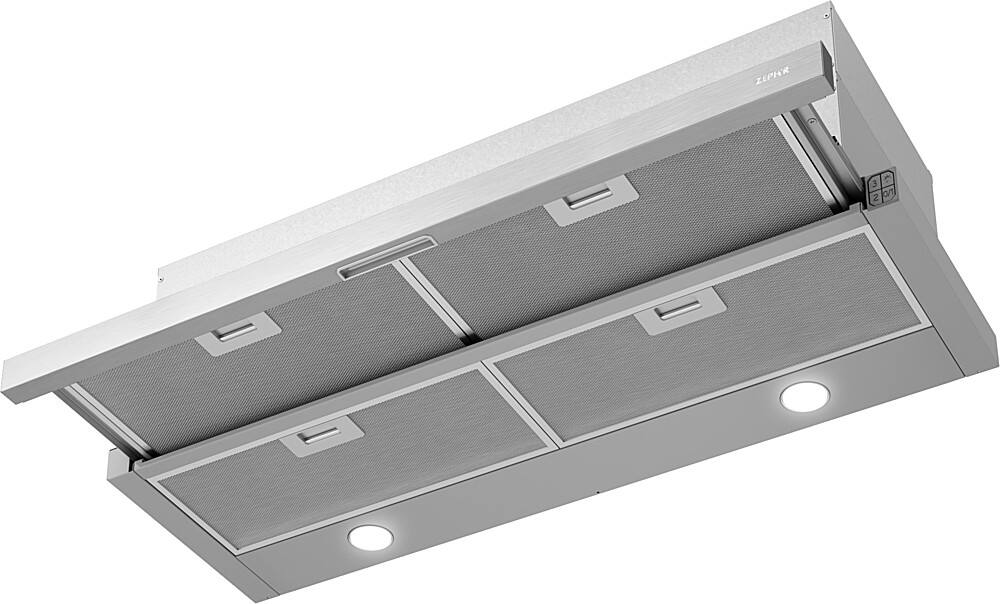

- Dishwasher Safe Aluminum Mesh Filters: High-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
- Optional Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Model # ZRC-00VA)

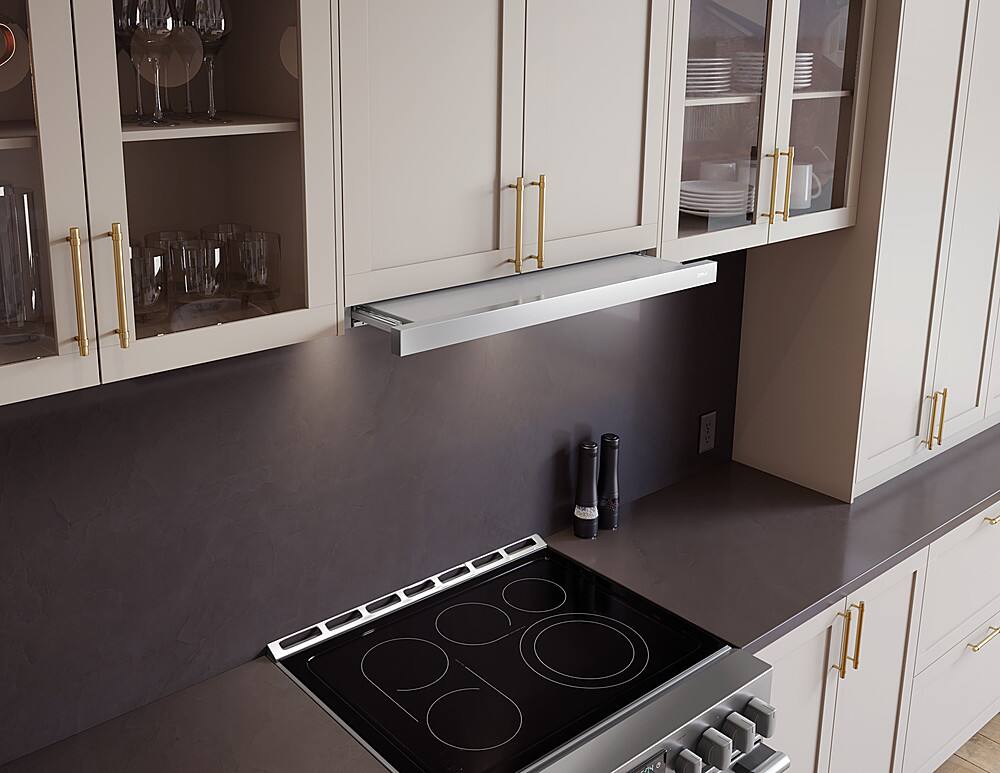

- Vertical Ducting: Featuring a retractable stainless-steel visor
- Low-profile body: Low-profile body for a minimalist appearance.
- Mechanical Push Button Controls: Mechanical push button controls allow for ease of use and accessibility providing everything you need in this dynamic hood.
- 2 Speed Levels: Quiet and efficient, dual speed levels allow you to control proper airflow depending on your cooking needs.
- LED Lighting: LED lighting requires less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Dishwasher Safe Aluminum Mesh Filters: High-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
- Optional Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Model # ZRC-00VA)
- Vertical Ducting: Featuring a retractable stainless-steel visor
Whats Included
- Valina 36 in. 290 CFM Under Cabinet Range Hood with LED Lights in Stainless Steel
- Valina 36 in. 290 CFM Under Cabinet Range Hood with LED Lights in Stainless Steel
Q: How many fan speeds does the range hood have?
A: This range hood has two fan speeds.
Q: What is the maximum operating sound level of the range hood?
A: The maximum operating sound level of this range hood is 4 sones.
Q: What is the maximum air flow capacity of the range hood?
A: The maximum air flow capacity of this range hood is 290 cubic feet per minute.
Q: Is the filter dishwasher-safe?
A: The filter is dishwasher safe.
Q: What is the minimum installation height above the cooktop?
A: The minimum installation height above the cooktop is 24 inches.
Q: Is this suitable for a 36" gas range?
A: Hello, The width of the hood should be equal to the width of the cooktop or range. For every 3 inches beyond the recommended mounting height, increase the width of the range hood by 3 inches on each side to prevent the smoke and contaminants from escaping the ventilation zone. Gas cooking appliances have the highest emissions and typically need a range hood with higher CFM compared to electric (radiant and induction) cooking appliances. Gas Cooking Appliance: Divide the total BTUs by 100 60,000 BTU’s ÷ 100 = 600 CFM. Thank you for your inquiry! -Zephyr
