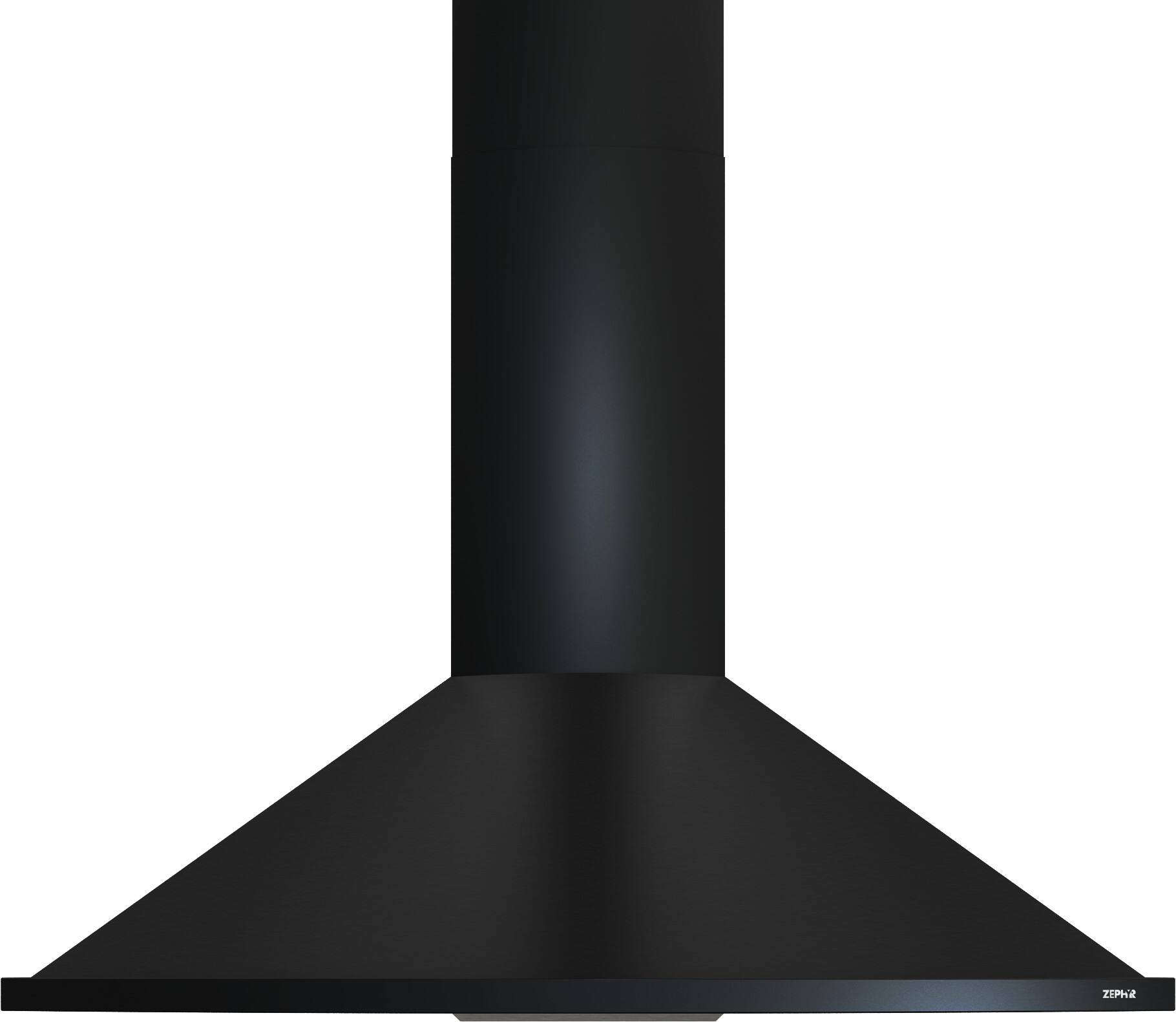

Zephyr - 36 inches - Convertible - Wall Range Hood - Black
Color
BlackNeed-haul away?
Related Item
Specifications
- Color FinishBlackProduct Height28 inchesProduct Width35 7/16 inchesProduct Depth19 1/2 inchesExhaust Vent LocationTopVent TypeConvertible
- Key Specs
- Color Finish: Black
- Product Height: 28 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: ZSA-M90FB

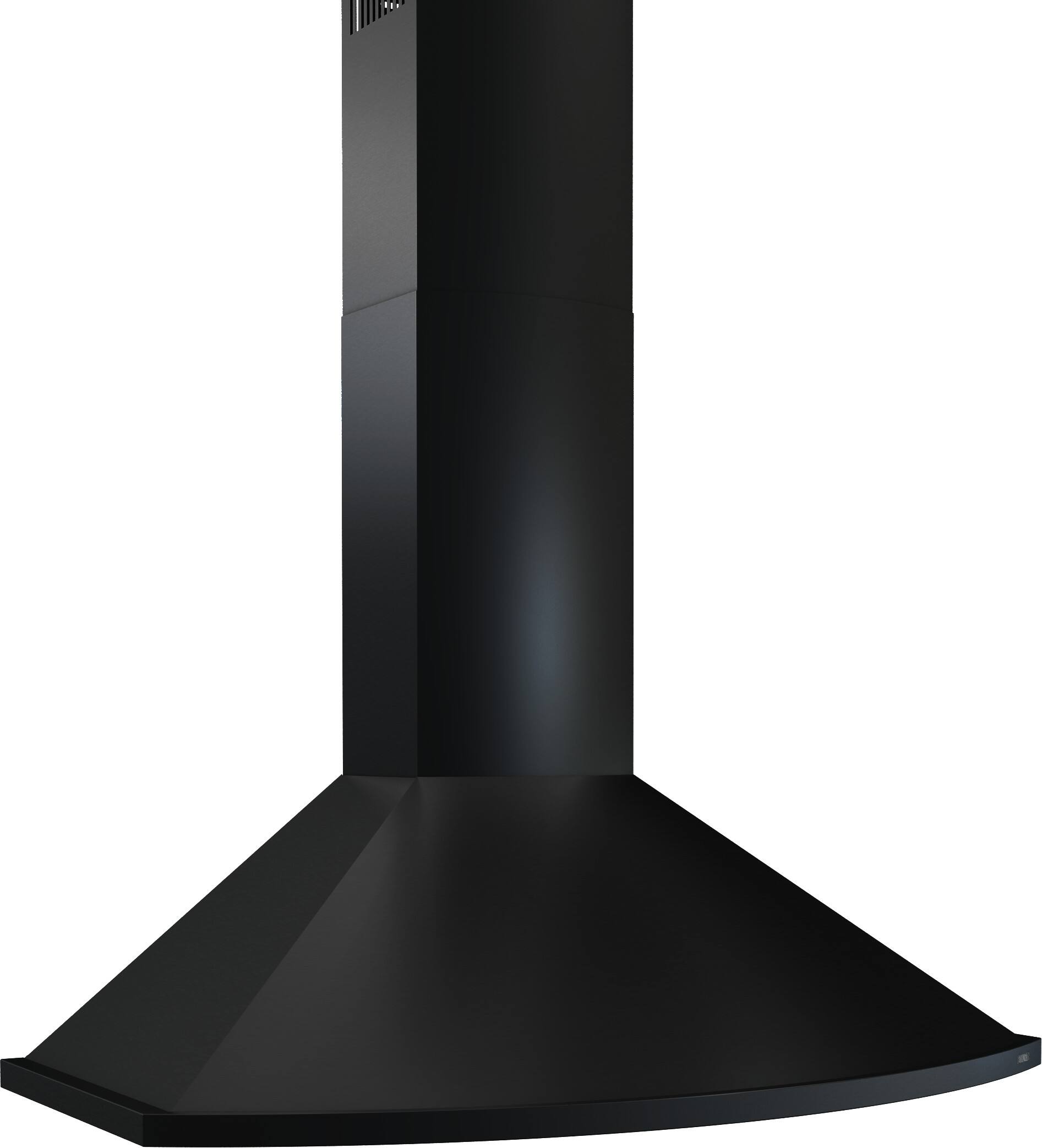

- Product Name: Savona 36 in. 600 CFM Wall Mount Range Hood with LED Light
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 28 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 35 7/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 31.5 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 5
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical
- Amperage: 4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328011016
Savona’s semi-circular surfaces accentuate this range hood’s European design with delicate reflections of light and shadows. Available in stainless steel, powder-coated black, white, and the sleek alternative to stainless steel: black stainless steel. Savona features a robust 600-CFM blower, dual-level LumiLight LED lighting, ICON Touch® controls and our exclusive Airflow Control Technology (ACT). Now available with an optional ADA-compliant remote control.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT™ is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- ICON Touch Controls: ICON Touch™ Controls seamlessly integrate into the hood’s stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00SV)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-01SAB)
Product Manuals
Q: What are the dimensions of this range hood, including height, width, and depth?
A: The dimensions of the Modena 36 in. 600 CFM Wall Mount Range Hood with LED Light are as follows: 27 inches in height, 35 1/2 inches in width, and 22 1/8 inches in depth.
Q: What is the minimum required height for installation above the cooktop?
A: The minimum required height for installation above the cooktop for the Modena 36 in. 600 CFM Wall Mount Range Hood with LED Light by Zephyr is 24 inches. The maximum installation height above the cooktop is 32 inches.
Q: What is the recommended duct shape for proper ventilation?
A: The recommended duct shape for proper ventilation of the Modena 36 in. 600 CFM Wall Mount Range Hood with LED Light by Zephyr is round.
Q: What is the voltage requirement for operating this range hood?
A: The voltage requirement for operating the Modena 36 in. 600 CFM Wall Mount Range Hood with LED Light, Zephyr brand, is 120 volts.
Q: What is the difference between the black stainless steel and stainless steel models?
A: The primary difference between the black stainless steel and stainless steel models of the Ombra 36 in. 600 CFM Wall Mount Range Hood lies in their appearance. The black stainless steel model features a sleek black finish, while the stainless steel model has a classic silver finish. Both models offer the same functional features, including powerful ventilation, LumiLight LED lighting, and capacitive touch controls.
Q: How does the 'ICON Touch' control system enhance user experience?
A: The 'ICON Touch' control system enhances user experience by seamlessly integrating into the hood's stainless steel canopy, allowing users to conveniently control various functions such as the 5 fan speeds, delay-off feature, dual-level lighting, and auto reminders, all with just a touch.
Q: What are the dimensions of the range hood?
A: The dimensions of the Ombra 36 in. 600 CFM Wall Mount Range Hood are: - Width: 35 7/8 inches - Height: 30 inches - Depth: 19 3/4 inches
Q: What is the maximum airflow capacity of this range hood in CFM?
A: The maximum airflow capacity of the Modena 36 in. 600 CFM Wall Mount Range Hood with LED Light is 600 CFM. This information is explicitly stated in the product name.
