Zephyr - 36 inches - Convertible - Range Hood Insert - Stainless Steel
Zephyr - 36 inches - Convertible - Range Hood Insert - Stainless Steel
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
- Zephyr - Recirculating Kit for ZPI Range Hood - Black$49.99
Related Item
Specifications
- Color FinishStainless steelProduct Height11 1/4 inchesProduct Width35 7/8 inchesProduct Depth11 1/8 inchesExhaust Vent LocationTop/RearVent TypeConvertible
- Key Specs
- Color Finish: Stainless steel
- Product Height: 11 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: ZPI-E36BG290

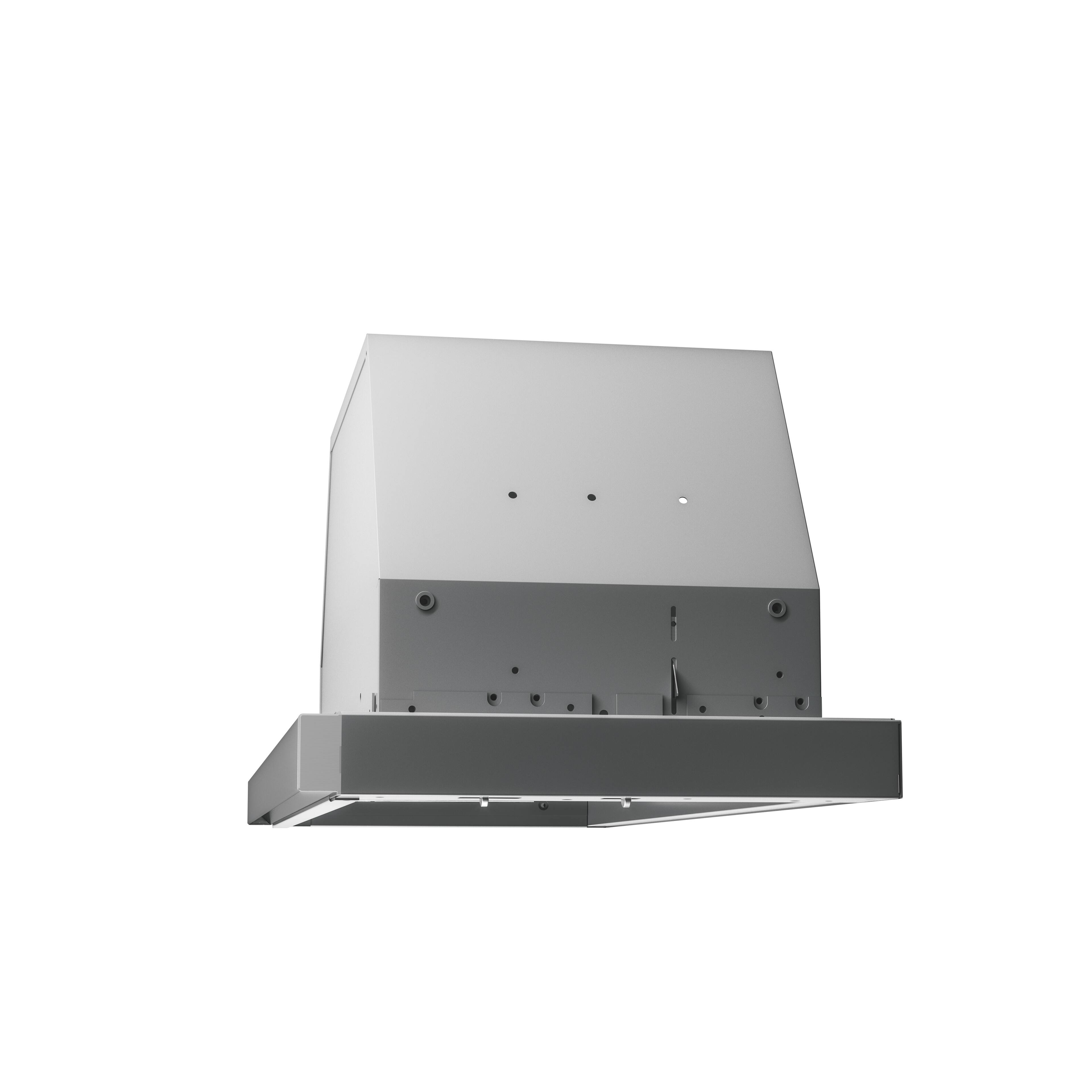

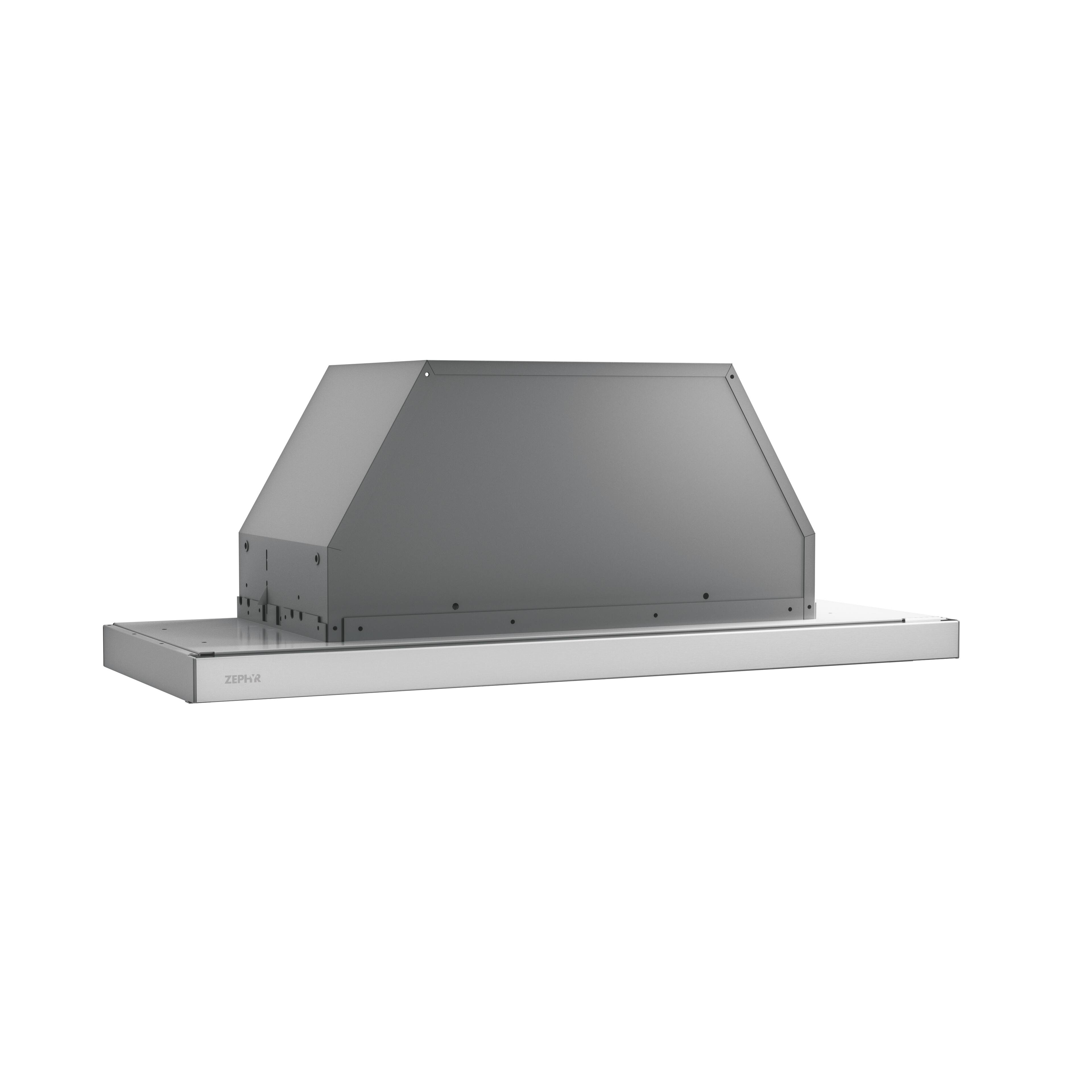

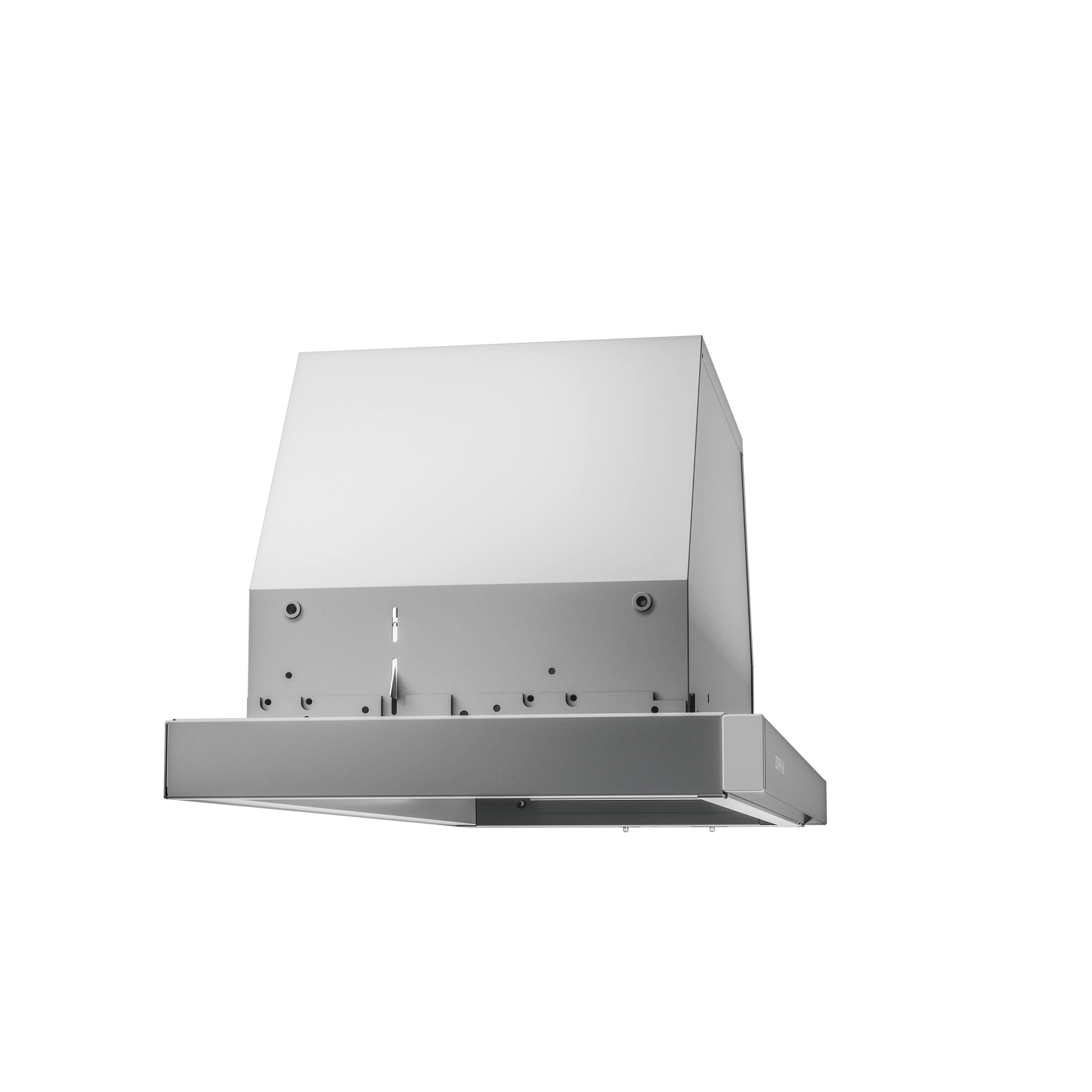

- Product Name: Pisa 36 in. 290 CFM Under Cabinet Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 11 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 20 inches
- Maximum Installation Height Above Cooktop: 32 inches
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 36 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 19.875 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 10.125 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Slide
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 290 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 180 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 3.2 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.3 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Aluminum Mesh
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328009716

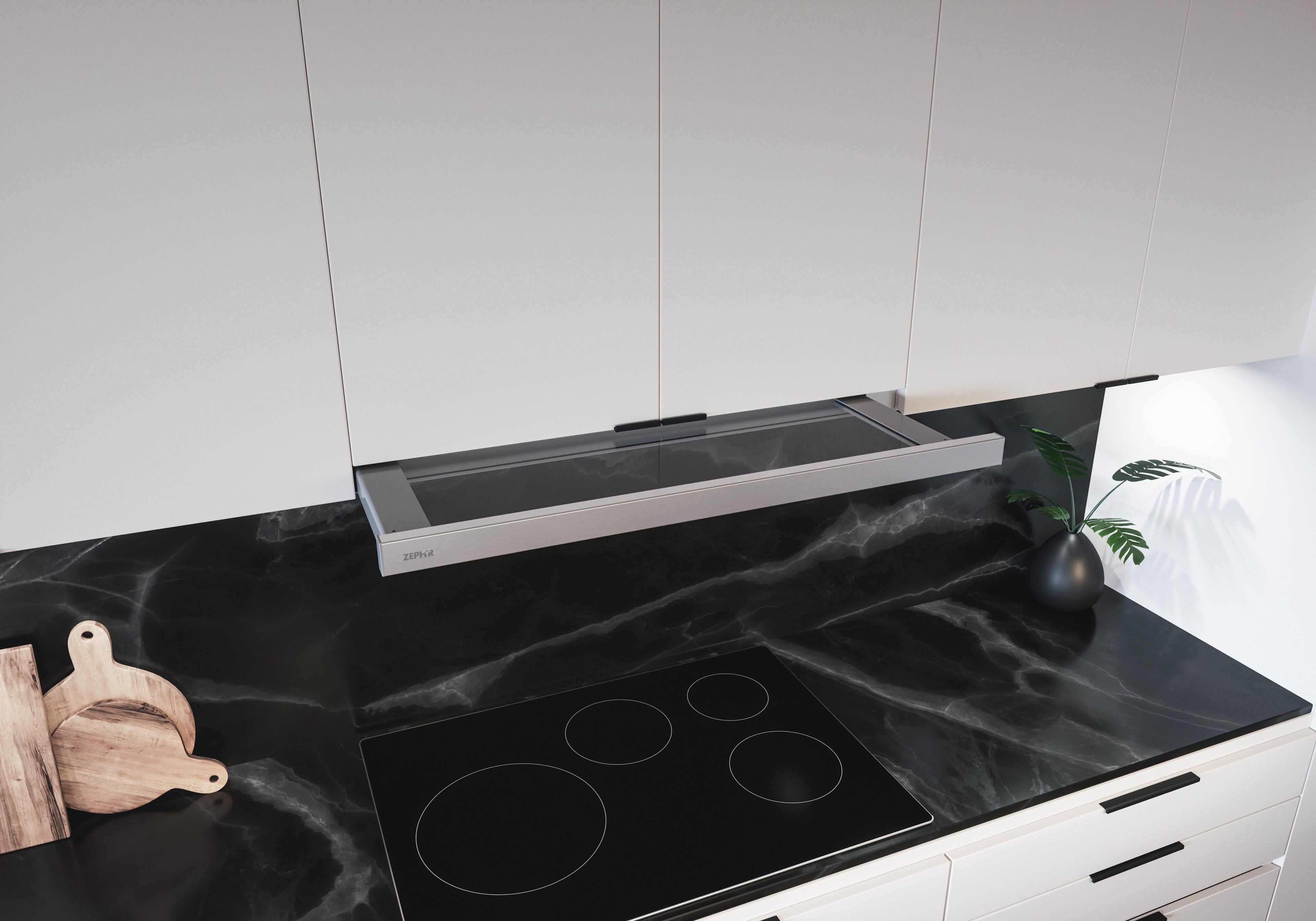

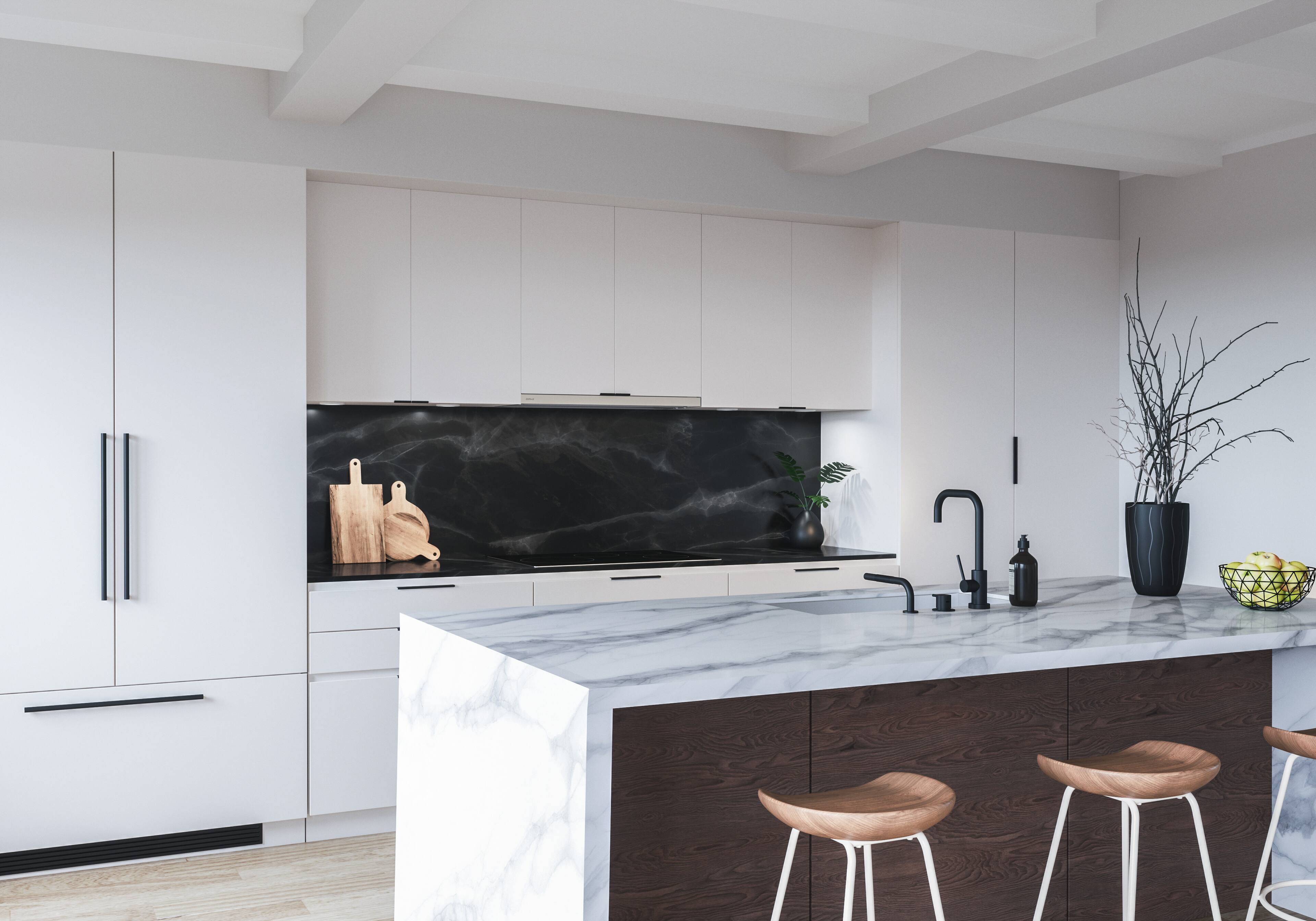

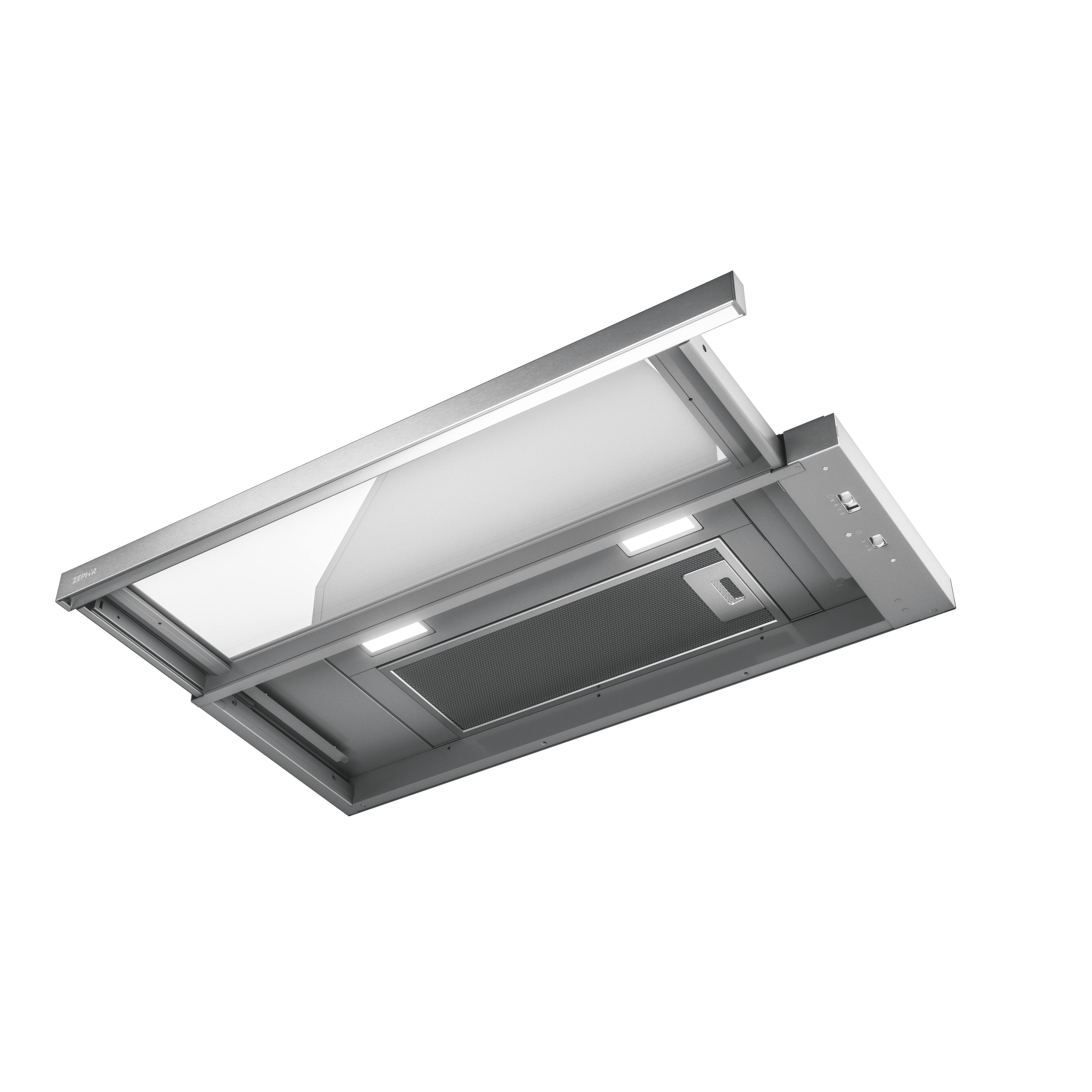

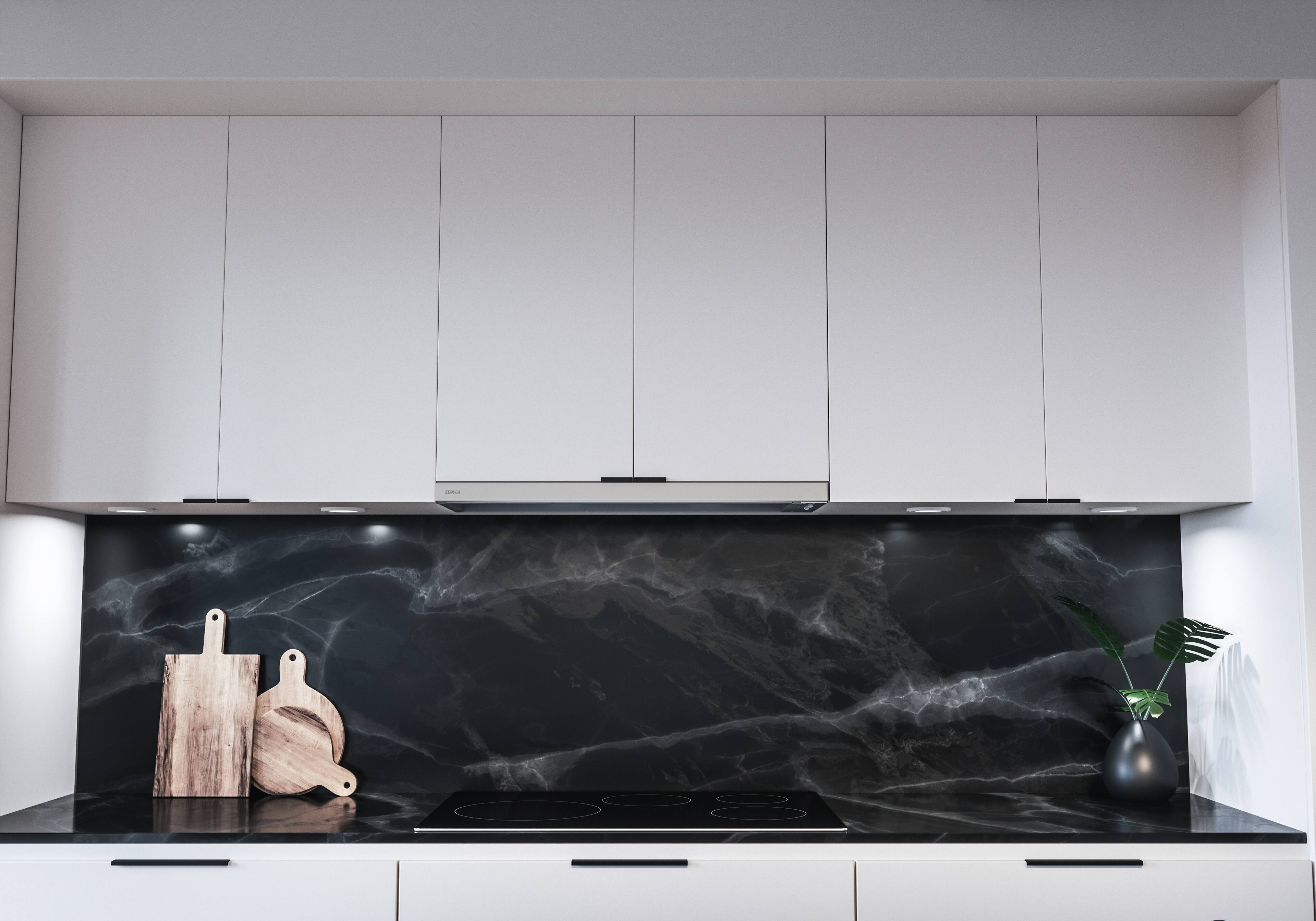

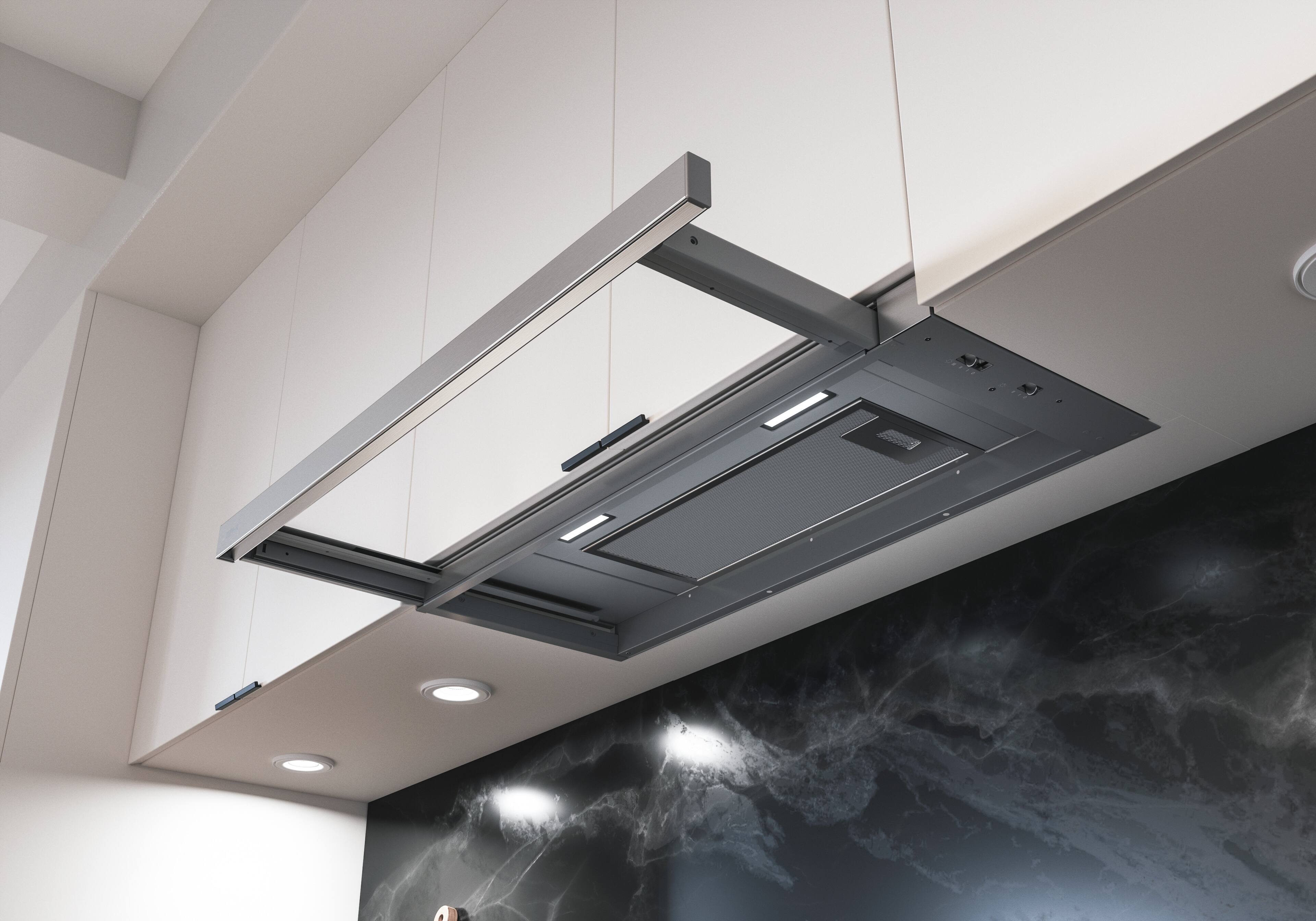

Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Adorned with LumiLight LED Lighting and powered by the strength of a 500-CFM or 290-CFM blower, Pisa’s low-profile body delivers stunning design and quality performance. Its retractable visor helps with the capture of air and puts control at your fingertips. Pisa is ideal for kitchens that require a more discreet, sophisticated look.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Recirculating Option: Part # ZRC-00PI
- Low Profile Body: Low-profile body for a minimalist appearance.
Product Manuals
Q: What type of filters does this range hood use?
A: This range hood uses aluminum mesh filters.
Q: Does this range hood have a recirculating option?
A: Yes, there is a recirculating option available with part number ZRC-00PI.
Q: How many fan speeds does the Pisa range hood have?
A: The Pisa range hood has 3 fan speeds.
Q: Does this range hood come with a remote control?
A: No, this range hood does not come with a remote control.
Q: What is the minimum height requirement for installing this range hood above the cooktop?
A: The minimum installation height above the cooktop for this range hood is 20 inches.
Q: What is the maximum airflow capacity of this range hood?
A: This range hood has a maximum airflow capacity of 290 cubic feet per minute.
Q: May I install a full height backsplash FIRST and then install the vent
A: Hello, Yes, that is fine. The vent hood mounts underneath the cabinet, not to the back splash. Thank you for your inquiry! -Zephyr
