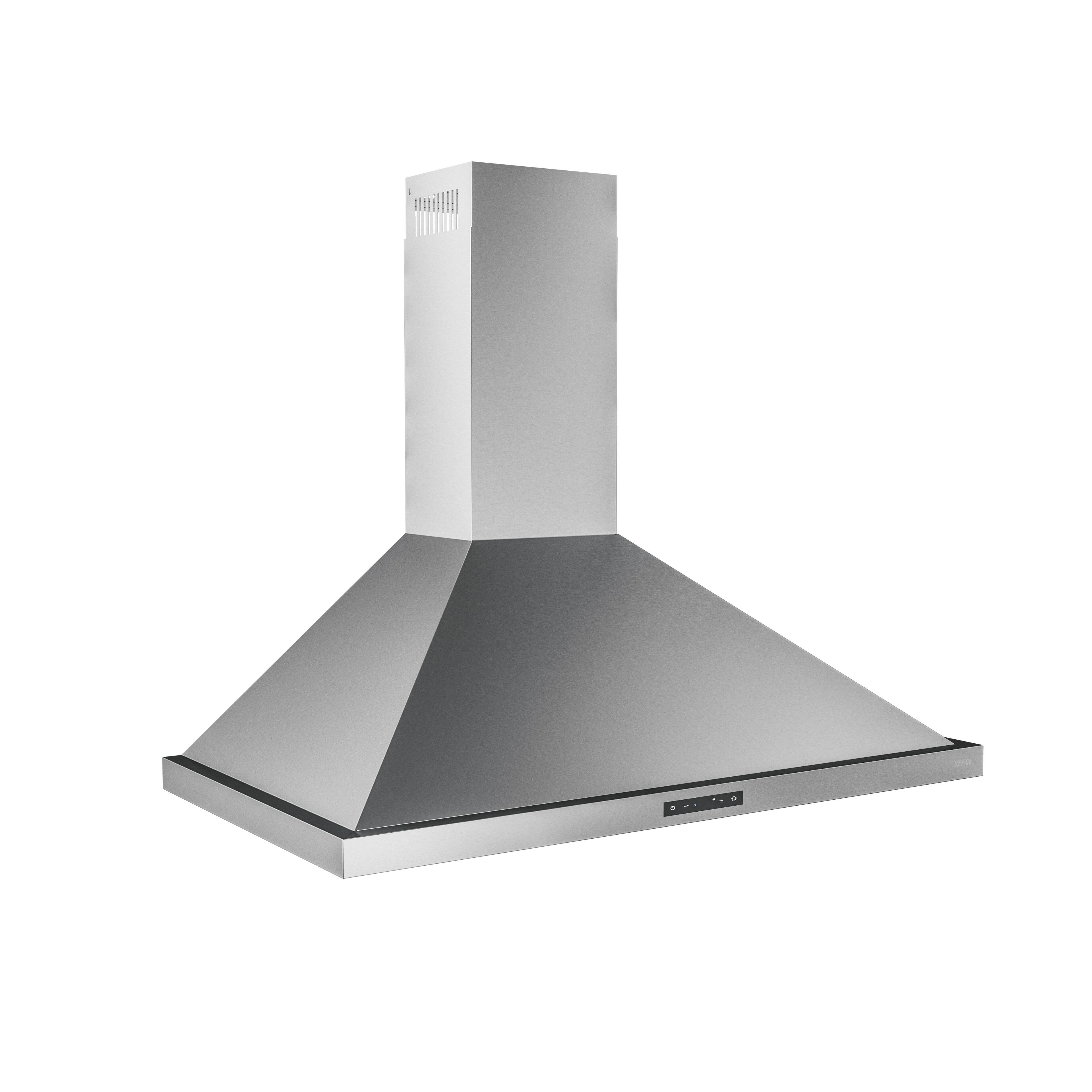

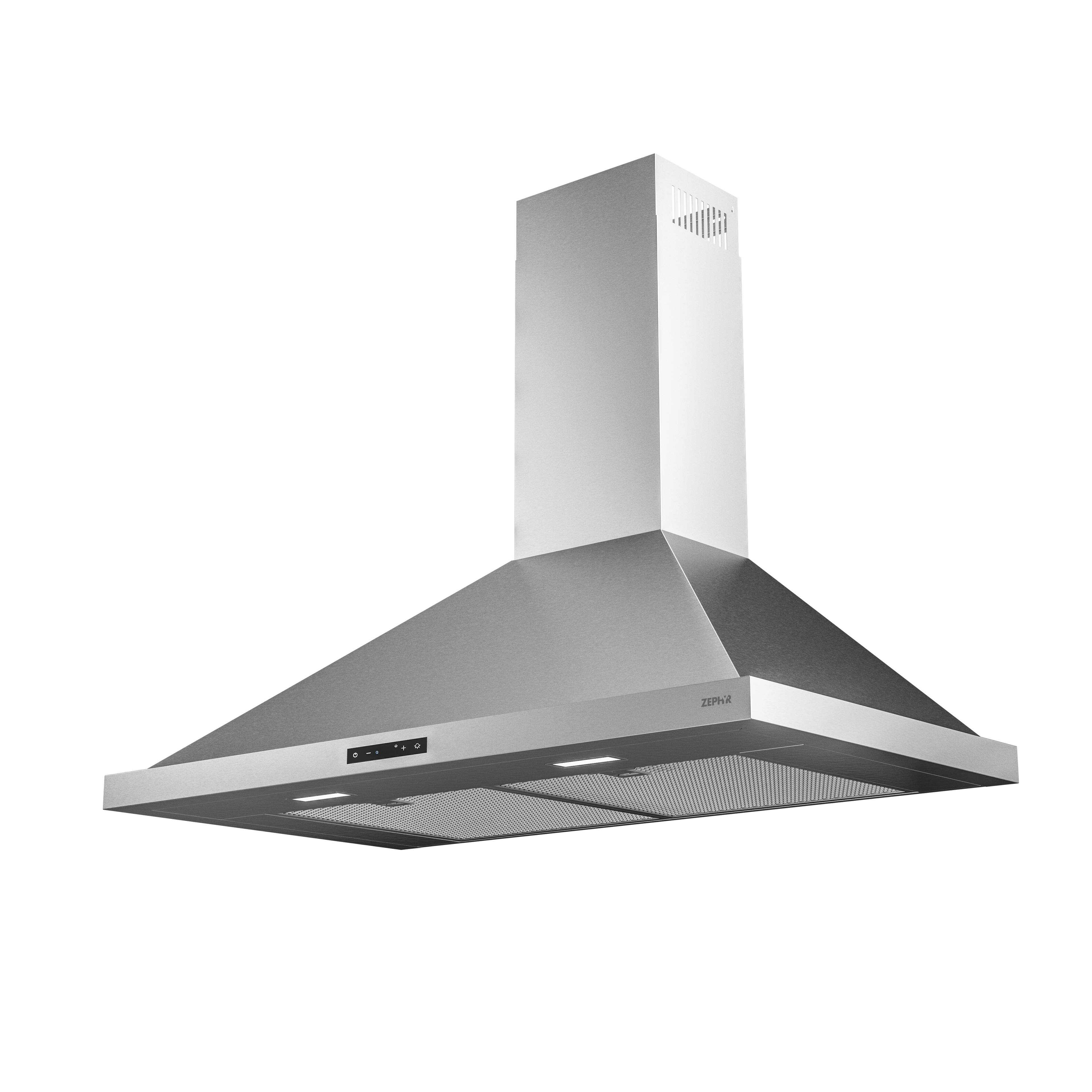

Zephyr - 36 inches - Convertible - Wall Range Hood - Stainless Steel
Color
Stainless SteelNeed-haul away?
Key Accessories:
- Zephyr - Duct Cover Extension for ZOM - Stainless Steel$239.99
Related Item
Specifications
- Color FinishStainless steelProduct Height30 inchesProduct Width35 7/8 inchesProduct Depth19 3/4 inchesExhaust Vent LocationTopVent TypeConvertible
- Key Specs
- Color Finish: Stainless steel
- Product Height: 30 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: ZOM-E36BS
- Product Name: Ombra 36 in. 600 CFM Wall Mount Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 30 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 28 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Removable Grease Filter: true
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 646328009617
Ombra is the perfect combination of form and function with its LumiLight LED Lighting, capacitive touch controls, and optional hybrid baffle filters. Ombra features a powerful 600-CFM blower with our exclusive Airflow Control Technology™ (ACT™) to meet local code requirements. Available in sleek black stainless steel and stainless steel.
- Airflow Control Technology™ (ACT™): Airflow Control Technology or ACT™ is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-01OM)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-01OMS)
Product Manuals
Q: What are the dimensions of this range hood, including height, width, and depth?
A: The dimensions of the Modena 36 in. 600 CFM Wall Mount Range Hood with LED Light are as follows: 27 inches in height, 35 1/2 inches in width, and 22 1/8 inches in depth.
Q: What is the minimum required height for installation above the cooktop?
A: The minimum required height for installation above the cooktop for the Modena 36 in. 600 CFM Wall Mount Range Hood with LED Light by Zephyr is 24 inches. The maximum installation height above the cooktop is 32 inches.
Q: What is the recommended duct shape for proper ventilation?
A: The recommended duct shape for proper ventilation of the Modena 36 in. 600 CFM Wall Mount Range Hood with LED Light by Zephyr is round.
Q: What is the voltage requirement for operating this range hood?
A: The voltage requirement for operating the Modena 36 in. 600 CFM Wall Mount Range Hood with LED Light, Zephyr brand, is 120 volts.
Q: What is the difference between the black stainless steel and stainless steel models?
A: The primary difference between the black stainless steel and stainless steel models of the Ombra 36 in. 600 CFM Wall Mount Range Hood lies in their appearance. The black stainless steel model features a sleek black finish, while the stainless steel model has a classic silver finish. Both models offer the same functional features, including powerful ventilation, LumiLight LED lighting, and capacitive touch controls.
Q: How does the 'ICON Touch' control system enhance user experience?
A: The 'ICON Touch' control system enhances user experience by seamlessly integrating into the hood's stainless steel canopy, allowing users to conveniently control various functions such as the 5 fan speeds, delay-off feature, dual-level lighting, and auto reminders, all with just a touch.
Q: What are the dimensions of the range hood?
A: The dimensions of the Ombra 36 in. 600 CFM Wall Mount Range Hood are: - Width: 35 7/8 inches - Height: 30 inches - Depth: 19 3/4 inches
Q: What is the maximum airflow capacity of this range hood in CFM?
A: The maximum airflow capacity of the Modena 36 in. 600 CFM Wall Mount Range Hood with LED Light is 600 CFM. This information is explicitly stated in the product name.
Compare similar products
Ombra is the perfect combination of form and function with its LumiLight LED Lighting, capacitive touch controls, and optional hybrid baffle filters. Ombra features a powerful 600-CFM blower with our exclusive Airflow Control Technology™ (ACT™) to meet local code requirements. Available in sleek black stainless steel and stainless steel.
This pyramid style wall-mount canopy hood gracefully accents any sophisticated kitchen that follows a more traditional layout, brilliantly illuminated by LED task and ambient lighting. A robust high-performance blower combines with perimetric extraction to efficiently and effectively clean the air while remaining exceptionally quiet.
Easily vent smoke and odors with this 400 CFM Motor Class range hood that comes equipped with a 3-speed kitchen exhaust fan for powerful ventilation. This 30" wall mount range hood also comes with a detachable grease filter for convenient cleaning, LED range hood lights and a 65K BTU cooktop threshold.
Keep your air clean while cooking with this retractable Jenn-Air telescoping downdraft ventilation system. It appears at the push of a button to remove cooking odors, smoke and steam. The slim profile occupies minimal countertop space, and the four fan speed settings of this Jenn-Air telescoping downdraft ventilation system let you control venting for optimal performance.
| Pros for Zephyr - 36 inches - Convertible - Wall Range Hood - Stainless Steel | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | There were no pros for this product— | Overall Performance |
| Cons for Zephyr - 36 inches - Convertible - Wall Range Hood - Stainless Steel | |||
| There were no cons for this product— | There were no cons for this product— | Noise Level | There were no cons for this product— |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Solid performer
We purchased this unit for multiple reasons: 1) US made, 2) quiet fan mode as well as a mode that moves air out quickly, and 3) sleek design and size. It was a little bit of an unknown to us, since we had never heard of the Zyphyr brand until looking at hood options. After 10 months of usage, the functionality has been great. It has four fan modes and two lighting (dim and bright). The tradeoff of a sleek and simple design is that the controls on the front rim are very small and a little difficult to see. The controls are touch-based rather than mechanical. Occasionally this can be problematic if you have wet fingers, they may not respond. We like the two pull-out fan filters that are light but sturdy and can be easily cleaned in the dishwasher. The highest fan setting is loud, but definitely gets the air removed from the whole range area. Overall, we are happy with this purchase. BestBuy installers did a great job installing it and were cautious to not harm the tile on the back wall.
This review is from Zephyr - 36 inches - Convertible - Wall Range Hood - Black Stainless Steel
SteveC Posted
- Rated 1 out of 5 stars
Pick a different brand
This is a terrible unit. Impossible to install - no room for screw heads to fit into mounting brackets, no room for minor adjustments, no solid or positive connection points for exhaust facia covers top or bottom. No method to adjust height of exhaust covers for extension kits, they do not fit together but must be perfectly aligned. Install instructions are not possible to follow - pretty ridiculous.
This review is from Zephyr - 36 inches - Convertible - Wall Range Hood - Stainless Steel
GeneralContractor Posted
- Rated 4 out of 5 stars
A modern feel to kitchen
This range hood has a nice modern design that makes the kitchen look modern and new. It can be loud if you turn it on full blast but it provides strong suction. The buttons are sometimes hard to use if your fingers are wet, so make sure your fingers are completely dry if you want to press the buttons.
This review is from Zephyr - 36 inches - Convertible - Wall Range Hood - Black
