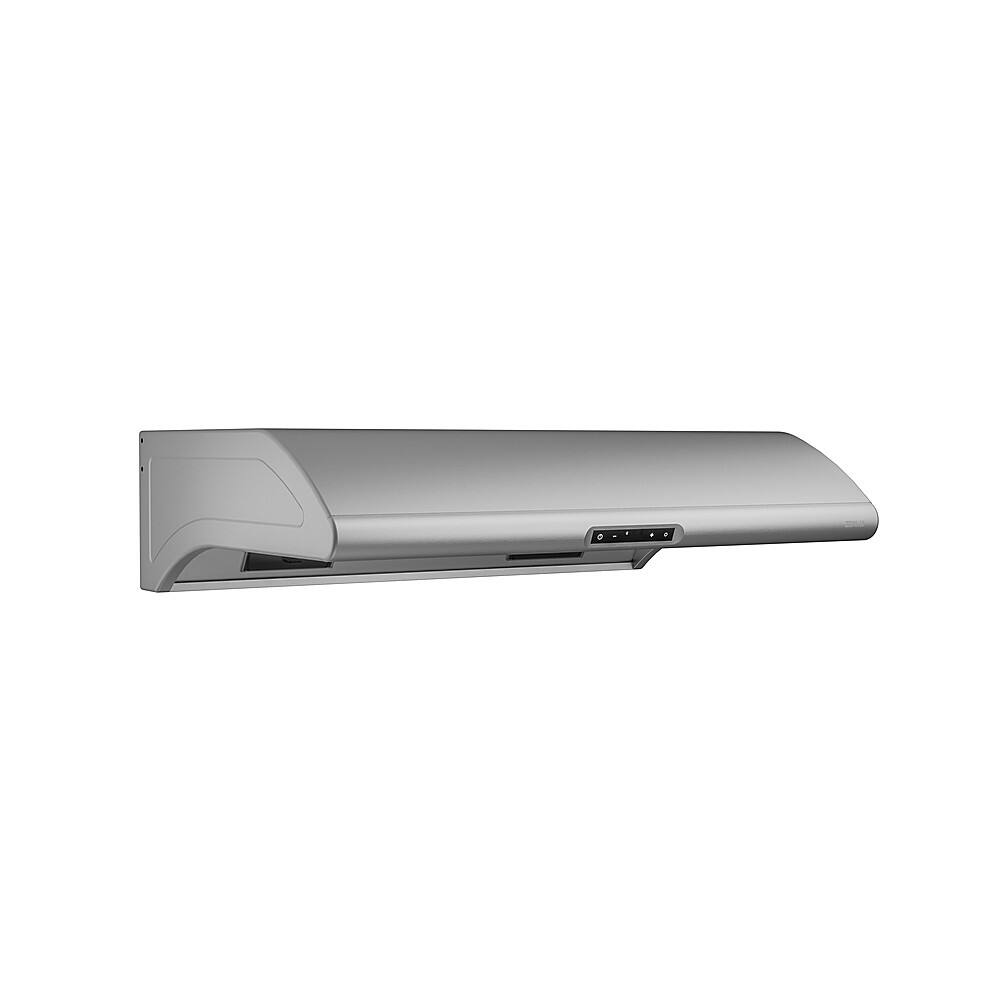

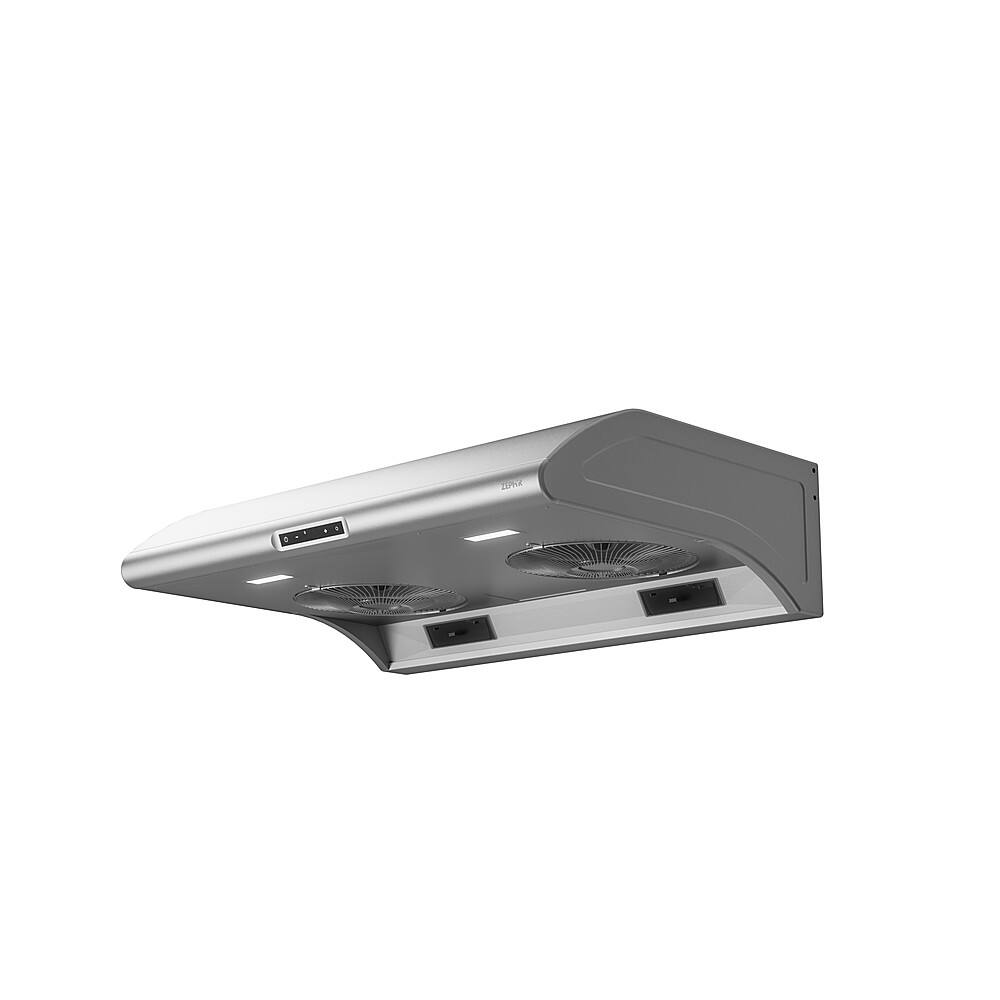

Zephyr - 36 inches - Externally Vented - Under cabinet Range Hood - Stainless Steel
Color
Stainless Steel$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Zephyr - Duct 7 in. Low-Profile Round Damper with Collar for Range Hood - White$19.99
Related Item
Specifications
- Color FinishStainless steelProduct Height7 7/8 inchesProduct Width35 3/4 inchesProduct Depth20 3/4 inchesExhaust Vent LocationTop/RearVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 7 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK2136CS
- Product Name: Typhoon 36 in. 850 CFM Under Cabinet Mount Range Hood with LED Light
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 7 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 32 inches
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 40.5 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Duct Length: 3.25 inches
- Duct Width: 10 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 6
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 850 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 250 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 0.9 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Removable Grease Filter: false
- Electrical Specification
- Amperage: 2 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328008634
One of our founding models, Typhoon is not only good looking but packed with powerful, virtually noise-free 850-CFM blowers. It includes a convenient self-cleaning system along with tri-level LumiLight LED lights that invite you and your guests to a warm respite from the everyday. Available in black, white and stainless steel. Now with Quiet Speed Setting (QSS) and ACT technology.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Capacitive Touch Controls: Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Ultra-Quiet Performance: Our range hoods aren't just powerful, they're powerfully quiet, serving up great ventilation free of noise so you can enjoy entertaining family and friends nearby.
- Longer Warranty Than Competitors: We back our products with an unparallelled level of service and a generous muti-year warranty.
- Filter-Less Self-Cleaning System: Designed to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use.
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
- Multiple Color Options: Multiple colors available to match your kitchen décor.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Capacitive Touch Controls: Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Ultra-Quiet Performance: Our range hoods aren't just powerful, they're powerfully quiet, serving up great ventilation free of noise so you can enjoy entertaining family and friends nearby.
- Longer Warranty Than Competitors: We back our products with an unparallelled level of service and a generous muti-year warranty.
- Filter-Less Self-Cleaning System: Designed to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use.
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
- Multiple Color Options: Multiple colors available to match your kitchen décor.
Q: What is the sound/decibel level?
A: Hello, The Typhoon under- cabinet hood has 850 CFM and the sound- Sone measurement levels are- .09- 5. You can view more detailed information on our website product page here: http://docs.zephyronline.com/docs/specs/typhoonc_spec.pdf Thank you for your inquiry!
Q: Are the grease filters dishwasher safe?
A: Hello, Zephyr Typhoon, Hurricane and Cyclone hoods are filter-less with a self cleaning feature. The centrifugal blower system automatically liquefies cooking residue in its internal housing. All hoods are equipped with dishwasher safe residue cups to collect cooking residue during the self cleaning function. Cleaning should be performed approximately once a month under normal usage of 1 hour per day. The hood may need to be cleaned more often if you cook heavily. Thank you for your inquiry! - Zephyr
Q: What is the RAL of the white color?
A: Hello, RAL9016. Thank you for your inquiry! - Zephyr
A: Hello, Please refer to the owners manual on specific installation requirements. For further installation assistance please reach out to our support team at [email protected]. Thank you for your inquiry! - Zephyr
Q: Zephyr- Typhoon can it be vented horizintally out of Kitchen thgrough the side wall?? Thanks
A: Yes it can. Our unit is setup to vent horizontally and works very well.
Compare similar products
One of our founding models, Typhoon is not only good looking but packed with powerful, virtually noise-free 850-CFM blowers. It includes a convenient self-cleaning system along with tri-level LumiLight LED lights that invite you and your guests to a warm respite from the everyday. Available in black, white and stainless steel. Now with Quiet Speed Setting (QSS) and ACT technology.
Updated with dual-level LumiLight LED Lighting, the Breeze II’s modern, clean lines provide a perfect complement to any interior. Equipped with 3-speed electronic controls, 400-CFM blower, convenient dishwasher-safe aluminum filters and an auto delay-off feature that clears the air and powers down after 5 minutes. Available in black, white, stainless steel and black stainless finishes.
We are bringing professional-quality range hoods to your home with our Chef Series UC-PS18 under-cabinet kitchen range hood. Backed by dual motors, this range hood is designed to make extracting odors, fumes, and chemicals from your kitchen a breeze. Plus, our UC-PS18 under-cabinet kitchen range hood comes with a unique, versatile venting system designed to fit most ducts and save you time and money.
We are bringing professional-quality range hoods to your home with our Chef Series UC-PS18 under-cabinet kitchen range hood. Backed by dual motors, this range hood is designed to make extracting odors, fumes, and chemicals from your kitchen a breeze. Plus, our UC-PS18 under-cabinet kitchen range hood comes with a unique, versatile venting system designed to fit most ducts and save you time and money.
| Pros for Zephyr - 36 inches - Externally Vented - Under cabinet Range Hood - Stainless Steel | |||
|---|---|---|---|
| CFM, LED Lights | Appearance | There were no pros for this product— | There were no pros for this product— |
Specs
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Details/comments: install/product/directions/help
Nice unit, lots of cfm, usable features and touch controls. Like the idea of grease catchers instead of filters; will see how that works. Plastic protective covering was a pain to get off. DO NOT use any metal to take off. In attaching the vent adapter there were not enough screws to fill the holes; needed 4 more. Use aluminum ducting tape to seal the adapter. Check your cabinet depth. Ours was 11.5" and the factory mount hole were showing in the front of the cabinet.(Had to add trim to cover this) We had to drill other holes further back. Before installing check adjacent cabinet door to see if they will clear. In installing the fan covers there were very sketch directions (also for the electrical hookup) on the proper position. This was complicated with the fact that these grills did not fit flush in their openings; quality control. One of the fan hubs was dented. Wondered if this might affect the fans bearing in time. We thought that this range hood, for what we got and was made in Taiwan, was over priced. Did call customer service on these things; did not get a lot of clarifications. ie. there were 3 welded clips on each fan housing; agent did not know what they were for or why there were extra holes in the vent cover to let air escape. Assumed the clips were there for holding wires but nothing mentioned anywhere.
Posted by Derby
- Rated 5 out of 5 stars
The best range hood.
Looks great, powerful, quieter than others we tested. The LED lights have three levels of brightness with the high setting being very bright. At 850CFM, there is zero smoke escaping. Highly recommended!
Posted by CarlSpackler
- Rated 5 out of 5 stars
Best range hood ever!
Awesome addition to any kitchen. This thing is quiet, moves so much air and is beautiful to look at. Clean up is easy and no filters to fool with. Also the LED lighting is perfect and the controls for the lights and fan are easy and look nice.
Posted by OneOfour
