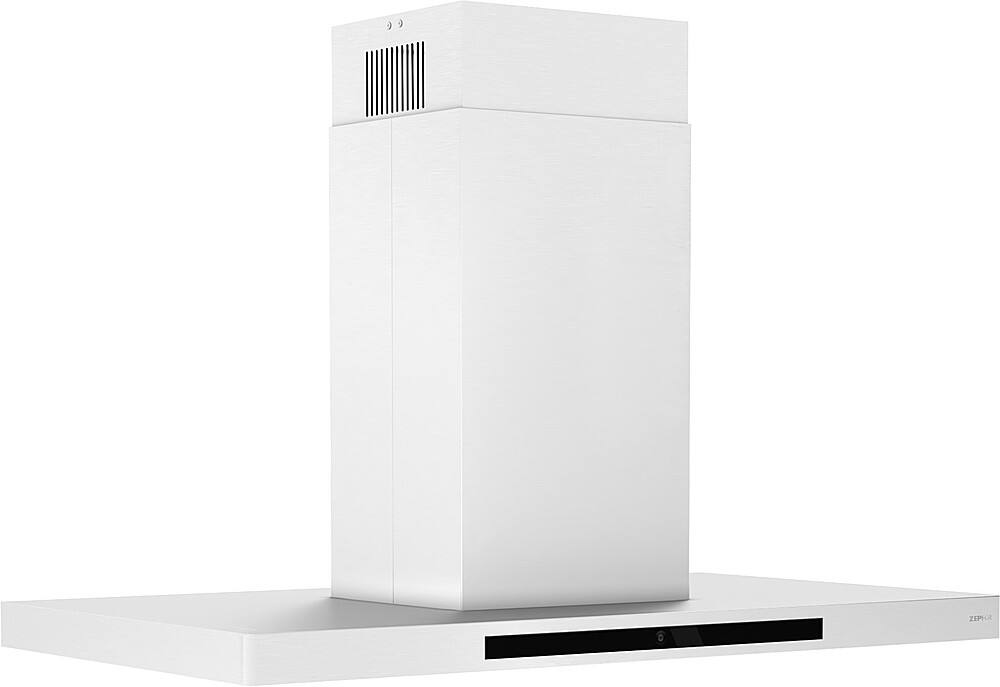

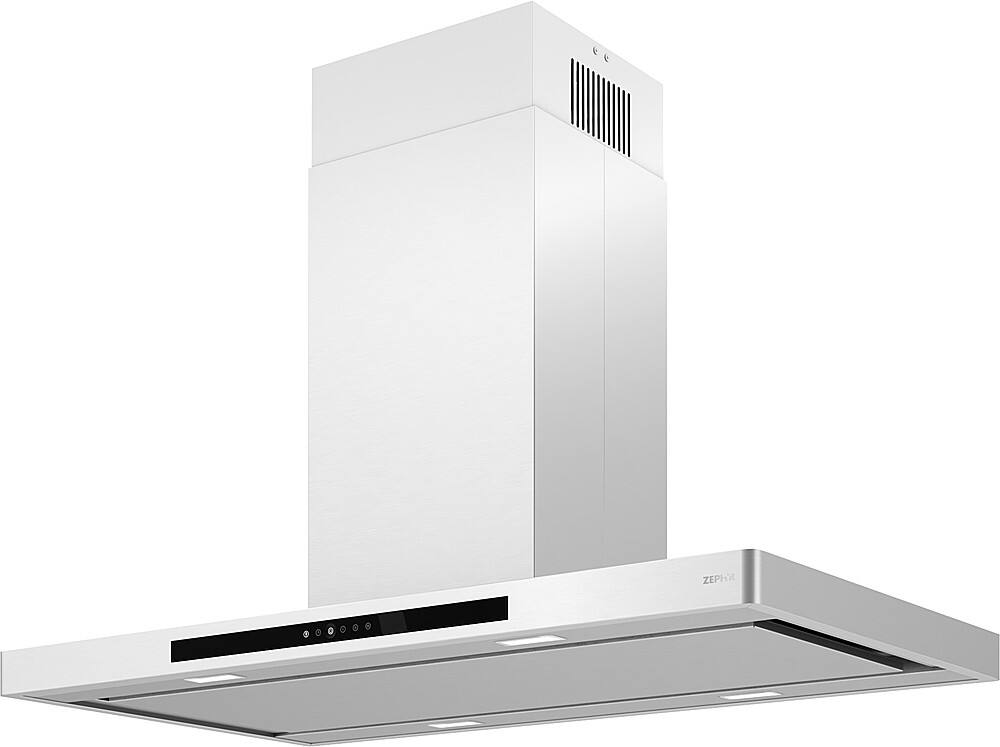

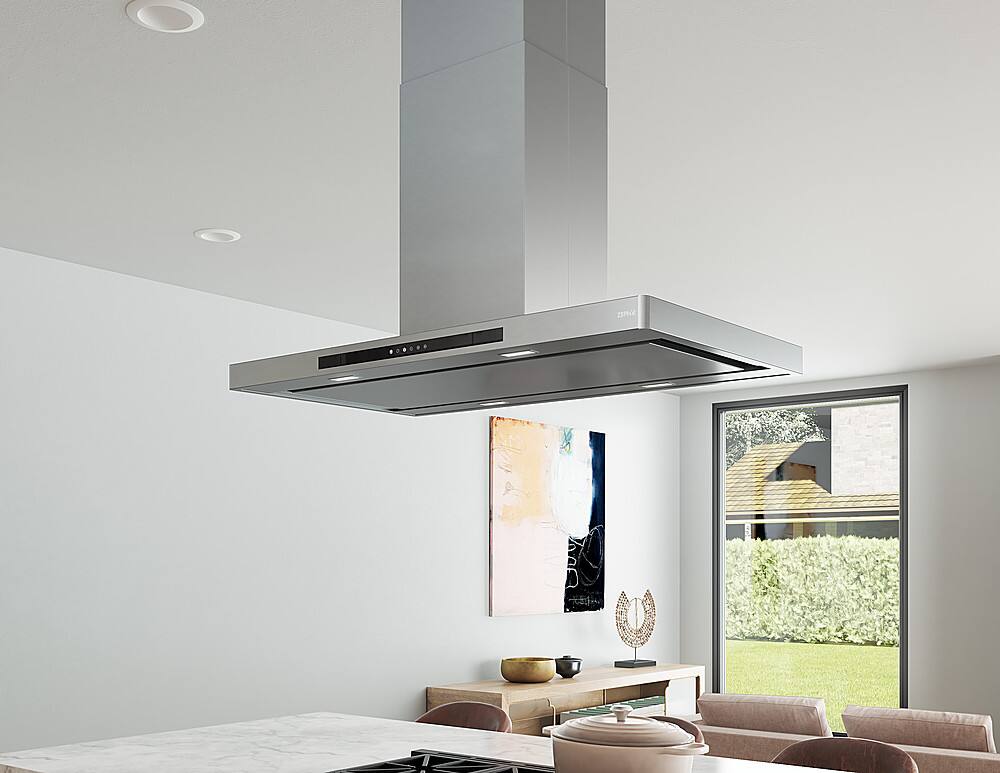

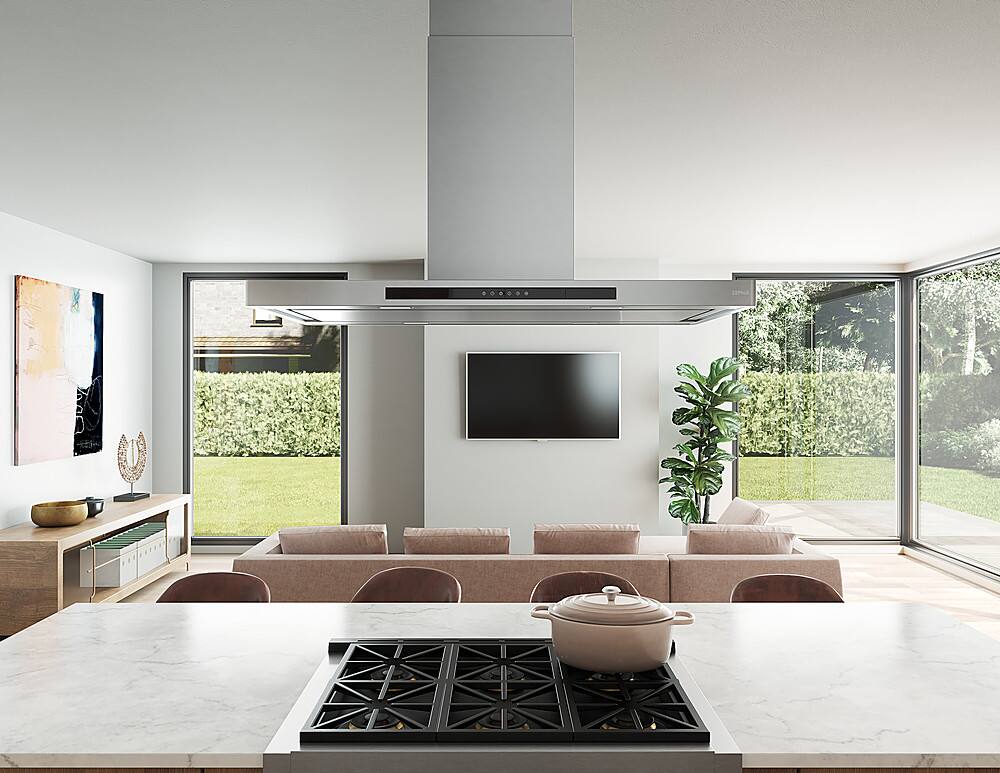

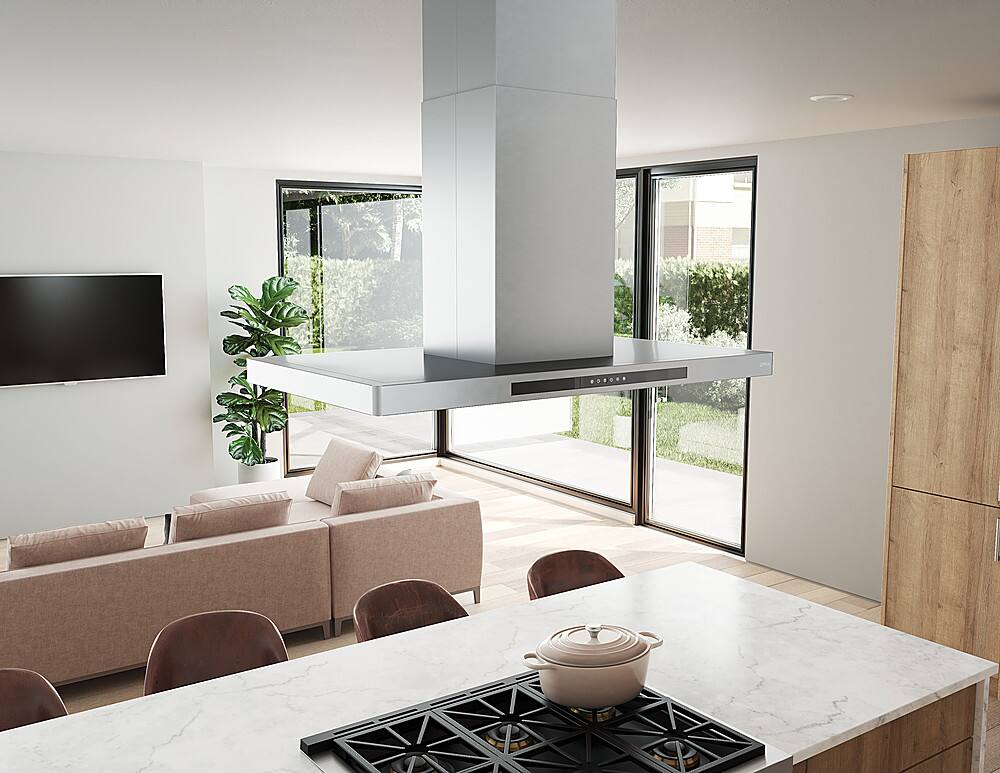

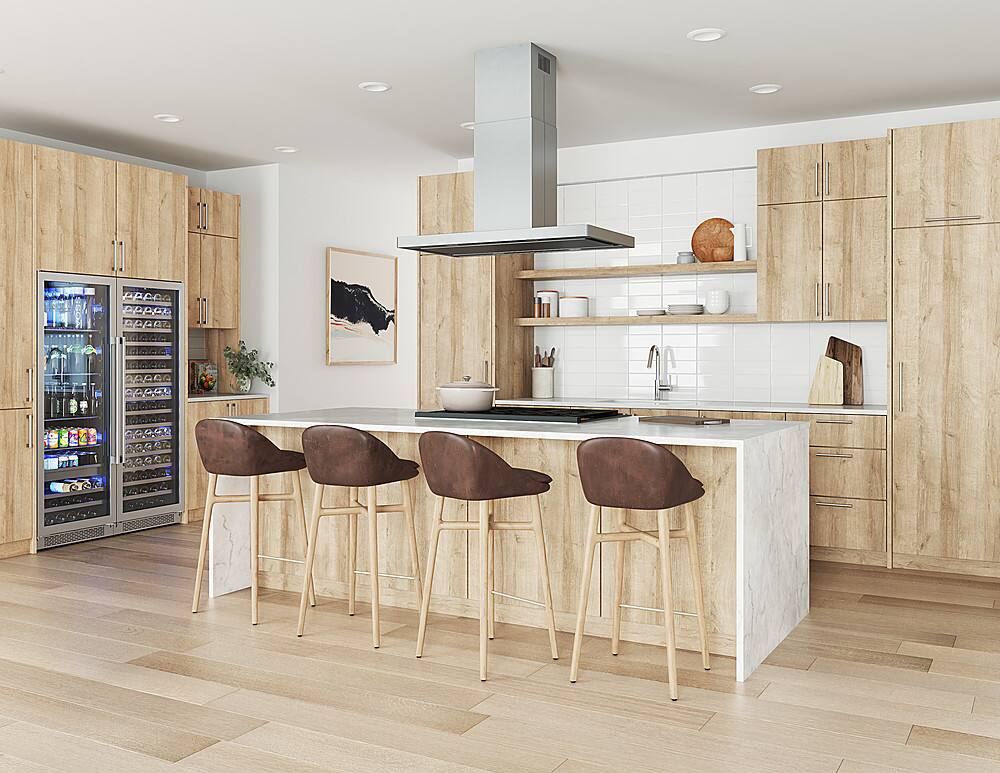

Zephyr - 42 inches - Convertible - Shell Range Hood - Stainless Steel
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
- Zephyr - Duct Cover Extension for Vista Island - Stainless Steel$649.99
Related Item
Specifications
- Color FinishStainless steelProduct Height29 1/2 inchesProduct Width41 15/16 inchesProduct Depth23 5/8 inchesExhaust Vent LocationTopVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 29 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 41 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: DVL-E42ASSX
- Product Name: Vista 42 in. Shell Only Island Mount Range Hood with LED Lights
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 29 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 41 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 42 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 100 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Shell, Island
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 5 watts
- Performance
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 6.63 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328008948
Island life has never looked so good the low-profile Vista Island hood has curved good looks and the engineering and power to back it up. Our Perimeter Aspiration System ensures increased air velocity and improved capture of contaminants for the cleanest cooking yet. The sleek stainless body, brilliant LED lighting and Invisible Touch Controls that stay hidden until you need them all serve to make this hood as efficient as it is beautiful. Optional remote control is available as an accessory. SHELL ONLY
- Multiple Blower Options: Multiple blower options are available to fit your application: CBI-290C, CBI-390A, CBI-600A, PBN-1000A, CBE-1000
- Capacitive Touch Controls: Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Tri-Level Lighting: The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen. (Part # 14000010)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-00VL)
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00VL)
- Shell Only: Blower not included
- Multiple Blower Options: Multiple blower options are available to fit your application: CBI-290C, CBI-390A, CBI-600A, PBN-1000A, CBE-1000
- Capacitive Touch Controls: Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Tri-Level Lighting: The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen. (Part # 14000010)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-00VL)
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00VL)
- Shell Only: Blower not included
Q: What is the minimum height required to install this range hood above the cooktop?
A: The minimum installation height above the cooktop for this range hood is 24 inches.
Q: What type of controls does this range hood have?
A: This range hood utilizes capacitive touch controls, similar to a smartphone.
Q: What type of filters does this Zephyr range hood use?
A: This Zephyr range hood uses aluminum filters.
Q: Does this range hood come with a remote control?
A: No, the remote control is not included but can be purchased separately.
Q: Are the filters on this range hood dishwasher safe?
A: Yes, the aluminum filters in this range hood are dishwasher safe.
Q: How many lights does the Zephyr Vista range hood have?
A: The Zephyr Vista range hood has 4 LED lights.
A: Hello, Depending on the blower, there is an 8 inch round or 6 inch round duct. For more in formation please reference the specification sheet and owners manual found on the product page. Thank you for your inquiry! -Zephyr
Compare similar products
Island life has never looked so good the low-profile Vista Island hood has curved good looks and the engineering and power to back it up. Our Perimeter Aspiration System ensures increased air velocity and improved capture of contaminants for the cleanest cooking yet. The sleek stainless body, brilliant LED lighting and Invisible Touch Controls that stay hidden until you need them all serve to make this hood as efficient as it is beautiful. Optional remote control is available as an accessory. SHELL ONLY
Streamlined pyramid-shaped styling and a menu of blower options make this updated and improved Layers Wall the timeless classic hood your kitchen needs. Featuring our state-of-the-art Perimeter Aspiration System, which increases air velocity and improves the capture of cooking contaminants. Packed with a bevy of additional features like Invisible Touch Controls and tri-level LED lighting. SHELL ONLY
High powered 610 CFM blower adjustable downward to either 370 or 290 maximum CFM to accommodate different installation needs. LED modules ensure bright lighting for the entire cooking environment. Removes odors and grease from your cooking area and easy to clean in your dishwasher. Add a sophisticated look with this up-front, easy-to-use display. Automatically control the hood's lights and fan by syncing with the range.
Operate this 800 Series canopy island hood from Bosch effortlessly by using its LCD display with four speed settings. This hood has a quiet-running motor, and the built-in timer lets you set it to automatically shut off in up to 60 minutes. Easily clean the filters and vent covers of this 800 Series canopy island hood in the dishwasher.
