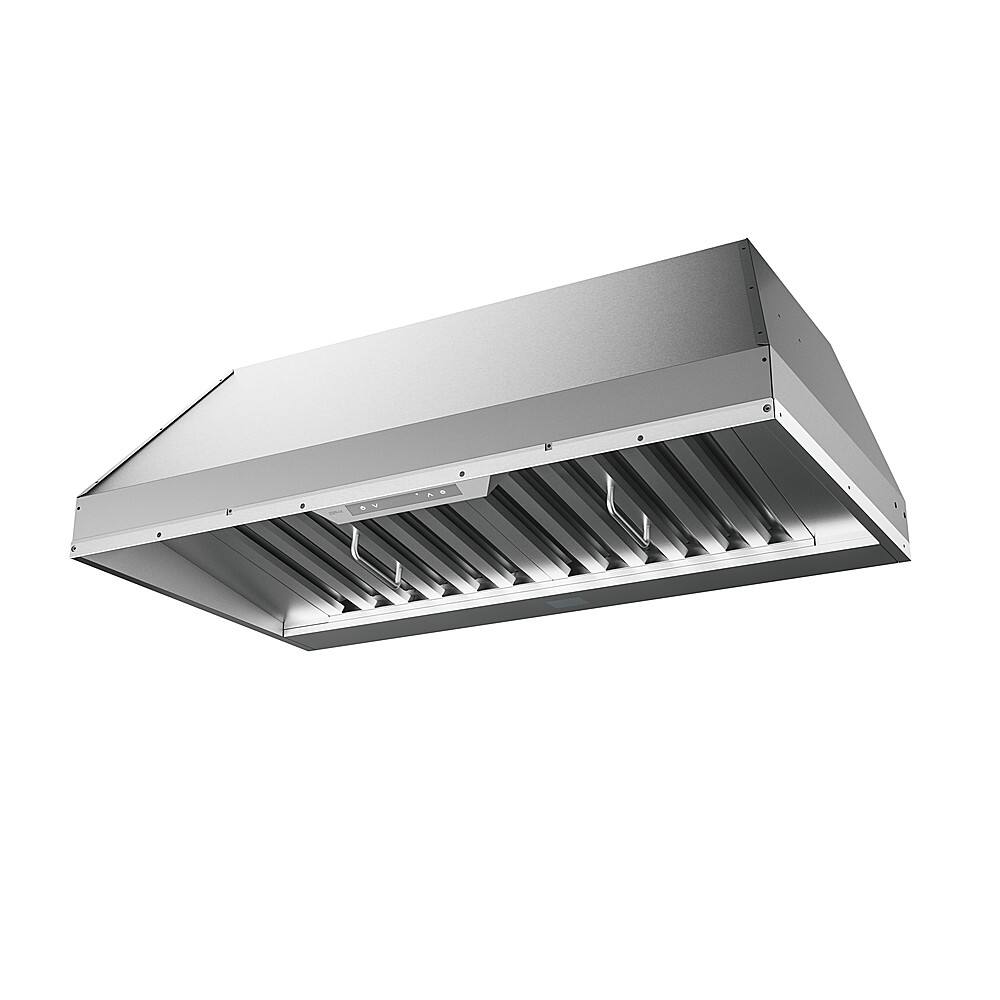

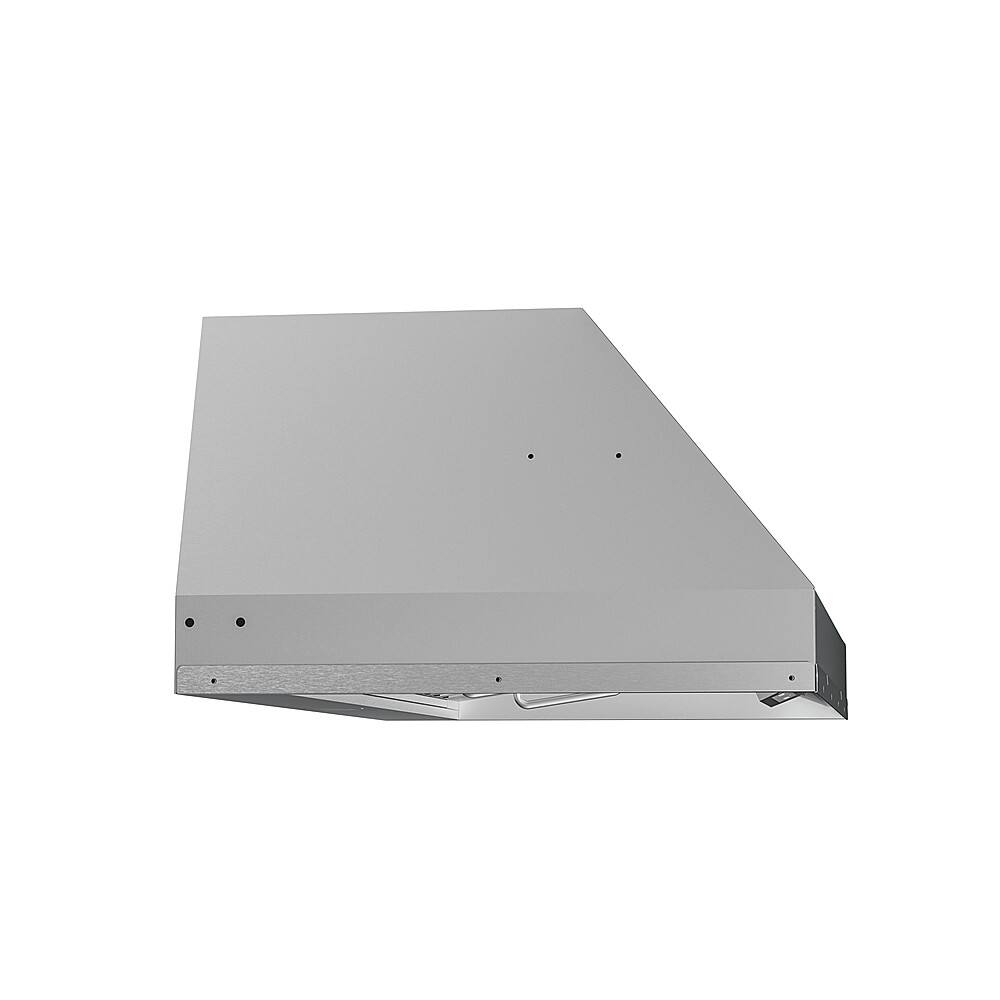

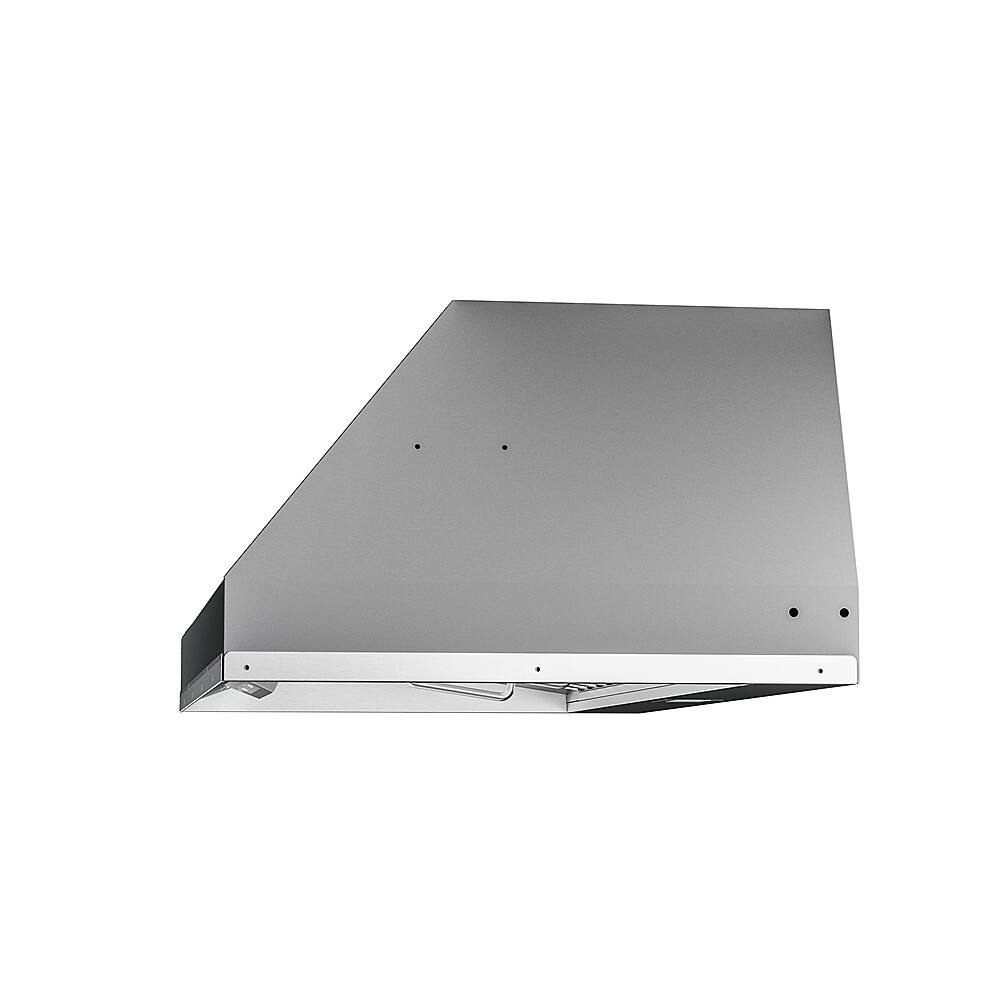

Zephyr - 48 inches - Externally Vented - Range Hood Insert - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
1,300-CFM Motor Dual Internal Blower for Zephyr Range Hoods - Black$499.99
Related Item
Specifications
- Color FinishStainless steelProduct Height12 inchesProduct Width46 3/8 inchesProduct Depth19 1/4 inchesExhaust Vent LocationTop/RearVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 46 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK9446BS
- Product Name: Monsoon Connect 48 in. 700 CFM Insert Mount Range Hood with LED Light
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 46 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 57 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 46 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 5/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 6
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 1300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 0.8 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Pro baffle
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328008382
Monsoon Connect is unique in the marketplace. Optional dual 1300-CFM PowerWave blowers and stainless steel baffle filters make for a powerful, performance-driven range hood insert that is easy to clean. With a wireless remote-control option and Zephyr Connect, our most advanced operation system makes the Monsoon Connect the most quiet and energy efficient, one-piece liner available today. Dual blowers available on the 36, 42 and 48 models.
- Compatible with Zephyr Connect App: The Zephyr Connect app allows customers to remotely control their range hoods from anywhere using a mobile device.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- CleanAir Feature: The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
Q: How many fan speeds does the Zephyr Monsoon Connect range hood have?
A: This range hood has six fan speeds.
Q: What type of filters does this range hood use?
A: The Zephyr Monsoon Connect uses professional baffle filters.
Q: Are the lights on this range hood dimmable?
A: Yes, the LumiLight LED lights are tri-level dimmable.
Q: What is the maximum airflow capacity of this range hood?
A: The maximum airflow capacity of this Zephyr range hood is 1300 cubic feet per minute.
Q: Does this range hood come with a remote control?
A: No, a remote control is not included but is offered as an optional accessory.
Q: What size round duct do I need for this product?
A: Hello, It depends on if you are planning to use a single or a dual blower. Spec sheet for the hood can be found here: http://docs.zephyronline.com/docs/specs/monsoonConnect_spec.pdf. The duct specifications are on the second page. Thank you for your inquiry! - Zephyr
Compare similar products
Monsoon Connect is unique in the marketplace. Optional dual 1300-CFM PowerWave blowers and stainless steel baffle filters make for a powerful, performance-driven range hood insert that is easy to clean. With a wireless remote-control option and Zephyr Connect, our most advanced operation system makes the Monsoon Connect the most quiet and energy efficient, one-piece liner available today. Dual blowers available on the 36, 42 and 48 models.
Now available with LumiLight LED lighting and our exclusive ACT technology, Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look while the 6-speed electronic controls and wireless remote control give the homeowner more than they expected.

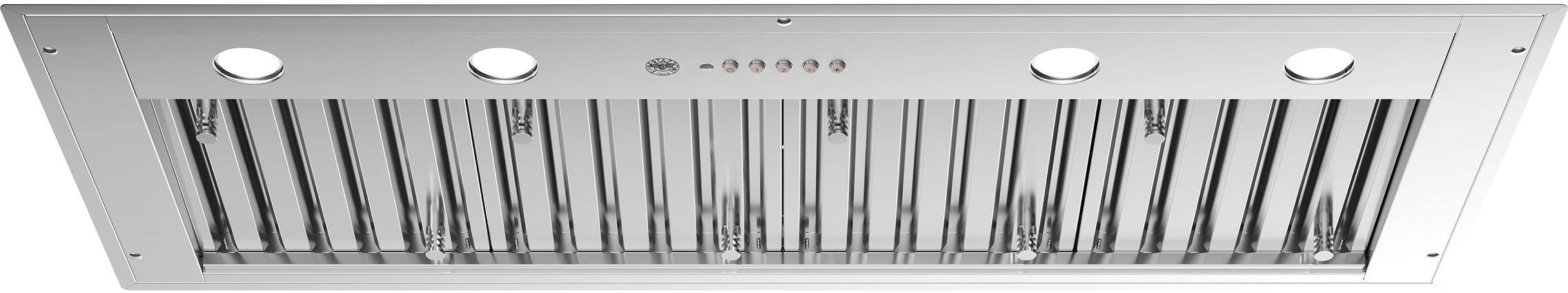

All Bertazzoni hoods are designed, engineered and made in Italy using the highest grade materials and components. Every hood pairs perfectly with all Bertazzoni ranges, rangetops and cooktops of the same size and integrates seamlessly with all other Bertazzoni appliances into style-harmonized suites for a true, high-performing kitchen. Powered by two 600 CFM motors, each with three power settings plus booster, this high-performance ventilation liner comes with baffle stainless steel filters, easily removable and dishwasher safe. 4 LED lights provide bright illumination of the cooking surface under the hood. All Bertazzoni appliances are covered by a 2-year warranty.
A quiet storm of air-clearing power in a designer package, the Monsoon Mini II gets the job done. Featuring a 600-CFM blower, hybrid baffle filters, Airflow Control Technology (ACT), and dual-level LumiLight LED lighting. Also includes recirculating and make-up air options.
Specs
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Need to install
I like the hood but it needs to be installed so I cant tell you how its works
Posted by Mamma
