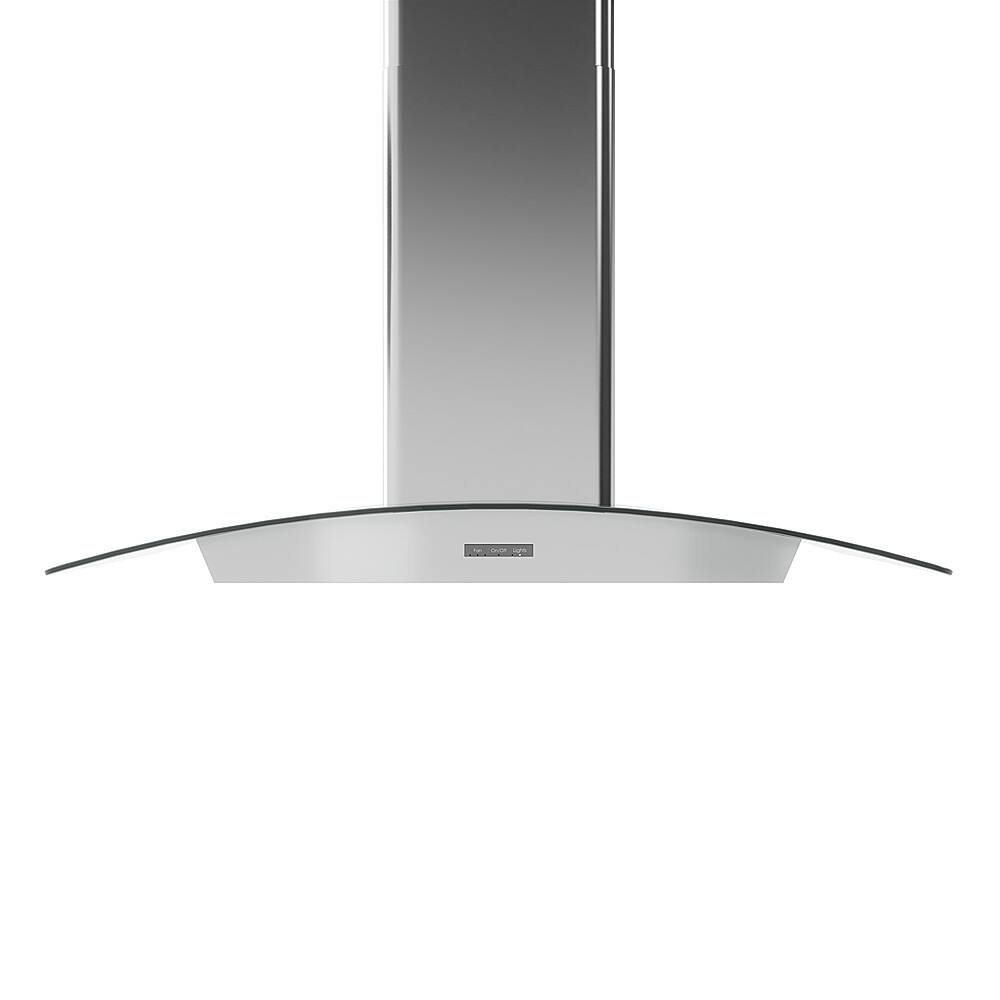

Zephyr Brisas - 30 inches - Convertible - Wall Range Hood - Stainless Steel/Glass
- Key Specs
- Product Height: 23 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: BMI-E30CG
- Product Name: Brisas 30 in. 600 CFM Curved Glass Wall Mount Range Hood with LED Lights
- Color: Stainless Steel/Glass
- Vendor Collection: Zephyr Brisas (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 23 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 50 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 5 watts
- Filter Info
- Removable Grease Filter: true
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 646328007378
Be a classic! Modeled after the classic European design range hoods, Brisas BMI also performs like one. Its 600-CFM motor is at home over induction or gas ranges and its supersized 5-ply aluminum mesh filter can handle even the greasiest dish. Crowned with a clear, curved-glass canopy Brisas BMI is always in style.
- Capacitive Touch Controls: Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LED Light Strip: This multi-level LED light strip ensures even, warm white lighting while fully illuminating the cooking area.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details).
- Capacitive Touch Controls: Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LED Light Strip: This multi-level LED light strip ensures even, warm white lighting while fully illuminating the cooking area.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details).
Q: What type of light bulbs does this range hood require?
A: This range hood requires LED light bulbs. The maximum wattage for the light bulb is 5 watts. The range hood comes with one LED light bulb included.
Q: What is the voltage requirement for this range hood?
A: The voltage requirement for the Brisas 36 in. 600 CFM Curved Glass Wall Mount Range Hood with LED Lights by Zephyr is 120 volts.
Q: Does this range hood have a delay shut-off feature?
A: Yes, the Zephyr Brisas 36 in. 600 CFM Curved Glass Wall Mount Range Hood with LED Lights does have a delay shut-off feature. This feature allows the range hood to continue running for a set amount of time after it has been turned off, which helps to clear the air of any remaining smoke or odors.
Q: Does this range hood come with light bulbs included?
A: Yes, this range hood comes with LED light bulbs included. The product specifications state "Bulb(s) Included: true".
Q: What is the depth of this range hood?
A: The depth of the Brisas 36 in. 600 CFM Curved Glass Wall Mount Range Hood with LED Lights by Zephyr is 19 3/4 inches.
Q: How powerful is the motor of this range hood?
A: The Brisas 36 in. 600 CFM Curved Glass Wall Mount Range Hood by Zephyr features a powerful 600 CFM motor, making it suitable for use over induction or gas ranges. Its supersized 5-ply aluminum mesh filter effectively handles even the greasiest cooking.
Q: What is the maximum wattage for the light bulbs in this range hood?
A: The maximum wattage for the light bulbs in the Brisas 36 in. 600 CFM Curved Glass Wall Mount Range Hood with LED Lights by Zephyr is 5 watts. The range hood comes with one LED light bulb included.
Q: How heavy is this range hood?
A: The Brisas 36 in. 600 CFM Curved Glass Wall Mount Range Hood with LED Lights from Zephyr weighs 53 pounds.
