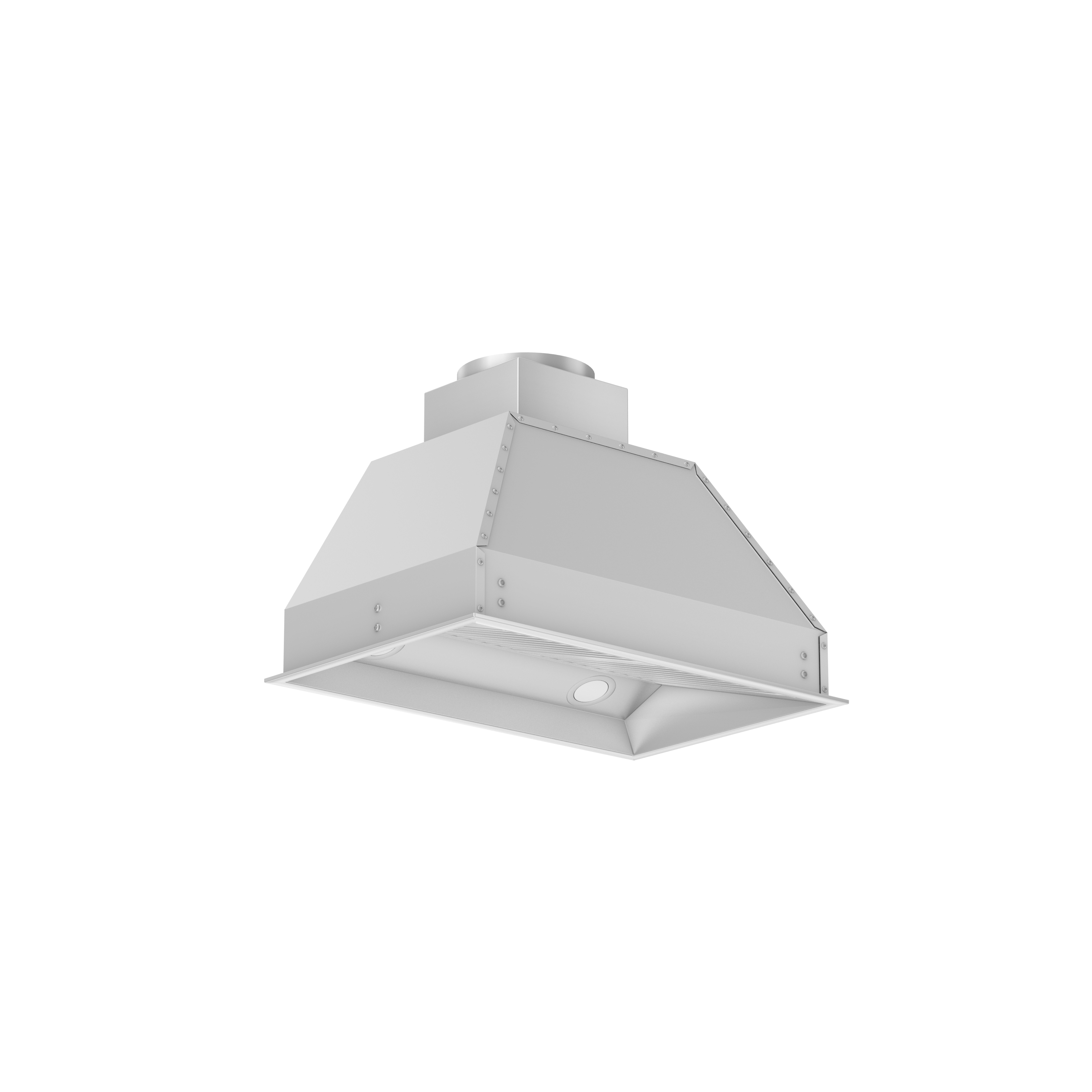

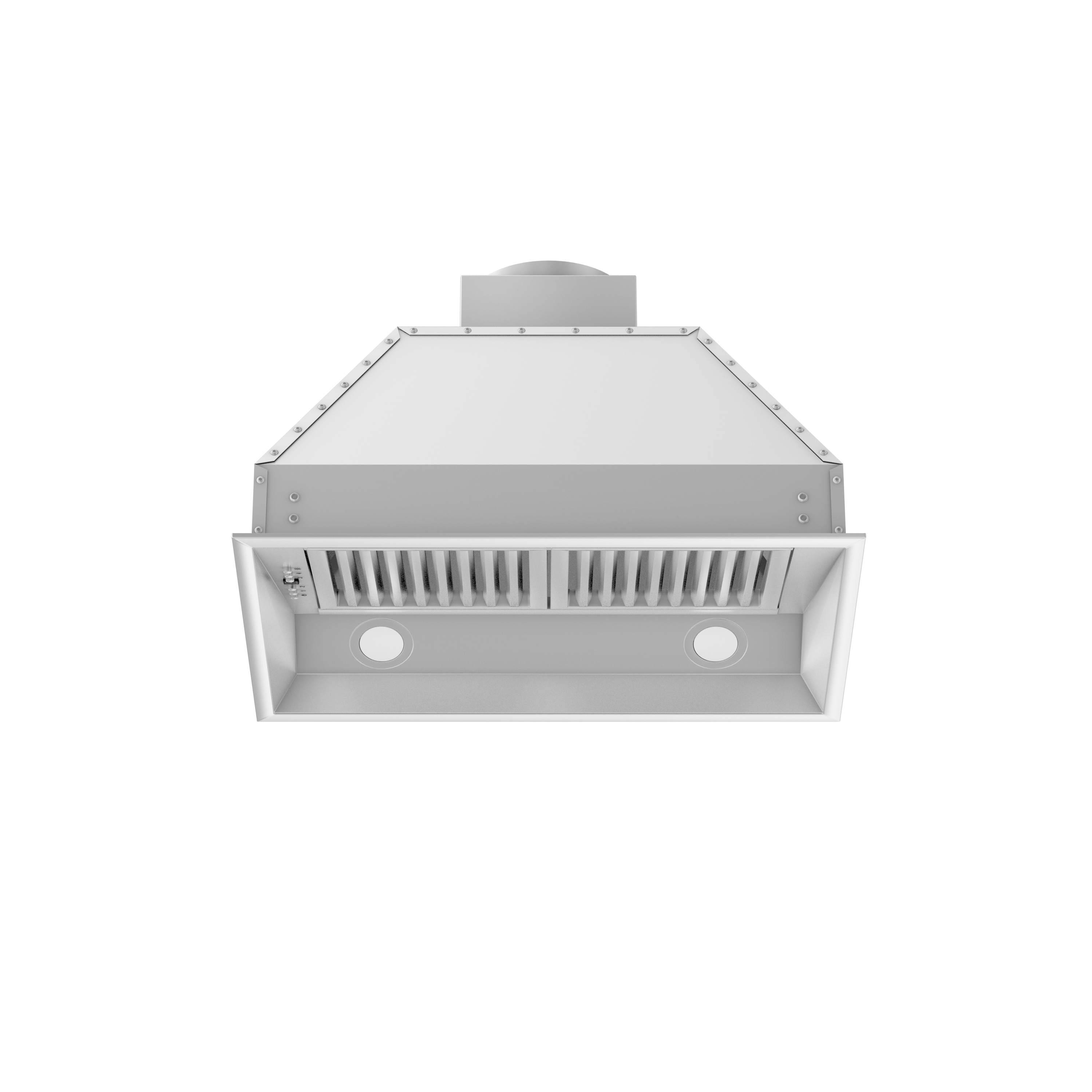

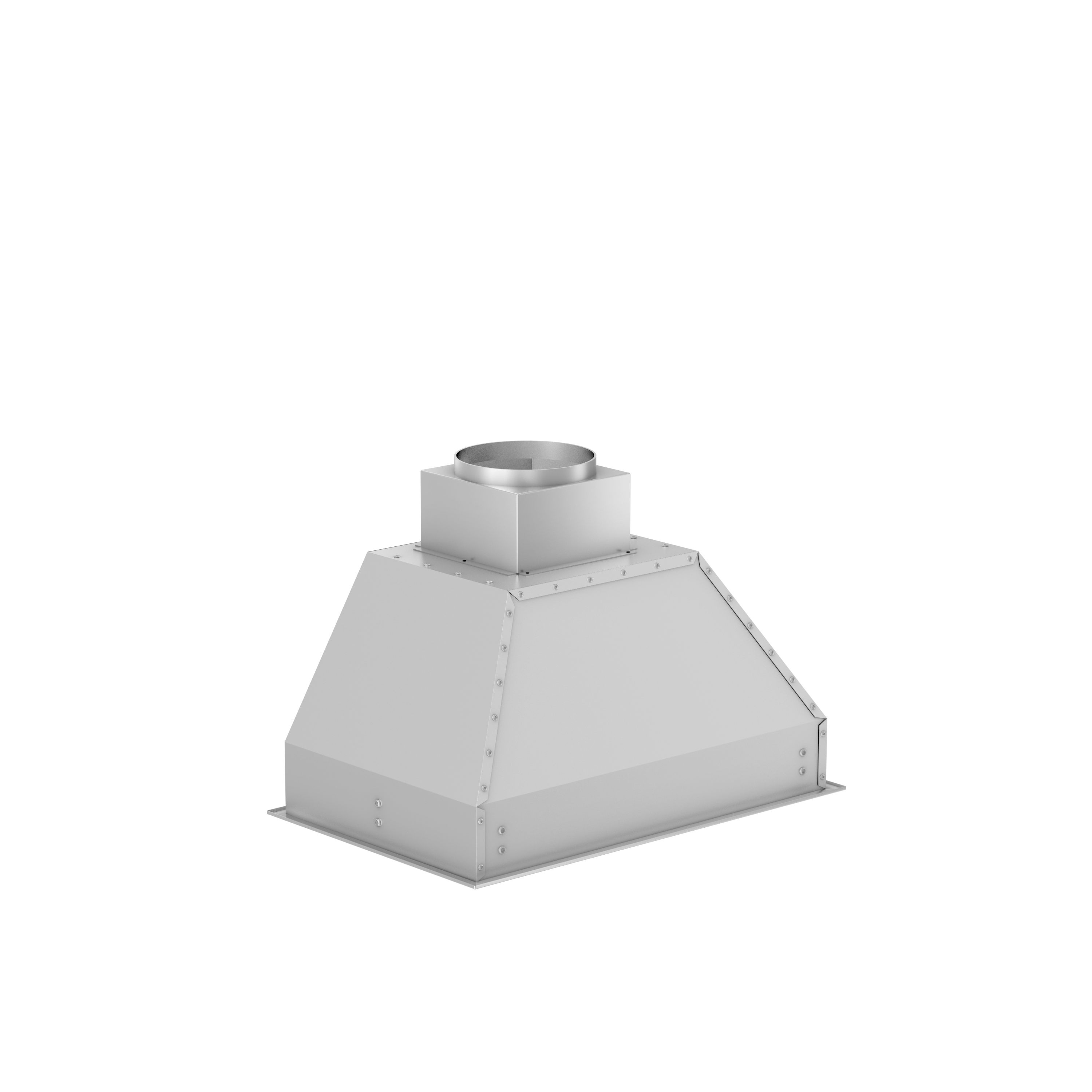

ZLINE - 28 inches - Externally Vented - Under cabinet Range Hood - Stainless Steel
ZLINE - 28 inches - Externally Vented - Under cabinet Range Hood - Stainless Steel
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height14 1/5 inchesProduct Width28 inchesProduct Depth18 inchesVent TypeDuctedVent StyleExternal
- Key Specs
- Color Finish: Stainless steel
- Product Height: 14 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: 698-28
- Product Name: 28 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (698-28) (698-28)
- Color: Stainless Steel
- Color Finish: Stainless steel

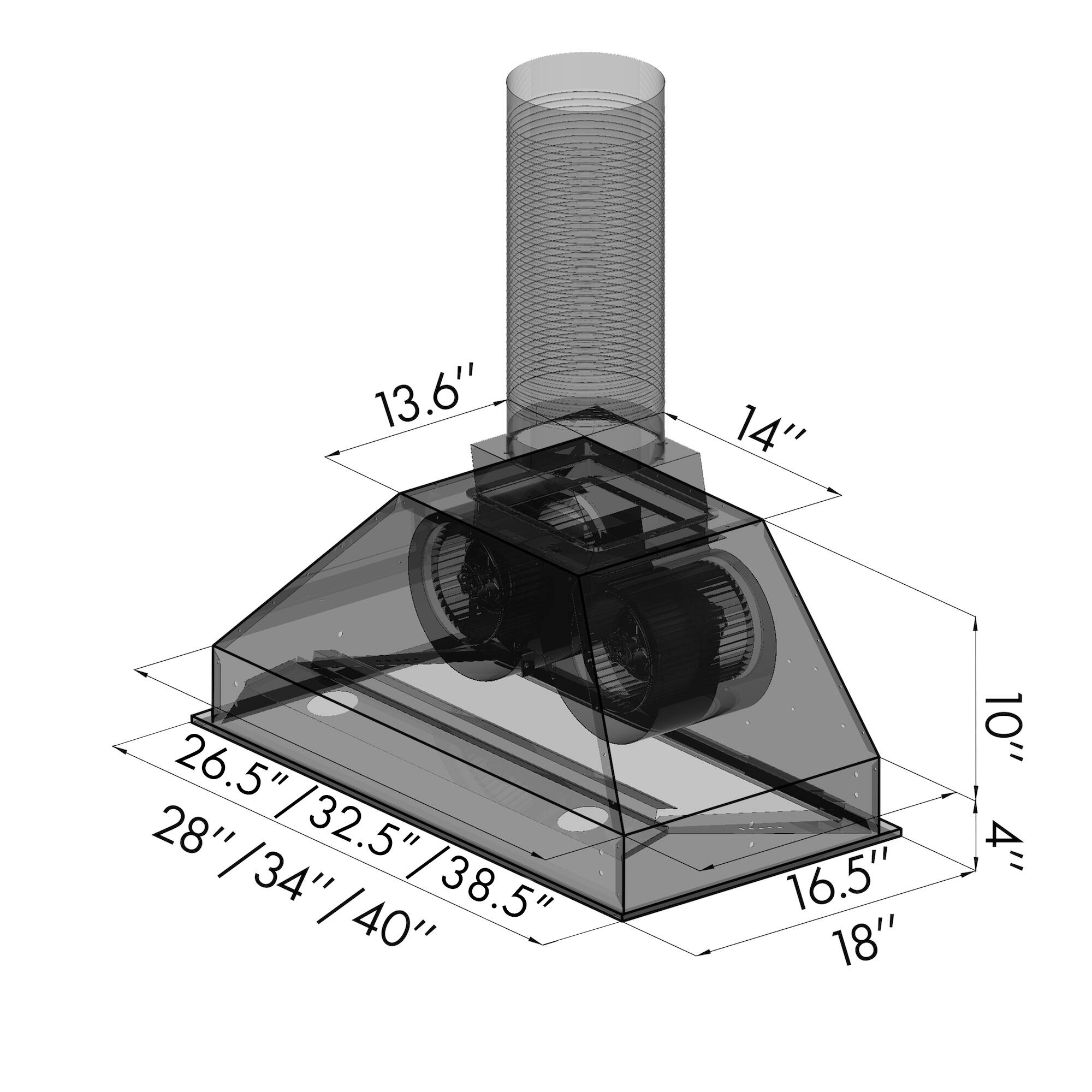

- Dimensions
- Product Height: 14 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 28 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 28 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 40 pounds (The out of box weight of the item.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 4
- Control Type: Button
- Display Type: LCD
- Integrated Light(s): true
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 855187005054
The ZLINE 28 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (698-28) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.
- Integrated Insert Design: This ZLINE wall mount range hood insert is designed to install seamlessly into custom-built cabinetry set-ups, providing professional-grade power without the visible exterior shell
- Corrosion-Resistant Stainless Steel: Manufactured with brushed 430 grade stainless steel, which contains rust and corrosion-resistant properties to ensure a durable insert that will last for years to come
- Convenient Control Panel: Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control: Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
- Powerful Ventilation: The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area
- Minimal Cleaning: This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
- Standard Ductwork: ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
- LED Lighting: ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements: Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Warranty: ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
- Integrated Insert Design: This ZLINE wall mount range hood insert is designed to install seamlessly into custom-built cabinetry set-ups, providing professional-grade power without the visible exterior shell
- Corrosion-Resistant Stainless Steel: Manufactured with brushed 430 grade stainless steel, which contains rust and corrosion-resistant properties to ensure a durable insert that will last for years to come
- Convenient Control Panel: Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control: Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
- Powerful Ventilation: The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area
- Minimal Cleaning: This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
- Standard Ductwork: ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
- LED Lighting: ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements: Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Warranty: ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
Whats Included
- ZLINE 28" Externally Vented Range Hood
- ZLINE 28" Externally Vented Range Hood
Q: What is the color finish of this range hood?
A: The color finish of the 28" Externally Vented Range Hood by ZLINE is stainless steel. This information can be found in the product specifications section, under the "Color Finish" attribute.
Q: What is the manufacturer's warranty on parts and labor?
A: The manufacturer provides a three-year warranty for both parts and labor for the 28" Externally Vented Range Hood. Consumable parts such as light bulbs, metal, and charcoal filters are not covered under this warranty.
Q: What is the minimum and maximum height it can be installed above the cooktop?
A: The minimum height at which the 28" Externally Vented Range Hood by ZLINE can be installed above the cooktop is 30 inches, while the maximum height is 36 inches.
Q: What is the maximum airflow capacity of this range hood?
A: The maximum airflow capacity of the ZLINE 28" Externally Vented Range Hood is 400 cubic feet per minute (CFM). This information can be found in the product specifications section of the provided context.
Q: What is the standardized width of this range hood?
A: The standardized width of the 28" Externally Vented Range Hood by ZLINE is 28 inches. This information is explicitly stated in the product specifications section under the "Standardized Width" attribute.
Q: What are the dimensions of this range hood (depth, height, width)?
A: The dimensions of the 28" Externally Vented Range Hood by ZLINE are as follows: - Depth: 18 inches - Height: 14 1/5 inches - Width: 28 inches
Q: Can the filters be cleaned in a dishwasher?
A: Yes, the filters of this ZLINE range hood model are dishwasher-safe for effortless maintenance. The product specifications clearly state "Dishwasher-Safe Filter: true".
Q: What type of light bulb does it require?
A: This range hood requires MR11 halogen bulbs of 20 watts or LED bulbs of 2.5 watts for replacement.
