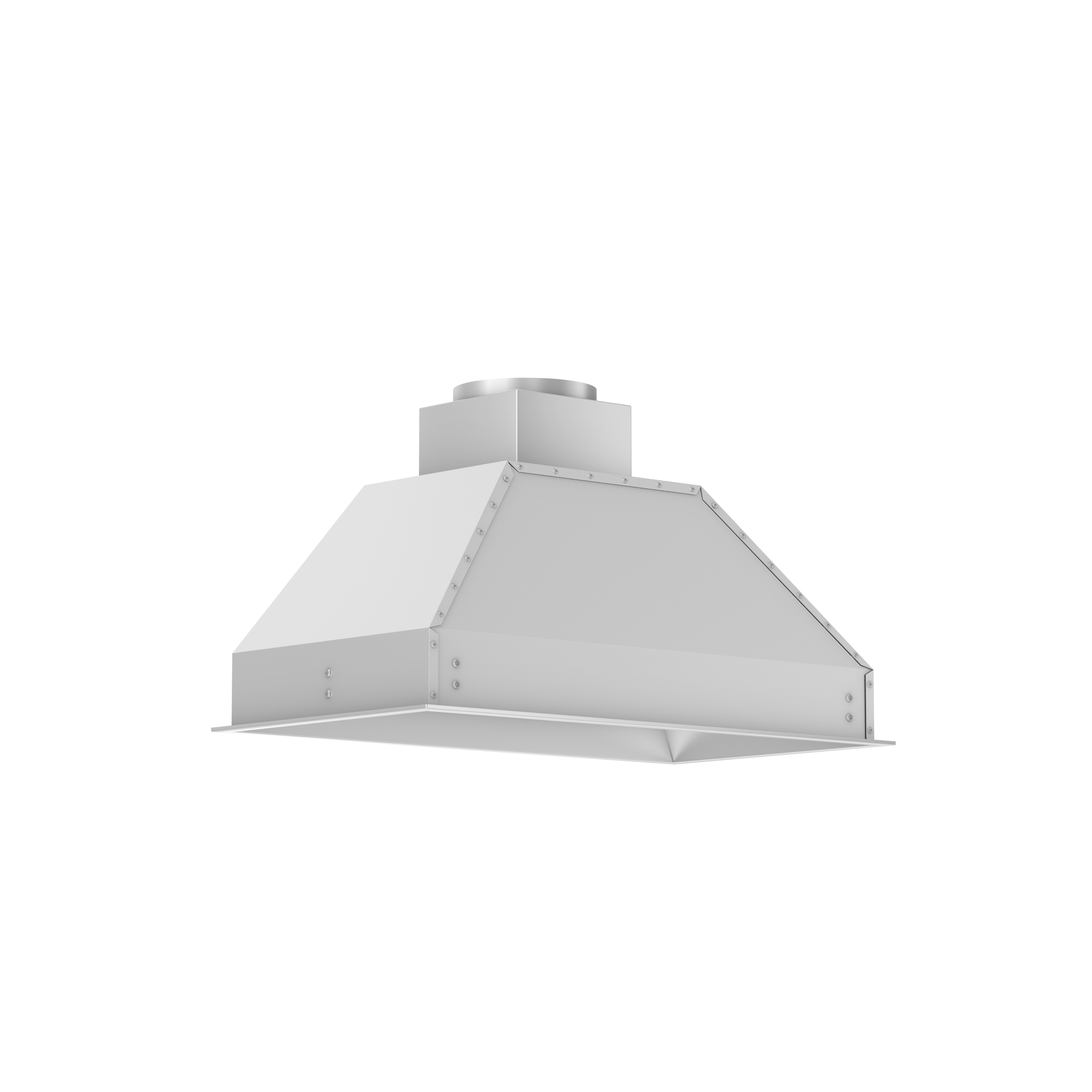

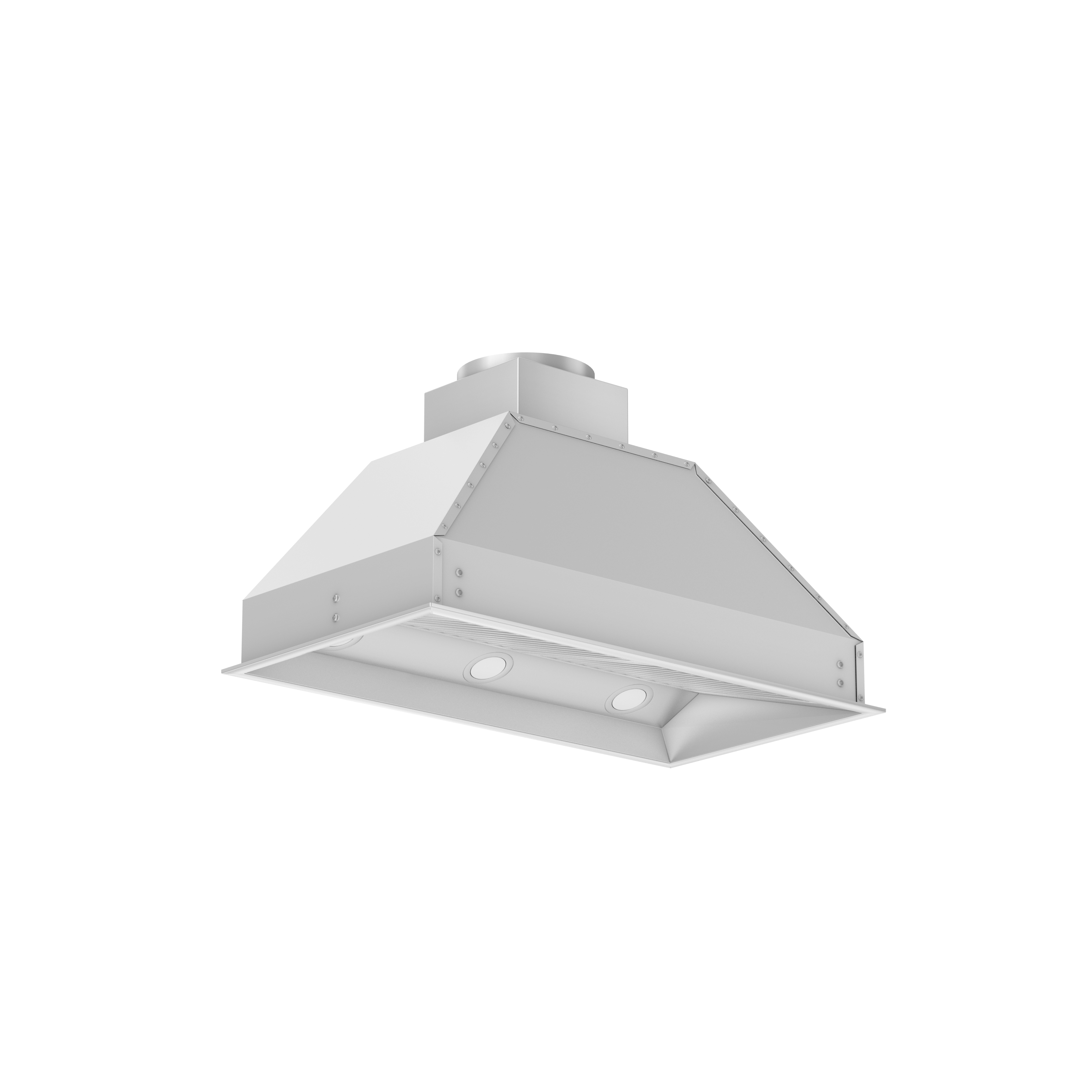

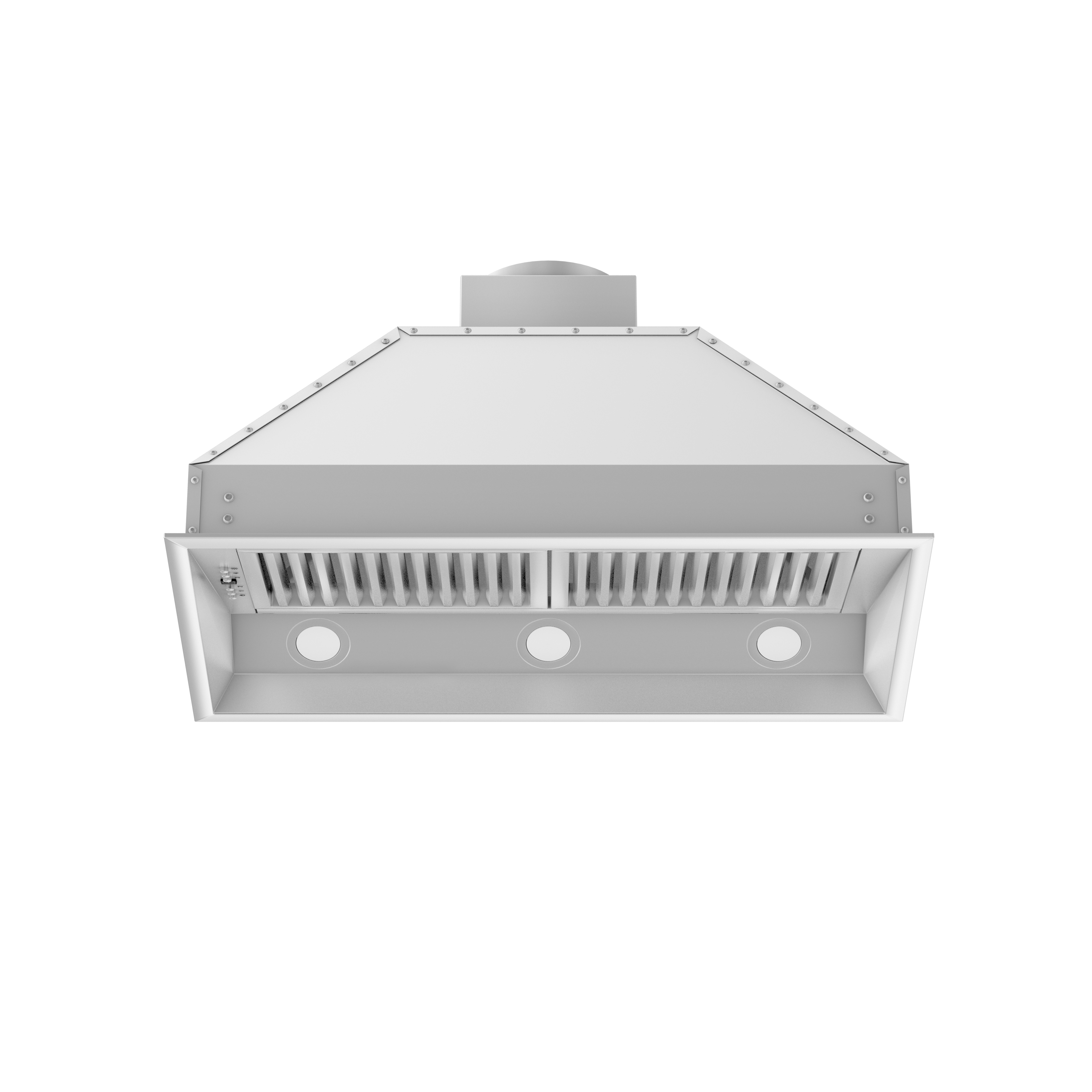

ZLINE - 34 inches - Externally Vented - Range Hood Insert - Stainless Steel
ZLINE - 34 inches - Externally Vented - Range Hood Insert - Stainless Steel
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height14 1/5 inchesProduct Width34 inchesProduct Depth18 inchesVent TypeDuctedVent StyleExternal
- Key Specs
- Color Finish: Stainless steel
- Product Height: 14 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 34 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: 698-304-34
- Product Name: 34" Outdoor Range Hood Insert (698-304-34)
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 14 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 34 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 34 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 45 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 32 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 16 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Control Type: Button
- Display Type: LCD
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 0 years
- Other
- UPC: 814118022225
ZLINE 34" 700 CFM Outdoor Range Hood Insert in Stainless Steel (698-304-34) has a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. This hoods high-performance 4-speed motor will provide all the power you need to quietly and efficiently ventilate your kitchen while cooking. High-quality 304 Grade Stainless Steel makes this hood approved for outdoor use. Modern features, including built-in lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this range hood insert a simple, enjoyable experience for years to come. ZLINE Hoods are ETL Listed and have one of the easiest installations in the industry. ZLINE stands by all products with its Manufacturer Parts Warranty.
- Airflow (Q/L/M/H): 280/420/560/700
- Noise Level (Decibels): 30/41/49/52
- Baffle Filters: Stainless Steel Baffle Filters (Dishwasher-safe)
- Voltage: 110V/60HZ
- Finish: Brushed 304 Stainless Steel
Product Manuals
Q: What type of filters does this range hood use?
A: This range hood insert uses stainless steel baffle filters, which are dishwasher safe.
Q: What is the minimum installation height of the ZLINE range hood insert above the cooktop?
A: The minimum recommended installation height above the cooktop for this range hood insert is 30 inches.
Q: How much airflow can this ZLINE range hood insert produce?
A: This ZLINE range hood insert can produce an airflow of 280 CFM on low, 420 CFM on medium-low, 560 CFM on medium-high, and 700 CFM on high.
Q: Does this range hood insert come with a warranty?
A: Yes, this ZLINE range hood insert comes with a 3-year warranty on parts.
Q: What is the noise level of this range hood insert?
A: The noise level of the range hood insert varies depending on the speed setting; 30 decibels on low, 41 decibels on medium-low, 49 decibels on medium-high, and 52 decibels on high.
Q: Why doesn’t installation pop up to add to cart?
A: undefined
