ZLINE - 34 inches - Externally Vented - Range Hood Insert - Brushed Stainless Steel
Need-haul away?
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height14 1/5 inchesProduct Width34 inchesProduct Depth18 inchesVent TypeDuctedVent StyleExternal
- Key Specs
- Color Finish: Stainless steel
- Product Height: 14 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 34 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: 698-34
- Product Name: 34 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (698-34)
- Color: Brushed Stainless Steel
- Color Finish: Stainless steel

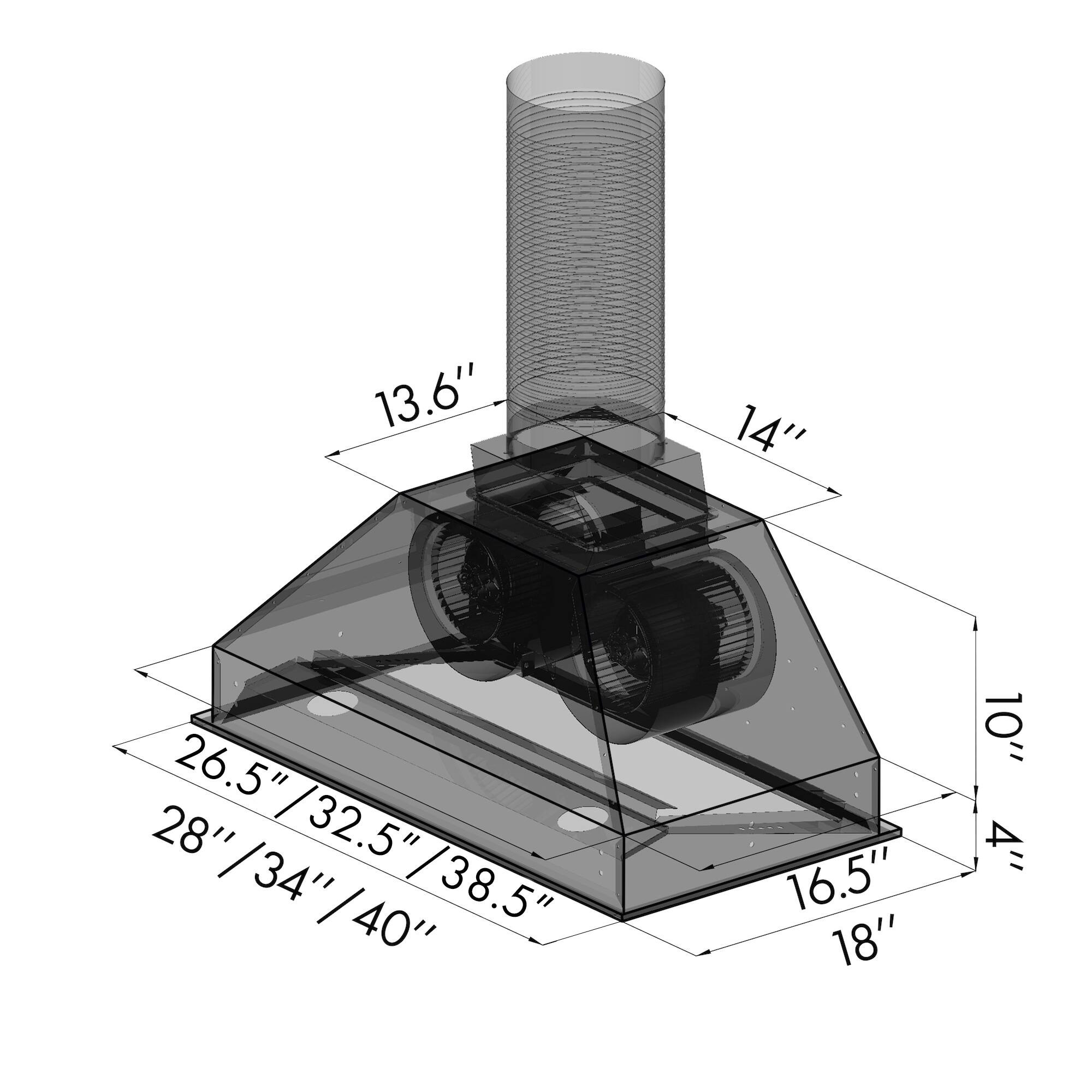

- Dimensions
- Product Height: 14 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 34 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 34 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 45 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 32 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 16 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 4
- Control Type: Button
- Display Type: LCD
- Integrated Light(s): true
- Bulb Type Required: LED
- Bulb(s) Included: true
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 855187005061
The ZLINE 34 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (698-34) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.
- Integrated Insert Design: This ZLINE wall mount range hood insert is designed to install seamlessly into custom-built cabinetry set-ups, providing professional-grade power without the visible exterior shell
- Corrosion-Resistant Stainless Steel: Manufactured with brushed 430 grade stainless steel, which contains rust and corrosion-resistant properties to ensure a durable insert that will last for years to come
- Convenient Control Panel: Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control: Choose the appropriate air flow among 280/420/560/700 CFM for your cooking situation
- Powerful Ventilation: The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area
- Minimal Cleaning: This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
- Standard Ductwork: ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 8 in. diameter ducting
- LED Lighting: ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements: Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Warranty: ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
Whats Included
- ZLINE 34" Externally Vented Range Hood
Product Manuals
Q: What kind of light bulbs does this range hood use?
A: This range hood uses LED light bulbs. The old LED light casting can be squeezed out of the socket and disconnected from the light wire. Then, a new LED light can be connected and pressed into the socket.
Q: What is the maximum height above the cooktop that this range hood can be installed?
A: The maximum height above the cooktop that the ZLINE 34" Externally Vented Range Hood can be installed is 36 inches. This information can be found in the product specifications section of the provided context.
Q: What kind of display does this range hood have?
A: The 34" Externally Vented Range Hood by ZLINE features an LCD (Liquid Crystal Display) control panel. The LCD display provides clear and easy-to-read information about the range hood's settings, including fan speed, light status, and timer function.
Q: What type of controls does this range hood have?
A: The ZLINE 34" Externally Vented Range Hood features a user-friendly button control panel. The buttons include power, power-off delay, low speed, medium 1 speed, high speed, and medium 2 speed. These buttons allow for easy adjustment of the range hood's functions, including fan speed and lighting.
Q: What is the minimum height above the cooktop that this range hood can be installed?
A: The minimum height above the cooktop that this range hood can be installed is 30 inches. This information can be found in the product specifications section, under "Minimum Installation Height Above Cooktop".
Q: What color is this range hood?
A: The color of this range hood is brushed stainless steel. The product specifications section mentions "Color: Brushed Stainless Steel".
Q: What are the filters made of?
A: The baffle filters of this range hood are made of stainless steel. The product specifications section mentions "Filter Material: Stainless".
Q: What type of vent does this range hood have?
A: The ZLINE 34" Externally Vented Range Hood has an external vent style. This means that the range hood is designed to vent cooking fumes and odors directly to the outside of the building, rather than recirculating them back into the kitchen.
