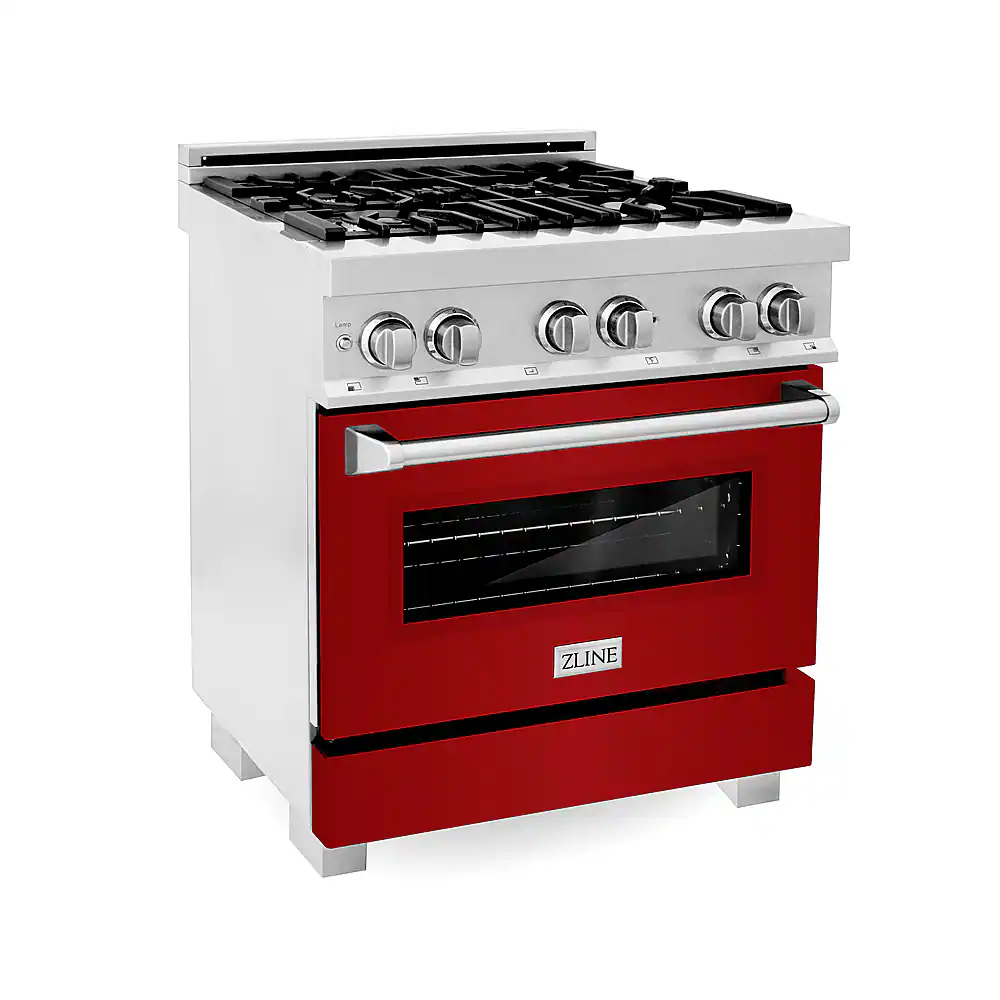

ZLINE - 4.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Fingerprint Resistant Stainless Steel and Red Gloss Door - Gloss Red
- Key Specs
- Color Finish: Red
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: ZLINE
- Model Number: RAS-RG-30
- Product Name: 4.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Fingerprint Resistant Stainless Steel and Red Gloss Door
- Color: Gloss Red
- Color Finish: Red
- Dimensions
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 230 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 4 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Soft Close Door: true
- Control Type: Knob
- Oven Control Location: Front panel
- Oven Light: true
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: RA-HG-PK-30
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Convection
- Oven Settings: Time Bake
- Oven Features
- Convection Type: Single-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Single Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Oven Window: true
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain
- Number of Burners: 4
- Sealed Burners: false (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Dual Wok, rapid, semi-rapid, auxiliary (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Burner Rating
- Burner 1 Rating: 18000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 13000 british thermal units
- Burner 3 Rating: 8500 british thermal units
- Burner 4 Rating: 4200 british thermal units
- Total Maximum BTU Rating: 45000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical Specification
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 220 volts (Amount of power needed to support an electrical current.)
- Included
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: nickel (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 812316034439
Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 30" 4.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in DuraSnow Fingerprint Resistant Stainless Steel and Red Gloss Door (RAS-RG-30) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.
- 4 cooktop burners: Provide between 4,200 and 18,000 BTUs to meet various cooking requirements.
- Porcelain-enamel cooktop surface: Offers a durable design.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Accommodates multiple courses simultaneously: 4 cu. ft. oven lets you cook for a large group in less time.
- Limited lifetime warranty: An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.
- Gloss red color: Match your existing décor with this color.
- Shipping: This product ships in multiple boxes and will require minimal assembly upon arrival
- 4 cooktop burners: Provide between 4,200 and 18,000 BTUs to meet various cooking requirements.
- Porcelain-enamel cooktop surface: Offers a durable design.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Accommodates multiple courses simultaneously: 4 cu. ft. oven lets you cook for a large group in less time.
- Limited lifetime warranty: An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.
- Gloss red color: Match your existing décor with this color.
- Shipping: This product ships in multiple boxes and will require minimal assembly upon arrival
Whats Included
- ZLINE Professional 4 Cu. Ft. Freestanding Dual Fuel Convection Range
- ZLINE Professional 4 Cu. Ft. Freestanding Dual Fuel Convection Range
Product Manuals
Q: What is the minimum BTU output of the burners?
A: The minimum BTU output of the burners for this ZLINE 4.0 cu. ft. Dual Fuel Range is 4,200 BTU. This information can be found in the section titled "4 cooktop burners: Provide between 4,200 and 18,000 BTUs to meet various cooking requirements.".
Q: What is the maximum BTU output of the burners?
A: The maximum BTU output of the burners on this ZLINE 4.0 cu. ft. Dual Fuel Range is 18,000 BTUs. The Italian-made sealed burners provide cooking power ranging from 1,000 to 18,000 BTUs, ensuring powerful and even heat distribution for every meal.
Q: Does this range come with a power cord?
A: The electric cord is sold separately and is not included with the range. The range requires a properly grounded and horizontally-mounted NEMA 1 4-50P electrical receptacle for connection.
Q: What is the manufacturer's warranty on this range?
A: The manufacturer's warranty for this ZLINE range covers all parts and labor for necessary repairs if any part of the product proves to be defective in materials or workmanship for one year from the original purchase date. The warranty applies only to the original purchaser of a range product installed for normal residential use in the contiguous United States and the District of Columbia.
Q: What is the maximum width of the pans that can fit in the oven?
A: The maximum width of the pans that can fit in the oven of the 4.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Fingerprint Resistant Stainless Steel and Red Matte Door by ZLINE is 30 1/2 inches. This information can be found in the "INTERNAL DIMENSIONS" section of the provided context.
Q: How many burners does this range have?
A: This ZLINE range has 4 cooktop burners. The burner power ranges from 1,000 to 18,000 BTUs, providing flexibility for various cooking needs. The burners include a dual wok, rapid, semi-rapid, and auxiliary burner.
Q: What is the oven capacity of this ZLINE dual fuel range?
A: The oven capacity of the ZLINE dual fuel range is 4.0 cubic feet. This information can be found in the product specifications section, under the "Oven Capacity" attribute.
Q: What type of convection does this oven have?
A: This oven features a single-fan convection system with a heating element. The convection fan circulates hot air throughout the oven, ensuring even cooking and reducing cooking time. The oven also offers various cooking modes, including convection bake, convection broil, and traditional bake, providing versatility for different cooking needs.
