ZLINE - 46 inches - Externally Vented - Range Hood Insert - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height14 1/5 inchesProduct Width46 inchesProduct Depth18 inchesVent TypeDuctedVent StyleExternal
- Key Specs
- Color Finish: Stainless steel
- Product Height: 14 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 46 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: 698-304-46
- Product Name: 46 in. Outdoor Range Hood Insert (698-304-46)
- Color: Stainless Steel
- Color Finish: Stainless steel

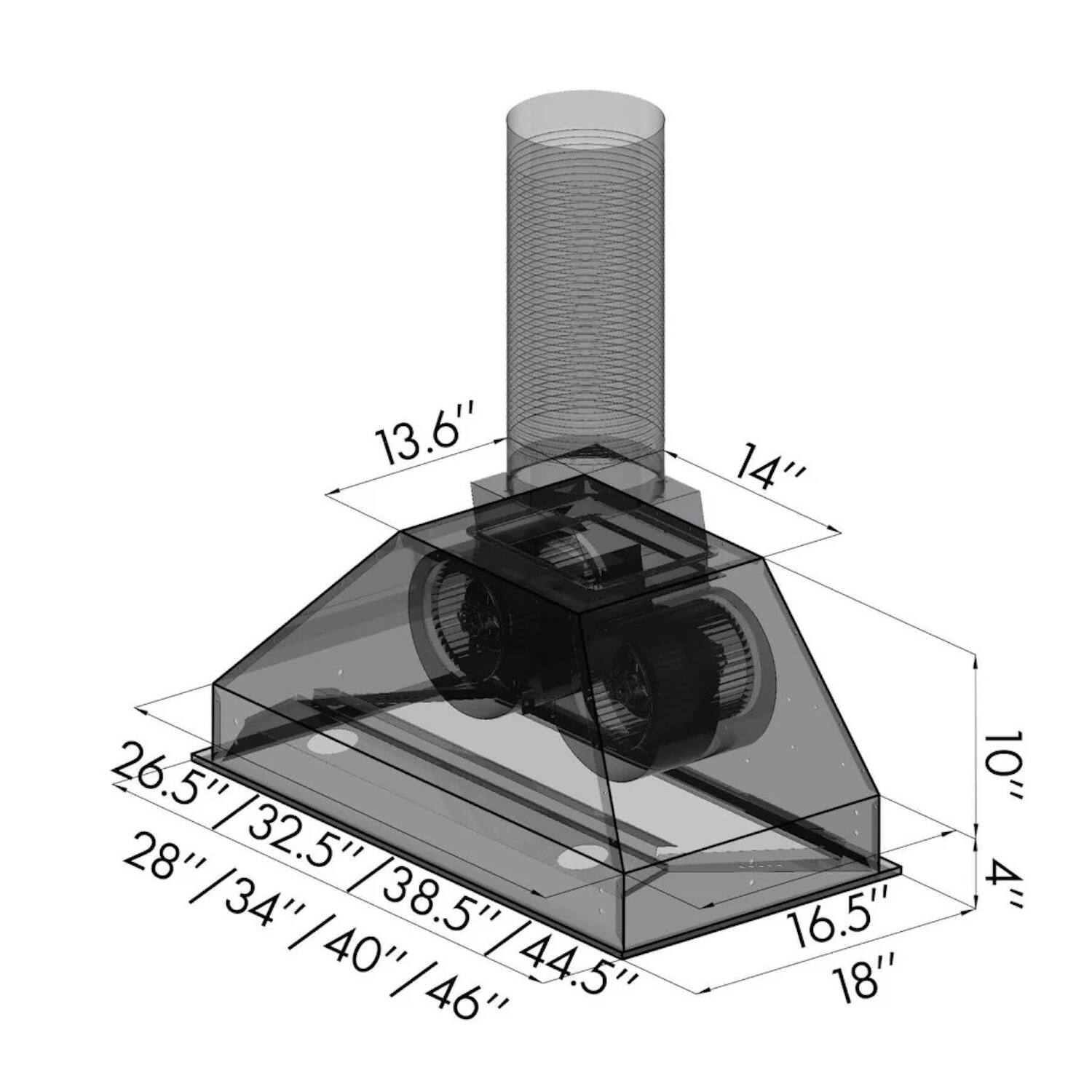

- Dimensions
- Product Height: 14 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 46 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 46 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 55 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 44 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 16 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Control Type: Button
- Display Type: LCD
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 0 years
- Other
- UPC: 814118028395
ZLINE 46" 700 CFM Outdoor Range Hood Insert in Stainless Steel (698-304-46) has a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. This hood’s high-performance 4-speed motor will provide all the power you need to quietly and efficiently ventilate your kitchen while cooking. High-quality 304 Grade Stainless Steel makes this hood approved for outdoor use. Modern features, including built-in lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this range hood insert a simple, enjoyable experience for years to come. ZLINE Hoods are ETL Listed and have one of the easiest installations in the industry. ZLINE stands by all products with its Manufacturer Parts Warranty.
- Noise Level: 30/41/49/52 (decibels)
- Warranty: 3-year parts
- Airflow (Q/L/M/H): 280/420/560/700
- Voltage: 110v/60hz
- Material: brushed 304 stainless steel
Product Manuals
A: ZLINE is a reputable brand in the market for range hood inserts, known for its modern designs, high-quality materials, and powerful performance. Compared to other popular brands, ZLINE stands out for its exceptional customer service, offering a 3-year warranty on parts and a lifetime warranty on the motor, ensuring customer satisfaction and peace of mind.
Q: What is the minimum and maximum installation height above the cooktop for this range hood insert?
A: The minimum installation height above the cooktop for this range hood insert is 30 inches, and the maximum installation height is 36 inches.
Q: What is the required cut-out width and depth for installing this range hood insert?
A: The required cut-out width for installing this range hood insert is 44 1/2 inches, and the required cut-out depth is 16 1/2 inches.
Q: What is the voltage requirement for operating this range hood insert?
A: The voltage requirement for operating this range hood insert is 110V/60HZ. This information can be found in the product features section, under the "Voltage" specification.
Q: How many fan speed settings does this range hood insert offer?
A: This ZLINE 46 in. Outdoor Range Hood Insert (model: 698-304-46) offers four fan speed settings for efficient ventilation while cooking. The speed settings range from low to high, allowing you to adjust the airflow according to your cooking needs.
Q: What type of mounting system does this range hood insert use, and is it easy to install?
A: This range hood insert uses a bracket mounting system. The installation process involves attaching mounting brackets to the back of the hood, marking leveling points, positioning screws on the wall, and tightening the ducting. While the product is described as having one of the easiest installations in the industry, it is recommended to have two people for the installation due to the size and weight of the range hood.
A: The ZLINE 46 in. Outdoor Range Hood Insert (model: 698-304-46) has an airflow capacity of 280/420/560/700 CFM and a noise level of 30/41/49/52 decibels. Compared to similar models, it offers a higher airflow capacity and a slightly higher noise level.
Q: What is the warranty coverage provided by the manufacturer for this range hood insert?
A: The manufacturer, ZLINE, provides a 3-year warranty for parts for this range hood insert. The warranty covers manufacturing defects and includes free replacement of non-consumable parts. However, the warranty does not cover damages resulting from improper installation, misuse, unauthorized repairs, or natural disasters.
