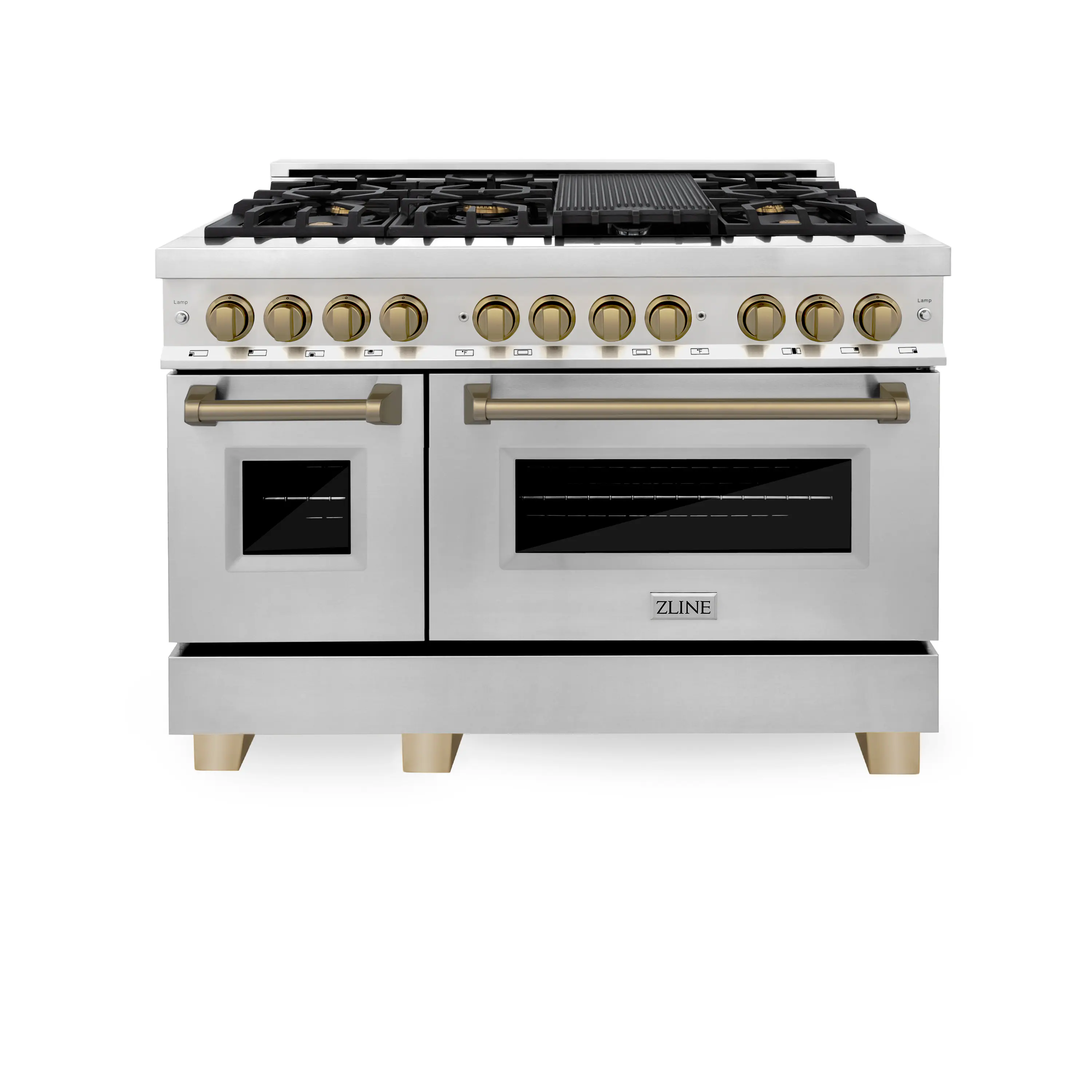

ZLINE - Autograph 48" Legacy Dual Fuel Range w/ 7 Burners & Champagne Bronze Accents (RAZ-48-CB) - Multicolor
Color
MulticolorDelivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height36 1/8 inchesProduct Width47 3/4 inchesProduct Depth27 1/2 inchesRange TypeFreestandingSingle/Double OvenDouble Oven
- Key Specs
- Color Finish: Stainless steel
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Number of Burners: 8
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: ZLINE
- Model Number: RAZ-48-CB
- Product Name: Autograph 48" Legacy Dual Fuel Range w/ 7 Burners & Champagne Bronze Accents (RAZ-48-CB)
- Color: Multicolor
- Color Finish: Stainless steel
- Dimensions
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 275 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 2 cubic feet
- Oven 2 Capacity: 4 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Oven Control Location: Front panel
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: RA-HG-PK-48
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Convection, Bake, Broil
- Oven Settings: Bake, Broil
- Oven Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Oven 1 Specification
- Oven 1 Location: Left
- Oven 2 Specification
- Oven 2 Location: Right
- Cooktop Features
- Number of Burners: 8
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Auxiliary, Dual, Rapid, Semi (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron, Cast iron, Cast iron, Cast iron, Cast iron
- Griddle Included: true
- Griddle Type: Removable, Removable, Removable (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Total Maximum BTU Rating: 85500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical Specification
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 220 volts (Amount of power needed to support an electrical current.)
- Included
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: nickel (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 810058127518
Luxury isn’t meant to be left desired—it’s meant to be attainable. The ZLINE Autograph Edition 48 in. 6.0 cu. ft. Legacy Dual Fuel Range with 7 Burner Gas Cooktop and 2 Electric Ovens in Stainless Steel and Champagne Bronze Accents (RAZ-48-CB) pairs a powerful gas cooktop with 7 Italian-crafted burners, a large electric convection oven, a small bake and broil oven, Landscape oven door window designs, and elegant champagne bronze knobs and handles. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
- ZLINE Legacy Series: The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury
- Exclusive Knobs and Handle: Customize your ZLINE Autograph Edition Dual Fuel Range with elegant Champagne Bronze knob and handle accents
- Professional Dual Fuel Cooking: Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and a large electric convection oven
- Italian-Made Sealed Burners: Industry-leading gas cooktop includes 7 hand-cast burners, including an expansive fish burner, with 1,000 - 18,000 BTUs of cooking power
- Landscape Oven Window: ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Large Oven Capacity: A dual oven capacity of 6.0 cu. ft fits pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cooking
- Cast-Iron Griddle: Perfectly sear meats and veggies with a pre-seasoned cast iron griddle that features superior heat retention and even heat distribution
- Stunning Stainless Steel: Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
- Premium Oven Insulation: Triple layered glass and an aluminum mesh seal on both doors offers superior heat retention and consistent temperatures
- Adjustable Range Height: Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- StayPut Oven Door Hinges: Designed to support the full weight of both oven doors, offering additional convenience and safety
- Smooth Glide Ball-Bearing Oven Racks: 4 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Halogen Oven Lights: Illuminate both oven spaces with 3 halogen lights, controlled by a switch located on the front control panel
- Minimal Cleaning: Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit: Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
- Industry First Lifetime Burner Warranty: Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
- Manufacturer Warranty: 1-year parts and service warranty
- Additional Assembly Required: This product ships in multiple boxes and will require minimal assembly upon arrival
- ZLINE Legacy Series: The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury
- Exclusive Knobs and Handle: Customize your ZLINE Autograph Edition Dual Fuel Range with elegant Champagne Bronze knob and handle accents
- Professional Dual Fuel Cooking: Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and a large electric convection oven
- Italian-Made Sealed Burners: Industry-leading gas cooktop includes 7 hand-cast burners, including an expansive fish burner, with 1,000 - 18,000 BTUs of cooking power
- Landscape Oven Window: ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Large Oven Capacity: A dual oven capacity of 6.0 cu. ft fits pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cooking
- Cast-Iron Griddle: Perfectly sear meats and veggies with a pre-seasoned cast iron griddle that features superior heat retention and even heat distribution
- Stunning Stainless Steel: Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
- Premium Oven Insulation: Triple layered glass and an aluminum mesh seal on both doors offers superior heat retention and consistent temperatures
- Adjustable Range Height: Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- StayPut Oven Door Hinges: Designed to support the full weight of both oven doors, offering additional convenience and safety
- Smooth Glide Ball-Bearing Oven Racks: 4 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Halogen Oven Lights: Illuminate both oven spaces with 3 halogen lights, controlled by a switch located on the front control panel
- Minimal Cleaning: Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit: Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
- Industry First Lifetime Burner Warranty: Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
- Manufacturer Warranty: 1-year parts and service warranty
- Additional Assembly Required: This product ships in multiple boxes and will require minimal assembly upon arrival
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: What are the dimensions (width, height, and depth) and weight of this range?
A: The dimensions of the range are 48 inches in width, 36 inches in height, and 28 inches in depth. The weight of the range is 275 pounds.
A: The Italian brass burners provide enhanced cooking benefits such as superior heat retention and even flame distribution. This ensures precise temperature control and even cooking, resulting in delicious and evenly cooked meals.
A: The stay-put hinge design of the ZLINE range oven door provides enhanced user experience and safety. It is engineered to support the full weight of the oven door, allowing it to be held open at any desired position. This feature eliminates the risk of the door accidentally closing or swinging shut, reducing the potential for burns or injuries, especially when handling heavy cookware or reaching into the oven.
Q: Does this range come with a removable griddle for easy cleaning?
A: Yes, the ZLINE Dual Fuel Range (RAZ-48-CB) comes with a removable griddle for easy cleaning. The griddle type is specified as "Removable" in the product specifications.
Q: How many burners does this range have, and what are their different sizes and functions?
A: This ZLINE range has eight burners with varying sizes and functions. The sizes include 4,200 BTU, 6,000 BTU, 9,000 BTU, 12,000 BTU, and 18,000 BTU. The functions include auxiliary, dual, rapid, and semi.
Q: Does this range have any safety features, such as hot surface indicators or a door lock?
A: Yes, this range has a hot surface indicator. However, it does not have a door lock feature. The hot surface indicator warns users of hot surfaces that can cause injury.
Q: Can this range be converted to use propane instead of natural gas?
A: Yes, this range can be converted to use propane instead of natural gas. The conversion procedure is described in the installation manual on page 14. However, the conversion must be performed by a factory-trained professional, qualified licensed plumber, or gas service company.
Q: What is the total oven capacity of this dual fuel range?
A: The total oven capacity of this dual fuel range is 6.0 cubic feet. It has two ovens, with the left oven having a capacity of 2.0 cubic feet and the right oven having a capacity of 4.0 cubic feet.
Compare similar products
Luxury isn’t meant to be left desired—it’s meant to be attainable. The ZLINE Autograph Edition 48 in. 6.0 cu. ft. Legacy Dual Fuel Range with 7 Burner Gas Cooktop and 2 Electric Ovens in Stainless Steel and Champagne Bronze Accents (RAZ-48-CB) pairs a powerful gas cooktop with 7 Italian-crafted burners, a large electric convection oven, a small bake and broil oven, Landscape oven door window designs, and elegant champagne bronze knobs and handles. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
Luxury isn’t meant to be left desired—it’s meant to be attainable. The ZLINE 48 in. 6.0 cu. ft. Legacy Dual Fuel Range with 7 Burner Gas Cooktop and 2 Electric Ovens in Stainless Steel (RA48) pairs a powerful gas cooktop with 7 Italian-crafted burners, a large electric convection oven, and a small bake and broil oven with Landscape oven door window designs. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
Luxury isn’t meant to be left desired—it’s meant to be attainable. The ZLINE Autograph Edition 48 in. 6.7 cu. ft. Paramount Double Oven Gas Range with 8 Burner Cooktop in Stainless Steel and Champagne Bronze Accents (SGRZ-48-CB) features a versatile gas cooktop with 8 Italian-made auto-reignition burners, a large high-performing gas convection oven, a small baking oven, enhanced cast iron grates, Horizon oven door window designs, and elegant champagne bronze knobs and handles allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Paramount Gas Ranges are masterfully crafted to deliver an elevated culinary experience.

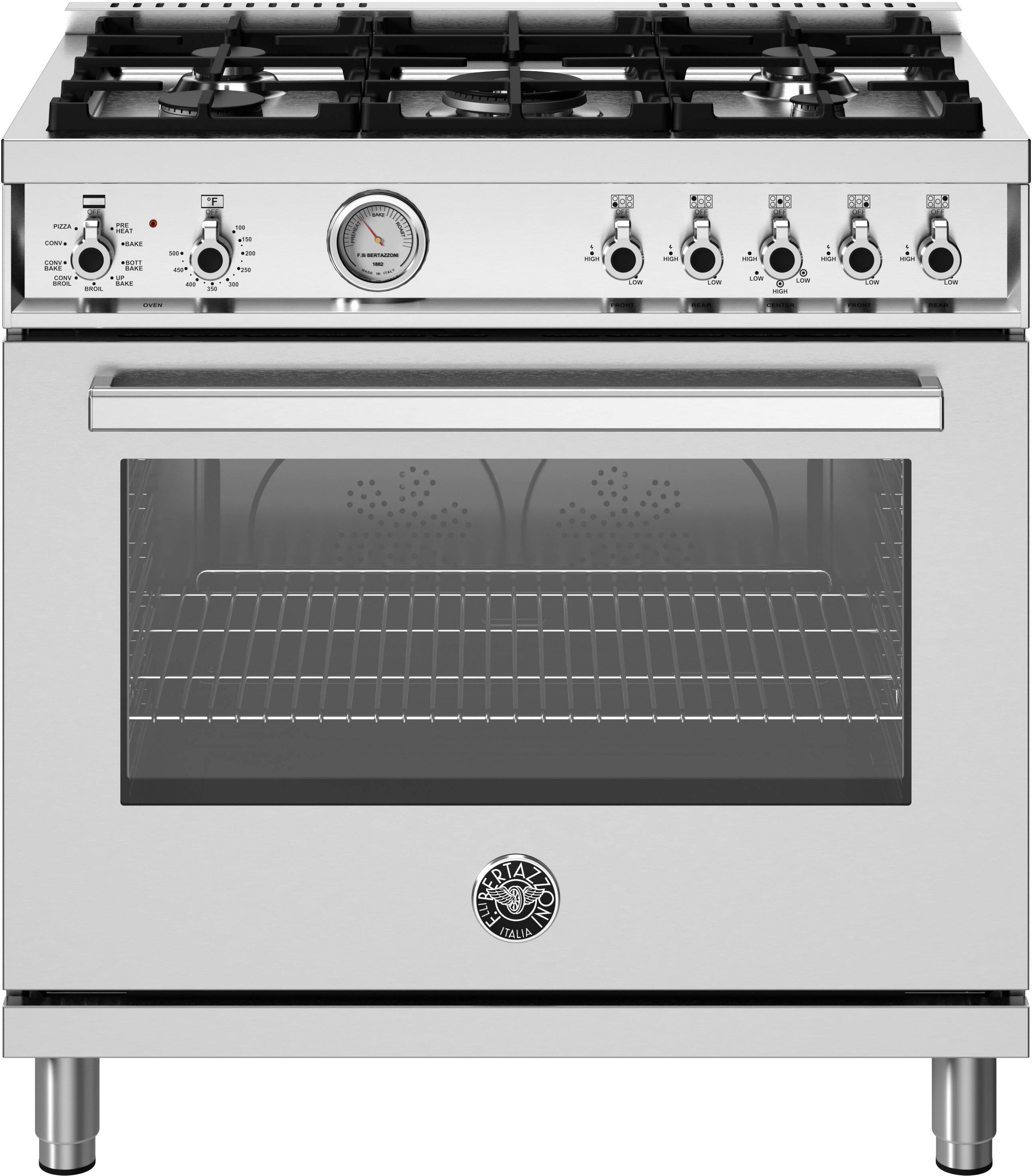

36” Dual Fuel range with 5 burners features a dual ring 19,000 BTU power-burner and simmer at 750 BTUs, 5.9 cubic feet oven, dual convection fan, 7 shelf levels, temperature gauge, extra wide electric broiler, soft-motion door. All Bertazzoni appliances are covered by a 2-year warranty.
