ZLINE - Autograph 48" Legacy Dual Fuel Range w/ 7 Burners & White & Bronze Accents (RAZ-WM-48-CB) - Multicolor
ZLINE - Autograph 48" Legacy Dual Fuel Range w/ 7 Burners & White & Bronze Accents (RAZ-WM-48-CB) - Multicolor
Color
MulticolorNeed-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications

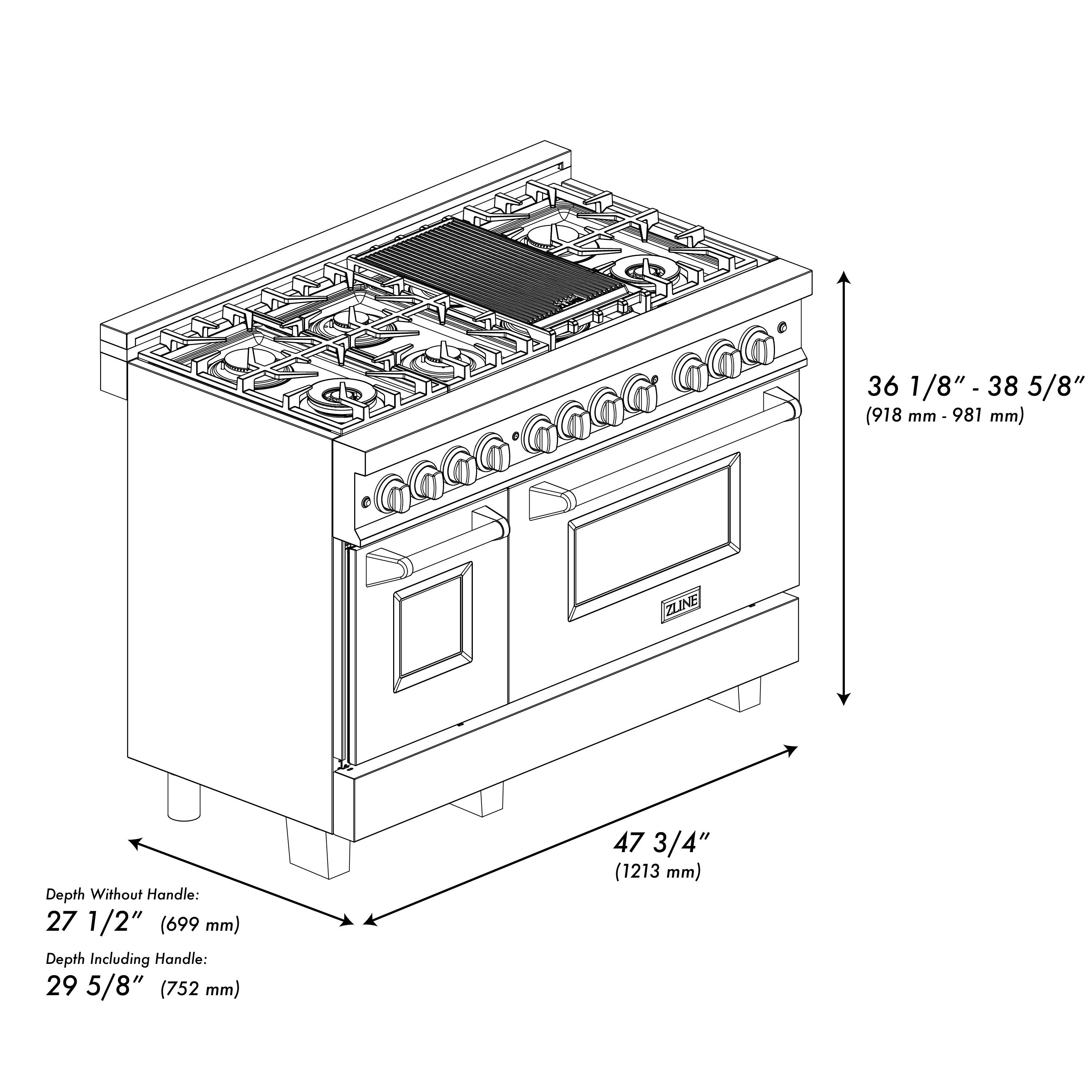

- Color FinishStainless steelProduct Height36 1/8 inchesProduct Width47 3/4 inchesProduct Depth27 1/2 inchesRange TypeFreestandingSingle/Double OvenDouble Oven
- Key Specs
- Color Finish: Stainless steel
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Number of Burners: 8
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: ZLINE
- Model Number: RAZ-WM-48-CB
- Product Name: Autograph 48" Legacy Dual Fuel Range w/ 7 Burners & White & Bronze Accents (RAZ-WM-48-CB)
- Color: Multicolor
- Color Finish: Stainless steel
- Dimensions
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 275 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 2 cubic feet
- Oven 2 Capacity: 4 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Oven Control Location: Front panel
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: RA-HG-PK-48
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Convection, Bake, Broil
- Oven Settings: Time Bake
- Oven Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Oven 1
- Oven 1 Location: Left
- Oven 2
- Oven 2 Location: Right
- Cooktop Features
- Number of Burners: 8
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Rapid, Dual, Aux, Rapid, Semi, Fish Burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron, Cast iron, Cast iron, Cast iron, Cast iron
- Griddle Included: true
- Griddle Type: Removable, Removable, Removable (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Total Maximum BTU Rating: 85500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 220 volts (Amount of power needed to support an electrical current.)
- Included
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: nickel (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 810058127662
Luxury isn’t meant to be left desired—it’s meant to be attainable. The ZLINE Autograph Edition 48 in. 6.0 cu. ft. Legacy Dual Fuel Range with 7 Burner Gas Cooktop and 2 Electric Ovens in Stainless Steel with White Matte Doors and Champagne Bronze Accents (RAZ-WM-48-CB) pairs a powerful gas cooktop with 7 Italian-crafted burners, a large electric convection oven, a small bake and broil oven, beautiful white matte doors with Landscape window designs, and elegant champagne bronze knobs and handles. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
- ZLINE Legacy Series: The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury

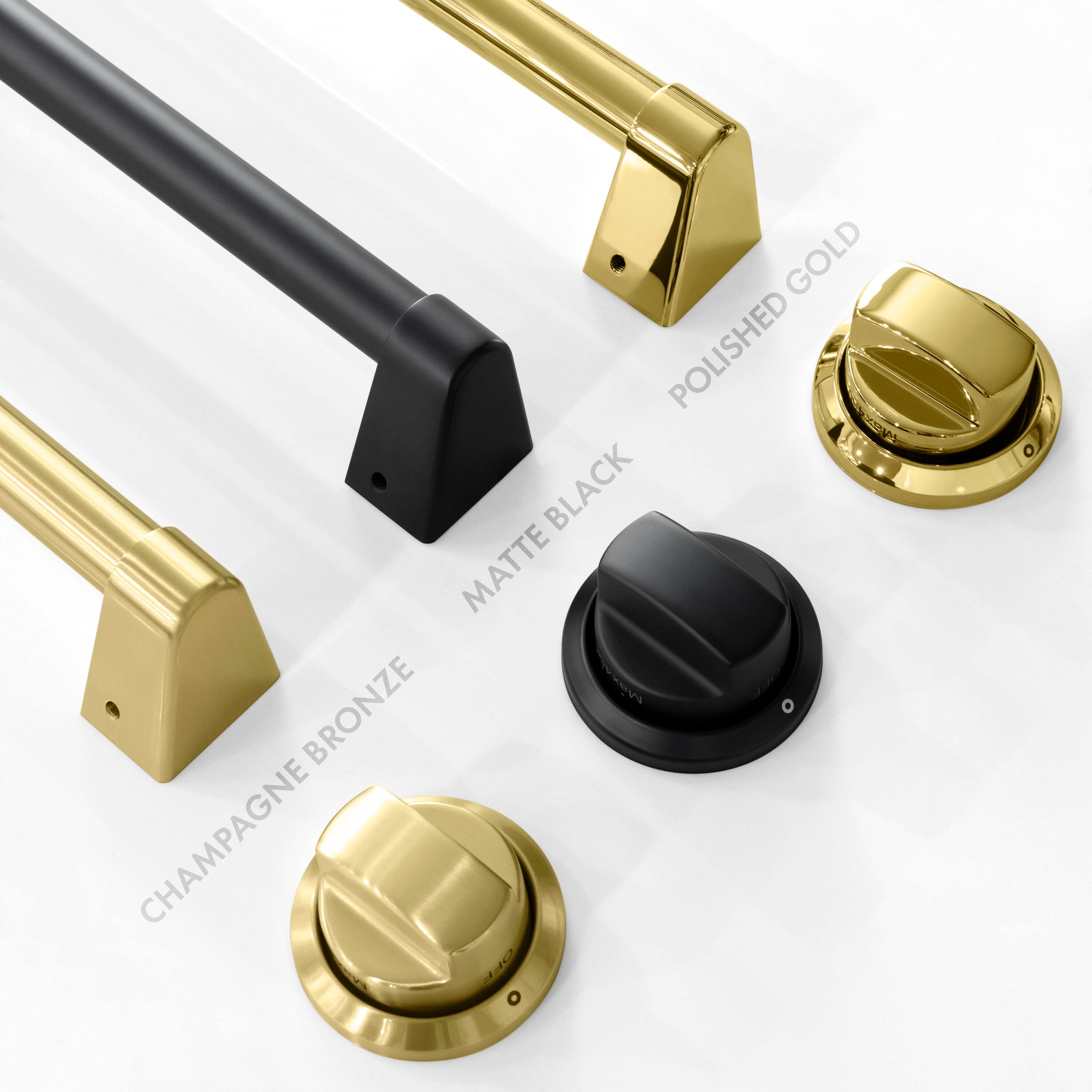

- Exclusive Knobs and Handle: Customize your ZLINE Autograph Edition Dual Fuel Range with elegant Champagne Bronze knob and handle accents
- Custom Door Finish: Outfit your ZLINE Legacy Dual Fuel Range with 2 beautiful White Matte oven doors
- Professional Dual Fuel Cooking: Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and a large electric convection oven
- Italian-Made Sealed Burners: Industry-leading gas cooktop includes 7 hand-cast burners, including an expansive fish burner, with 1,000 - 18,000 BTUs of cooking power
- Landscape Oven Window: ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Large Oven Capacity: A dual oven capacity of 6.0 cu. ft fits pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cooking
- Cast-Iron Griddle: Perfectly sear meats and veggies with a pre-seasoned cast iron griddle that features superior heat retention and even heat distribution
- Stunning Stainless Steel: Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards

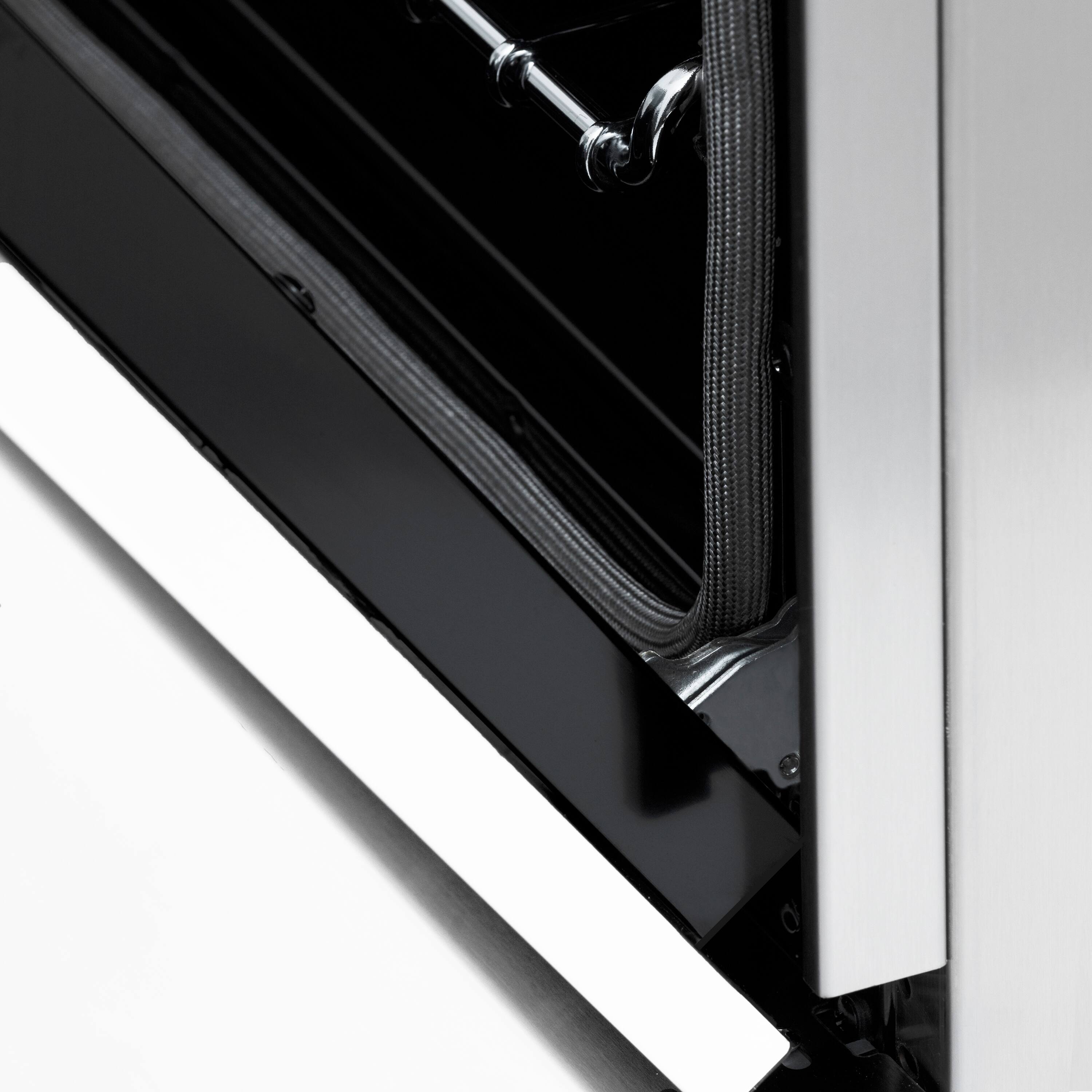

- Premium Oven Insulation: Triple layered glass and an aluminum mesh seal on both doors offers superior heat retention and consistent temperatures
- Adjustable Range Height: Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- StayPut Oven Door Hinges: Designed to support the full weight of both oven doors, offering additional convenience and safety
- Smooth Glide Ball-Bearing Oven Racks: 4 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Halogen Oven Lights: Illuminate both oven spaces with 3 halogen lights, controlled by a switch located on the front control panel
- Minimal Cleaning: Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit: Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
- Industry First Lifetime Burner Warranty: Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
- Manufacturer Warranty: 1-year parts and service warranty
- Additional Assembly Required: This product ships in multiple boxes and will require minimal assembly upon arrival
Product Manuals
Q: What is the maximum temperature setting for the electric oven?
A: The maximum temperature setting for the electric oven of the ZLINE Dual Fuel Range with Gas Stove and Electric Oven is 450 degrees Fahrenheit. This information can be found on the "Temperature Dial" section of the product specifications.
Q: Does the range require a specific type of gas connection, such as natural gas or propane?
A: Yes, the range can be used with either natural gas or liquid propane gas. However, the range is shipped from the factory for use with natural gas. If you want to use liquid propane gas, the range must be converted by a factory- trained professional, qualified licensed plumber, or gas service company.
Q: Can the gas stove burners be adjusted to different heat levels?
A: Yes, the gas stove burners can be adjusted to different heat levels. The flame adjustment instructions are provided in the installation manual. To adjust the minimum flame, remove the knob and use a small flat-head screwdriver to turn the adjustment screw until the desired flame is achieved. To adjust the maximum flame, simply turn the control knob counter- clockwise until the desired flame is achieved.
Q: Is the griddle included with the range removable for easy cleaning?
A: Yes, the griddle that comes with the ZLINE Dual Fuel Range with Gas Stove and Electric Oven is removable for easy cleaning. The product specifications clearly state that the "Griddle Type" is "Removable".
Q: How much does the range weigh?
A: The product weighs 275 pounds. The product specifications section mentions "Product Weight: 275 pounds".
Q: What is the total capacity of the electric oven?
A: The electric oven has a capacity of 2 cubic feet. The product has a dual fuel power source, with a gas stove and an electric oven.
Q: What is the manufacturer's warranty on parts and labor for this range?
A: The manufacturer's warranty for this ZLINE range covers all parts and labor for necessary repairs if any part of the product proves to be defective in materials or workmanship for a period of one year from the original purchase date. Service under the warranty must be performed by ZLINE approved and certified service providers.
Q: What are the dimensions of the range (height, width, and depth)?
A: The external dimensions of the range are 48”W x 27 3/8”D x 36”H.
