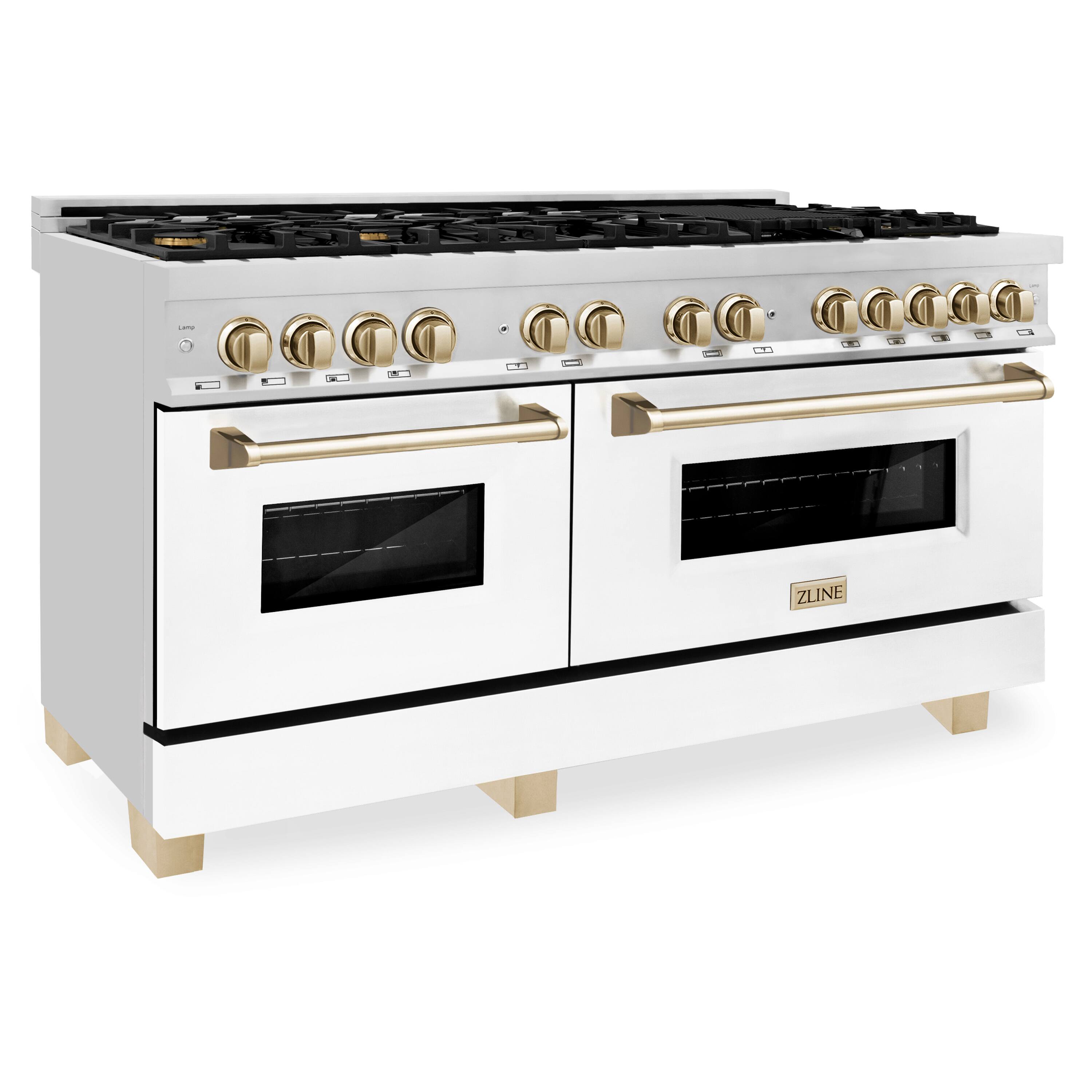

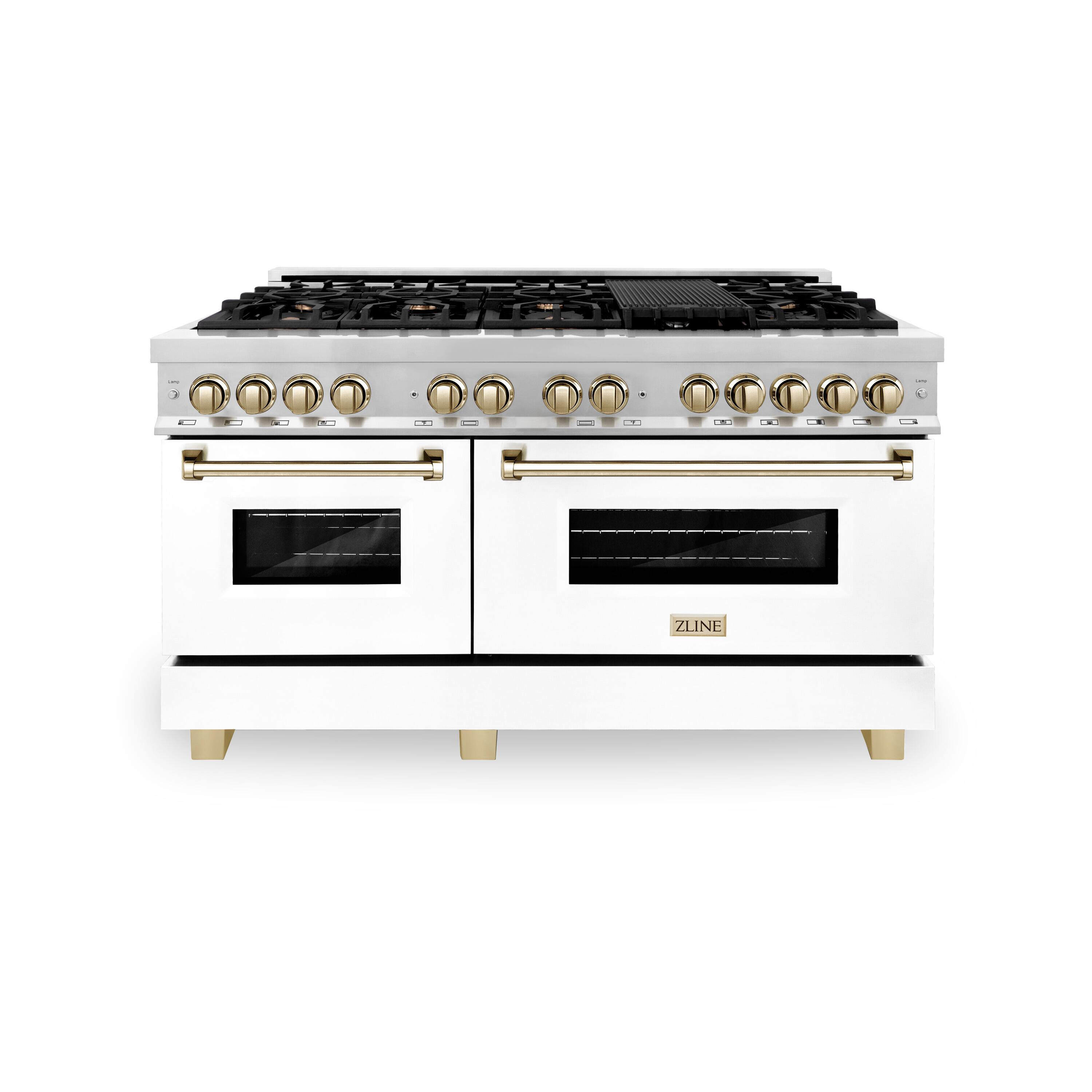

ZLINE - Autograph 60" Legacy Dual Fuel Range w/ 9 Burners & White & Gold Accents (RAZ-WM-60-G) - Multicolor
Delivery to
Related Item
Specifications
- Color FinishStainless steelProduct Height36 1/8 inchesProduct Width59 7/8 inchesProduct Depth27 1/2 inchesRange TypeFreestandingSingle/Double OvenDouble Oven
- Key Specs
- Color Finish: Stainless steel

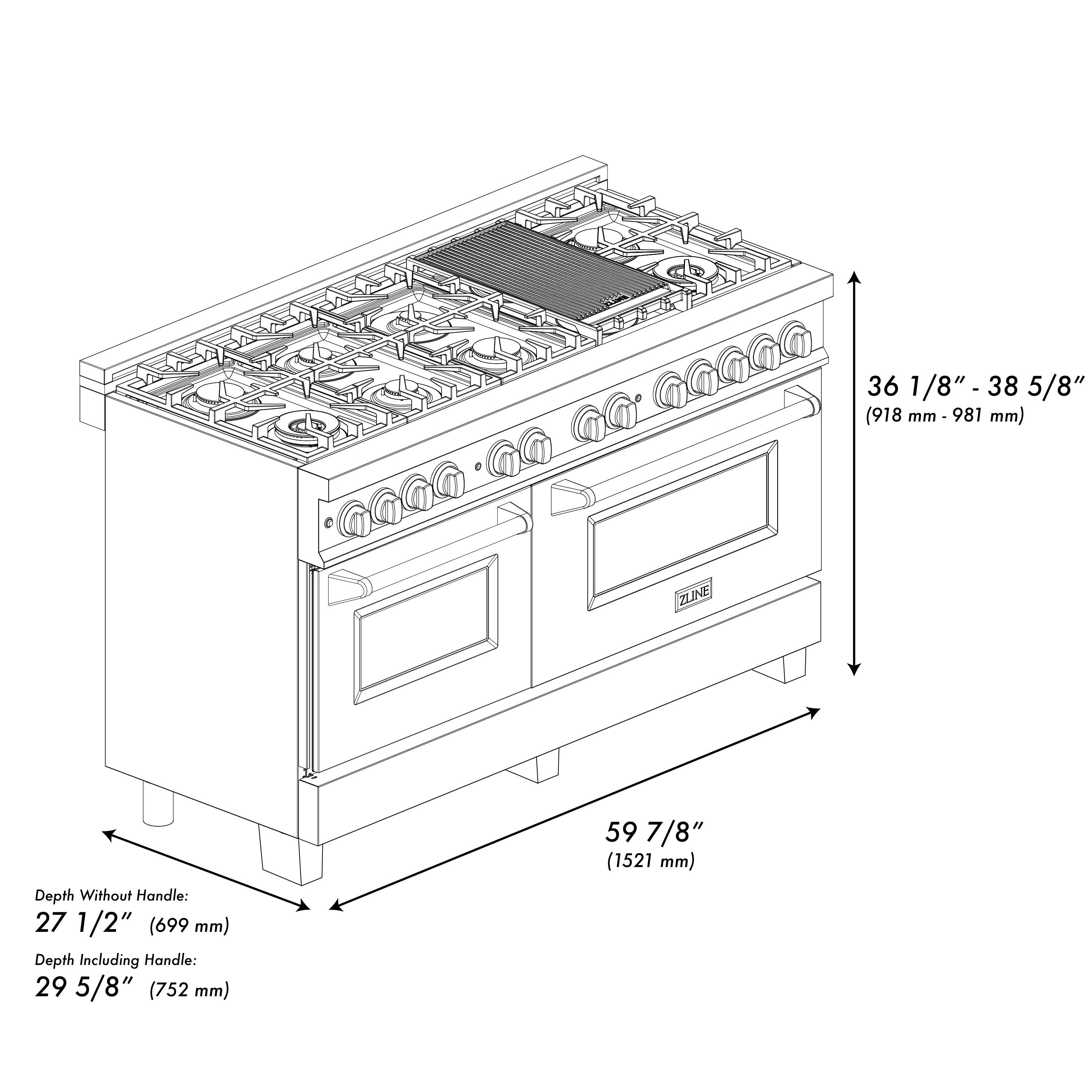

- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 59 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Number of Burners: 8
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: ZLINE
- Model Number: RAZ-WM-60-G
- Product Name: Autograph 60" Legacy Dual Fuel Range w/ 9 Burners & White & Gold Accents (RAZ-WM-60-G)
- Color: Multicolor
- Color Finish: Stainless steel
- Dimensions
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 59 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 60 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 450 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 3 cubic feet
- Oven 2 Capacity: 5 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Oven Control Location: Front panel
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: RA-HG-PK-60
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Convection, Bake, Broil
- Oven Settings: Time Bake
- Oven Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Oven 1 Specification
- Oven 1 Location: Left
- Oven 2 Specification
- Oven 2 Location: Right
- Cooktop Features
- Number of Burners: 8
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): semi, aux, rapid, dual (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron, Cast iron, Cast iron, Cast iron, Cast iron
- Griddle Included: true
- Griddle Type: Removable, Removable, Removable (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Total Maximum BTU Rating: 103000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical Specification
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 220 volts (Amount of power needed to support an electrical current.)
- Included
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: nickel (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 810058127570
Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 60 in. 7.4 cu. ft. Legacy Dual Fuel Range with 9 Burner Gas Cooktop and 2 Electric Convection Ovens in Stainless Steel with White Matte Doors and Polished Gold Accents (RAZ-WM-60-G) pairs a powerful gas cooktop with 9 Italian-crafted burners, dual electric convection ovens, beautiful white matte doors with Landscape window designs, and elegant polished gold knobs and handles. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
- ZLINE Legacy Series: The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury

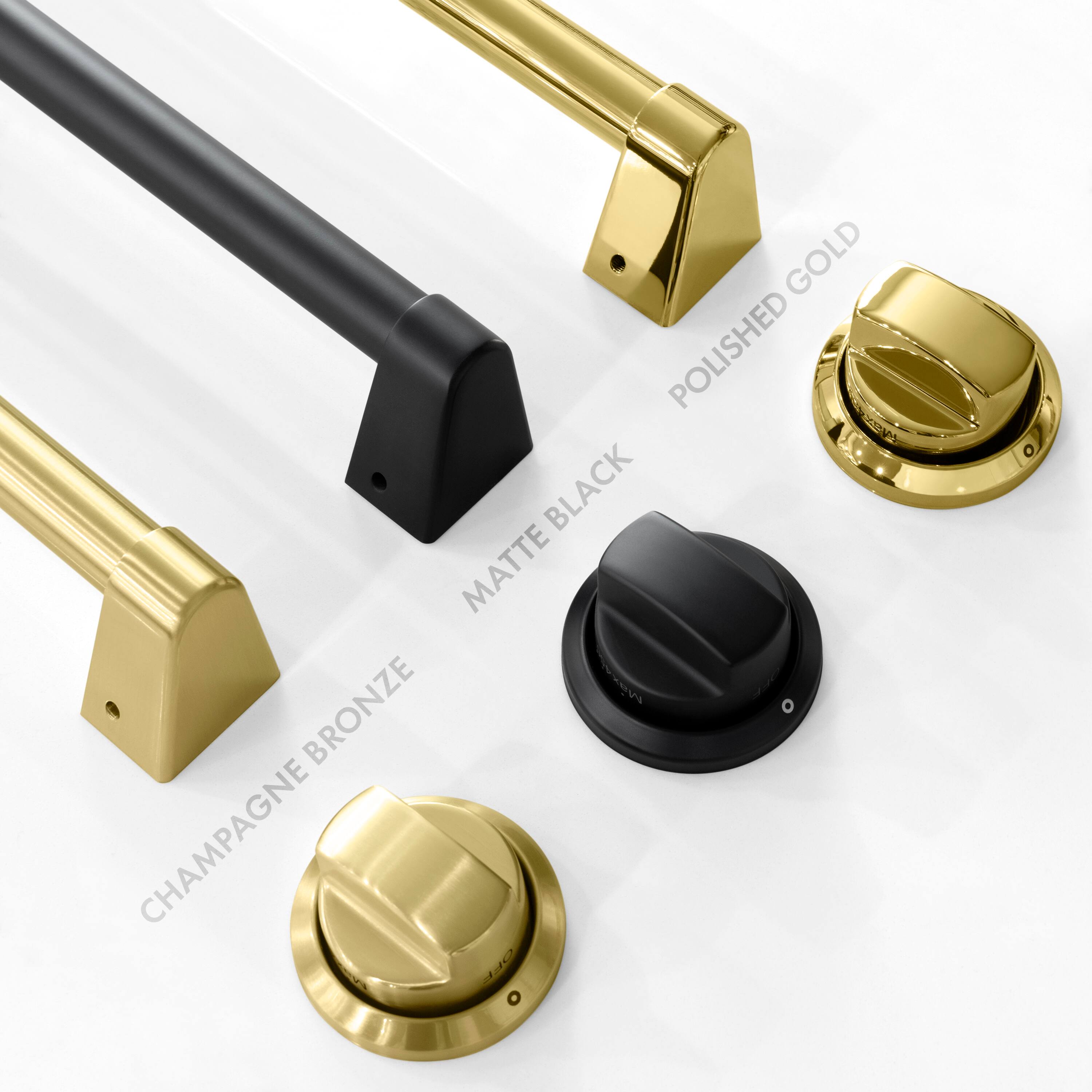

- Exclusive Knobs and Handle: Customize your ZLINE Autograph Edition Dual Fuel Range with elegant Polished Gold knob and handle accents
- Custom Door Finish: Outfit your ZLINE Legacy Dual Fuel Range with 2 beautiful White Matte oven doors
- Professional Dual Fuel Cooking: Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and 2 electric convection ovens

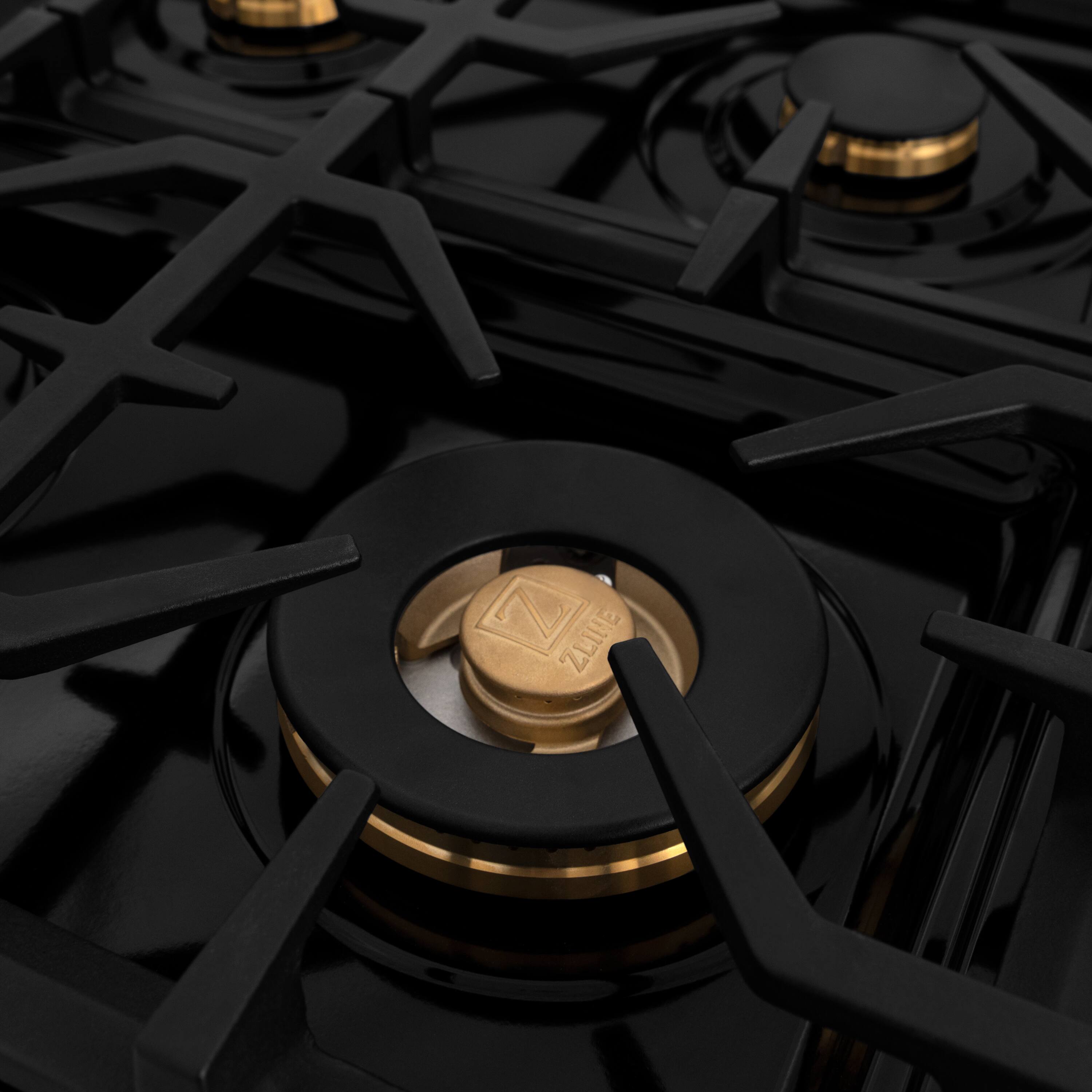

- Italian-Made Sealed Burners: Industry-leading gas cooktop includes 9 hand-cast burners, including an expansive fish burner, with 1,000 - 18,000 BTUs of cooking power
- Landscape Oven Window: ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Large Oven Capacity: A dual oven capacity of 7.4 cu. ft fits pans up to 27 in. or 15 in. wide for maximum space and convenience with everyday cooking
- Cast-Iron Griddle: Perfectly sear meats and veggies with a pre-seasoned cast iron griddle that features superior heat retention and even heat distribution
- Stunning Stainless Steel: Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
- Premium Oven Insulation: Triple layered glass and an aluminum mesh seal on both doors offers superior heat retention and consistent temperatures
- Adjustable Range Height: Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- StayPut Oven Door Hinges: Designed to support the full weight of both oven doors, offering additional convenience and safety

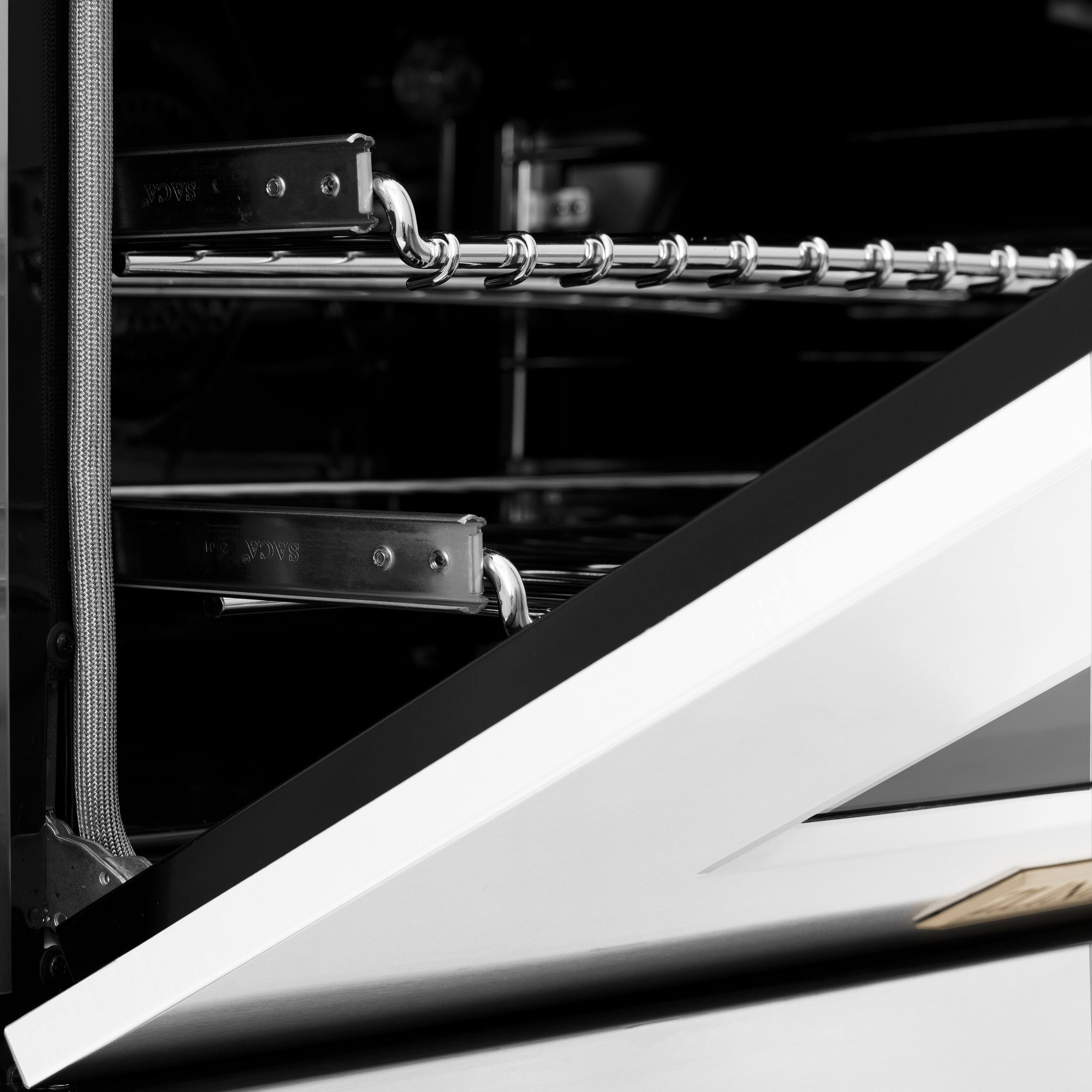

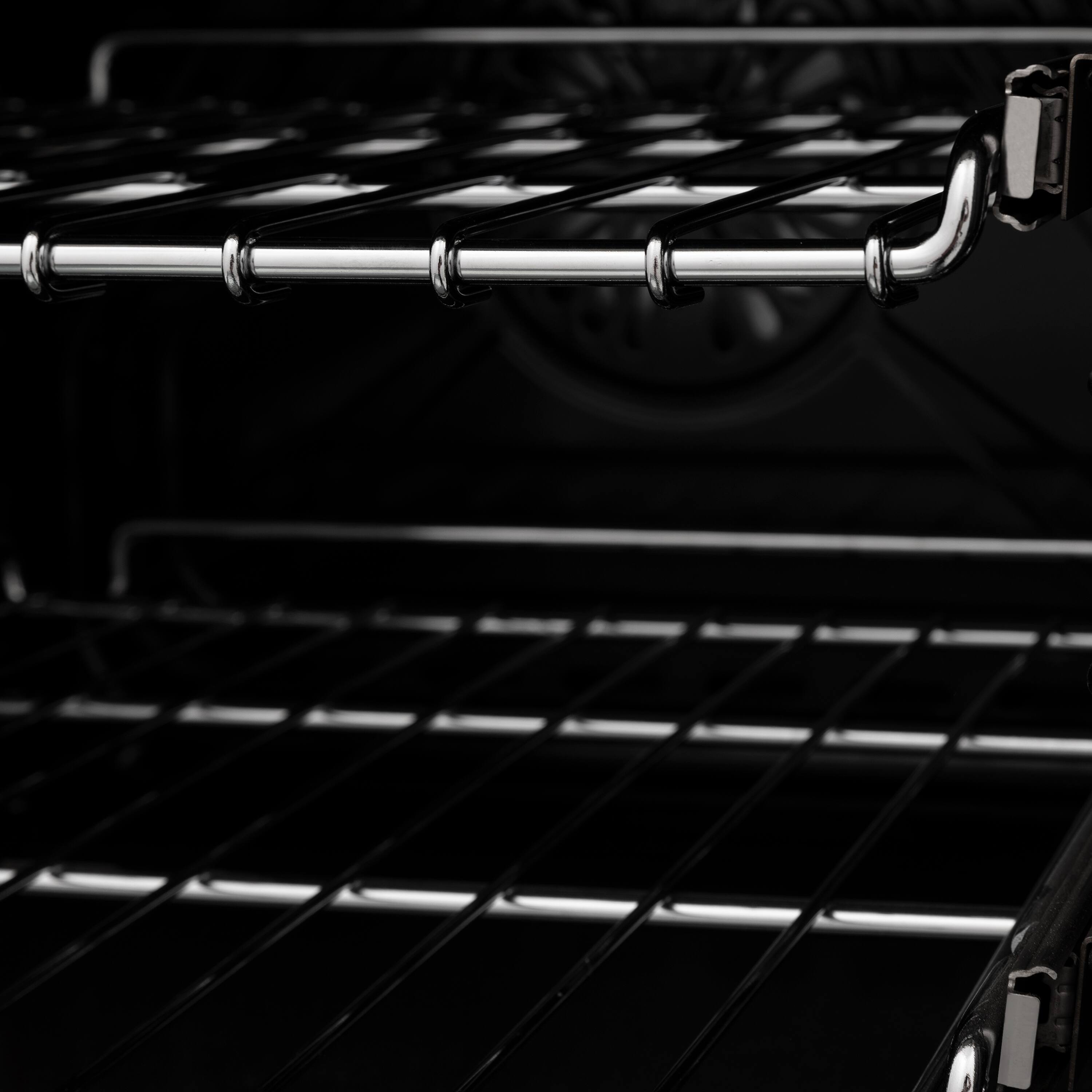

- Smooth Glide Ball-Bearing Oven Racks: 4 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Halogen Oven Lights: Illuminate both oven spaces with 3 halogen lights, controlled by a switch located on the front control panel
- Minimal Cleaning: Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit: Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
- ZLINE Legacy Series: The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury
- Exclusive Knobs and Handle: Customize your ZLINE Autograph Edition Dual Fuel Range with elegant Polished Gold knob and handle accents
- Custom Door Finish: Outfit your ZLINE Legacy Dual Fuel Range with 2 beautiful White Matte oven doors
- Professional Dual Fuel Cooking: Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and 2 electric convection ovens
- Italian-Made Sealed Burners: Industry-leading gas cooktop includes 9 hand-cast burners, including an expansive fish burner, with 1,000 - 18,000 BTUs of cooking power
- Landscape Oven Window: ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Large Oven Capacity: A dual oven capacity of 7.4 cu. ft fits pans up to 27 in. or 15 in. wide for maximum space and convenience with everyday cooking
- Cast-Iron Griddle: Perfectly sear meats and veggies with a pre-seasoned cast iron griddle that features superior heat retention and even heat distribution
- Stunning Stainless Steel: Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
- Premium Oven Insulation: Triple layered glass and an aluminum mesh seal on both doors offers superior heat retention and consistent temperatures
- Adjustable Range Height: Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- StayPut Oven Door Hinges: Designed to support the full weight of both oven doors, offering additional convenience and safety
- Smooth Glide Ball-Bearing Oven Racks: 4 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Halogen Oven Lights: Illuminate both oven spaces with 3 halogen lights, controlled by a switch located on the front control panel
- Minimal Cleaning: Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit: Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: What are the benefits of the Italian brass burners on this range?
A: The Italian brass burners on this ZLINE range offer superior heat retention and even flame distribution, enhancing cooking performance. Additionally, the brass burners naturally oxidize over time, forming a beautiful deep brass hue that is corrosion-resistant, ensuring durability and longevity.
Q: Does this range come with a removable griddle?
A: Yes, this range comes with a removable griddle. The product specifications state "Griddle Type: Removable".
Q: What is the total oven capacity of this dual fuel range?
A: The total oven capacity of this dual fuel range is 7.4 cubic feet. It has an ultra-deep oven with three layers of glass and dual lighting for clear visibility. The oven capacity is distributed as 3 cubic feet for the left oven and 5 cubic feet for the right oven.
Q: What is the maximum heat output (in BTUs) of the burners on this range?
A: The maximum heat output of the burners on this range is 18,000 BTUs. This information can be found in the product features section, under the "sealed burners" feature.
Q: How does the stay-put hinge feature on this range benefit the user?
A: The stay-put hinges on this ZLINE range are designed to support the full weight of the oven door and hold it open at any angle, allowing for easy access to the oven's interior and making it convenient to add or remove dishes. This feature enhances the user experience by providing greater flexibility and control when using the oven.
Q: What type of gas does this range use, and can it be converted to use propane?
A: This range uses natural gas. Yes, it can be converted to use propane as a Propane Conversion Kit is included with the range.
Q: What is the manufacturer's warranty on this range?
A: The manufacturer's warranty on this ZLINE range covers all parts and labor for necessary repairs if any part of the product proves to be defective in materials or workmanship for one year from the original purchase date. The warranty applies only to the original purchaser of a range product installed for normal residential use.
Q: How does the sealed burner design contribute to optimal cooking results?
A: The sealed burner design in this ZLINE range contributes to optimal cooking results by preventing heat from escaping and ensuring even flame distribution. This allows for precise temperature control and efficient cooking, minimizing the risk of undercooked or overcooked food.
