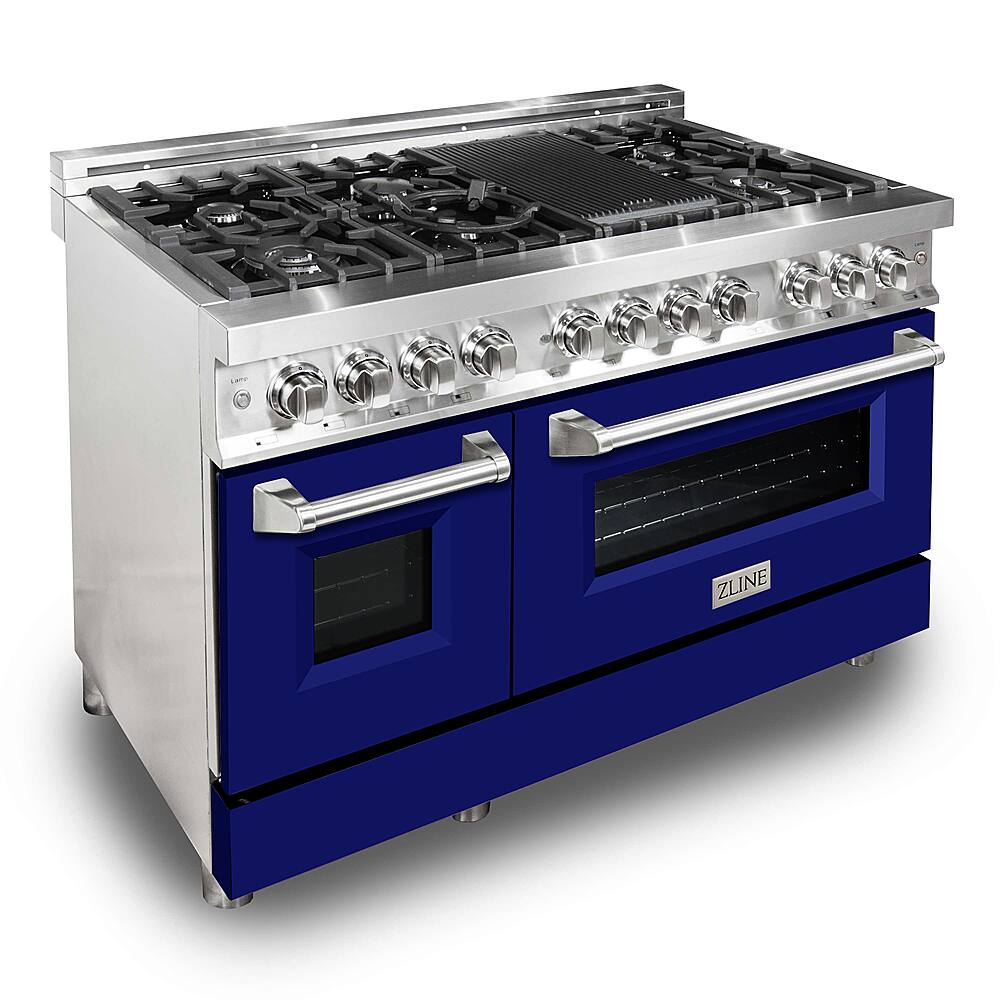

ZLINE - Professional 6 Cu. Ft. Freestanding Double Oven Dual Fuel Range - Blue Matte
Model: RA-BM-48
SKU: 6373351
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Blue
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 7
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: ZLINE
- Model Number: RA-BM-48
- Product Name: Professional 6 Cu. Ft. Freestanding Double Oven Dual Fuel Range
- Color: Blue Matte
- Color Finish: Blue
- Dimensions
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 275.58 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 2 cubic feet
- Oven 2 Capacity: 4 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Soft Close Door: true
- Control Type: Knob
- Oven Control Location: Front panel
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: RA-HG-PK-48
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Convection
- Oven Settings: Time Bake
- Oven Features
- Convection Type: Single-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Oven 1 Specification
- Oven 1 Location: Left
- Oven 1 Window: true
- Oven 1 Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 2 Specification
- Oven 2 Location: Right
- Oven 2 Window: true
- Oven 2 Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain
- Number of Burners: 7
- Sealed Burners: false (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Dual Wok, grill, rapid, semi-rapid, auxiliary (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Burner Rating
- Burner 1 Rating: 18000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 18000 british thermal units
- Burner 3 Rating: 13000 british thermal units
- Burner 4 Rating: 13000 british thermal units
- Burner 5 Rating: 8500 british thermal units
- Burner 6 Rating: 8500 british thermal units
- Burner 7 Rating: 4200 british thermal units
- Total Maximum BTU Rating: 85500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical Specification
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 220 volts (Amount of power needed to support an electrical current.)
- Included
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: nickel (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 810021141015
Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48" 6.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel and Blue Matte Door (RA-BM-48) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen's capability.
- Dual Fuel Cooking: Professional Dual Fuel Cooking - Blends high-performance technology of a gas cooktop and an electric convection oven
- Italian-Made Sealed Burners: Italian-Made Sealed Burners - Industry-leading gas cooktop includes 6 Hand-cast burners with cooking power ranging from 1,000 - 18,000 BTUs optimize every meal with a powerful and even heat distribution
- Minimal Cleaning: Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance of gas cooktop
- Large Oven Capacity: Large Oven Capacity - 6.0 cu. ft oven capacity that fits up pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cooking
- Premium Oven Insulation: Premium Oven Insulation - 3 layered glass and aluminum mesh seal offers superior heat retention and a consistent temperature, creating perfect dishes every time
- Shipping: This product ships in multiple boxes and will require minimal assembly upon arrival
- Dual Fuel Cooking: Professional Dual Fuel Cooking - Blends high-performance technology of a gas cooktop and an electric convection oven
- Italian-Made Sealed Burners: Italian-Made Sealed Burners - Industry-leading gas cooktop includes 6 Hand-cast burners with cooking power ranging from 1,000 - 18,000 BTUs optimize every meal with a powerful and even heat distribution
- Minimal Cleaning: Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance of gas cooktop
- Large Oven Capacity: Large Oven Capacity - 6.0 cu. ft oven capacity that fits up pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cooking
- Premium Oven Insulation: Premium Oven Insulation - 3 layered glass and aluminum mesh seal offers superior heat retention and a consistent temperature, creating perfect dishes every time
- Shipping: This product ships in multiple boxes and will require minimal assembly upon arrival
Whats Included
- ZLINE Professional 6 Cu. Ft. Freestanding Double Oven Dual Fuel Range
- ZLINE Professional 6 Cu. Ft. Freestanding Double Oven Dual Fuel Range
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: Does the range have a self-cleaning feature for the oven?
A: The ZLINE Professional 6 Cu. Ft. Freestanding Double Oven Dual Fuel Range does not have a self-cleaning feature for the oven. The Oven 1 Cleaning Method and Oven 2 Cleaning Method are both Manual cleaning.
Q: What is the material of the cooktop surface and what type of grates does it have?
A: The cooktop surface of this Professional 6 Cu. Ft. Freestanding Double Oven Dual Fuel Range by ZLINE is made of durable porcelain-enamel material. It features cast iron grates that provide a sturdy and reliable cooking surface.
Q: What is the total oven capacity of this ZLINE dual fuel range?
A: The total oven capacity of the ZLINE dual fuel range is 6.0 cubic feet. The left oven has a capacity of 2.0 cubic feet, while the right oven has a capacity of 4.0 cubic feet.
Q: What type of ignition does the cooktop use?
A: The cooktop uses both electric and manual ignition. For electric ignition, push the knob in and turn it counter- clockwise to release the gas while the spark is being released. For manual ignition, turn the control knob counter- clockwise to the maximum position and light the flame with a kitchen lighter or match.
Q: Does this range come with a propane conversion kit?
A: Yes, this range comes with a propane conversion kit. The "Propane Conversion Kit Included" field is set to "true". Additionally, the "Propane Kit Model Compatibility" field is set to "RA-HG-PK-48", which suggests that the range is compatible with a specific propane conversion kit model.
Q: Does the oven have any pre-set cooking modes or options?
A: Yes, the oven has several pre-set cooking modes and options, including Convection Bake, Broil, Convection Broil, Preheat/High Bake, and Bake/Low Bake. These modes utilize different combinations of heating elements and convection fans to achieve specific cooking results.
Q: What type of convection does the oven have and does it have a convection fan?
A: The oven has a single-fan convection type. Yes, it does have a convection fan.
Q: What are the dimensions of the range (height, width, and depth)?
A: The dimensions of the range are 36.13 inches in height, 47.75 inches in width, and 29.58 inches in depth.
