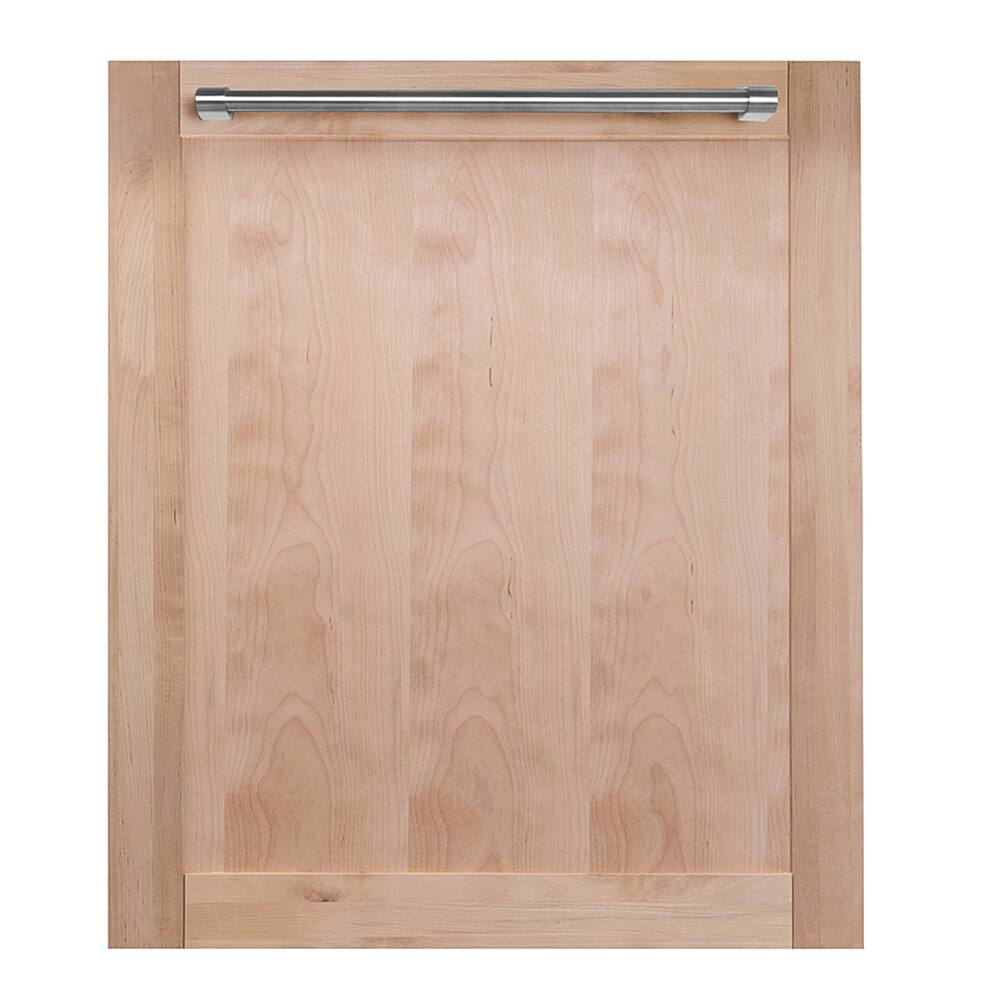

ZLINE - Top Control Built-In Dishwasher with Stainless Steel Tub, 40dBA - Unfinished Light Wood
Model: DW-UF-H-24
SKU: 6411564
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Brown
- Product Height: 34.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.625 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 40 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 20 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- General
- Brand: ZLINE
- Model Number: DW-UF-H-24
- Product Name: Top Control Built-In Dishwasher with Stainless Steel Tub, 40dBA
- Color: Unfinished Light Wood
- Color Finish: Brown
- Dimensions
- Product Height: 34.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.625 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 88.7 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 32.5 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23.75 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 40 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Cycle
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Options and Programs: Energy save, quick wash, normal, rinse, eco wash, heavy wash, sanitary, high temperature wash, glass, heat dry option
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 2
- Design
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Handle Type: Bar handle
- Place Setting Capacity: 20 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Electrical
- Estimated Annual Electricity Use: 234 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 20 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 810021145198
Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 24 in. Unfinished Top Control Dishwasher with Stainless Steel Tub and Traditional Style Handle, 52dBa (DW-UF-H-24) pairs unparalleled performance with timeless style to handle your kitchen’s toughest challenges with ease. Achieve ZLINE Attainable Luxury® excellence with innovative features that combine stunning craftsmanship with unmistakable attention to detail.
- Engineering Excellence: Achieve a spotless wash with a professional 304-grade stainless steel 2-rack European-style tub designed to be low-profile and sleek
- Hidden Controls: A fully integrated top control design ensures the easy-to-navigate button panel is concealed, giving the dishwasher a modern look.
- Custom Panel Finish: Outfit your 2-rack European-style dishwasher with a beautiful 304 grade Stainless Steel door panel.
- Minimal Noise: Enjoy peace in the kitchen while getting a spotless wash every time thanks to a low 52 dBa decibel level during operation.
- Shipping: This product ships in multiple boxes and requires professional installation
- Dishes are ready to be put away almost immediately: Its heated dry option works quickly.
- Energy save, quick wash, normal, rinse and more: This dishwasher offers a variety of cleaning choices.
- Engineering Excellence: Achieve a spotless wash with a professional 304-grade stainless steel 2-rack European-style tub designed to be low-profile and sleek
- Hidden Controls: A fully integrated top control design ensures the easy-to-navigate button panel is concealed, giving the dishwasher a modern look.
- Custom Panel Finish: Outfit your 2-rack European-style dishwasher with a beautiful 304 grade Stainless Steel door panel.
- Minimal Noise: Enjoy peace in the kitchen while getting a spotless wash every time thanks to a low 52 dBa decibel level during operation.
- Shipping: This product ships in multiple boxes and requires professional installation
- Dishes are ready to be put away almost immediately: Its heated dry option works quickly.
- Energy save, quick wash, normal, rinse and more: This dishwasher offers a variety of cleaning choices.
- Engineering Excellence: Achieve a spotless wash with a professional 304-grade stainless steel 2-rack European-style tub designed to be low-profile and sleek
- Hidden Controls: A fully integrated top control design ensures the easy-to-navigate button panel is concealed, giving the dishwasher a modern look.
- Custom Panel Finish: Outfit your 2-rack European-style dishwasher with a beautiful 304 grade Stainless Steel door panel.
- Minimal Noise: Enjoy peace in the kitchen while getting a spotless wash every time thanks to a low 52 dBa decibel level during operation.
- Shipping: This product ships in multiple boxes and requires professional installation
- Dishes are ready to be put away almost immediately: Its heated dry option works quickly.
- Energy save, quick wash, normal, rinse and more: This dishwasher offers a variety of cleaning choices.
Whats Included
- ZLINE Top Control Built-In Dishwasher with Stainless Steel Tub, 40dBA
- Dishwasher hookup kit is not included
- Owner's manual
- ZLINE Top Control Built-In Dishwasher with Stainless Steel Tub, 40dBA
- Dishwasher hookup kit is not included
- Owner's manual
- ZLINE Top Control Built-In Dishwasher with Stainless Steel Tub, 40dBA
- Dishwasher hookup kit is not included
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: I am purchasing kitchen cabinet. What size should the front panel be?
A: Hello! Thank you for reaching out. For panel dimensions, please see the template here https://zlinekitchen.com/classic-dishwasher-manual. Thank you!
