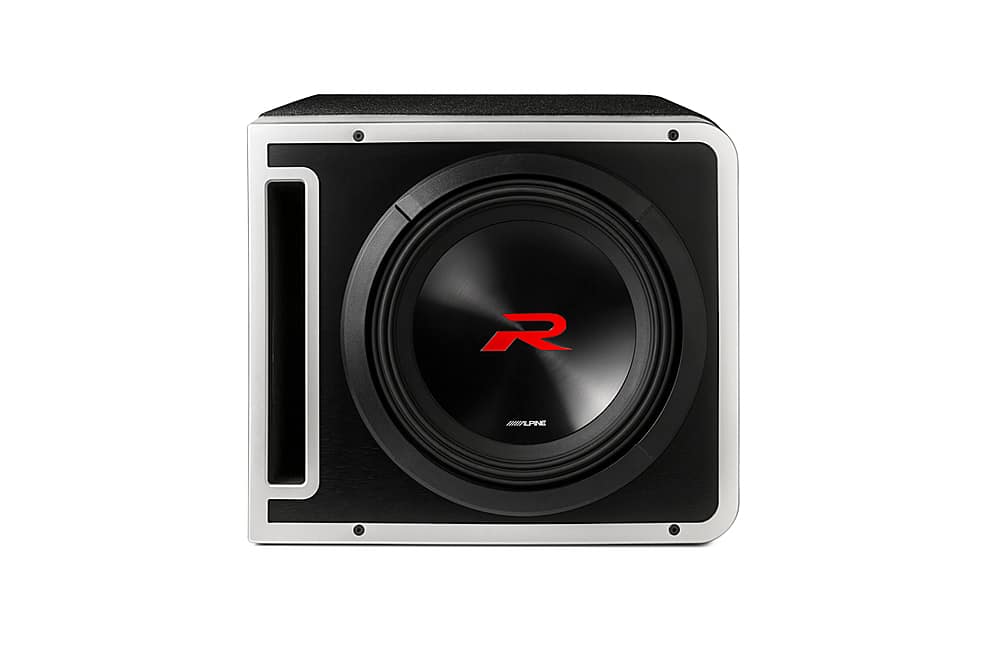

Alpine - Halo R2-Series 12" Dual Voice Coil 4-Ohm Loaded Subwoofer Enclosure - Black
Shipping
Specifications
RMS Power750 wattsPeak Power Handling2250 wattsImpedance4 ohmsMinimum Frequency Response24 hertzMaximum Frequency Response200 kilohertzSensitivity85 decibels
Key Specs
RMS Power750 wattsPeak Power Handling2250 wattsImpedance4 ohmsMinimum Frequency Response24 hertzMaximum Frequency Response200 kilohertzSensitivity85 decibelsDual Voice CoilsYesWoofer Size12"Woofer CompositionKevlar reinforced pulp cone with HAMR Santoprene rubber surroundWoofer Surround MaterialSantoprene
General
Product NameHalo R2-Series 12" Dual Voice Coil 4-Ohm Loaded Subwoofer EnclosureBrandAlpineNumber of Subwoofers Included1Model NumberR2-SB12VColorBlack
Audio Power
RMS Power750 wattsPeak Power Handling2250 wattsIntegrated AmplifierNo
Audio
Impedance4 ohmsMinimum Frequency Response24 hertzMaximum Frequency Response200 kilohertzSensitivity85 decibels
Features
Dual Voice CoilsYes
Dimensions
Woofer Size12"Magnet Size144 ouncesProduct Height12.68 inchesProduct Width16 inchesProduct Depth14.5 inchesProduct Weight50 pounds
Design
Woofer CompositionKevlar reinforced pulp cone with HAMR Santoprene rubber surroundWoofer Surround MaterialSantoprene
Enclosure
EnclosedYesEnclosure TypeVentedBox MaterialMDFBox Covering MaterialCarpet
Warranty
Manufacturer's Warranty - PartsNot providedManufacturer's Warranty - LaborNot provided
Other
UPC793276085009
Alpine's Halo Series subwoofer enclosures make it easy to add more bass to your system. The pre-loaded R-Series 12" dual voice coil subwoofer provides plenty of bass on its own, but when you want even more, the optional linking kit can connect two together for double the impact.
ProLink connection
ProLink is unique to Alpine and allows you to link two R2-SB12V enclosures together using an optional KTX-H12 Linking Kit (sold separately) to create a dual subwoofer-enclosure.
Halo display inspired
Drawing inspiration from the sleek, tapered lines and clean silver finish of the Alpine Halo Display, the R2-SB12V shares the same unique, curved edges outlined by a silver trim and a metallic front baffle for a matching system aesthetic.
Ported enclosure design
Features an optimized vent and rounded internal port edges that maximize the output performance of the subwoofer
Sturdy, yet rugged
Made from 3/4" medium density fiberboard (MDF) with internal edge bracing, the R2-SB12V is sturdy with a rugged, yet stylish black carpet cover and brushed aluminum finish on the metallic front baffle.
Preloaded R2-Series R2-W12D4
Includes a preloaded R2-Series R2-W12D4 12" subwoofer that's turned to 35Hz for optimized performance with Alpine's R2-Series sound system line.
Compatible with the R2-Series R2-A75M Mono Power Amplifier
Dual 4 ohm voice coils are wired in parallel for a 2 ohm load
Flexible application
The 2nd-Gen R-Series subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications
Next Gen sound performance
The new 2nd-Gen R-Series subwoofers now have even more bass output than their predecessors
New motor structure
Now feature larger, double stacked magnets for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation
Cleaner bass output
Integrated Faraday ring minimizes distortion
EZ-Change twist-lock grille mount system
Makes it easy to install and remove optional grille without mounting screws
Increased Accuracy
The 2nd-Gen R-Series subwoofers contain Alpine's High Amplitude Multi-Roll (HAMR) surround technology that creates incredible accuracy from the subwoofer
Kevlar-treated cone
Kevlar adds strength and tear resistance to the woofer cone while maintaining the benefits of a pulp cone design
What's Included
Vented cabinet with preloaded R2-W12D4 12" R-Series Subwoofer
Owners manual
Manuals & Guides
Specification Sheet
Search
Q: QuestionHow is the enclosure designed to maximize output performance?(1 answer)
A: AnswerThe enclosure features an optimized vent and rounded internal port edges to maximize the output performance of the subwoofer.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat is the design inspiration for this subwoofer enclosure?(1 answer)
A: AnswerThe design of the subwoofer enclosure is inspired by the sleek, tapered lines and clean silver finish of the Alpine Halo Display.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat is the peak power handling of this subwoofer enclosure?(1 answer)
A: AnswerThe peak power handling of the subwoofer enclosure is 2250 watts.This question and answer was generated by AI based on customer and product data.Q: QuestionDoes this subwoofer enclosure have dual voice coils?(1 answer)
A: AnswerYes, this subwoofer enclosure has dual 4 ohm voice coils.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat is the purpose of the EZ-Change Twist-Lock Grille Mount System?(1 answer)
A: AnswerThe EZ-Change Twist-Lock Grille Mount System makes it easy to install and remove the optional grille without the need for mounting screws.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat type of material is the woofer cone made of?(1 answer)
A: AnswerThe woofer cone is made of Kevlar reinforced pulp with a Santoprene rubber surround.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat is the diameter of the subwoofer in this enclosure?(1 answer)
A: AnswerThe subwoofer in this enclosure has a diameter of 12 inches.This question and answer was generated by AI based on customer and product data.
Reviews
Rating 4.6 out of 5 stars with 9 reviews
4.6Customers are saying
Customers find value in the Halo R2-Series 12" Dual Voice Coil 4-Ohm Loaded Subwoofer Enclosure for its exceptional bass quality. Customers rave about the subwoofer's ability to deliver tight and low bass, making it an impressive unit for car audio systems.
This summary was generated by AI based on customer reviews.
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Rated 5 out of 5 stars
Amazing SQ
Havent found a con yet. Paired with Alpine amps these subs will out perform higher priced subs on the market and never get warm.
Posted by n7i5c7k
Rated 5 out of 5 stars
Great sub
I am in love with this subwoofer. Packs a deep punch.
Posted by Rush
Rated 5 out of 5 stars
Good sub
Slaps first time having a sub super impressive unit
Posted by Danksta
