Specifications
- GPU Base Clock Frequency2.58 gigahertzGPU Boost Clock Frequency2.61 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports2 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported6
- Key Specs
- GPU Base Clock Frequency: 2.58 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.61 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)

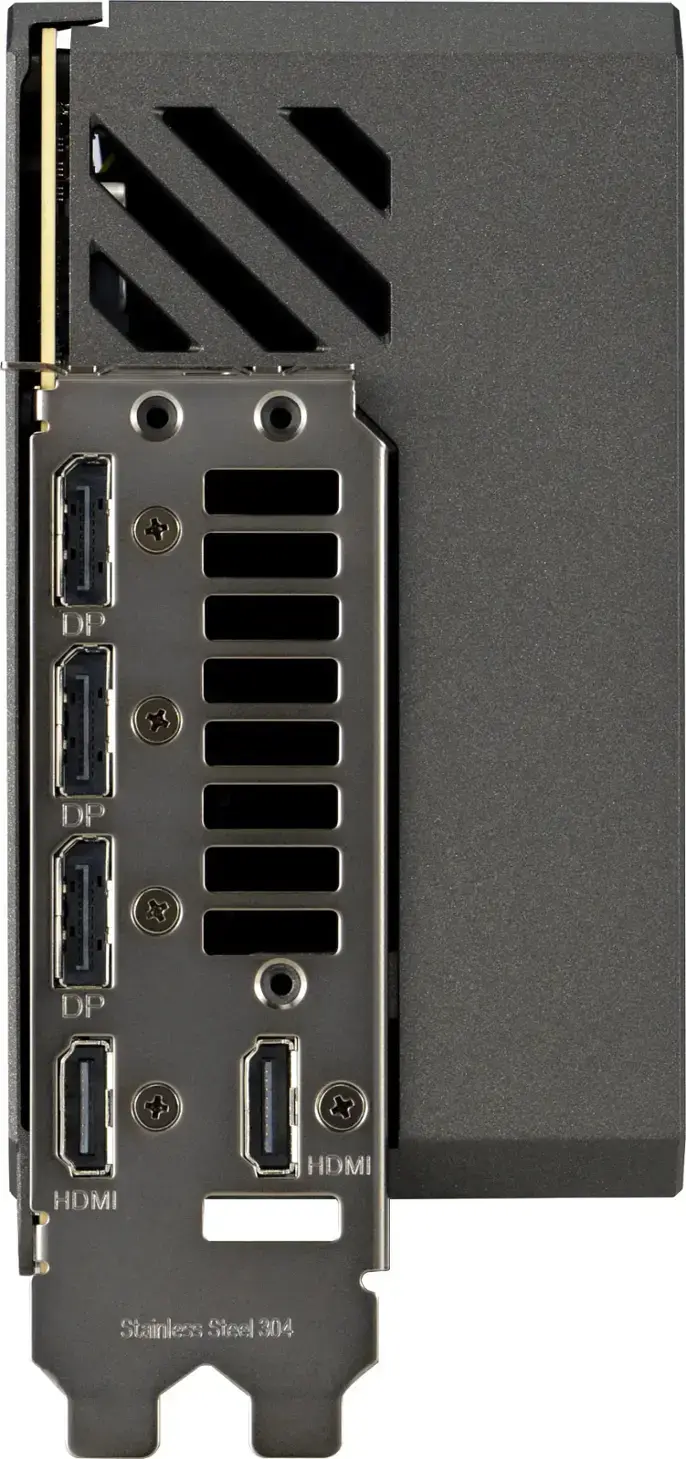

- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 2 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 6
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 32 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 4-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 76 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.3 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 357.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5090 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: ASUS
- Model Number: ROG-ASTRAL-RTX5090-O32G-GAMING
- Product Name: ROG Astral NVIDIA GeForce RTX 5090 32GB GDDR7 PCI Express 5.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5090 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 2.58 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.61 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 2 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 6
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 32 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 15 gigahertz
- Compatibility
- Slot Size: 4-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: Windows 11 / Windows 10 (The software that a product must have for it to be able to integrate with another product.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 400 watts
- Recommended Power Supply: 1000 watts
- Dimensions
- Product Height: 76 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.3 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 357.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 6.64 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 Years
- Warranty - Labor: 3 Years
- Other
- UPC: 197105890299

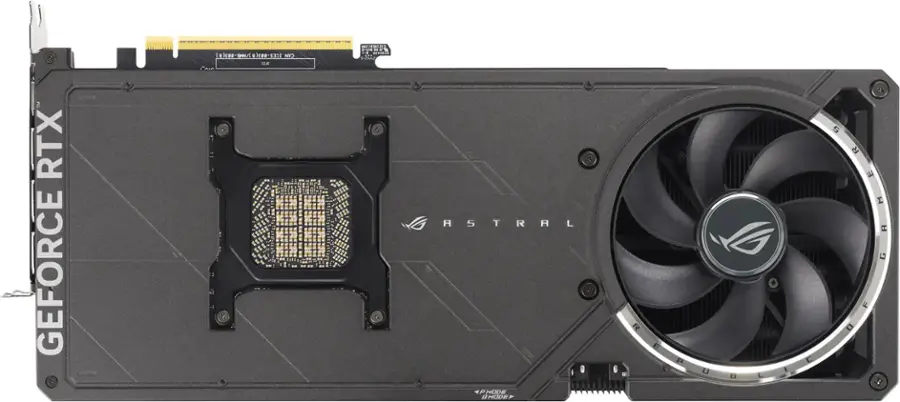

The ASUS ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
- NVIDIA Power: Powered by the NVIDIA Blackwell architecture and DLSS 4
- Quad-fan design: Boosts air flow and pressure by up to 20%
- Patented vapor chamber: With milled heatspreader for lower GPU temperatures
- Phase-change GPU thermal pad: Ensures optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability
- 3.8-slot design: Massive heatsink and fin array optimized for airflow from the four Axial-tech fans
- Secure GPU protection: With GPU Guard technology, securing four corners of the GPU and GPU bracket ensures stable mounting
- Full metal diecast shroud, frame backplate, and rear I/O bracket: Brace the PCB for rigidity

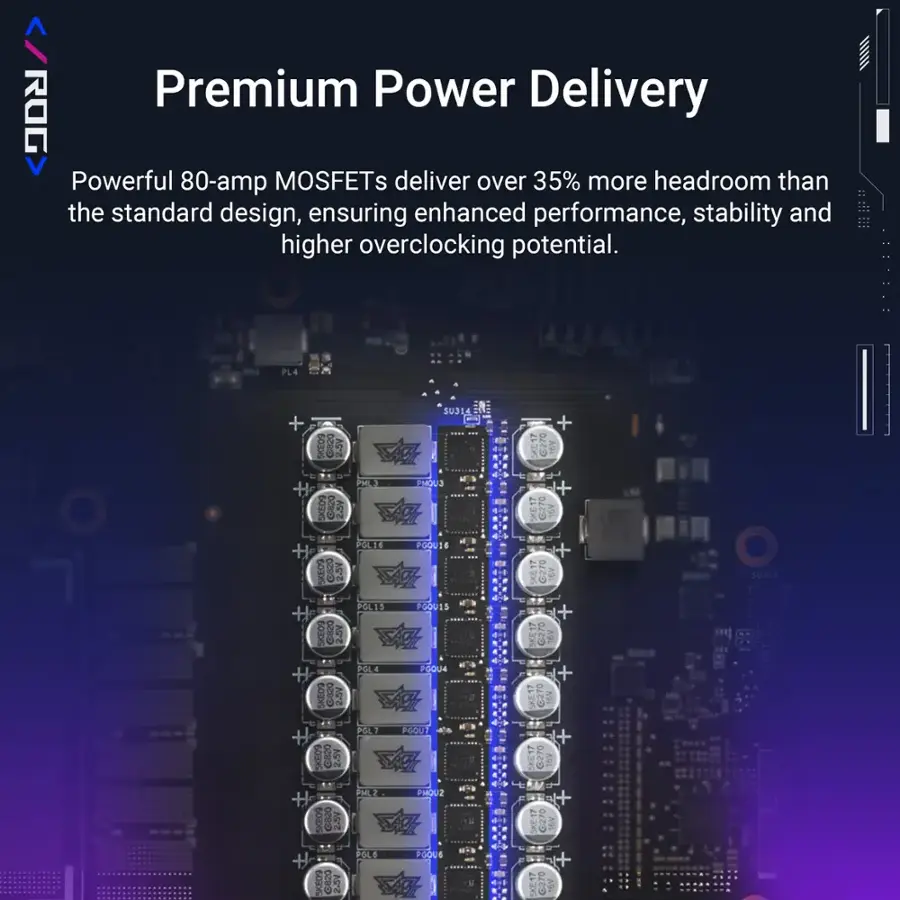

- Powerful 80-amp MOSFETs: Help ensure enhanced performance, stability, and higher overclocking potential
- Protective PCB coating: Guards against moisture, dust, and extreme temperatures
- Auto-Extreme: Manufacturing process for precision and reliability
- GPU Tweak III: Software provides intuitive performance tweaking, advanced thermal controls, and system monitoring
Whats Included
- Speedsetup Manual
- ROG Graphic Card Holder
- ROG Velcro Hook and Loop
- ROG Magnet
- ROG Graphic Card Keycap
- ROG PCB Ruler
- Thank you Card
- Adapter Cable
Q: What is the slot size of this graphics card?
A: This graphics card requires a 4-slot space.
Q: What is the base clock speed of the GPU in this graphics card?
A: The GPU base clock frequency is 2.58 gigahertz.
Q: What type of cooling system does this graphics card use?
A: This graphics card uses a Fan cooling system.
Q: Does this graphics card have a protective coating on the PCB?
A: Yes, it features a protective PCB coating to guard against moisture, dust, and extreme temperatures.
Q: What is the maximum resolution supported by this graphics card?
A: The maximum resolution supported is 8K (4320p).
Q: How many displays does this graphics card support?
A: This graphics card can support a maximum of 6 displays.
Q: Is this the oc version? I see in the picture of the box saying oc but not in the title
A: The ASUS ROG-ASTRAL-RTX5090-O32G-GAMING is the overclocked (OC) version. The "O" in "O32G stands for"Overclocked". This indicates that the graphics card is an overclocked version, offering higher performance compared to the standard version.
Q: Does this come with the Asus Thor 3 Power supply?
A: The ASUS ROG Astral RTX 5090 lists a 1000W power supply as the recommended minimum. While ROG Thor III PSUs are compatible, they are not included with the GPU and must be purchased separately. https://rog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-gaming/spec/
ASUS - ROG Astral NVIDIA GeForce RTX 5090 32GB GDDR7 PCI Express 5.0 Graphics Card - Black
Compare similar products
The ASUS ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
Ahead of its time, ahead of the game is the GIGABYTE AORUS GeForce RTX 5090 MASTER ICE 32G Graphics Cards. Powered by NVIDIA's new RTX architecture, the GIGABYTE AORUS GeForce RTX 5090 MASTER ICE 32G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 32 GB of GDDR7 memory.
Fearless and bold, MSI GeForce RTX 5090 32G GAMING TRIO OC delivers strong performance to both gaming and content creation. It blends a fierce look with advanced cooling technologies, making it an unwavering ally on the gaming battlefield. GAMING TRIO is the ideal choice for gamers who strive to give their all.
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load, and dominate with the ASUS TUF Gaming GeForce RTX™ 5090, designed to withstand the harshest conditions and deliver unparalleled performance.
