Bosch 800 Series - 36 inches - Externally Vented & Recirculating - Wall Range Hood - Stainless Steel
Shipping
Specifications
Product Height43 1/2 inchesProduct Width36 inchesProduct Depth19 11/16 inchesExhaust Vent LocationTopVent TypeDucted, DuctlessVent StyleExternal, Recirculating
Key Specs
Product Height43 1/2 inchesProduct Width36 inchesProduct Depth19 11/16 inchesExhaust Vent LocationTopVent TypeDucted, DuctlessVent StyleExternal, RecirculatingWorks WithAmazon Alexa, Google Assistant, SmartThingsColor FinishStainless steel
General
Product Name800 Series 36" Externally Vented Range HoodBrandBoschModel NumberHCP56652UCVendor CollectionBosch 800 SeriesColorStainless SteelColor FinishStainless steel
Dimension
Product Height43 1/2 inchesMinimum Installation Height Above Cooktop30 inchesMaximum Installation Height Above Cooktop11.5 inchesProduct Width36 inchesProduct Depth19 11/16 inchesStandardized Width36 inchesProduct Weight53 pounds
Features
Exhaust Vent LocationTopVent TypeDucted, DuctlessVent StyleExternal, RecirculatingRange Hood TypeWallWireless ConnectivityWi-FiNumber of Fan Speeds4Control TypeTouch padDisplay TypeLCDDelay Shut-OffYesRemote ControlYesDamper IncludedYesIntegrated Light(s)YesNumber of Lights2Bulb Type RequiredHalogenMaximum Bulb Wattage40 watts
Performance
Maximum Air Flow Capacity600 cubic feet per minuteMinimum Air Flow Capacity178 cubic feet per minute
Filter Info
Filter MaterialAluminumDishwasher-Safe FilterYesRemovable Grease FilterYes
Electrical Specification
Voltage120 volts
Certifications Listings & Approvals
Product Safety Certifications and Standard(s)UL Listed
Warranty
Manufacturer's Warranty - Parts1 yearManufacturer's Warranty - Labor1 year
Compatibility
Works WithAmazon Alexa, Google Assistant, SmartThings
Other
UPC825225959465
Filter the air around your cooking area with this Bosch 500 Series convertible range hood. The bright halogen lights offer high visibility when cooking, while replaceable charcoal filters absorb odors for added efficiency. This Bosch 500 Series convertible range hood can be remotely monitored via a smart device for your convenience and features an LCD screen to signal when filters need to be checked for cleaning.
How to Measure for a New Appliance
A little measuring now can help you avoid delivery headaches later.
600 cfm blower and four-speed fan
Quickly pull smoke and cooking odors out of the air.
Variable-speed fan
Can be easily adjusted to accommodate current exhaust needs.

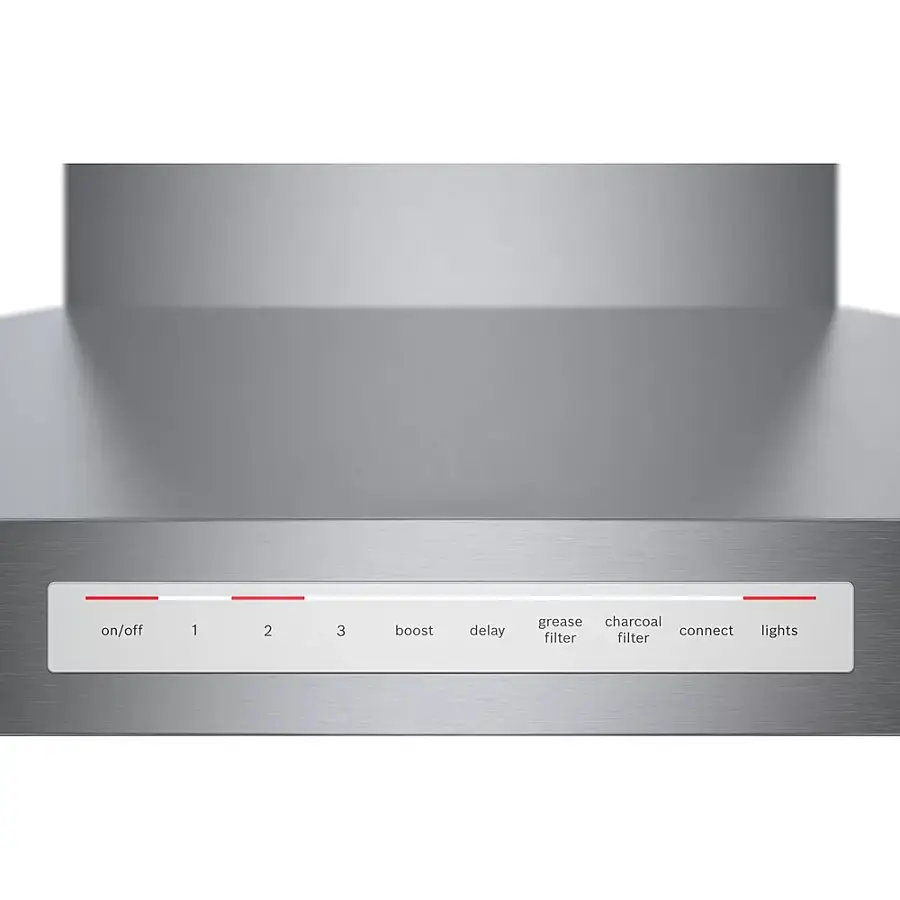

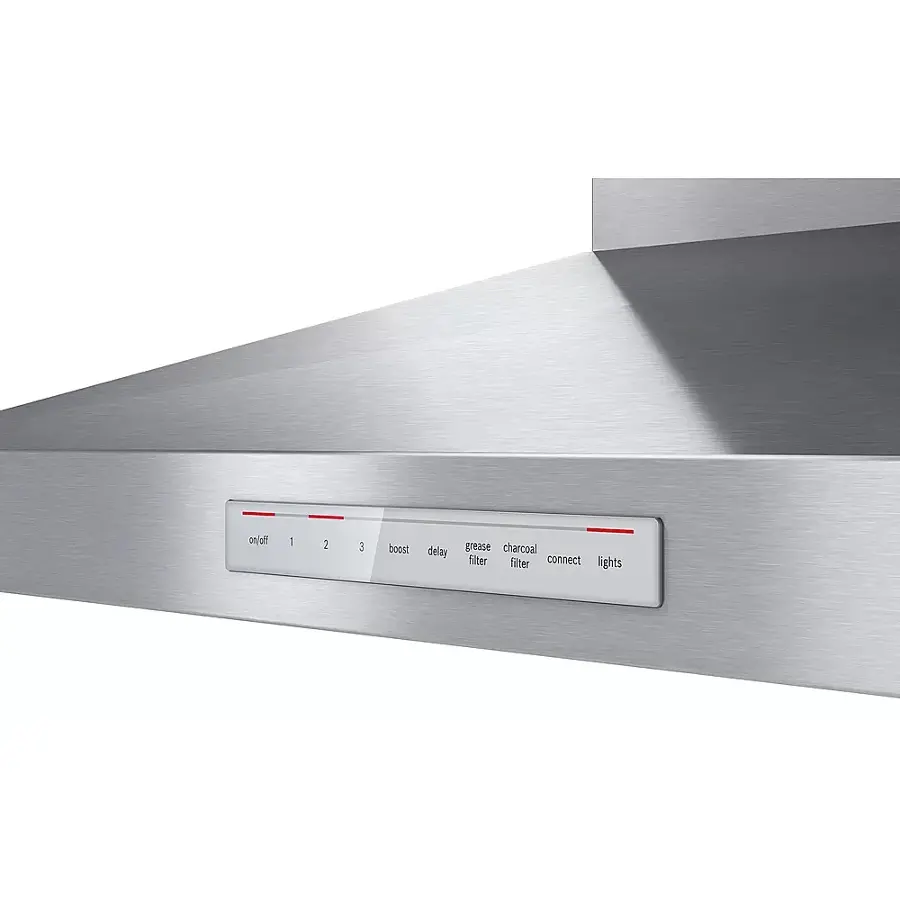

Touch controls with LCD screen
Ensure easy operation.
Home Connect app
Lets you remotely monitor and control your Wi-Fi enabled hood.
Two halogen lights shine down on the cooktop
These lights illuminate your workspace.

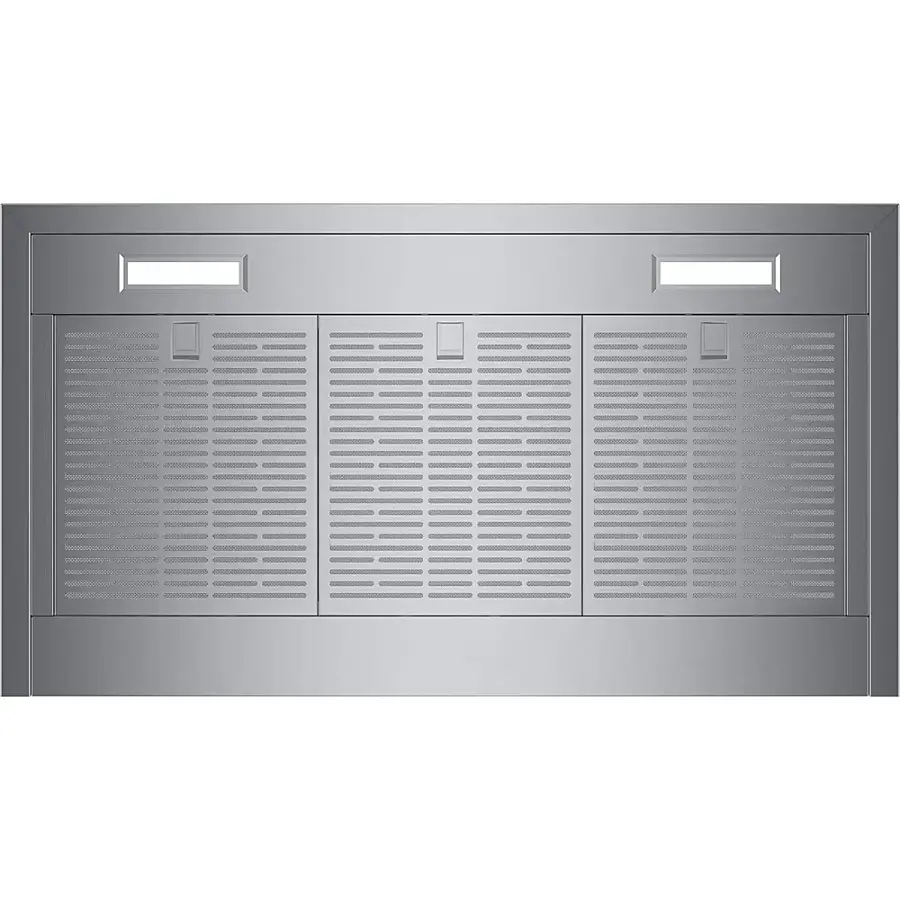

Removable, dishwasher-safe aluminum filters
Make cleanup quick and easy.
Adjustable hood
Can be configured to fit the needs of various installation requirements.
Stainless steel appearance
Offers a sleek, stylish look.
Included damper
Prevents smoke and odors from recirculating back into the stovetop area.
Designed to fit standard 8" round ductwork
Enables easy installation.
recirculation kit available as an accessory, model HCREC5UC
What's Included
Bosch 500 Series 36" Convertible Range Hood
Owner's manual
Manuals & Guides
Installation Guide (PDF)
Specification Sheet (PDF)
Use and Care Manual (PDF)
Warranty Manual (PDF)
Product Datasheet/Brochure
Search
- A: AnswerHi rob, thanks for your question and interest in model # HCP56652UC. No, you don not need to buy a separate molding piece to finish the top portion of the wall hood.
Answered by BoschAppliancesUSA
Q: QuestionDo you offer the extension chimney to reach ceiling heights of 10'?(2 answers)
A: AnswerHi Smokey, thanks for your question and interest in model #HCP56652UC. Yes, the chimney extension for 9–11.5 ft. ceilings is model# HCPEXT5UC.Answered by BoschAppliancesUSA
- A: AnswerMy vent is vented outside but if your vent is not then a charcoal filter is needed in place of the mess filter that is used to vent outside. This will help contain grease and other impurities in the air from your cooktop. You shouldn't need anything further that I'm aware of.
Answered by Magicjack
- A: AnswerHi AB, thanks for your question and interest in model HCP56652UC. This unit is actually a 500-series model. We do apologize for any confusion. Thank you for considering Bosch!
Answered by BoschAppliancesUSA
Reviews
Rating 3.7 out of 5 stars with 3 reviews
3.7The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Rated 5 out of 5 stars
Nice
Pretty good, looks nice. The fan is very strong and better than my precious one.
Posted by KeR1
Rated 5 out of 5 stars
Exhaust fan
Very good fan. It's powerful and not that loud for a 600cfm. Great features on this fan
Posted by Magicjack
Rated 1 out of 5 stars
Appliances are good. Horrible installation
Never again buying major appliances from Best Buy. The installer showed up for range hood, but could not install it because he could drill holes through tile back splash. Did not have the correct drill bits or skill to drill holes in glass tile. For Gas Range installation, they sent only 1 person who could not move the stove to cut out for installation. Very disappointing service.
Posted by Diesel
