Specifications
- Wattage750 wattsModularFully modularEnergy EfficiencyCybenetics Gold, 80 PLUS GoldATX Connector1x 24-pin ATX (24-pin) Connector. 2x 8-pin ATX 12V/EPS12V (4+4-pin) Connector CablePCIe Connector3x PCIe (6+2) ConnectorsEPS12V Connector2
- Key Specs
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Gold, 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x 8-pin ATX 12V/EPS12V (4+4-pin) Connector Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 3x PCIe (6+2) Connectors (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 150 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020295-NA
- Product Name: RMe Series RM750e 80 PLUS Gold Fully Modular Low-Noise ATX 3.1 and PCIE 5.1 Power Supply
- Color: Black
- Power
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Gold, 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX 3.1 / EPS12V 2.92
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x 8-pin ATX 12V/EPS12V (4+4-pin) Connector Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 3x PCIe (6+2) Connectors (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 129 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 140 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 150 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 52.8 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 120mm Rifle Bearing Fan
- Number of Fans Included: 1
- Warranty
- Warranty - Parts: 7 Years
- Warranty - Labor: 7 Years
- Other
- UPC: 840006691129
CORSAIR RMe Series Fully Modular Low-Noise Power Supplies provide quiet, reliable power with Cybenetics Gold efficiency to your PC. The modular cables make PC builds easy, as you connect only the cables your system requires. With ATX 3.1 and PCIe 5.1 compliance with inclusion of native 12V-2x6 connnector and cable, and an array of PCIe 8-pin power connectors, RMe PSUs have the connections needed to power today’s demanding PC hardware. Industrial-grade, 105°C-rated capacitors deliver superb electrical performance, backed by a seven-year warranty. With a 140mm-long casing that works with nearly any modern case, the CORSAIR RMe Series is steady power for your system.

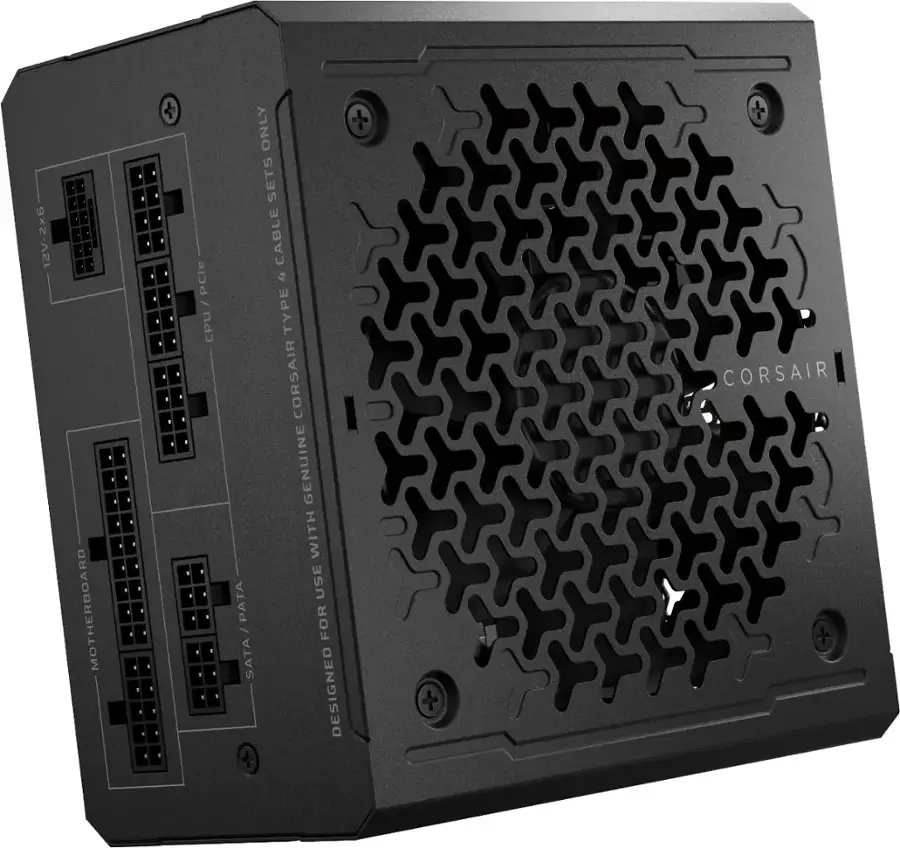

- Fully Modular PSU: Reliable and efficient, low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs.
- Intel ATX 3.1 Certified: Compliant with the ATX 3.1 power standard, supporting PCIe 5.1 platform withstands 2x transient power excursions from the GPU.

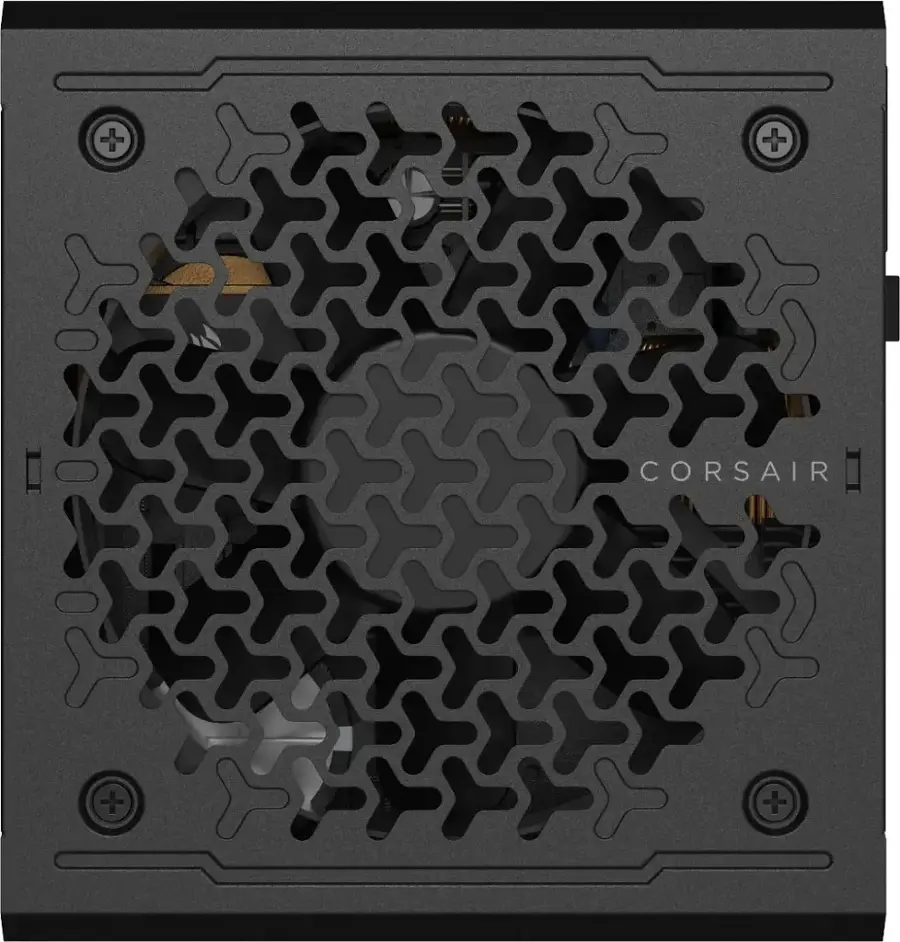

- Keeps Quiet: A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
- 105°C-Rated Capacitors: Delivers steady, reliable power and dependable electrical performance.
- Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
- Cybenetics Gold-Certified: Steady power output at up to 90% efficiency for lower power consumption, less noise, and cooler temperatures.
- Zero RPM Fan Mode: For near-silent operation at lower loads.
- Cybenetics "A" Noise Rating: Professionally tested across a wide range of loads and rated for extremely low noise.
- The Right Fit: Compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
- Resonant LLC Topology with DC-to-DC Conversion: Provides clean, consistent power and ensures better energy-efficiency across a wide range of loads.
- Native 12V-2x6 GPU Power Connector: Supports the latest Nvidia 40 Series graphics cards without having to use clumsy, bulky adapters.
- Seven-Year Warranty: Your guarantee of reliable operation for peace of mind through multiple builds.
Whats Included
- 1x 24-pin ATX (24-pin) Connector Cable
- 2x 8-pin ATX 12V/EPS12V (4+4-pin) Connector Cables
- 1x 8-pin PCIe (6+2-pin) Connector Cable
- 1x 600W 12V-2x6 (12+4-pin) Connector Cable
- 1x 12V-2x6 (12+4-pin) to dual 8-pin PCIe (6+2-pin) Cable
- 6x SATA Connectors
- 2x PATA Connectors
Q: What is the noise rating of this power supply?
A: This power supply has a Cybenetics "A" Noise Rating, meaning it's been professionally tested and rated for extremely low noise.
Q: Is this power supply compatible with the latest Nvidia 40 series graphics cards?
A: Yes, it includes a native 12V-2x6 GPU power connector for compatibility with Nvidia 40 series graphics cards.
Q: Does this power supply have a fan?
A: Yes, it has a 120mm rifle bearing fan with a specially calculated fan curve to minimize noise.
Q: What type of cabling does this power supply use?
A: This is a fully modular power supply, meaning you only connect the cables your system actually needs.
Q: What is the warranty period for this Corsair power supply?
A: This power supply comes with a seven-year warranty, covering both parts and labor.
Q: How energy efficient is this power supply?
A: It's Cybenetics Gold-Certified, meaning it provides steady power output at up to 90% efficiency.
Q: Will this power supply fit in my PC case?
A: It has a compact 140mm-long casing designed to fit easily in most modern enthusiast PC cases.
Q: I have four cables, two pcie’s and two CPU’s, which do I plug into the three slots?
A: The cpu should be pluged 2 of the three. There was a cable included that adapted the 12pin hypr on the power supply to 2 8 pin gpu cables. Hope this helped
