Specifications
- Wattage1000 wattsModularFully modularEnergy EfficiencyCybenetics GoldATX ConnectorATX CABLE 24-PIN (24). 2x EPS/ATX12V CABLE 8-PIN (4+4)PCIe Connector4x PCIe 8-PIN (6+2). 1x PCIe CABLE 12+4-PIN(12+4)Peripheral Connector6
- Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: ATX CABLE 24-PIN (24). 2x EPS/ATX12V CABLE 8-PIN (4+4) (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)

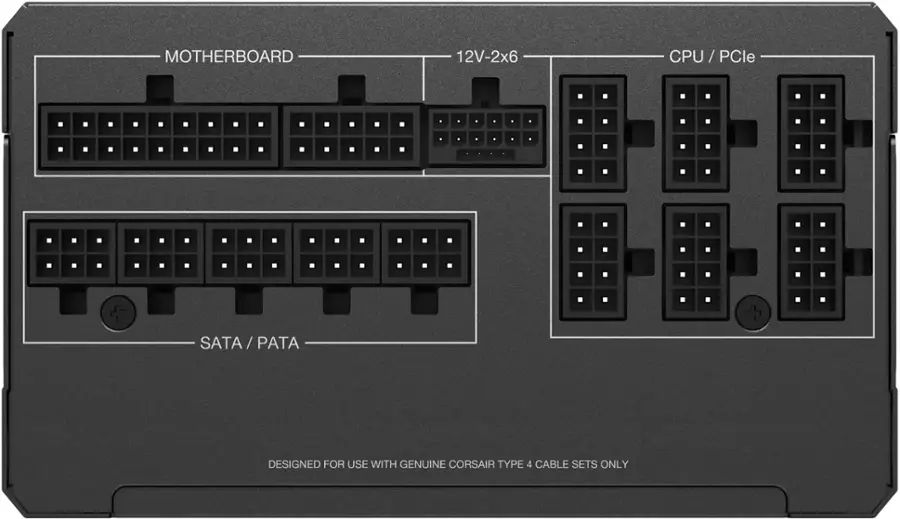

- PCIe Connector: 4x PCIe 8-PIN (6+2). 1x PCIe CABLE 12+4-PIN(12+4) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 6 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 12x SATA Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 160 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020271-NA

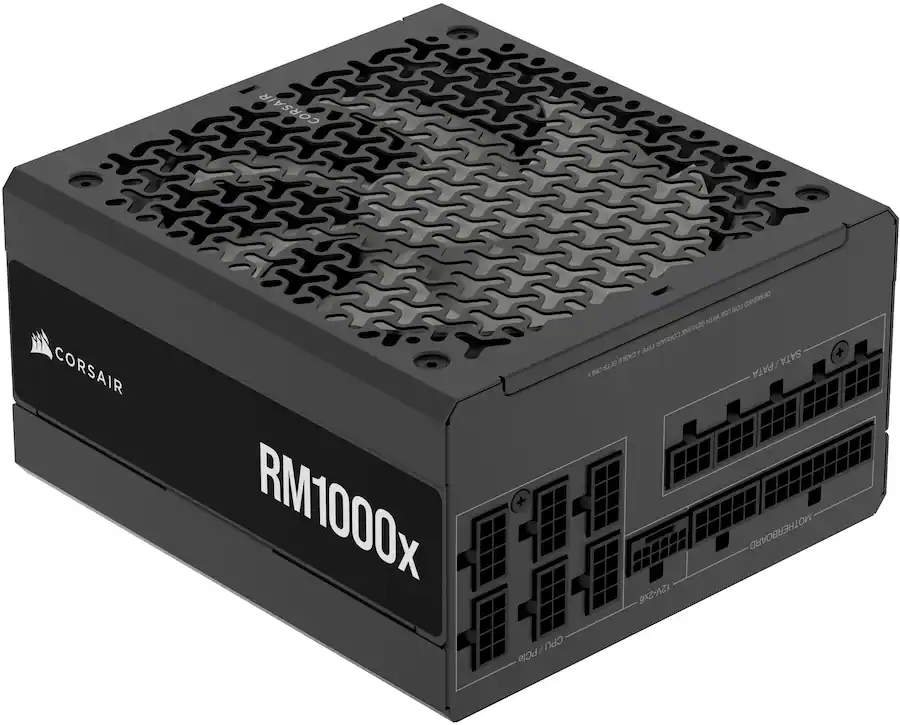

- Product Name: RMX Series RM1000x Cybenetics Gold Fully Modular ATX Power Supply
- Color: Black
- Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5 feet
- Connectivity
- ATX Connector: ATX CABLE 24-PIN (24). 2x EPS/ATX12V CABLE 8-PIN (4+4) (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: FALSE (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 4x PCIe 8-PIN (6+2). 1x PCIe CABLE 12+4-PIN(12+4) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 6 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 12x SATA Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 214 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 160 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 110.08 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 140mm Fluid Dynamic Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 840006667698
CORSAIR RMx Series Fully Modular Low-Noise Power Supplies deliver quiet, dependable power with Cybenetics Gold efficiency to your PC. Fully modular, ultra-flexible embossed cables make PC builds easy, as you connect only the cables your system requires. Compliant with the ATX 3.1 power standard from Intel, RMx PSUs have the connections needed to power today’s demanding PC hardware including a native 12V-2x6 connector. 100% Japanese 105°C-rated electrolytic capacitors deliver fantastic electrical performance, while a 140mm FDB fan provides low noise cooling. Backed by a ten-year warranty, RMx PSUs are the gold standard for many years to come.
- Fully Modular: Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system needs.
- Cybenetics Gold-Certified: Rated for up to 91% efficiency, resulting in lower power consumption, less noise, and cooler temperatures.
- ATX 3.1 Compliant: Compliant with the ATX 3.1 power standard from Intel, supporting PCIe 5.1 and resisting transient power spikes.
- Native 12V-2x6 Connector: Ensures compatibility with the latest graphics cards with a direct GPU to PSU connection – no adapter necessary.
- Embossed Cables with Low-Profile Combs: Sleek, ultra-flexible embossed cables look great and make installing and connecting the RMx a breeze.

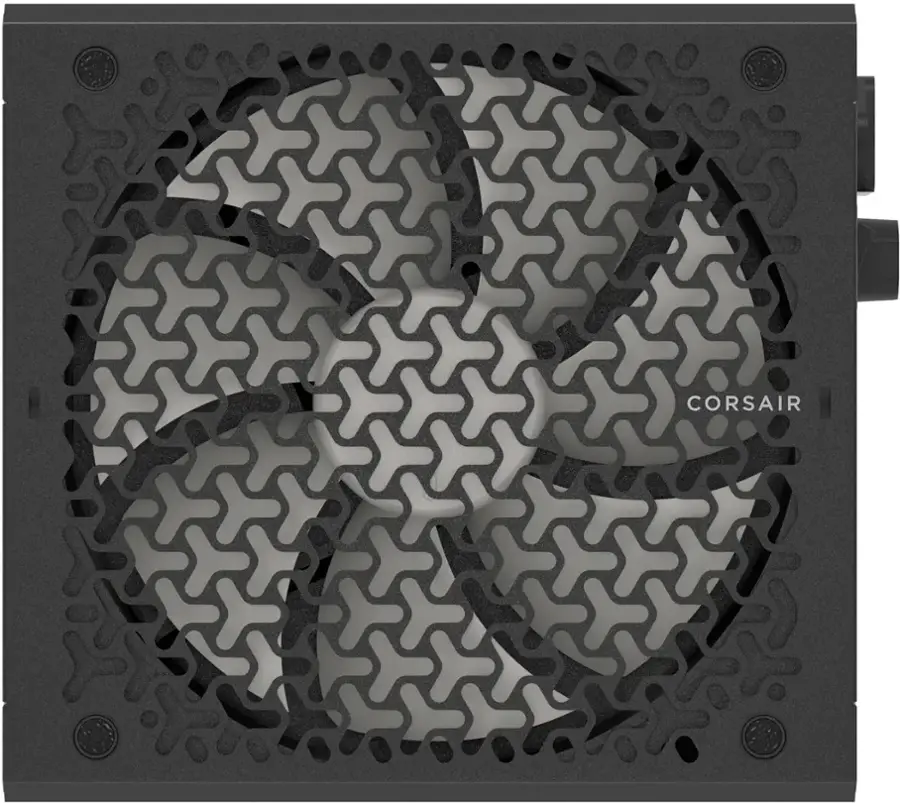

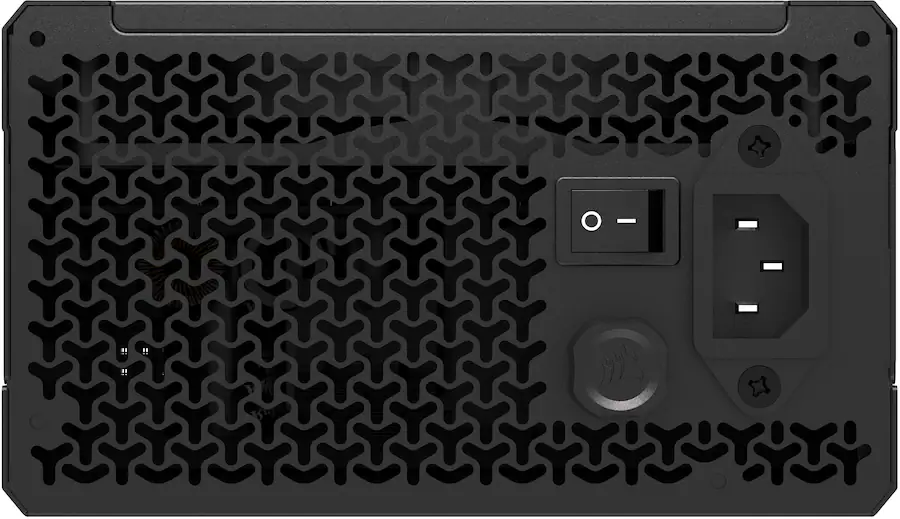

- Low Noise with 140mm Fan: A 140mm FDB fan with a specially calculated fan curve ensures low-noise operation even at full load, with a fan speed adjustment knob on the back for quick manual control.
- 100% Japanese Electrolytic Capacitors: Delivers steady, reliable power and dependable electrical performance with 105°C-rated Japanese capacitors.
- 50°C Maximum Operating Temperature: For reliable power even under high-stress conditions.
- Zero RPM Fan Mode: For near-silent operation at lower loads.
- Ten-Year Warranty: Your guarantee of reliable operation for peace of mind through multiple builds.

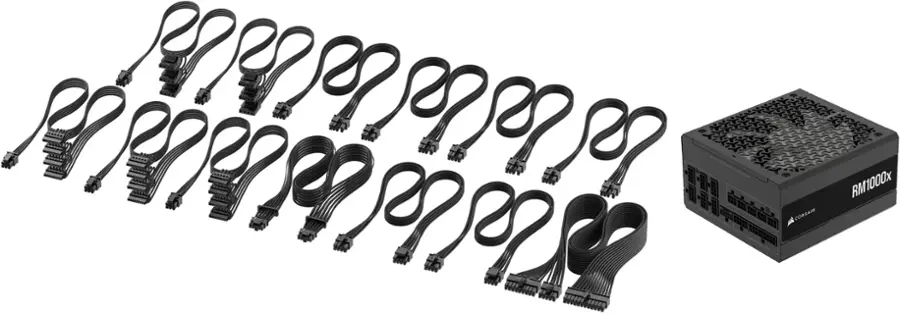

Whats Included
- RM1000x Power Supply
- 1x ATX CABLE 24-PIN (24)
- 2x EPS/ATX12V CABLE 8-PIN (4+4)
- 4x PCIe CABLE 8-PIN (6+2)
- 1x PCIe CABLE 12+4-PIN(12+4)
- 3x SATA CABLE (4 SATA - (Straight angle))
- 2x PATA CABLE (4-PIN)
- Power Cord
- Mounting screws
- Cable ties
Q: Does the power supply come with a power cord?
A: This power supply does include a power cord.
Q: How many PCIe connectors does the power supply have?
A: This power supply has four 8-pin (6+2) PCIe connectors and one 12+4-pin PCIe connector.
Q: How long is the warranty on the power supply?
A: The power supply comes with a ten-year warranty.
Q: What are the dimensions of the power supply?
A: The dimensions of the power supply are 160 millimeters long, 214 millimeters high, and 86 millimeters wide.
Q: What is the wattage of the power supply?
A: The wattage of the power supply is 1000 watts.
Q: Is the power supply compatible with the ATX 3.1 power standard?
A: The RMx PSUs are compliant with the ATX 3.1 power standard from Intel.
Q: What type of cooling fan does the power supply use?
A: The power supply uses a 140mm fluid dynamic bearing fan for cooling.
