Mecpow - X3 Pro Laser Engraving Machine with Air Assist, 10W Laser Cutter, Limit Switches, 10000mm/min for Wood Metal Acrylic - Black

High-Precision Engraving

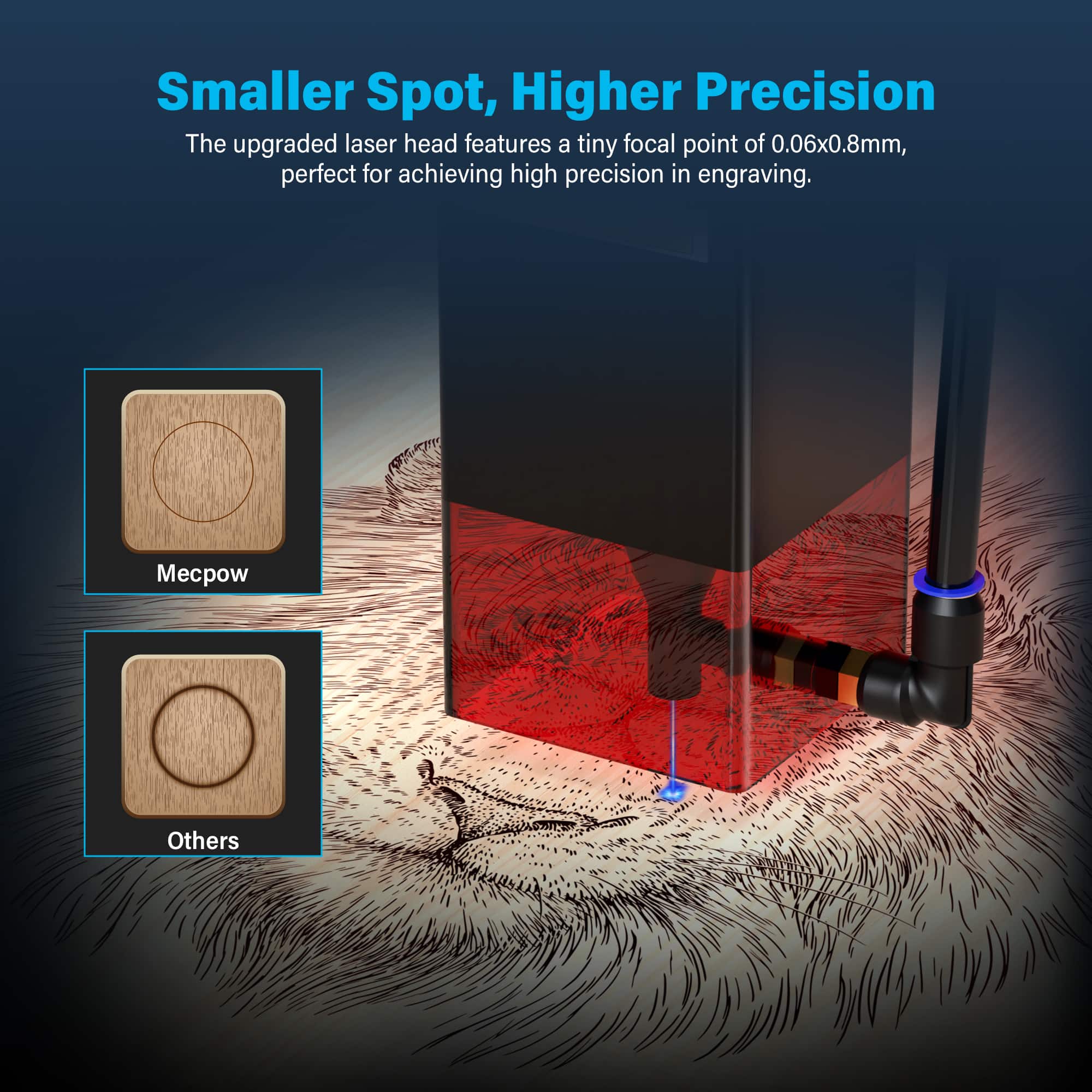

The Mecpow X3 Pro adopts a 10W diode laser with a small focus of 0.06x0.08mm and an engraving accuracy of 0.01mm. The small spot size, along with short pulses, produces high peak power, which can achieve more accurate and deeper engraving and cutting. It can cut a wood board with a 20mm thickness and an acrylic board with a 15mm thickness.

Upgraded Security

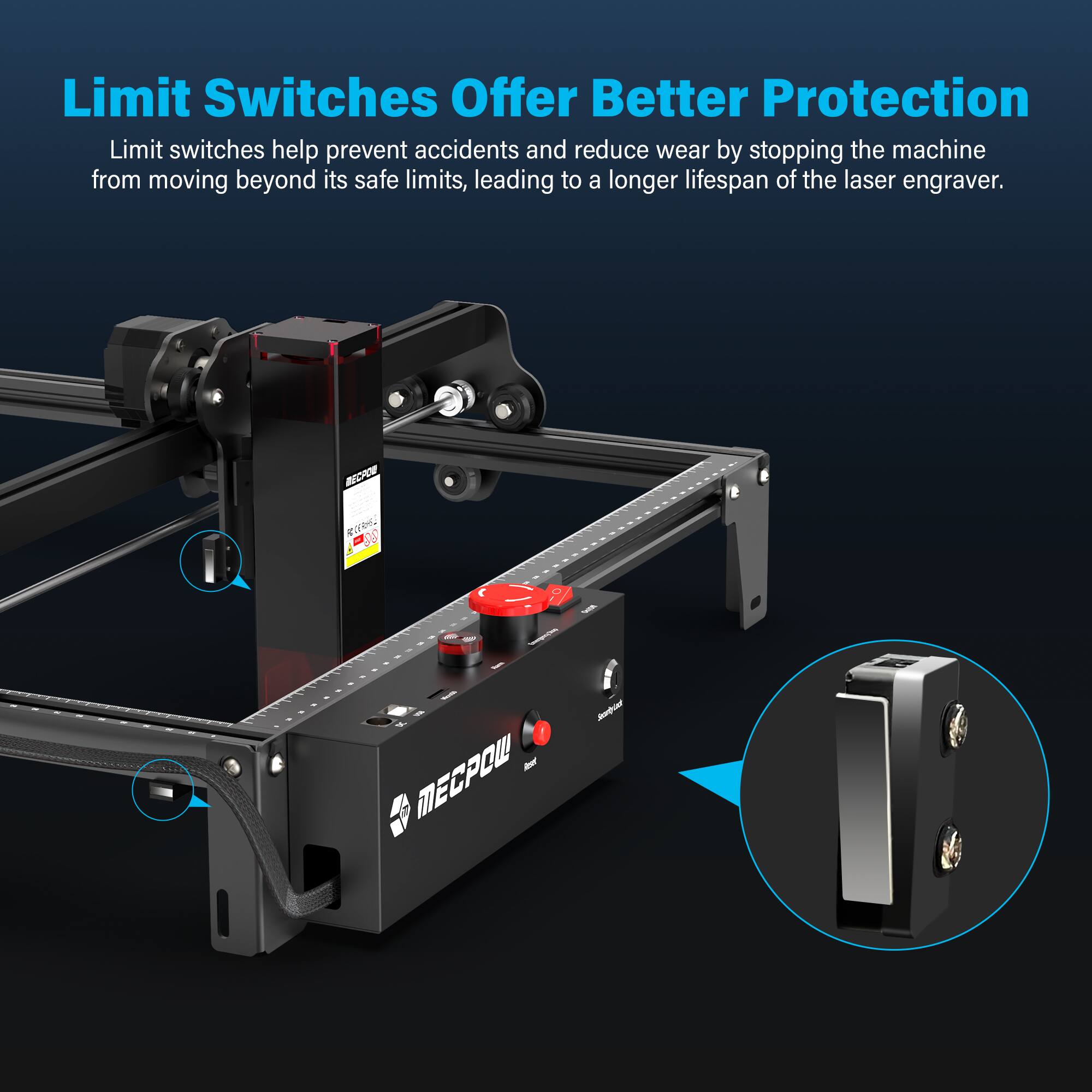

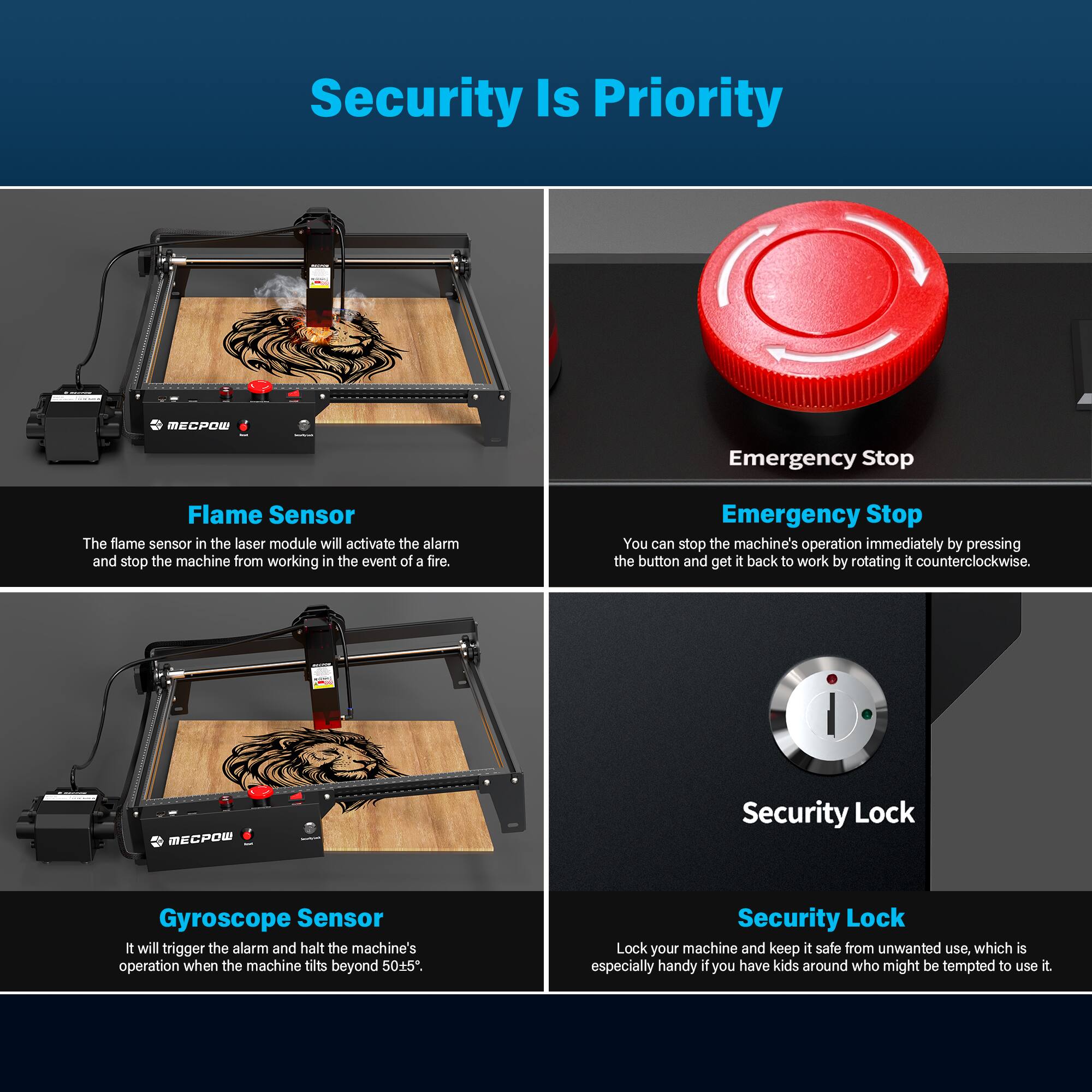

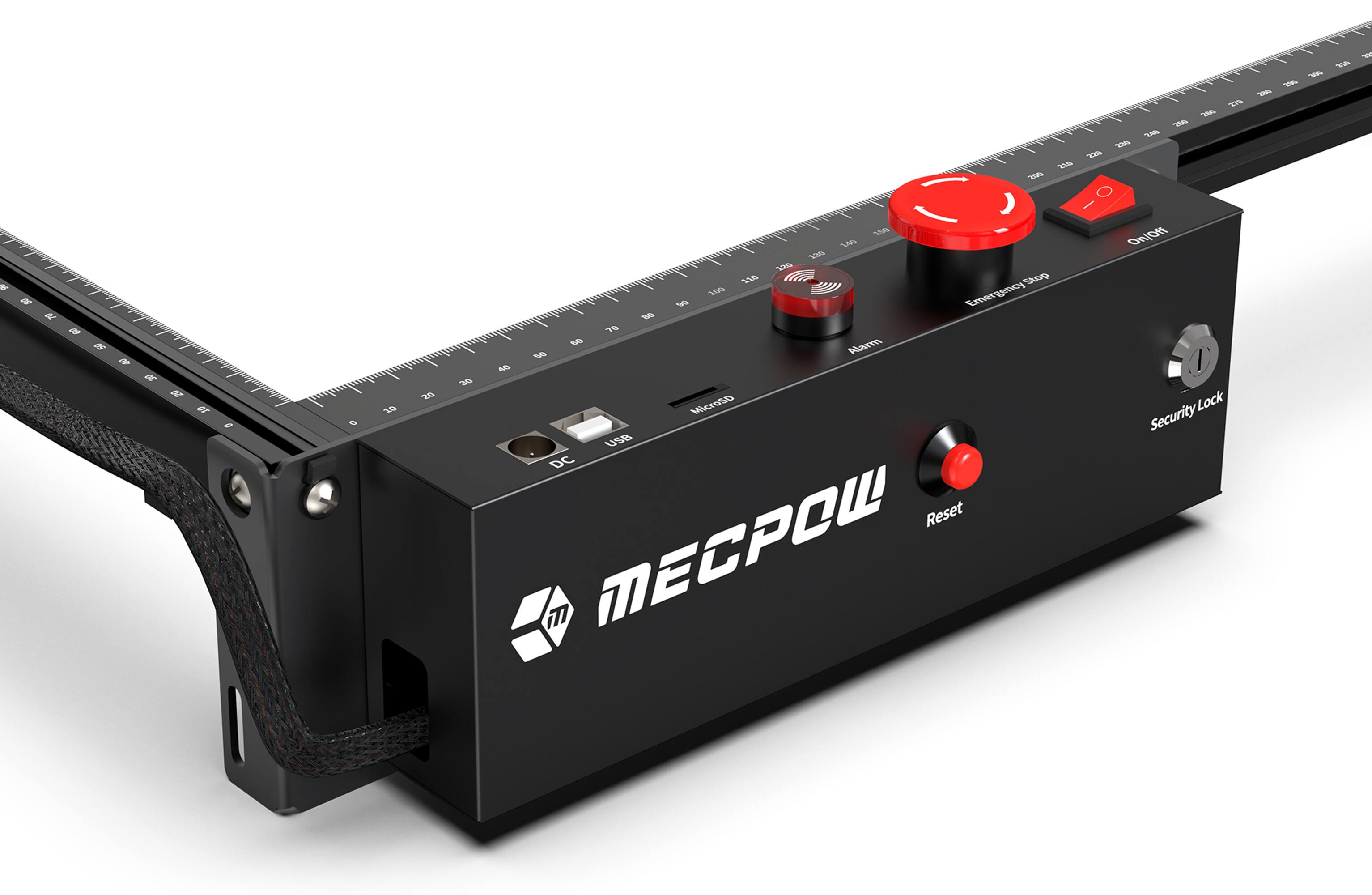

The X3 Pro machine boasts a flame sensor and a gyroscope sensor, which can trigger the alarm and stop the machine’s operation in the event of fire or tilting more than 50±5°. Limit switches are also included to prevent accidents and reduce wear by stopping the machine from moving beyond its safe limits. Furthermore, you can stop the machine anytime by pressing the emergency stop button and locking it to keep it safe from unwanted use.

Adjustable Air Assist

With a maximum air flow of 30 liters per minute, the air pump effectively removes debris and smoke for a cleaner cut. It also prevents the buildup of combustible materials, reducing the risk of fire and providing a safer engraving experience. Plus, with its adjustable knob, you can easily regulate the airflow according to the density of the smoke for a smokeless and odorless workspace.

Fast & Easy Focusing

The X3 Pro laser engraver comes with a fixed-focus laser that saves your time in adjusting the focus and a focusing screen that helps you move the laser head to the correct position. Slide down the laser head till it touches the focusing screen on the object and then remove the focusing screen.

Eye Protection

The laser engraving machine is equipped with a laser shield on the laser module, which can filter out diffuse light from the laser spot to a large extent. A pair of laser safety goggles is also included for better eye protection.

Wide Application and Compatibility

The X3 Pro engraving machine can be used for engraving on a variety of materials, including wood, acrylic, leather, bamboo, fabric, stainless steel, etc. It is compatible with LaserGRBL (Windows only) and LightBurn (Windows and Mac OS), supporting various file formats, including JPG, PNG, DXF, TIF, PDF, SVG, AI, NC, BMP, etc.

1 x X3 Pro Laser Engraving Machine

1 x Laser Goggles

1 x USB Cable

1 x Power Adapter

1 x Tool Kit

2 x Wood Board

1 x Aluminium Plate

1 x Focusing Screen

2 x Key

1 x User Manual
