Specifications
- Motherboard Form FactorATX, EATX, Mini-ITX, microATXMaximum GPU Length410 millimetersProduct Height21.43 inchesProduct Width9.6 inchesProduct Depth18.4 inchesWindow Panel(s)Panoramic, Left side, Front
- Key Specs
- Motherboard Form Factor: ATX, EATX, Mini-ITX, microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 410 millimeters
- Product Height: 21.43 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Panoramic, Left side, Front
- Case Material: Steel
- General
- Brand: NZXT
- Model Number: CM-H72FB-R1
- Product Name: H7 Flow 2024 Mid-Tower ATX PC Case with RGB Fans
- Color: Black
- Case Material: Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX, EATX, Mini-ITX, microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 200 millimeters
- Maximum GPU Length: 410 millimeters
- Number of Expansion Slots: 7
- Ports

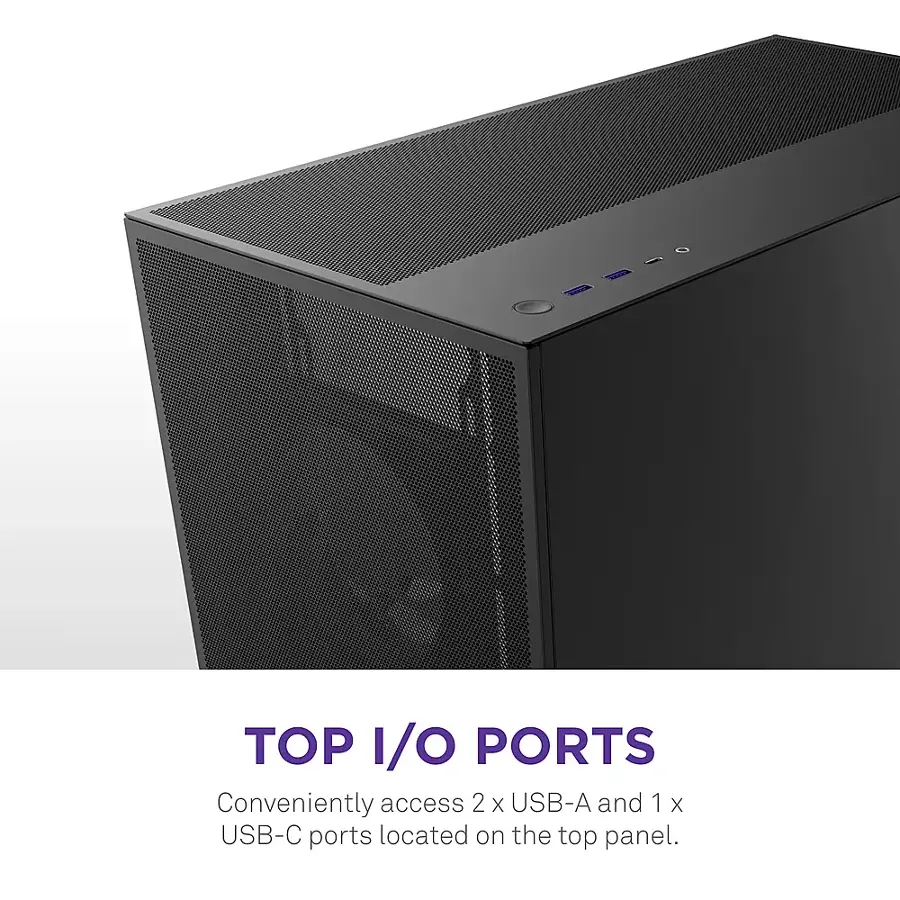

- USB Port Location: Top
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 2
- Number Of External 2.5" Expansion Bays: 4
- Number Of External 3.5" Expansion Bays: 2
- Dimensions
- Product Height: 21.43 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22.1 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Panoramic, Left side, Front
- Customizable Case Lighting: true
- Lighting Type: RGB
- Screwless Rail Design: true
- Cooling
- Maximum CPU Cooler Height: 185 millimeters
- Number of Fans Supported: 10
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 3
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 Years
- Warranty - Labor: 2 Years
- Other
- UPC: 810074845571
The H7 Flow stays true to a traditional mid-tower design while adding bottom fan support for direct GPU cooling due to the vertically oriented PSU. Unlike dual-chamber cases, this keeps the footprint narrow and takes up less desk space. Ultra-fine perforated panels are optimized for airflow, and it's equipped with a front-mounted F360 RGB Core single-frame fan unit for out-of-the-box cooling and lighting.

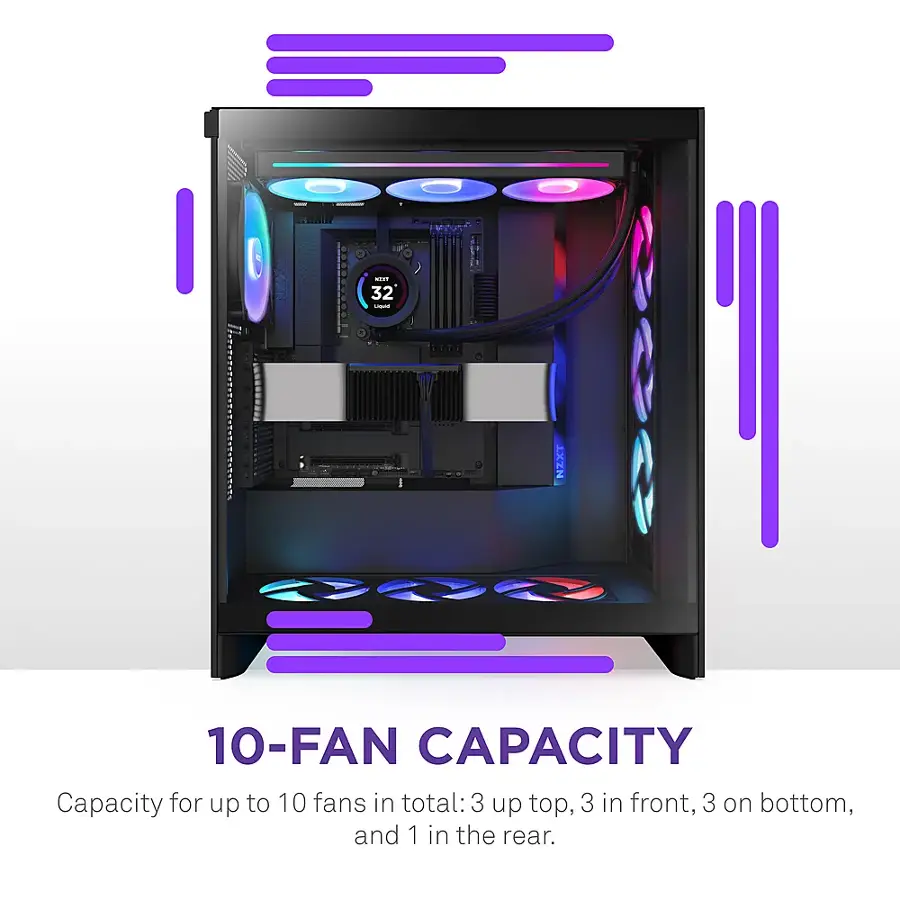

- Ultimate Cooling Potential: With the extra height from the vertical PSU layout, the H7 Flow accommodates up to 420mm radiators in the front. Offering 360mm support up top and a maximum fan capacity of 10, it's ready to meet the cooling demands of any build.
- Quality That Endures: Crafted from high-quality steel and accented with sleek tempered glass panels, the H7 Flow is built for the long haul. Precision engineering and rigorous testing guarantee not just durability but also a case that maintains its performance and appearance for years to come.

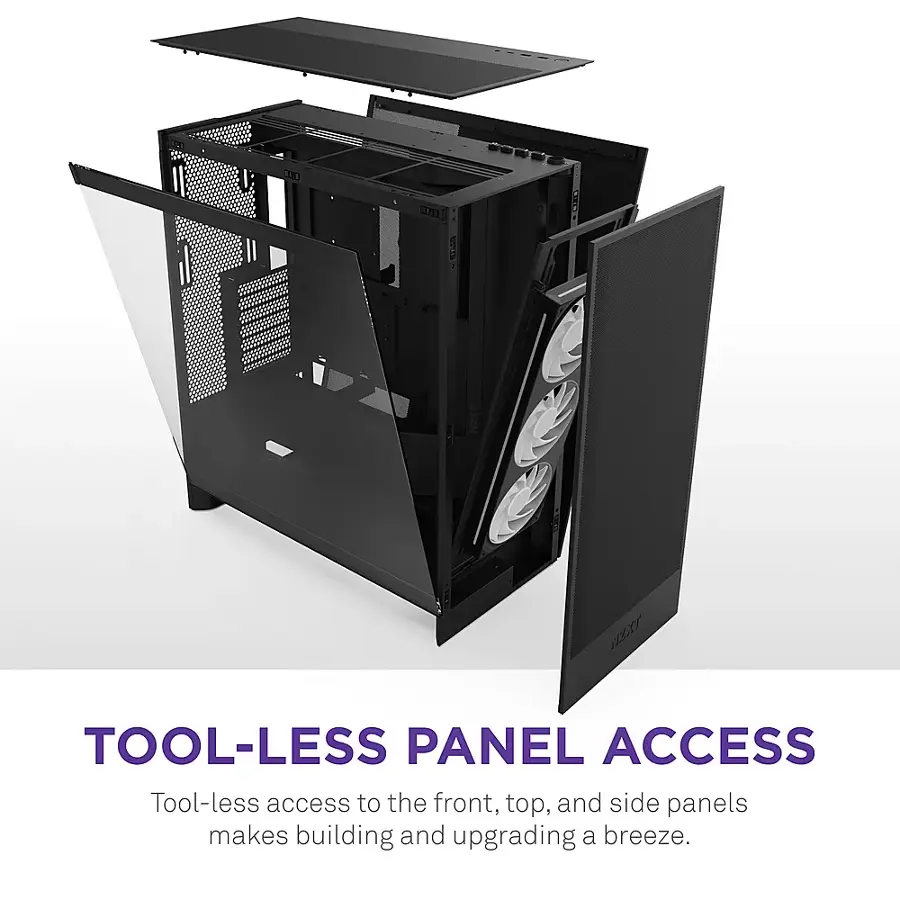

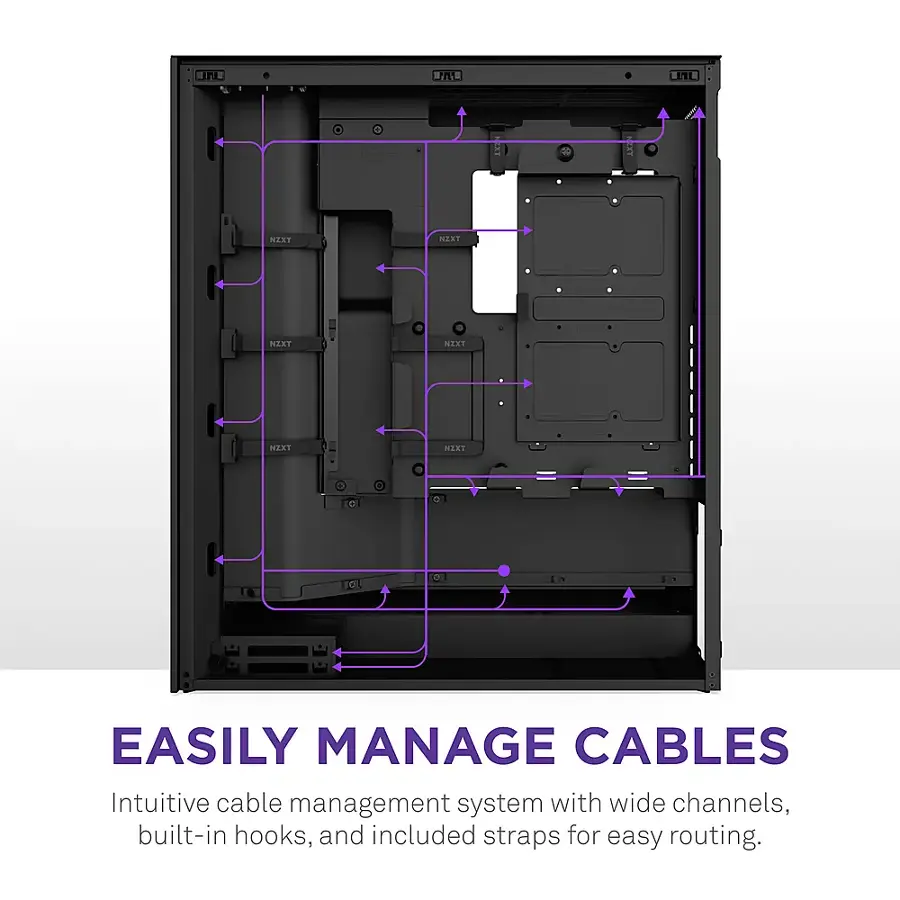

- Building Made Easy: With the H7 Flow, you will enjoy a simplified building and tinkering experience. An intuitive cable management system, tool-less panel access, and support for ATX and EATX motherboards make working in it a breeze. Convenient top-panel I/O ports, ample drive bay options, and room for up to 400mm GPUs also make it a great choice.
Q: Can the case support water cooling?
A: This PC case has cooling support that is water cooling ready.
Q: Are there any screwless rails for easy installation?
A: This PC case has a screwless rail design.
Q: What is the maximum height of a CPU cooler that can be installed?
A: The maximum height of a CPU cooler that can be installed is 185 millimeters.
Q: Does the case have a window panel?
A: The case has a panoramic window panel.
Q: How many fans are included with the case?
A: The case includes three fans.
Q: What is the maximum length of a graphics card that can be installed?
A: The maximum length of a graphics card that can be installed is 410 millimeters.
Q: What is the maximum length of a graphics card that can be installed?
A: The maximum length of a graphics card that can be installed is 410 millimeters.
Q: Can the case support water cooling?
A: This case offers support for water cooling.
