Questions & Answers

Q: QuestionDoes this range hood come with a damper?

• A:Answer Yes, this range hood includes a damper to prevent smoke and odors from recirculating.

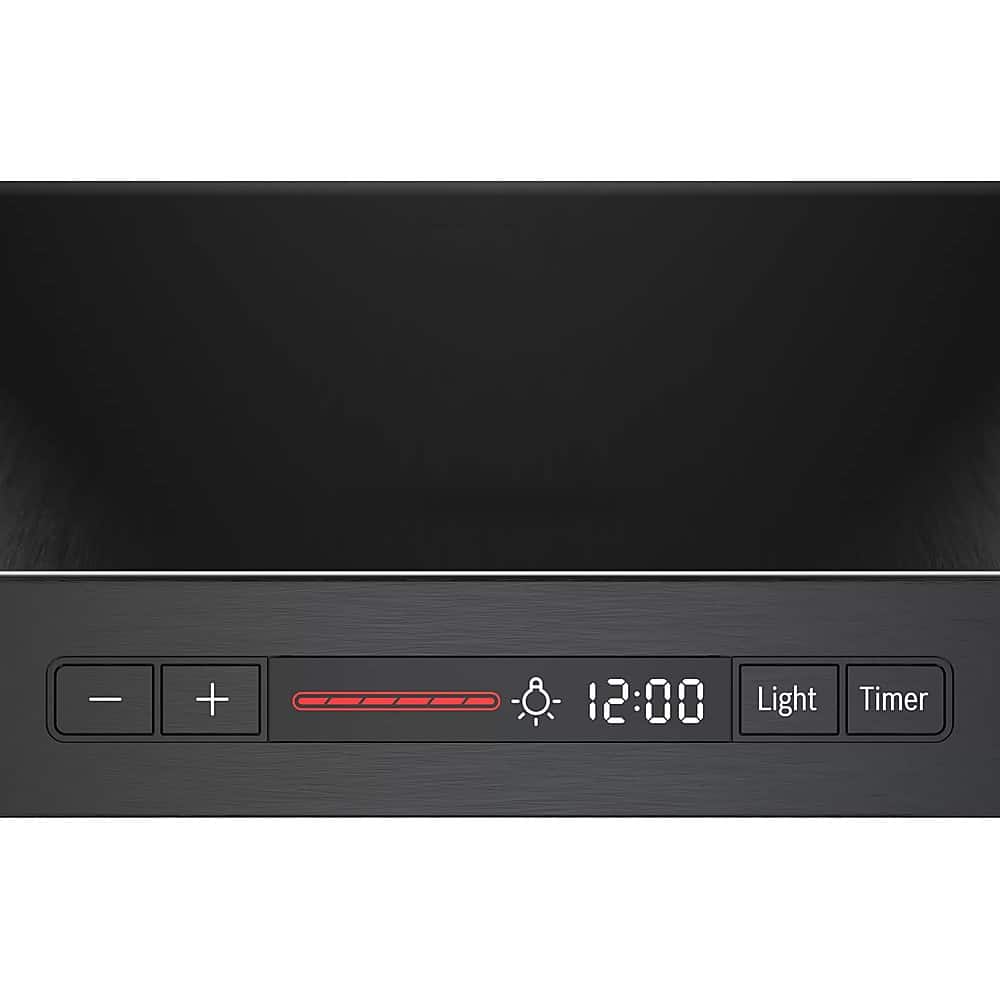

Q: QuestionHow many fan speeds does this Bosch range hood have?

• A:Answer This Bosch range hood features a four-speed fan for efficient ventilation.

Q: QuestionWhat is the maximum airflow capacity of this range hood?

• A:Answer This range hood has a maximum airflow capacity of 600 cubic feet per minute.

Q: QuestionCan I monitor this range hood remotely?

• A:Answer Yes, you can remotely monitor and control this range hood using the Home Connect app on your smart device.

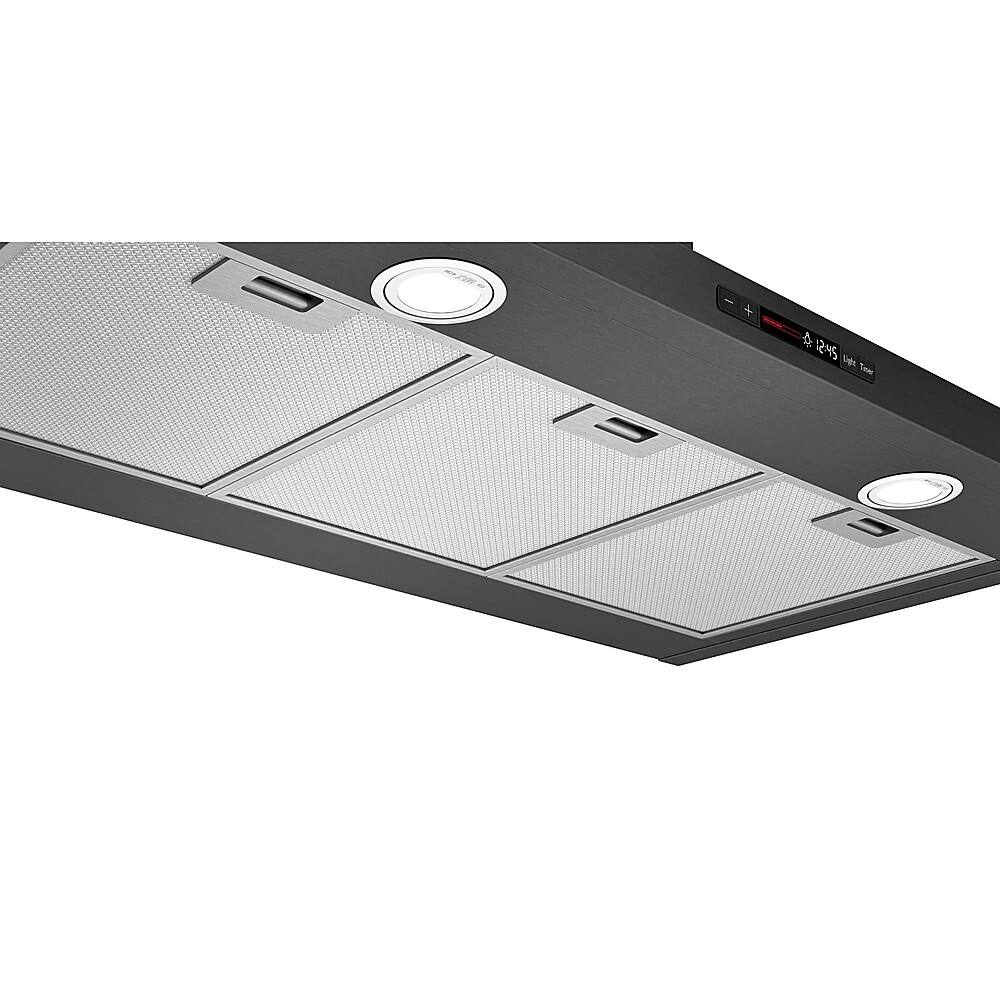

Q: QuestionDoes this range hood come with a light?

• A:Answer Yes, this range hood comes with two halogen lights to illuminate your cooking area.

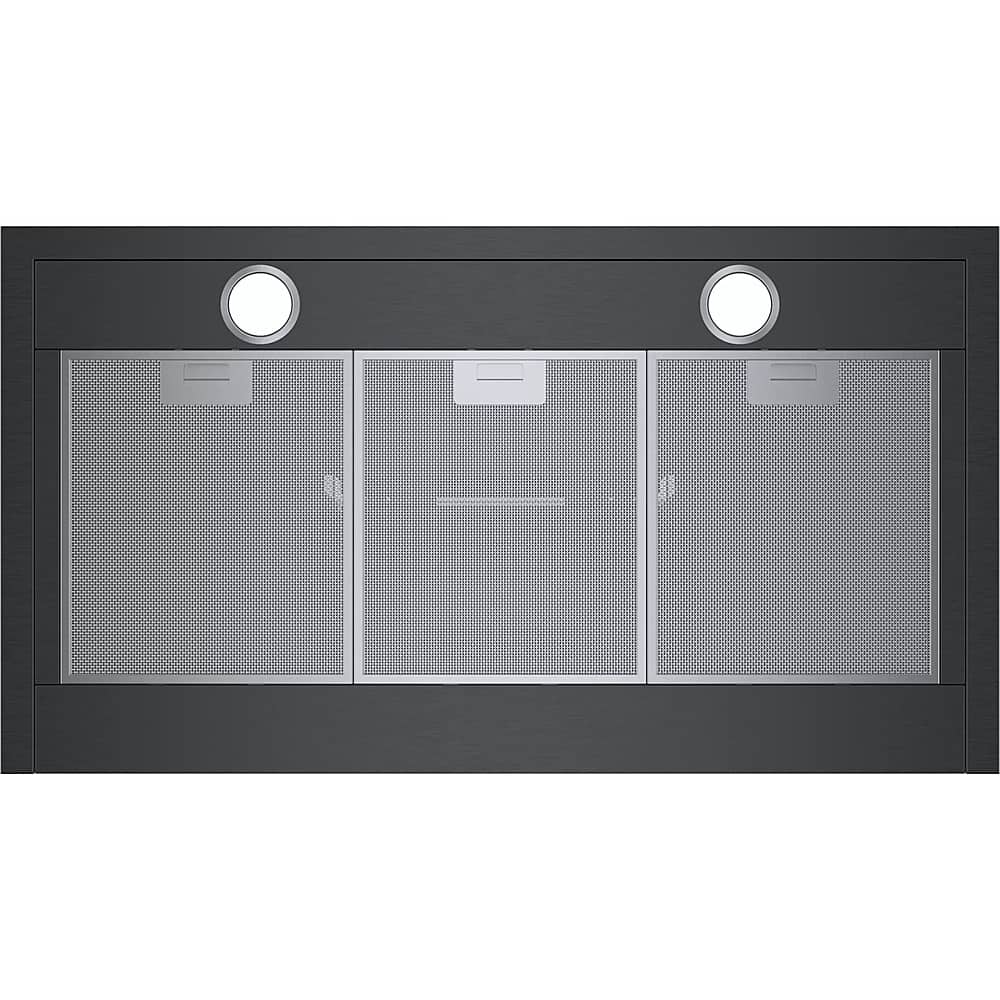

Q: QuestionWhat type of filters does this range hood use?

• A:Answer This range hood uses removable, dishwasher-safe aluminum filters for easy cleaning.

Q: QuestionWhat type of filters does this Bosch range hood use?

• A:Answer This Bosch hood uses dishwasher-safe aluminum mesh filters for easy cleaning.

Q: QuestionInstallation of a vertical exhaust pipe will run into a roof joist above our ceiling (in the attic). Is it possible to install this range hood so that it discharges horizontally through the wall to the exterior of the house?

Asked 1 month ago by MrMark.

• A:Answer Hi, thank you for your question. This wall hood can discharge through an external wall. See the specification sheet on the Bosch website for details on approved installation configurations.

  Answered 1 month ago by BoschAppliancesUSA


  Helpful (1)Unhelpful (0)ReportAnswer this question

Q: QuestionWhat is the difference between the 500 and 800 series?

Asked 3 months ago by Ech.

• A:Answer Hi, thank you for your question and interest in Bosch chimney wall hoods! We wanted to clarify that model HCP56652UC is currently marked incorrectly—it actually belongs to our 500 Series. If you have specific models you'd like to compare, feel free to email us at [email protected] with those model numbers. Our team would be delighted to provide you with additional details and assist you further!

  Answered 3 months ago by BoschAppliancesUSA


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: Questionwhere does it plug in from?

Asked 9 months ago by Sherry.

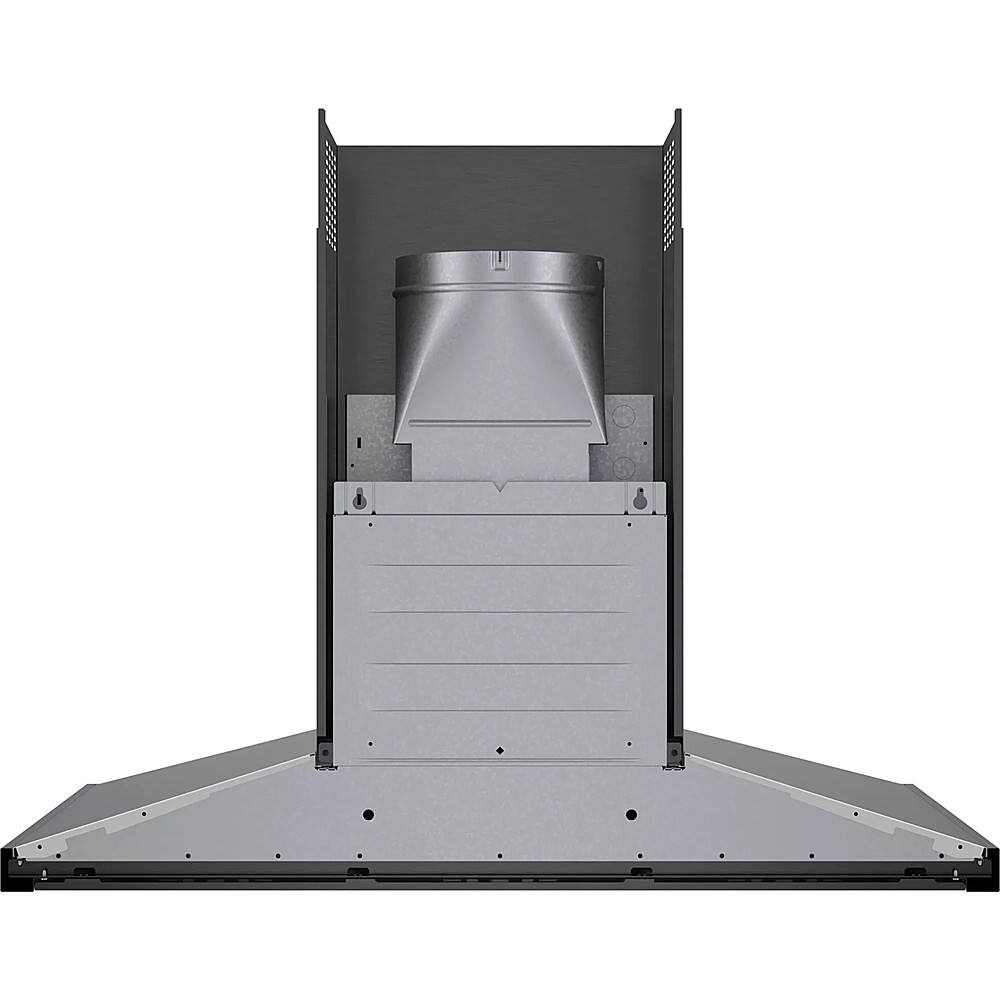

• A:Answer Hi Sherry, thanks for your question. The plug for model HCP56652UC is located in the back of the unit.

  Answered 9 months ago by BoschAppliancesUSA


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionHi, I see the out of box height is 42inch, Would this fit in a 24inch height space, I have low ceilings and can’t have anything higher

Asked 1 year ago by Khian.

• A:Answer Hi Khian, thank you for your question. The HCP86641UC has the following overall appliance dimensions (width of canopy included) (HxWxD): 24 9/16" – 38 7/8" / 28 1/4" – 42 9/16" x 36" x 19 11/16". If your installation area is not able to accommodate the appliance's dimensions modifications may need to be made.

  Answered 1 year ago by BoschAppliancesUSA


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionDo you offer the extension chimney to reach ceiling heights of 10'?

Asked 2 years ago by Smokey.

• A:Answer Hi Smokey, thanks for your question and interest in model #HCP56652UC. Yes, the chimney extension for 9–11.5 ft. ceilings is model# HCPEXT5UC.

  Answered 2 years ago by BoschAppliancesUSA


  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: Questionhow noisy is it? what is the noise level?

Asked 5 years ago by kkhine.

• A:Answer Hi Kay, thank you for your question and your interest in Model:HCP86641UC. The Chimney Wall Hood has a rating of 9.9 HS and 4.56 WS Sones.

  Answered 5 years ago by BoschAppliancesUSA


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionThis says I will need a charcoal kit if I do not vent it outside the house. What are the additional accessories and parts I need to have this work and installed?

Asked 5 years ago by WillCan3.

• A:Answer My vent is vented outside but if your vent is not then a charcoal filter is needed in place of the mess filter that is used to vent outside. This will help contain grease and other impurities in the air from your cooktop. You shouldn't need anything further that I'm aware of.

  Answered 5 years ago by MagicjackVerified Purchase

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: QuestionAre there any clearances I need to consider when designing my wall cabinets around this hood fan? Like, may I place it in the 36" space between my wood cabinets? Or should I allow an inch or two between the hood and the side of each cabinet?

Asked 5 years ago by Homer.

• A:Answer Hi Homer. Thank you for your question. Here are the dimensions and a link to the Installation Guide for Model:HCP86641UC. Overall appliance dimensions (width of canopy included): (HxWxD) (in.) 24 9/16" – 38 7/8"/28 1/4" – 42 9/16" x 36" x 19 11/16". Height of the chimney (in.) 19 9/16" – 33 7/8" / 23 1/4" – 42 9/16". Required distance above cooktop / range cooking surface: Min. 24" electric/ 27" gas. Diameter of air duct (in.) top: 8". Here is the link to the Installation Guide:https://media3.bosch-home.com/Documents/9001381240_B.pdf

  Answered 5 years ago by BoschAppliancesUSA


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionDo you need to buy a separate molding piece to finish at the ceiling? My contractor did not know.

Asked 1 year ago by rob.

• A:Answer Hi rob, thanks for your question and interest in model # HCP56652UC. No, you don not need to buy a separate molding piece to finish the top portion of the wall hood.

  Answered 1 year ago by BoschAppliancesUSA


  Helpful (0)Unhelpful (1)ReportAnswer this question

Q: QuestionIs this the 500 series or the 800 series.. the model number does not match what's on the vendor site

Asked 3 years ago by AB.

• A:Answer Hi AB, thanks for your question and interest in model HCP56652UC. This unit is actually a 500-series model. We do apologize for any confusion. Thank you for considering Bosch!

  Answered 3 years ago by BoschAppliancesUSA


  Helpful (0)Unhelpful (1)ReportAnswer this question

Q: QuestionWhat other parts do I need to order if I want to convert this model to a recirculating unit rather than a outdoor vented system? Can you please give me the parts/part numbers that I would need to add?

Asked 4 years ago by Sunday.

• A:Answer Hi Sunday, thank you for your question and interest in Model:HCP86641UC. Here is the information for the recirculation kit for this range hood: #HCREC5UC - Recirculation kit

  Answered 4 years ago by BoschAppliancesUSA


  Helpful (0)Unhelpful (1)ReportAnswer this question
