Questions & Answers

Q: QuestionWhat is the minimum frequency response of this subwoofer?

• A:Answer The Sub1 Powered Bass Module has a minimum frequency response of 40 hertz.

Q: QuestionHow is the Bose Sub1 subwoofer connected?

• A:Answer The Bose Sub1 subwoofer uses XLR connections for input and output.

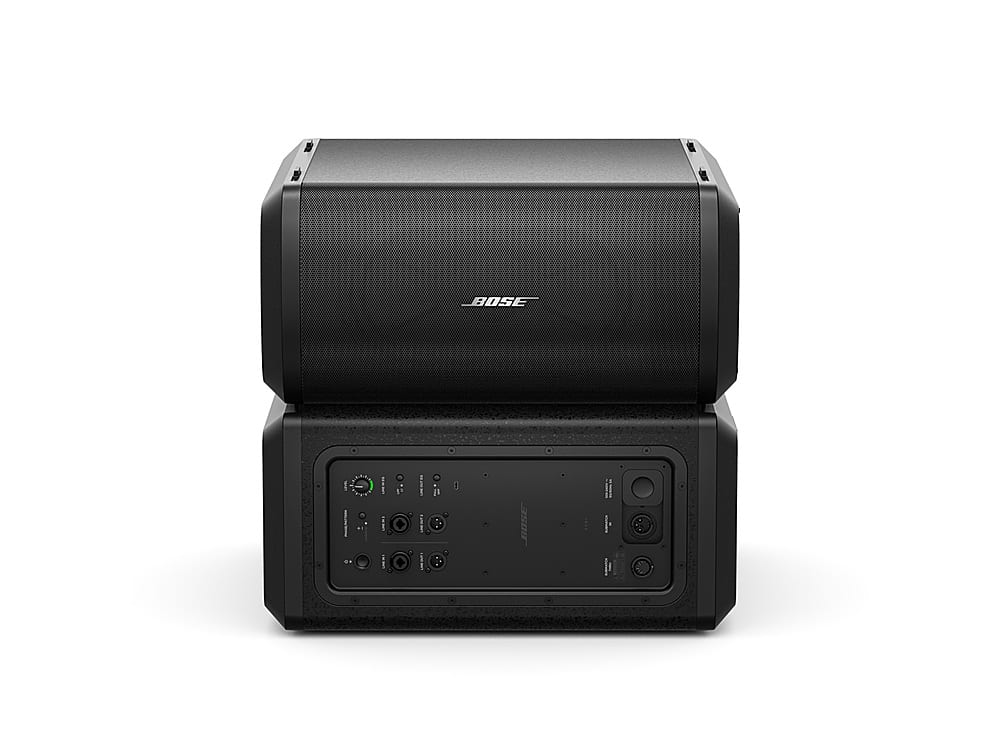

Q: QuestionWhat is Cardioid Mode and what is it used for?

• A:Answer Cardioid Mode is a feature that provides directional bass performance when multiple Sub1 subwoofers are stacked. It's particularly useful for outdoor events to minimize stage and microphone feedback.

Q: QuestionCan I use this subwoofer with other portable PA systems?

• A:Answer Yes, the Sub1 subwoofer can be combined with virtually any portable PA system.

Q: QuestionDoes this Bose Sub1 subwoofer have a built-in amplifier?

• A:Answer Yes, the Sub1 Powered Bass Module has an integrated amplifier.

Q: QuestionWhy is the Bose Sub1 designed with a RaceTrack driver?

• A:Answer The unique shape of the RaceTrack driver allows for a slimmer enclosure without compromising sound quality, making it more portable.

Q: QuestionWill this Bass hook up to Bose S1 Pro while they're hook up to Bluetooth via Bose App?

Asked 4 years ago by BoseMan.

• A:Answer Yes. The sub1 is not wireless so you have to connect one S1 Pro to the Sub1 with a 4-inch TRS to 1/4-inch TRS Cable or XLR. The cable will be connected to the Line Out on S1 Pro to the Line In on the Sub1. It is recommended to first power on the sub1 then the S1 Pro and the opposite when powering down. From there you can use the Bose connect app to play your music.

  Answered 4 years ago by GreenBeanVerified Purchase

  Helpful (1)Unhelpful (0)ReportAnswer this questionShow more answers (2)

Q: QuestionHello, wanted to know if this is compatible to be added to Bose Lifestyle 650 home entertainment system, your response would be highly appreciated, thank you.

Asked 1 year ago by AMen19.

• A:Answer It is not possible to link a Sub1 bass module to a Lifestyle 650.

  Answered 1 year ago by Bose Support

  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionCan you send me diagrams how to connect bose S1 pro to Bose sub 1? Do i still need mixers to used bose S1 pro to Bose Sub1? Thanks a lot.

Asked 2 years ago by Marky.

• A:Answer Hi. Here are the steps. Connecting to a Bose S1 Pro system: 1. Connect a 1/4" (6.3 mm) cable from the LINE OUT jack on the S1 to the LINE IN 1 jack on the sub module. 2.On the sub module, press and hold the LINE OUT EQ button for 5 seconds until the HPF light glows green, which signals S1 EQ is active for the LINE OUT jack. Tip: To turn off the S1 EQ, hold the button again for 5 seconds until the FULL light glows white.

  Answered 2 years ago by Bose Support

  Helpful (0)Unhelpful (0)ReportAnswer this question
