  • J-Tech Digital 18Gbps Audio Extractor Supports 4K/60Hz 4:4:4 HDR and ARC J-TECH DIGITAL™ 4K ULTRAHD™ MODEL:JTD18G-H5CH2 2.0CH DC 5V Power HDMI In ARC TV 5.1CH
  • MODEL: JTD18G-HSCH2 MODEL: ULTRAHD 4K TM DIGITAL J-TECH ARC and H 4:4:4 4K/60H Supports Extractor Audie 18Gbps Digitals J-Tech d HDMI Out Optical Out L R

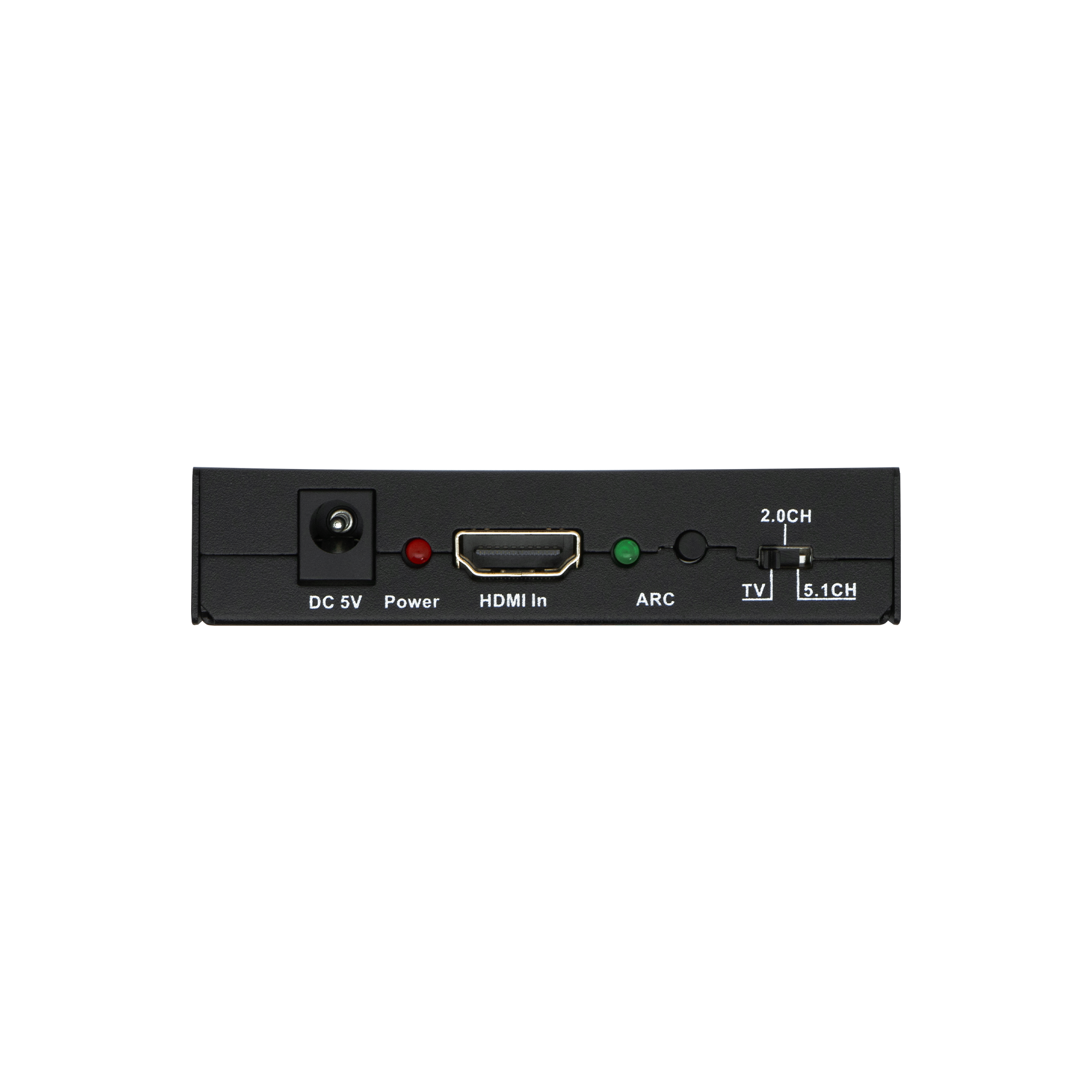

  • 2.0CH, DC 5V Power, HDMI In, ARC, TV, 5.1CH

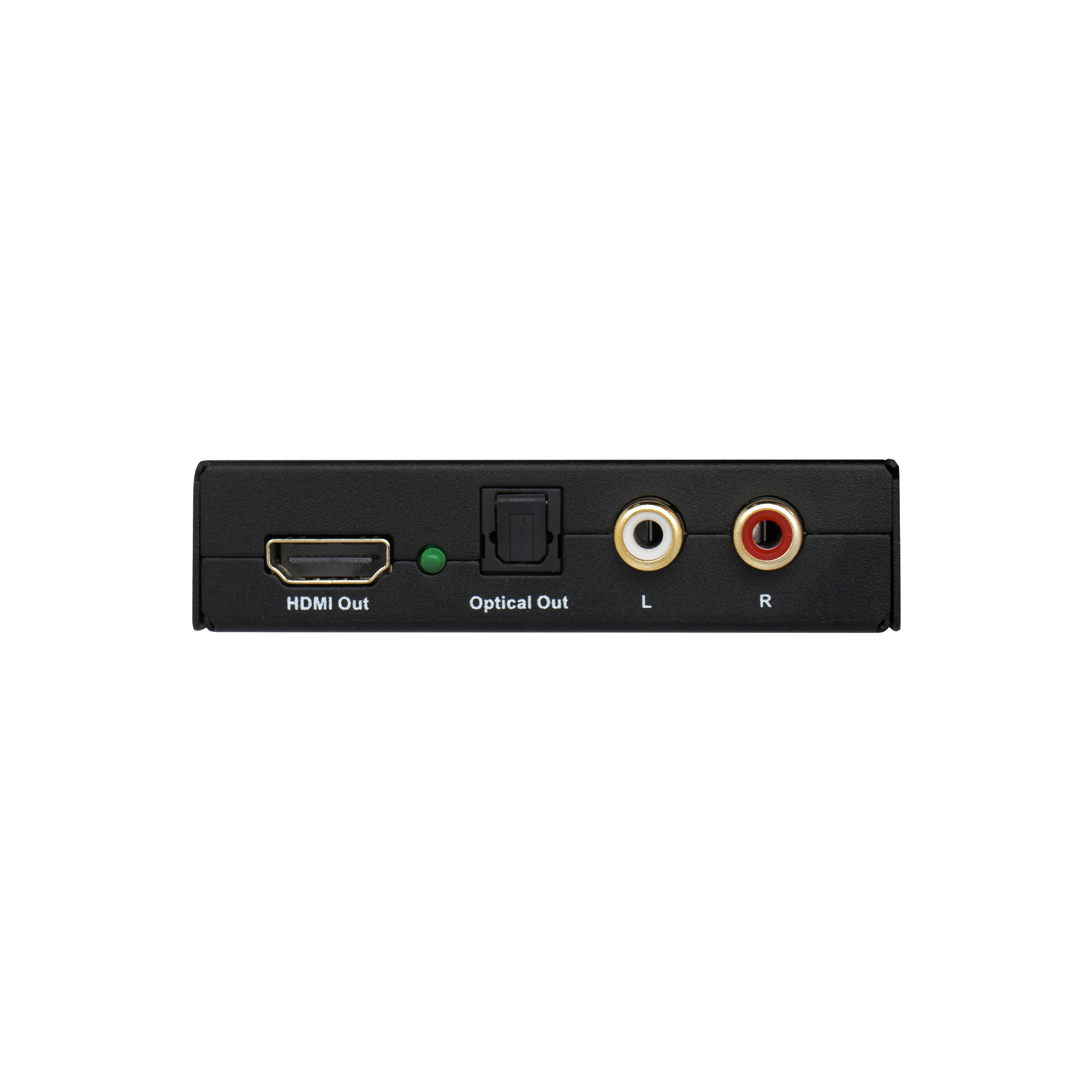

  • HDMI Out, Optical Out, L, R

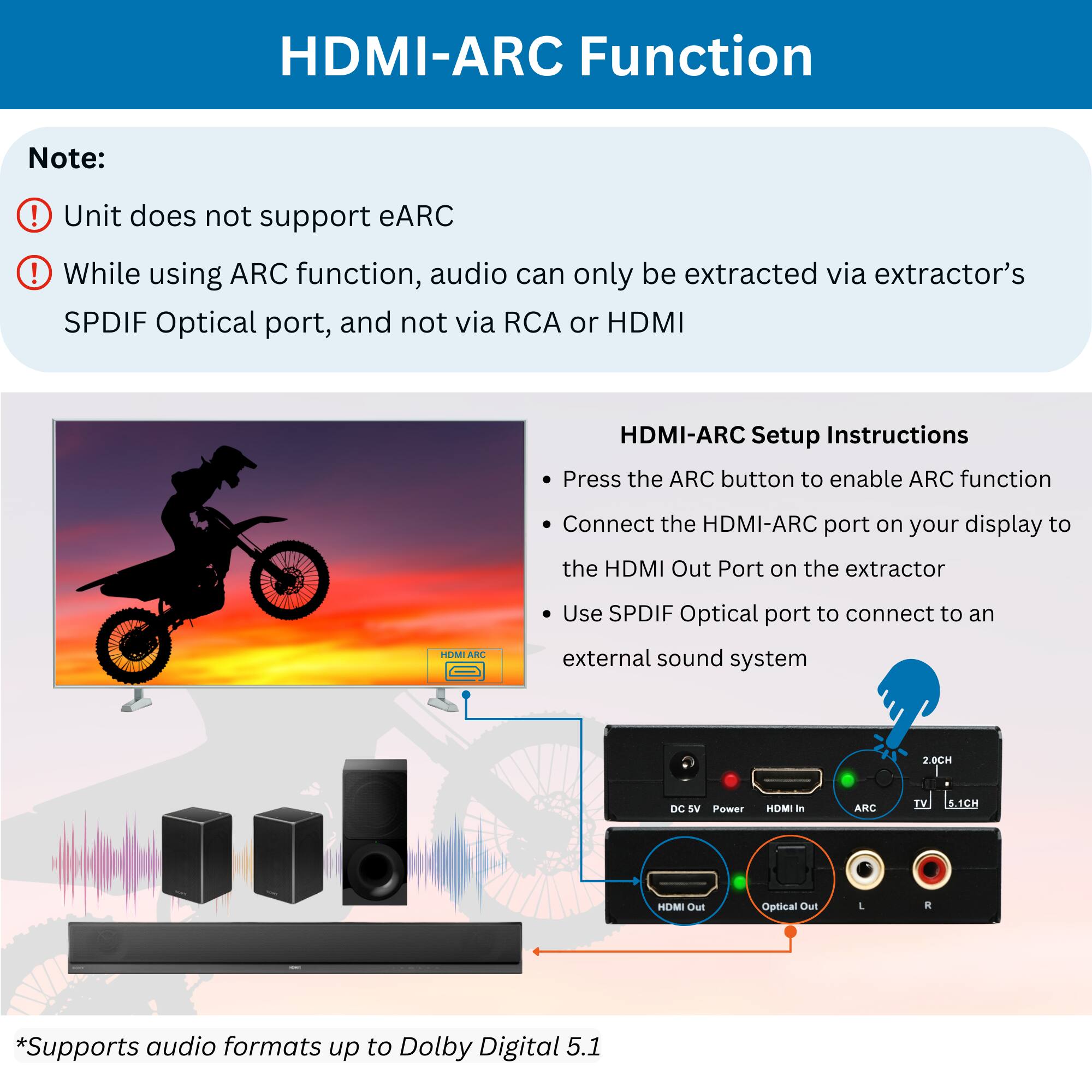

  • **HDMI-ARC Function** **Note:** - Unit does not support eARC - While using ARC function, audio can only be extracted via extractor’s SPDIF Optical port, and not via RCA or HDMI **HDMI-ARC Setup Instructions** - Press the ARC button to enable ARC function - Connect the HDMI-ARC port on your display to the HDMI Out Port on the extractor - Use SPDIF Optical port to connect to an external sound system *Supports audio formats up to Dolby Digital 5.1

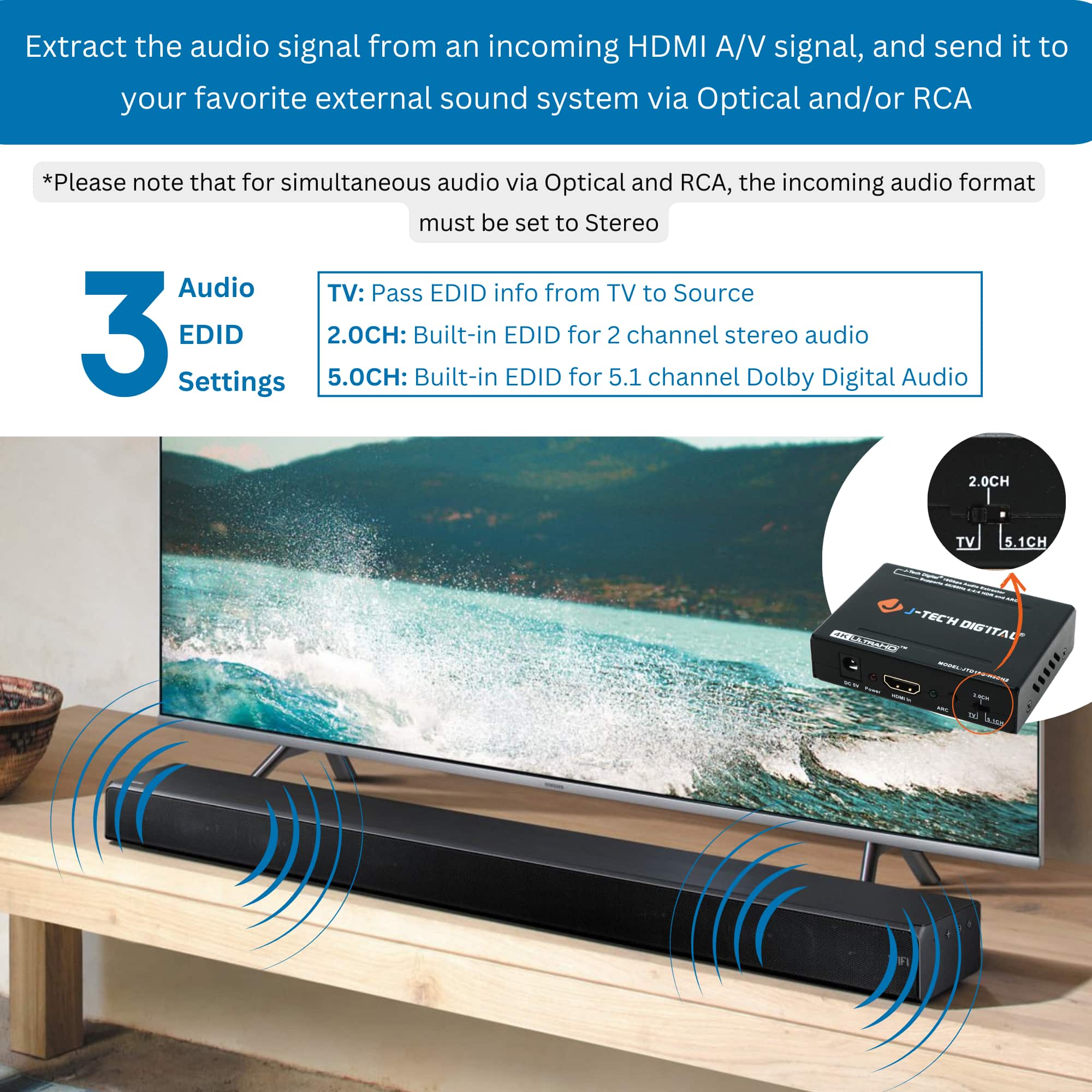

  • Extract the audio signal from an incoming HDMI A/V signal, and send it to your favorite external sound system via Optical and/or RCA. *Please note that for simultaneous audio via Optical and RCA, the incoming audio format must be set to Stereo. 3 Audio EDID Settings TV: Pass EDID info from TV to Source 2.0CH: Built-in EDID for 2 channel stereo audio 5.0CH: Built-in EDID for 5.1 channel Dolby Digital Audio
  • Supports Up To 4K@60Hz Resolution Compatible with 4K 60Hz 1080P 120Hz 1080P 144Hz HDR 10-bit Color

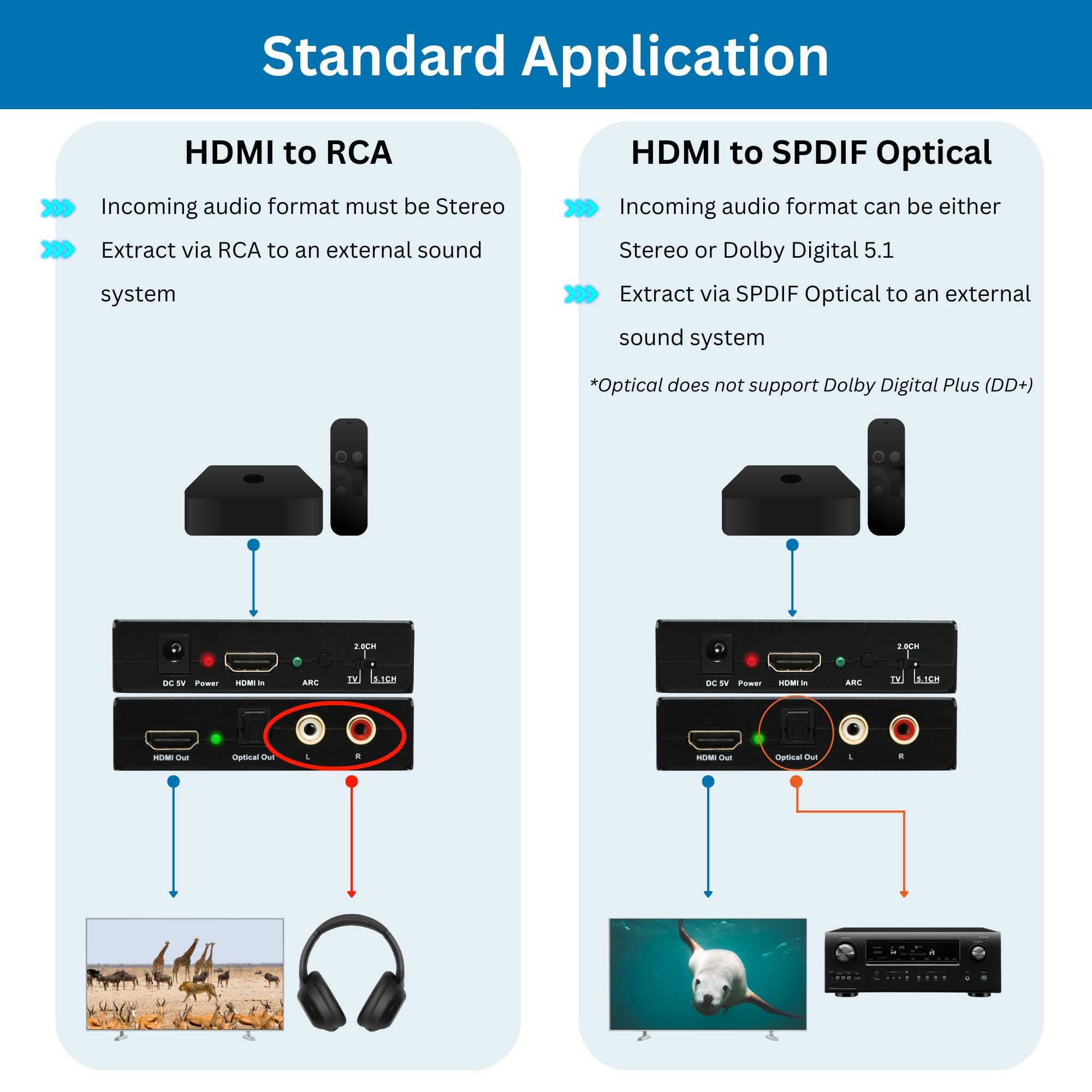

  • Standard Application HDMI to RCA - Incoming audio format must be Stereo - Extract via RCA to an external sound system HDMI to SPDIF Optical - Incoming audio format can be either Stereo or Dolby Digital 5.1 - Extract via SPDIF Optical to an external sound system - *Optical does not support Dolby Digital Plus (DD+)

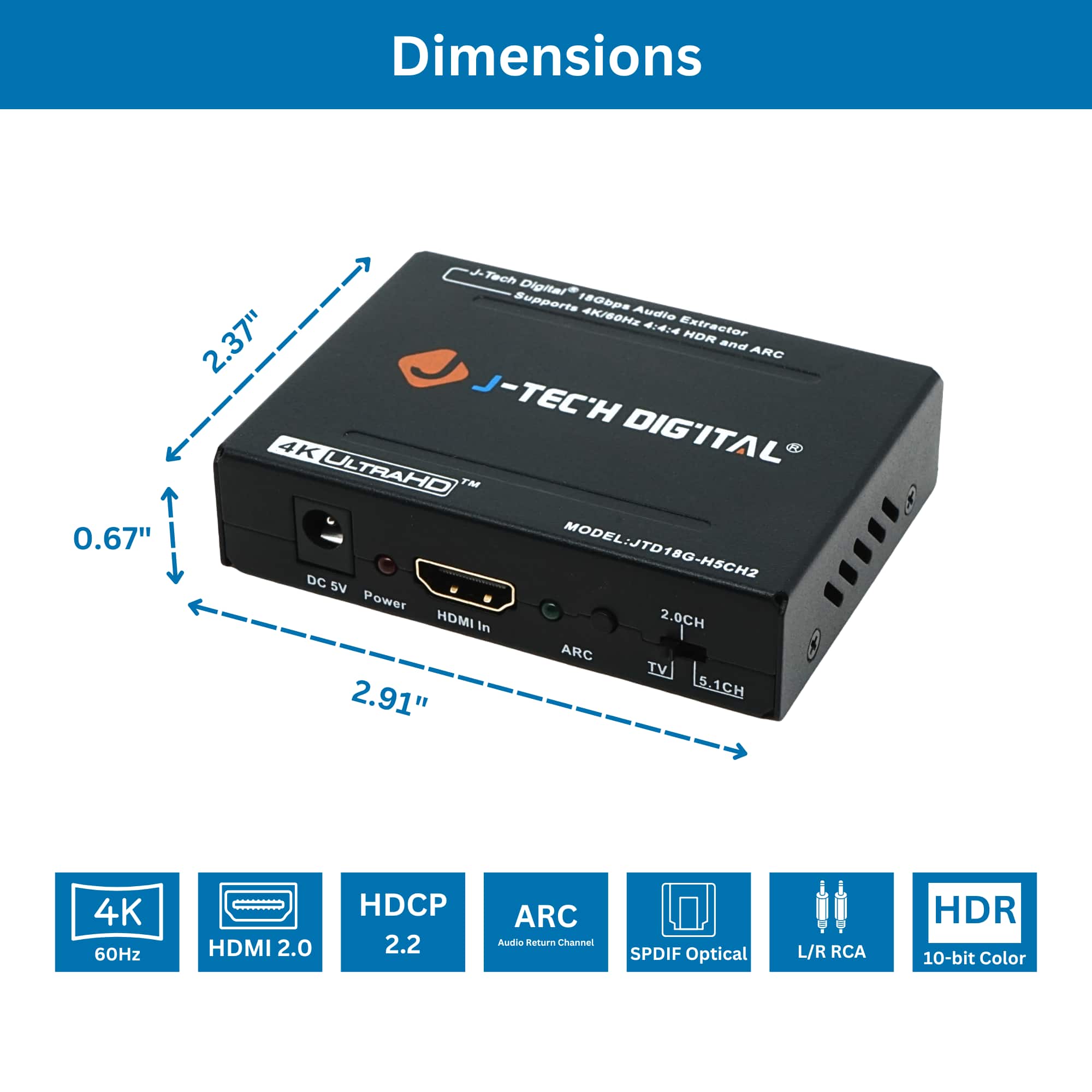

  • Dimensions 0.67" x 2.37" x 2.91" J-TECH DIGITAL 4K ULTRAHD™ MODEL: JTD18G-HSCH2 Features: - 4K/60Hz - HDMI 2.0 - HDCP 2.2 - ARC (Audio Return Channel) - SPDIF Optical - L/R RCA - HDR - 10-bit Color Supports: - 180Mbps Audio - 4K/60Hz 4:4:4 - HDR Power: 5V DC Ports: - HDMI In - ARC - TV - 2.0CH - 5.1CH Specifications: - 4K 60Hz - HDMI 2.0 - HDCP 2.2 - ARC (Audio Return Channel) - SPDIF Optical - L/R RCA - HDR - 10-bit Color

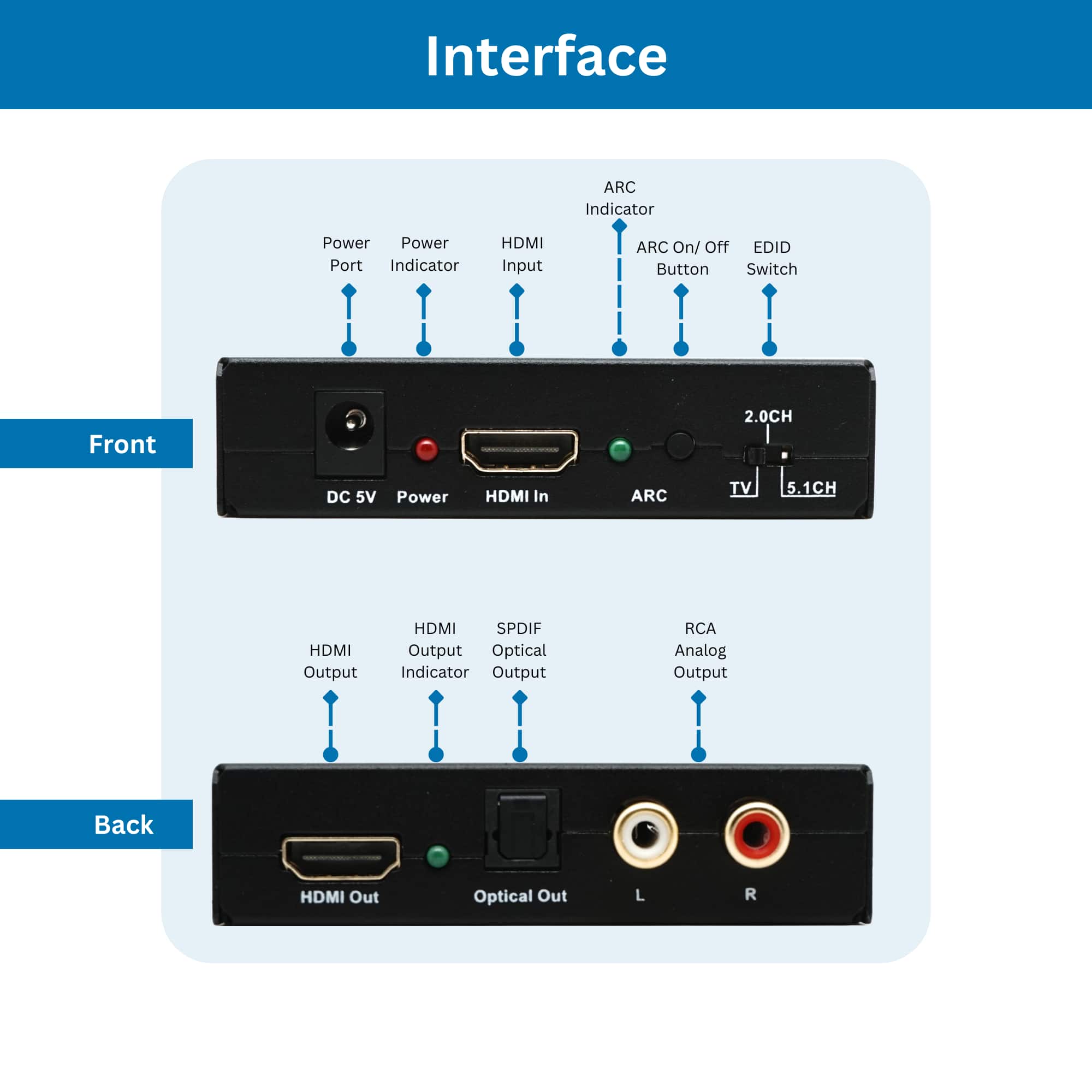

  • **Interface** **Front** - Power Port - Power Indicator - HDMI Input - ARC Indicator - ARC On/Off Button - EDID Switch - 2.0CH - 5.1CH - DC 5V - Power - HDMI In - ARC - TV **Back** - HDMI Output - HDMI Indicator - SPDIF Output - Optical Output - RCA Analog Output - HDMI Out - Optical Out - L - R

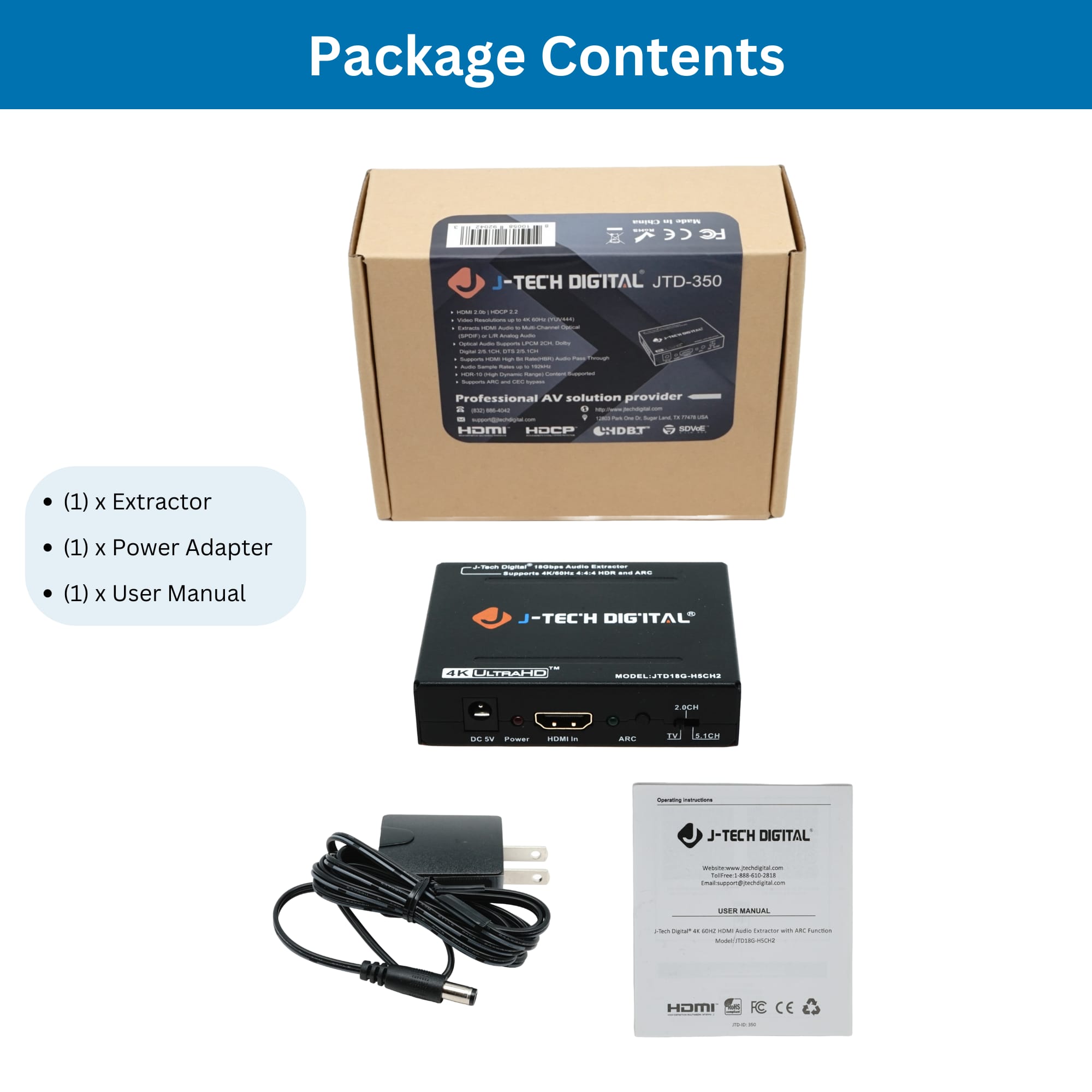

  • Package Contents - (1) x Extractor - (1) x Power Adapter - (1) x User Manual J-TECH DIGITAL JTD-350 Professional AV solution provider HDMI HOMI UNDET J-TECH DIGITAL 4K ULTRA HD DC 5V Power J-TECH DIGITAL Opening Instructions J-TECH DIGITAL USER MANUAL HDMI in ARC TV BLCH HDMI CE C

J-Tech Digital - 4K 60Hz HDMI Audio Extractor with HDMI-ARC Function - Black

Model:
JTD18G-H5CH2
SKU:
10178770
