J-Tech Digital - 4K 60Hz HDMI Audio Extractor with Optical and 3.5mm Outputs - Black
J-Tech Digital - 4K 60Hz HDMI Audio Extractor with Optical and 3.5mm Outputs - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTD18G-H5CH
- Product Name: J-Tech Digital 4K 60Hz HDMI Audio Extractor with Optical and 3.5mm Outputs
- Color: Black
- Connectivity
- Input(s): HDMI

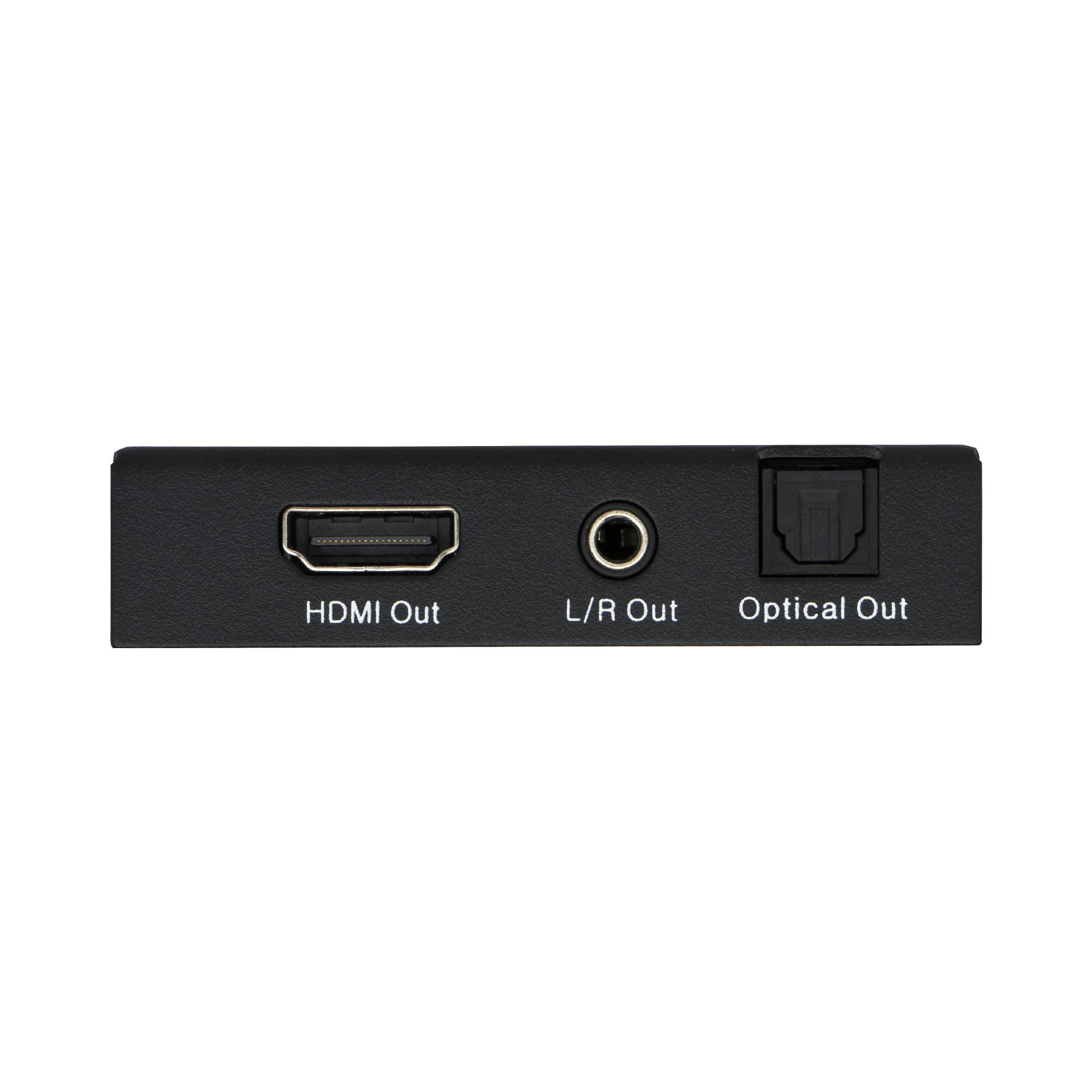

- Output(s): Optical, HDMI, 3.5mm audio
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 766150279948
The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

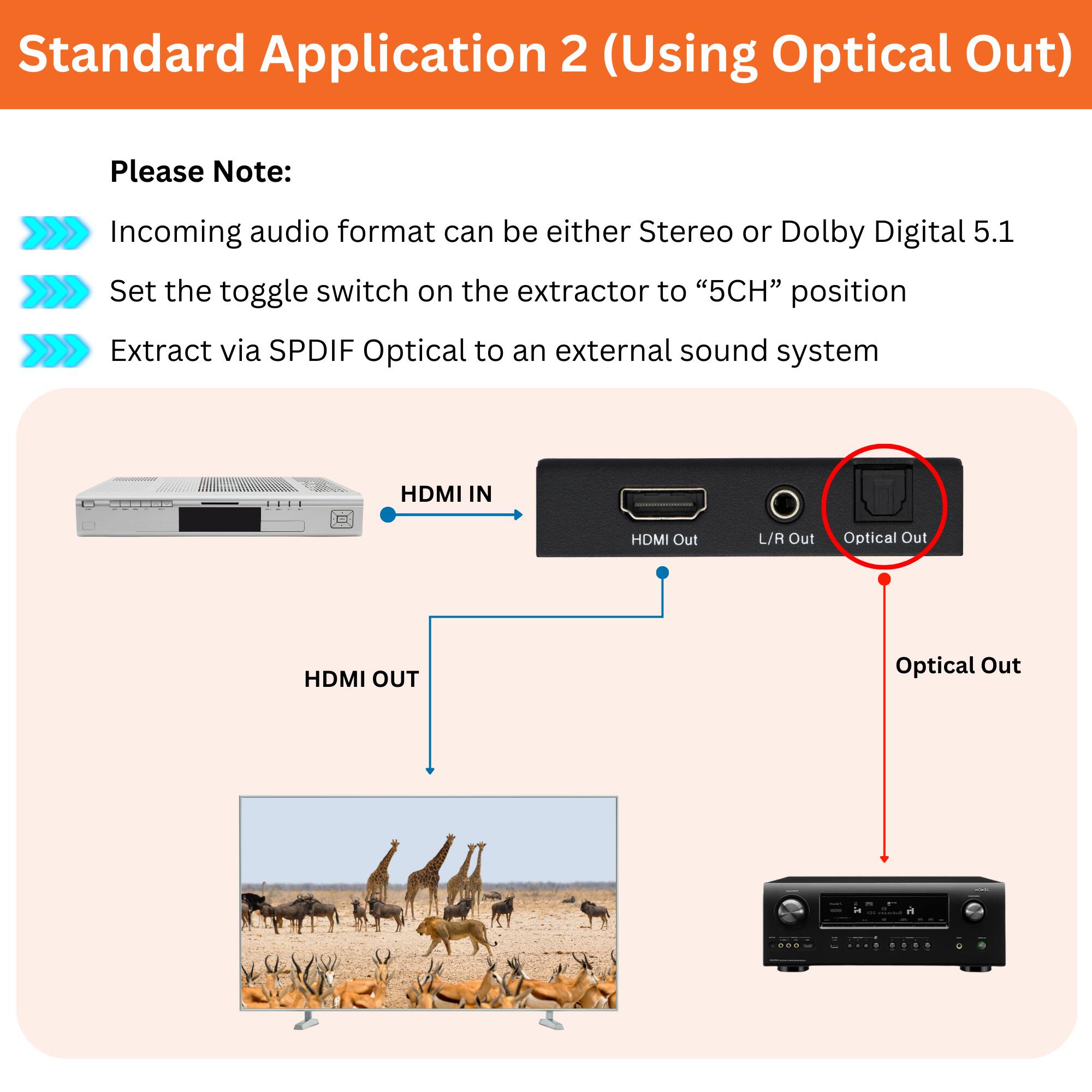

- HDMI Audio Extractor: Extract audio from an incoming HDMI audio / video signal, and send it to an external sound system via SPDIF Optical and/or 3.5mm Analog
- UHD Resolution Support: Supports up to 4K@60Hz, 1080P@ 120/144Hz
- Dual Audio Outputs: 3.5mm audio output supports up to 2ch stereo audio. SPDIF Optical supports up to Dolby Digital 5.1
- EDID Toggle Switch: Three EDID settings (TV / 5ch / 2ch) to help maximize audio compatibility
- HDMI Audio Extractor: Extract audio from an incoming HDMI audio / video signal, and send it to an external sound system via SPDIF Optical and/or 3.5mm Analog
- UHD Resolution Support: Supports up to 4K@60Hz, 1080P@ 120/144Hz
- Dual Audio Outputs: 3.5mm audio output supports up to 2ch stereo audio. SPDIF Optical supports up to Dolby Digital 5.1
- EDID Toggle Switch: Three EDID settings (TV / 5ch / 2ch) to help maximize audio compatibility
Whats Included
- Audio Extractor, Power Adapter, User Manual
- Audio Extractor, Power Adapter, User Manual
