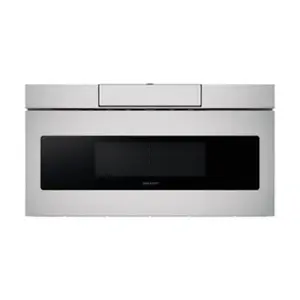

Sharp - 1.2 Cu. Ft. Built-in Microwave Drawer with Sensor Cooking - Stainless Steel
Color
Shipping
Specifications
Key Specs
Product Height15 7/8 inchesProduct Width23 7/8 inchesProduct Depth23 3/200 inchesApp CompatiblefalseMicrowave TypeDrawerSensor CooktrueControl TypeTouchscreenWattage950 wattsColor FinishStainless steel
General
Product Name1.2 Cu. Ft. Built-in Microwave Drawer with Sensor CookingBrandSharpModel NumberSMD2470ASYColorStainless SteelColor FinishStainless steel
Dimensions
Product Height15 7/8 inchesProduct Width23 7/8 inchesProduct Depth23 3/200 inchesProduct Weight74 pounds
Cut-Out Dimensions
Cut-Out Height15 14/25 inchesCut-Out Width22 1/10 inches
Capacity
Capacity1.2 cubic feetMicrowave SizeMid-size
Connectivity
App Compatiblefalse
Features
Microwave TypeDrawerTimertrueChild LocktrueTurntabletrueInterior Light(s)trueCompatible Trim Kit Availablefalse
Controls
Sensor CooktrueControl TypeTouchscreenDisplay TypeLCDNumber of Preset Programs12Number of Power Levels12
Functions
Oven Cooking ModesDefrostOven Preset SettingsPopcorn
Electrical Specification
Amperage14.5 amperesVoltage120 voltsWattage950 watts
Certifications Listings & Approvals
ADA ComplianttrueCEE QualifiedfalseProduct Safety Certifications and Standard(s)UL ListedChemical DisclosuresCarbon black,Bisphenol A (BPA)
Warranty
Warranty - Parts1 YearWarranty - Labor1 Year
Other
UPC074000619371
Features
Modernize your kitchen design with this 24-inch Sharp microwave drawer oven. Its low profile supports versatile installation for a sleek, contemporary look, and the 1.2 cu. ft. capacity accommodates casserole dishes and frozen dinners. This Sharp microwave drawer oven has a hidden control panel that lets you access functions effortlessly.
950W for standard microwave cooking
Allows you to cook frozen meals or heat coffee, soup, and leftovers in no time.
Compact 1.2 cu. ft. interior provides enough room for snacks
You can reheat a small portion of leftovers or cook a treat, such as popcorn.
Sensor Cook technology
Determines when the food is ready and automatically adjusts the cooking time.
Durable and stylish stainless steel casing
Attractively complements your existing kitchen décor.
LCD display
Offers a clear view of available settings.
Hidden touch control panel
Opens at a 45° angle, so it's easy to read and operate.
Control lock feature for your peace of mind
Locks the oven and disables the control panel to prevent accidental activation.
Design flexibility

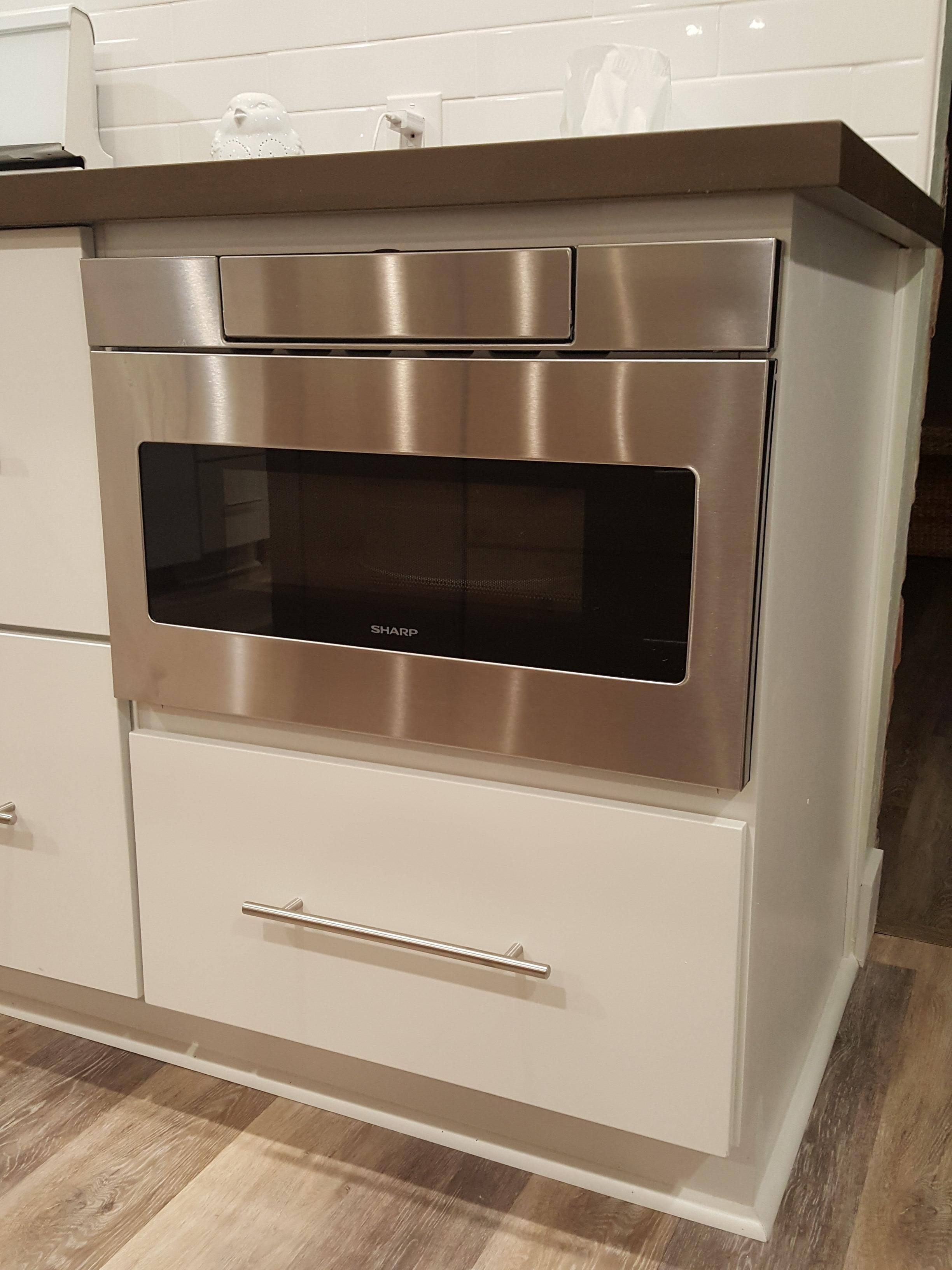

This microwave drawer can be placed below an island, peninsula, or standard cabinetry, and can also be installed adjacent to your wall oven.
Various cooking programs to fit your needs
6 defrost and 12 cooking settings.
What's Included
Owner's manual
Sharp 24" 1.2 Cu. Ft. Built-in Microwave Drawer
Questions & Answers (70)
- A: That Sharp answer was hilarious. What the consumer probably wanted when asking about the 1.2 cu ft capacity, is that the microwave internal cavity is the same size between the 24 and 30 inch models. I've seen both side-by-side in a store. The only difference is that the 30 inch model has a wider door and filler plate on either side of the microwave to cover the extra 3 inches between the 30 inch cabinet cutout and the 24 inch microwave. The 30 inch model looks better when stacked with other 30 inch appliances. If on it's own in a cabinet, say in an island, then the 24" model would use less space.
Q: How long is the power cord? And where is it on the back of the unit? (3 answers)
A: Hello Madison, the power cord is approximately 3FT and is located to the top left of the unit at the back.- A: Go online and check their website for the product specs which say exactly what dimensions are needed to install. However I would not recommend this microwave to anyone. Doesn't work properly and died within 13 months of usage.
Q: How does the drawer open? A handle isn't obvious. Do you push to open? (2 answers)
A: Hello, the unit does have an open/close button on the control panel. Also, if you wish to manually open the unit you can hold both sides of the drawer and pulls it gently towards you.- A: Hello Shari, for standard installation if installed correctly, with enough space to ventilate the unit will not damage your cabinet. For flushed installation, you should purchase a deflector vent which should help the unit to ventilate properly. Please be advised that there should be no closed cabinet installed directly beneath the unit. Please have your carpenter or installer view the installation manual for proper installation. For further advise please contact us at [email protected] and include the model number in your email.
- A: I would think you will need to do something to fill extra space. I too had too large of an opening but the depth was not enough. So we added trim board all the way around to get the depth we needed and to fill the vacant space. We were able to match the paint color of our cabinets. I love the drawer!
Q: What is the difference between Model SmD2470ASY and SMD2470AS (1 answers)
A: Hello, the SMD2470AS was released in 2014 while the SMD2470ASY is a 2016 model.- A: Hello, the interior dimensions are approximately width 17-11/32" x height 7-7/8" x depth 16-1/2".
