Whirlpool - 30 inches - Convertible - Wall Range Hood - Stainless Steel
Shipping
Specifications
Product Height45 1/8 inchesProduct Width30 inchesProduct Depth17 3/4 inchesExhaust Vent LocationTopVent TypeDucted, DuctlessVent StyleConvertible
Key Specs
Product Height45 1/8 inchesProduct Width30 inchesProduct Depth17 3/4 inchesExhaust Vent LocationTopVent TypeDucted, DuctlessVent StyleConvertibleColor FinishStainless steel
General
Product Name30" Curved Glass Wall Mount Range HoodBrandWhirlpoolModel NumberWVW51UC0LSColorStainless SteelColor FinishStainless steel
Dimensions
Product Height45 1/8 inchesMinimum Installation Height Above Cooktop24 inchesMaximum Installation Height Above Cooktop45 1/8 inchesProduct Width30 inchesProduct Depth17 3/4 inchesStandardized Width30 inchesProduct Weight37 poundsDuct ShapeRoundRound Duct Diameter6 inchesDuct Length45 1/2 inches
Features
Exhaust Vent LocationTopVent TypeDucted, DuctlessVent StyleConvertibleRange Hood TypeWallNumber of Fan Speeds3Temperature SensorNoControl TypeButtonDelay Shut-OffNoRemote ControlNoAuto Fan Shut-OffNoDamper IncludedYesIntegrated Light(s)YesNumber of Lights2Number of Light Levels1Bulb Type RequiredLEDBulb(s) IncludedYes
Performance
Maximum Air Flow Capacity400 cubic feet per minuteMinimum Air Flow Capacity80 cubic feet per minuteMaximum Operating Sound Level14 sones
Filter Info
Filter MaterialAluminum MeshDishwasher-Safe FilterNoRemovable Grease FilterYesNumber of Filters1
Electrical Specification
Amperage2 amperesVoltage120 volts
Certifications Listings & Approvals
Product Safety Certifications and Standard(s)UL Listed
Warranty
Manufacturer's Warranty - Parts1 year limitedManufacturer's Warranty - Labor1 year limited
Other
UPC883049622712
Easily vent smoke and odors with this 400 CFM Motor Class range hood that comes equipped with a 3-speed kitchen exhaust fan for powerful ventilation. This 30" wall mount range hood also comes with a detachable grease filter for convenient cleaning, LED range hood lights and a 65K BTU cooktop threshold.
3-Speed, 400 CFM Motor Class
Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

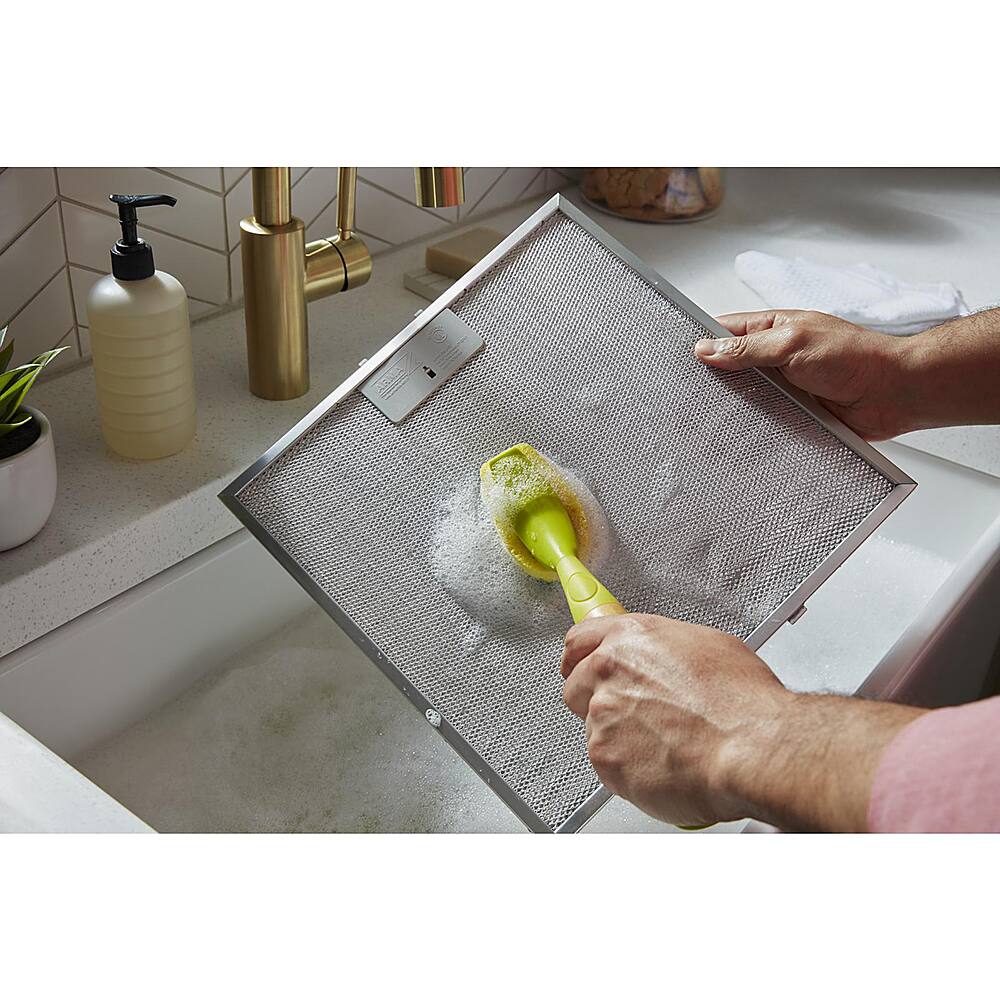

Grease Filter
Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
LED Task Lighting
Bright, long-lasting LED Task Lighting makes it easy to see what you’re cooking.
65K BTU Cooktop Threshold
Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
7 Sones Sound Level at high speed
Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.
Push Button Controls
Control fan speed and cooktop lighting at the push of a button
ADA Compliant
Meets ADA Standards for Accessible Design
Convertible Ventilation (Recirculating or Vented)
A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back home.
Optional Recirculation Kit (non-vented/duct-free)
This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548457.
6" Round Damper Included
Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915)
Optional Chimney Extension Kit
Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT10ES.
What's Included
Hood Canopy with blower, LED Lights
Dampers, Support Bracket
Metal Grease Filter
Screws
Manuals & Guides
Use and Care Manual
Measurement Guide
Warranty Manual
Search
Q: QuestionWhat is the diameter of the round duct required for this range hood?(1 answer)
A: AnswerThis range hood requires a round duct with a diameter of 6 inches.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat is the maximum BTU threshold for this range hood?(1 answer)
A: AnswerThis range hood has a 65K BTU cooktop threshold.This question and answer was generated by AI based on customer and product data.Q: QuestionCan this range hood be installed without venting outside?(1 answer)
A: AnswerYes, this hood can be installed without external venting using the optional recirculation kit (sold separately).This question and answer was generated by AI based on customer and product data.Q: QuestionHow many fan speeds does this Whirlpool range hood have?(1 answer)
A: AnswerThis Whirlpool range hood offers 3 fan speeds to provide the right amount of ventilation.This question and answer was generated by AI based on customer and product data.Q: QuestionDoes this range hood come with a grease filter?(1 answer)
A: AnswerYes, this range hood includes a grease filter that can be easily detached and cleaned in the sink.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat type of lighting does this range hood use?(1 answer)
A: AnswerThis range hood uses bright, long-lasting LED task lighting to illuminate your cooking area.This question and answer was generated by AI based on customer and product data.- A: AnswerHello, this model only has the option to turn the lights one and off. They do not come on and off when the kitchen lights are dimmed. Thank you for your inquiry on our Whirlpool appliances.
Answered by WhirlpoolTeam
Q: QuestionOur ceiling is a 9 feet 3 inches height. Do you think it will fit?(1 answer)
A: AnswerHi, TG. The height requirements depends on the venting installation When the appliance is vented is as followed: The maximum ceiling height for any cooking surface is 9 ft 5 inches. When the appliance is non venting is as followed: The maximum ceiling height for any cooking surface is 9ft 9 inches. We hope this helps.Answered by WhirlpoolTeam
